Baileigh, Shear, Break Roll, Max. Material Gauge 16 Model# SBR-5216

Item# 4685756
Baileigh, Shear, Break Roll, Max. Material Gauge 16 Model# SBR-5216

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Shear, Break Roll, Max. Material Gauge 16 Model# SBR-5216

Click or Tap image to Zoom

$5099.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 52” width lets you roll, bend, and shear 4’ x 8’ sheets.
  • Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom.
  • 1.70” minimum rolling diameter.

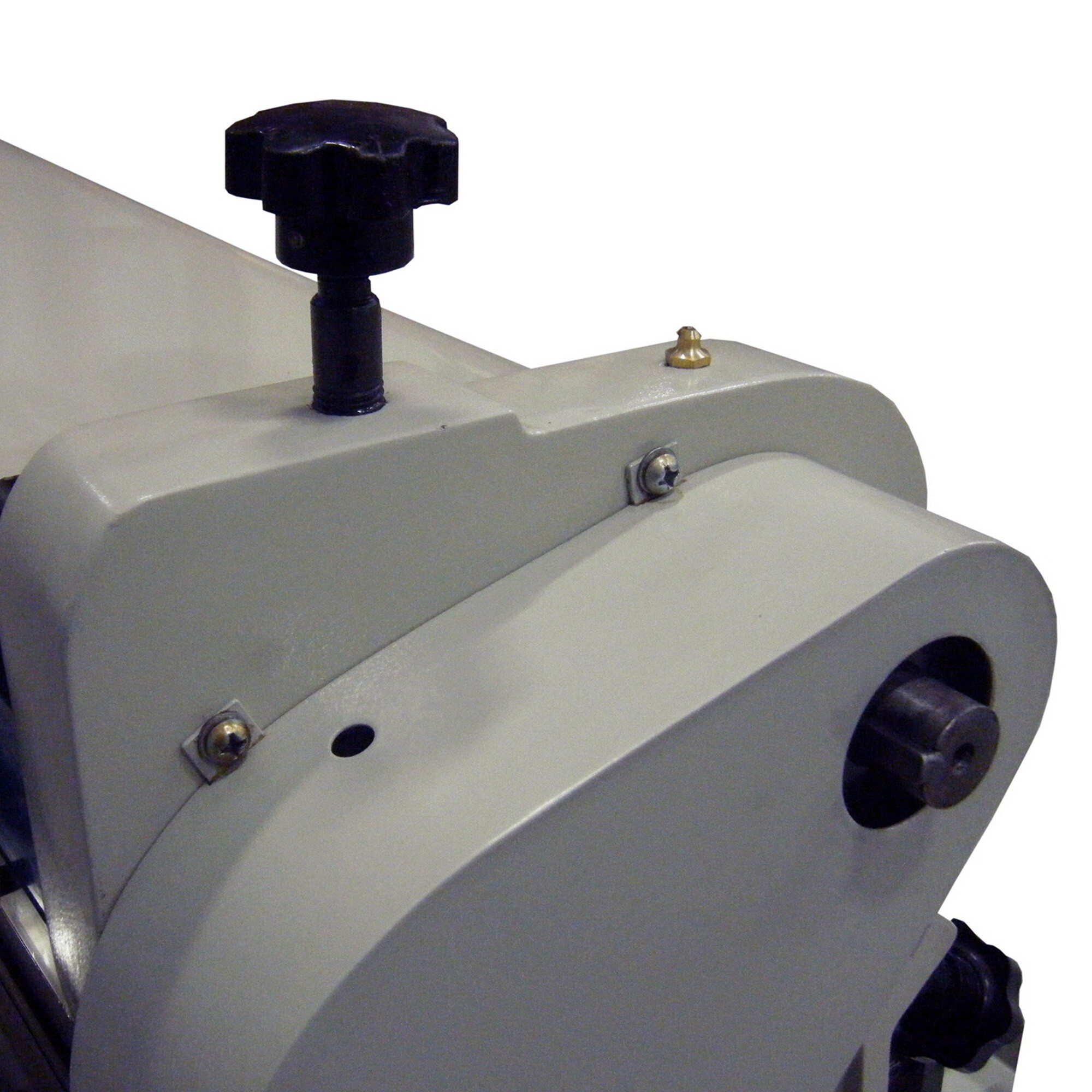

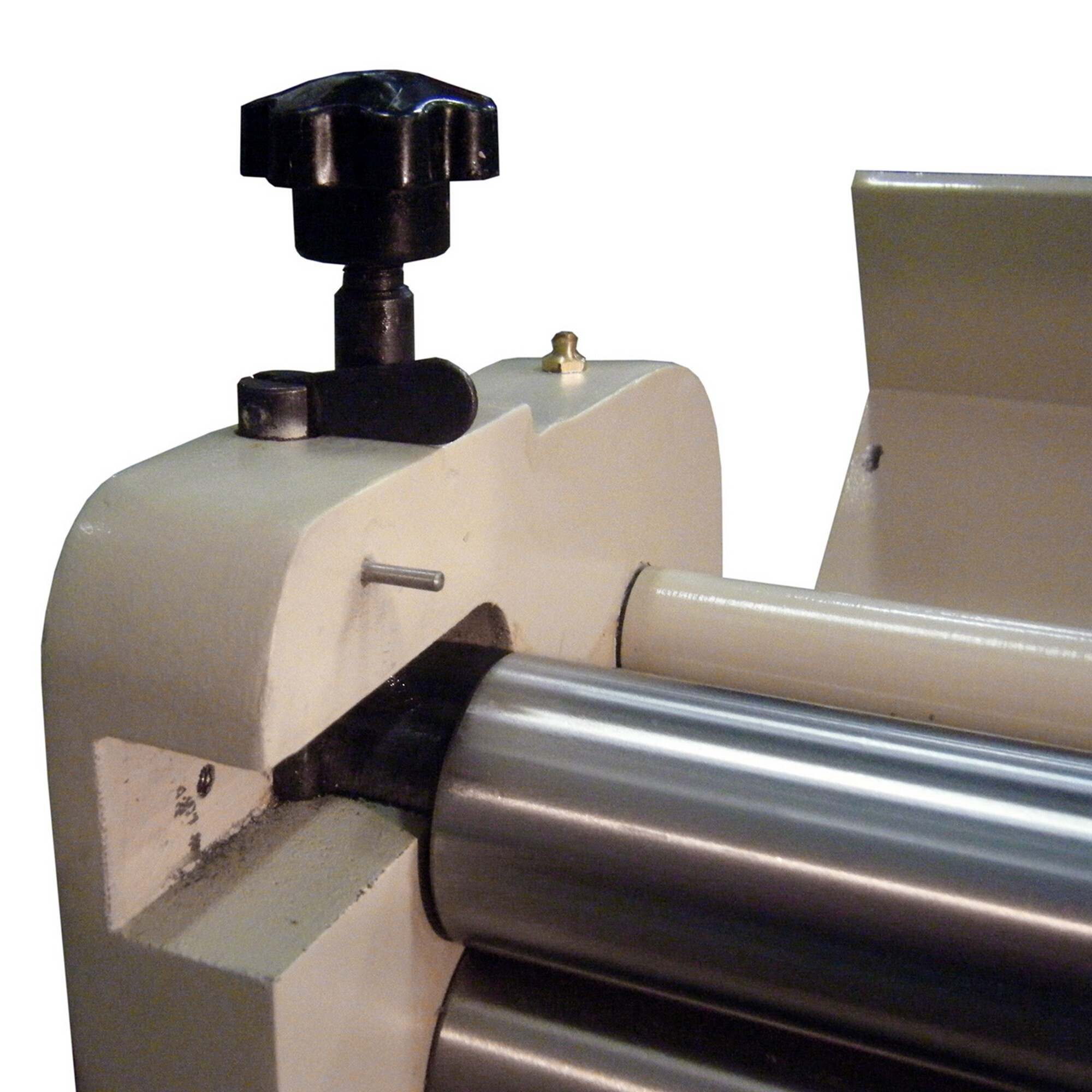

  • Hardened, adjustable back and top rolls can form different thicknesses.
  • Top roll can swing away from the machine for convenient material removal.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

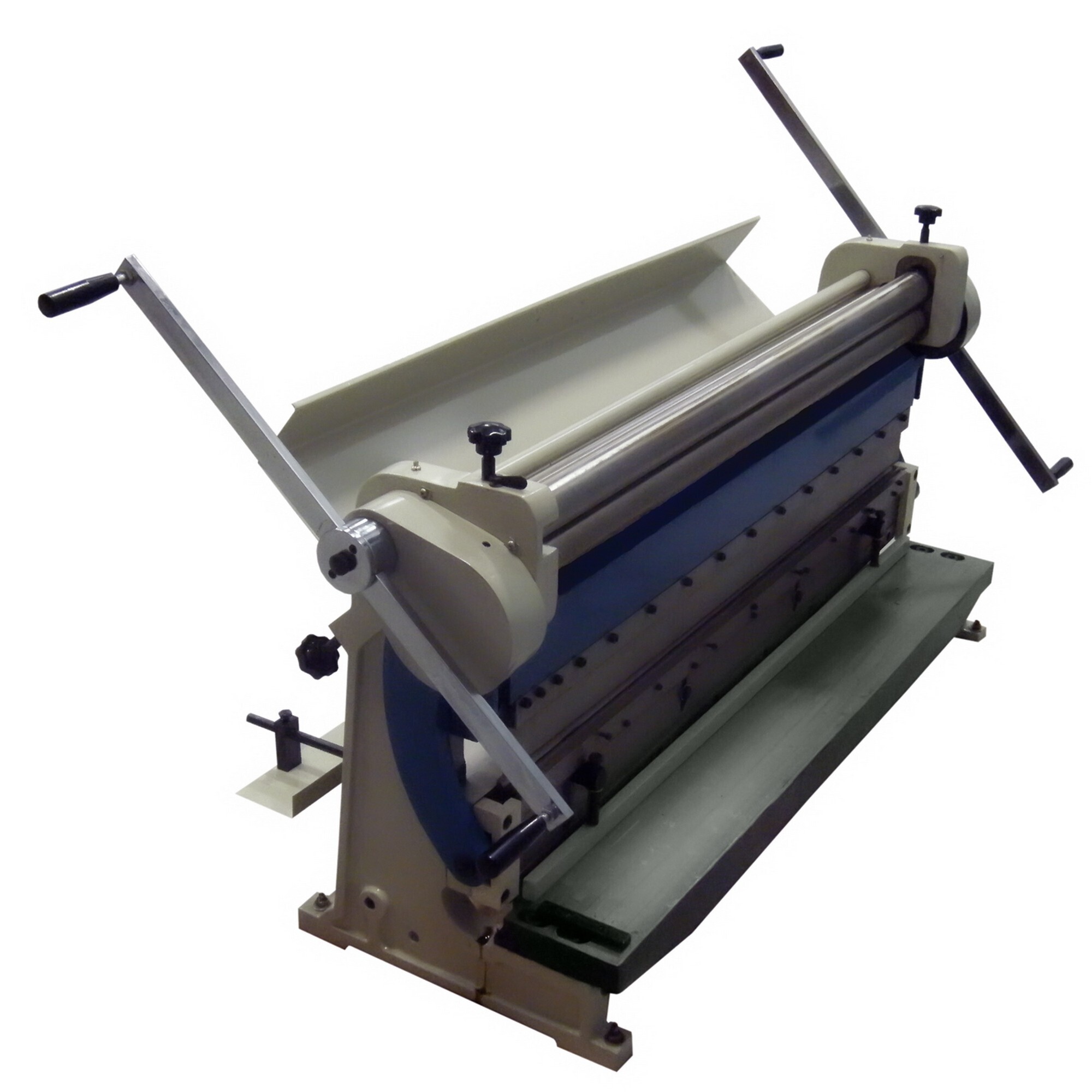

With a 16 gauge mild steel capacity for all functions, the SBR-5216 is the most powerful 3in.-1 combination machine on the market. This manual combination shear brake and roll saves space and money for small shops.

What's Included

    (1) 3 in 1 Combination Shear Brake and Roll

Features + Benefits

  • 52” width lets you roll, bend, and shear 4’ x 8’ sheets.
  • Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom.
  • 1.70” minimum rolling diameter.
  • Hardened, adjustable back and top rolls can form different thicknesses.
  • Top roll can swing away from the machine for convenient material removal.
  • 3 grooves on the roll can form wire or round rod.
  • Manual press brake section comes with a fixed bottom V-block die.
  • The SBR-5216 combination shear brake roller bends up to 90°, so you can make perfect corners.
  • 9 movable fingers on the top beam can make many sizes of boxes and pans.
  • Crowning feature adjusts the camber of press brake tooling to make consistent bends across your material.
  • Shear portion includes a spring-loaded clamp or hold-down to keep the material from lifting up, extend blade life, improve cut quality.
  • You can adjust the blade gap to fit different gauges of sheet metal.

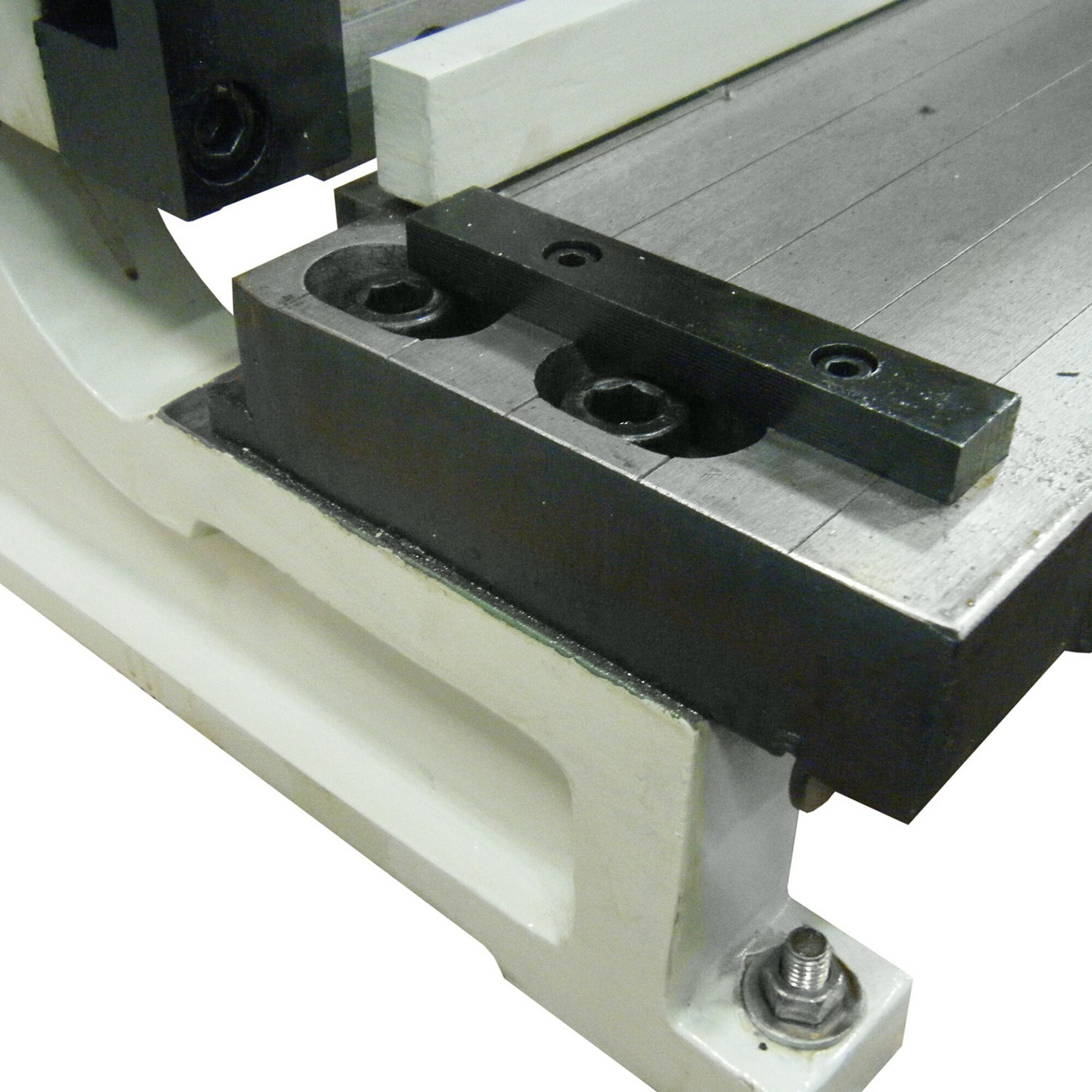

  • Includes a material guide.
  • Hardened, reversible blades stay sharp.
  • Manual back gauge helps you easily produce repeatable parts.
  • Heavy steel construction, weighing 1,200 lbs., gives this combo machine the power to deliver accurate results for many years.
  • The SBR-5216 combination shear brake and roll is covered by a 1-year parts warranty.
  • Our team of knowledgeable reps is here to provide lifetime technical support by phone.

Key Specs

AttributeSpecification

item#

4685756

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3142.0 LB

Max. Material Gauge

16

Dies Included

No
AttributeSpecification

Max. Bending Radius

135 °

Max. Width

52 in

Slip Roll Diameter

Multiple in

Slip Roll Length

52 in

Product Weight

3142.0000 lb

Dimensions L x W x H (in.)

71.0 x 24.0 x 37.0 in

Reviews

Questions & Answers

Questions

  1. it says in the description "no dies included". What dies aren't included which are necessary for complete functioning of the tool(s). The cutting edge? finger brake?

    1 answer

    1. The equipment comes with a slip roll, press brake, and sheet metal shear. The manual press brake section comes with a fixed bottom V-block die. The top beam has 9 moveable fingers to make many sizes of boxes and pans. The unit has hardened, reversible blades for easy cutting. The adjustable blade gap can be used to fit different gauges of sheet metal.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
