Atlas Automotive Equipment PVL9BP Platinum 2-Post Commercial Grade Vehicle Lift, 9’6” Minimum Ceiling Height, ALI Certified, 9,000lb Capacity, Base Plate Design, ALLY Power Unit, For Low Ceiling Use

Item# 7067021
Atlas Automotive Equipment PVL9BP Platinum 2-Post Commercial Grade Vehicle Lift, 9’6” Minimum Ceiling Height, ALI Certified, 9,000lb Capacity, Base Plate Design, ALLY Power Unit, For Low Ceiling Use

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Atlas Automotive Equipment PVL9BP Platinum 2-Post Commercial Grade Vehicle Lift, 9’6” Minimum Ceiling Height, ALI Certified, 9,000lb Capacity, Base Plate Design, ALLY Power Unit, For Low Ceiling Use

Click or Tap image to Zoom

$5449.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • ROBUST LIFTING CAPACITY: The Atlas Platinum PVL9BP 2-Post Lift offers a solid 9,000 lb. capacity, suitable for most common vehicles and full-size pickups, providing the strength needed for professional service centers

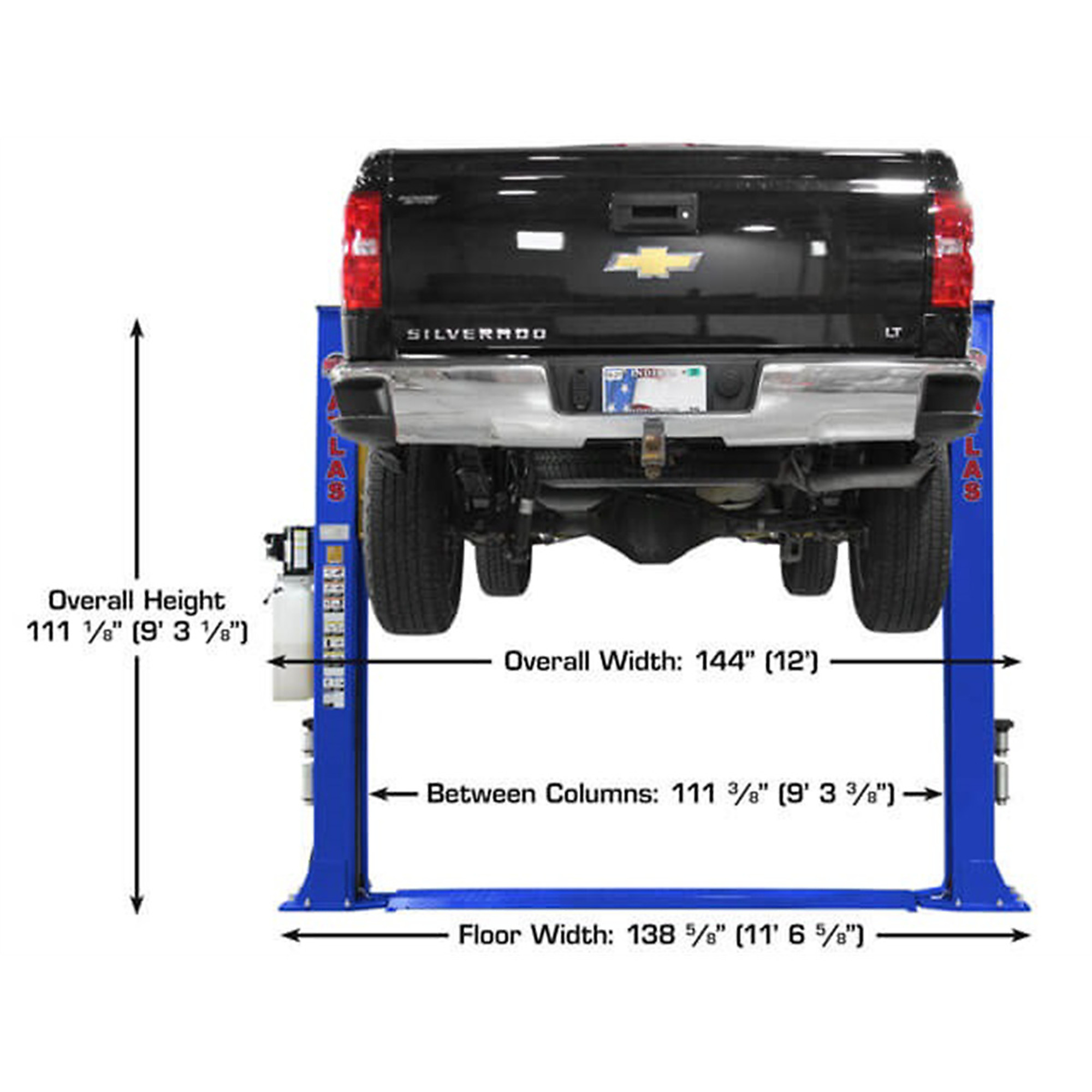

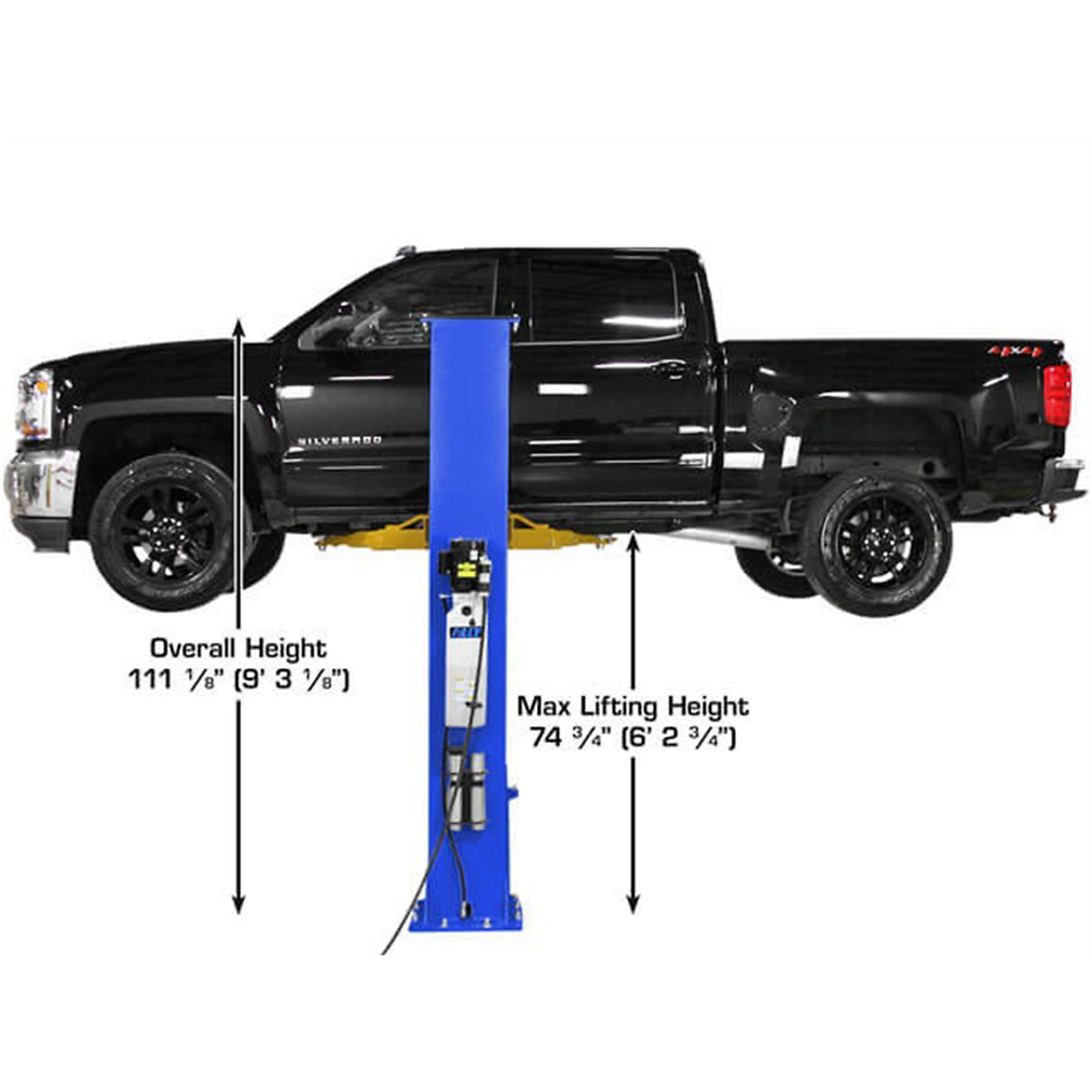

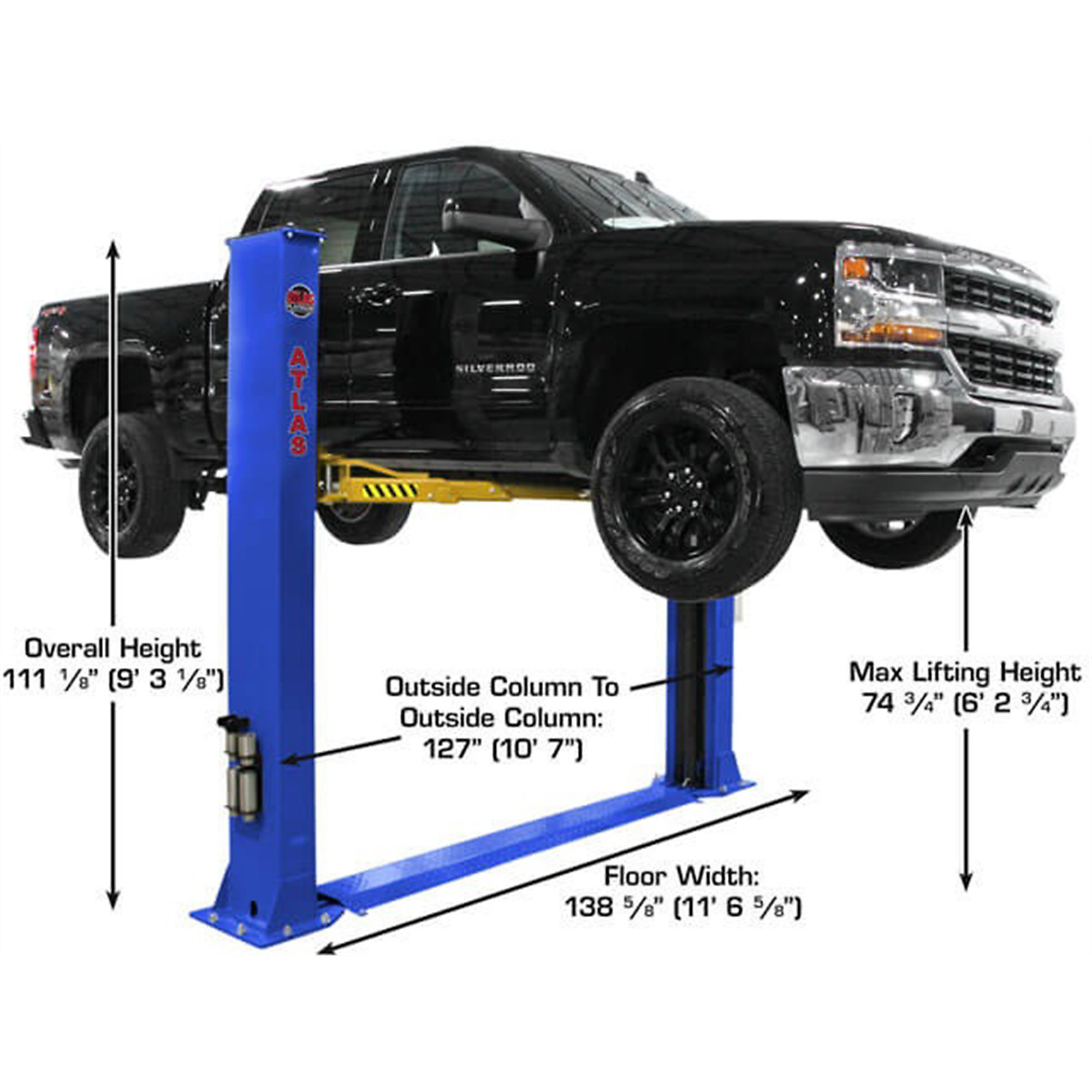

  • VERSATILE OPEN-TOP DESIGN: Ideal for garages with low ceilings, the baseplate, open-top design eliminates concerns about height limitations while maintaining structural integrity with columns at just 111 1/8"
  • PREMIUM HYDRAULIC SYSTEM: Featuring the ALLY power unit certified by MET Laboratories, it ensures constant torque with less heat, contributing to efficient operations and backed by a two-year warranty for peace of mind
  • ADVANCED SAFETY FEATURES: Equipped with 3-stage symmetric arms, dual hydraulic chain-drive cylinders, automatic arm restraints, and a secondary lock system, the PVL9BP prioritizes safety and stability during vehicle lifting
  • COMPLETE INSTALLATION KIT: Comes with essential mounting hardware, double screw-up adapters, and a free 8-piece truck adapter set, ensuring readiness for diverse applications in any professional automotive environment

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

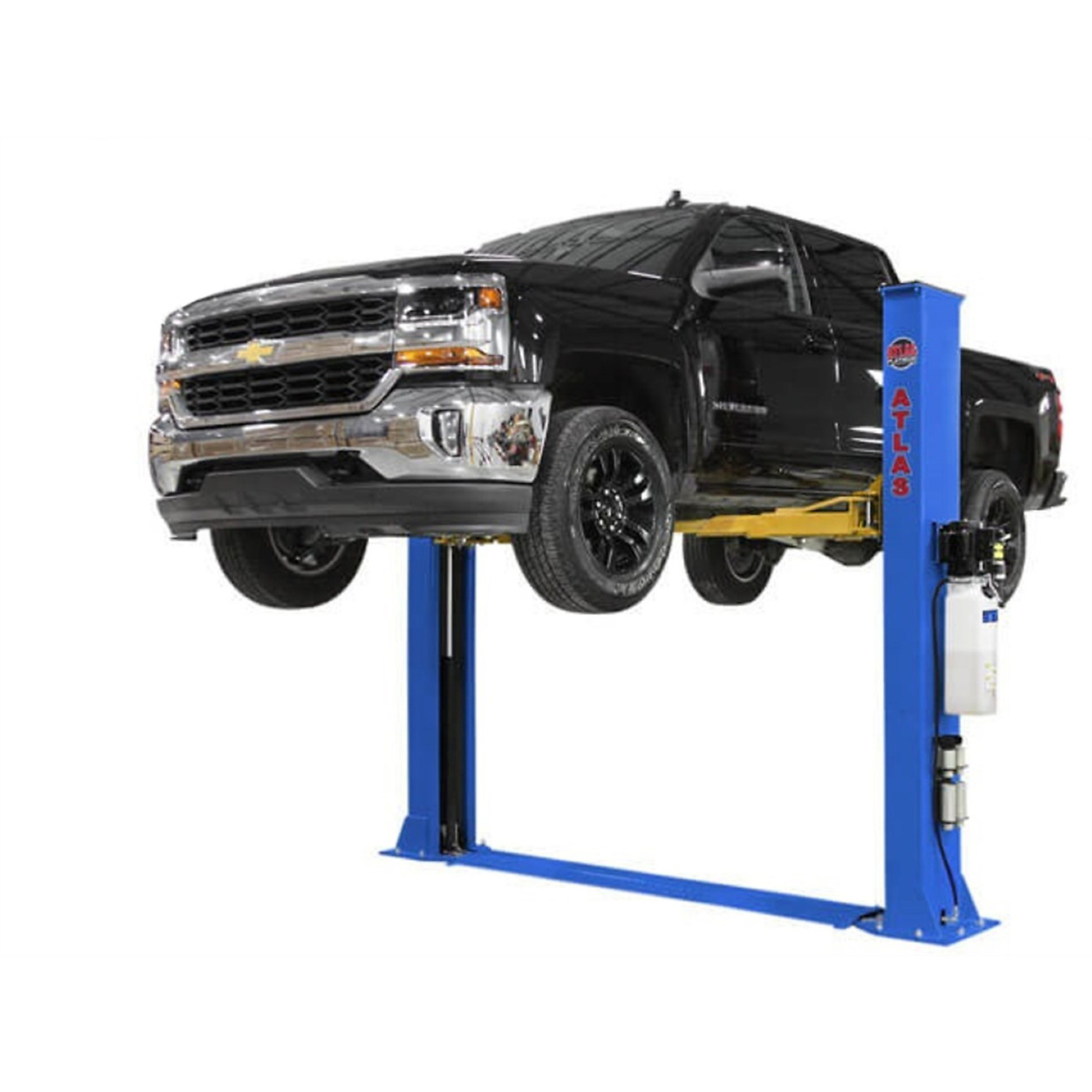

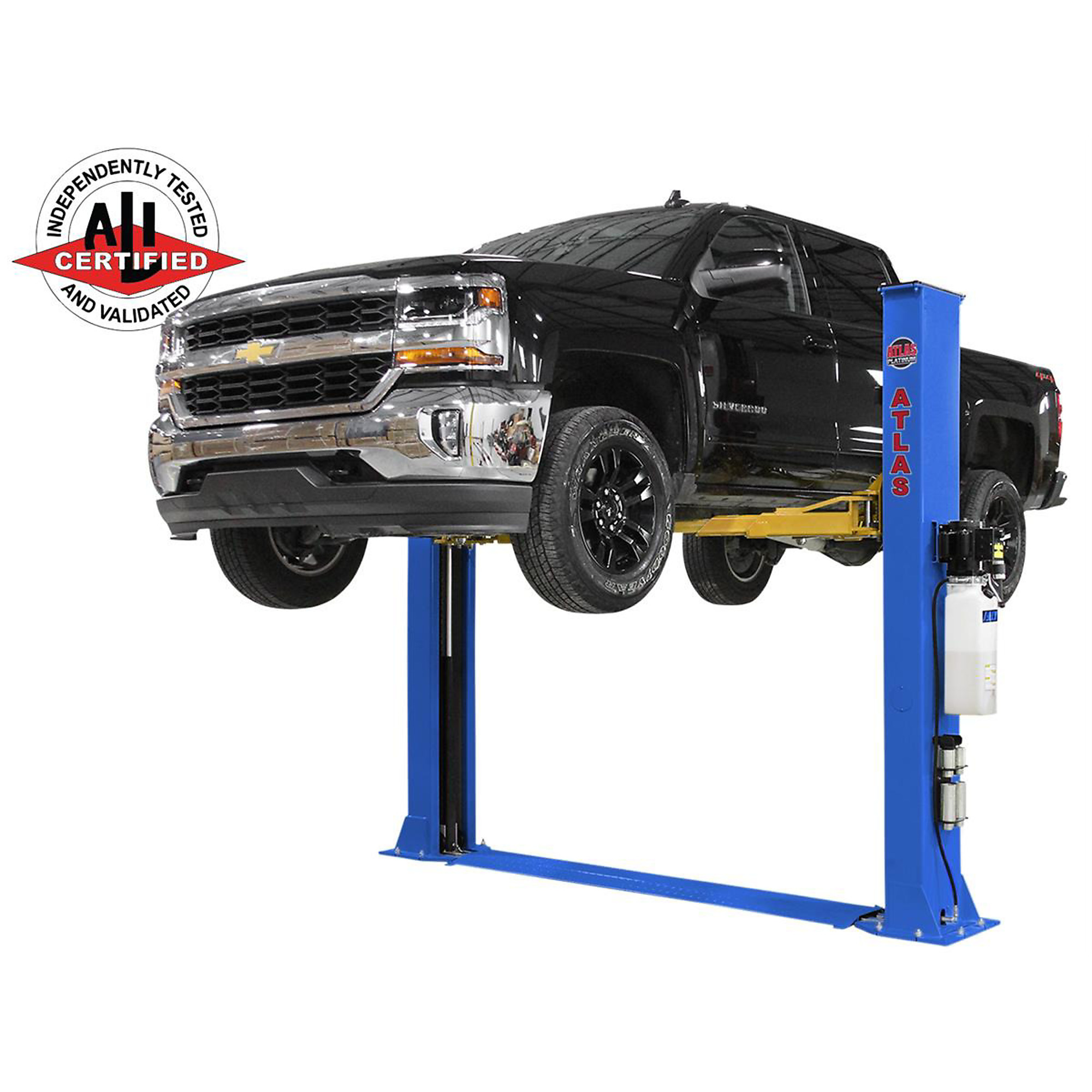

The Atlas Platinum PVL9BP is a 9000 LB capacity, base-plate two-post lift designed for professional service centers. The open-top design of this lift makes it ideal for garages with low ceilings or for customers who don't want to worry about the limitations of a top beam. The total column height is 111 1/8in. (9ft. 3 1/8in.). The Atlas Platinum PVL9BP can lift a range of the most common vehicles on the market, both foreign and domestic, while also having the capacity to handle both full-size pickups and commercial vehicles. The Atlas Platinum PVL9BP is ALI Certified and backed by one of the Industry's best warranties for an added piece of mind. The Atlas Platinum PVL9BP features a premium ALLY power unit which is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

What's Included

    (1) Item

Features + Benefits

  • ROBUST LIFTING CAPACITY: The Atlas Platinum PVL9BP 2-Post Lift offers a solid 9,000 lb. capacity, suitable for most common vehicles and full-size pickups, providing the strength needed for professional service centers
  • VERSATILE OPEN-TOP DESIGN: Ideal for garages with low ceilings, the baseplate, open-top design eliminates concerns about height limitations while maintaining structural integrity with columns at just 111 1/8"
  • PREMIUM HYDRAULIC SYSTEM: Featuring the ALLY power unit certified by MET Laboratories, it ensures constant torque with less heat, contributing to efficient operations and backed by a two-year warranty for peace of mind
  • ADVANCED SAFETY FEATURES: Equipped with 3-stage symmetric arms, dual hydraulic chain-drive cylinders, automatic arm restraints, and a secondary lock system, the PVL9BP prioritizes safety and stability during vehicle lifting
  • COMPLETE INSTALLATION KIT: Comes with essential mounting hardware, double screw-up adapters, and a free 8-piece truck adapter set, ensuring readiness for diverse applications in any professional automotive environment

Key Specs

AttributeSpecification

item#

7067021

Brand

Atlas

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1700.0 LB

Capacity

9,000 lb

Max. Rise

6.9 ft
AttributeSpecification

Horsepower

0 HP

Motor Phase

Single-phase

Volts

220

Product Weight

1700.0000 lb

Dimensions L x W x H (in.)

113.0 x 38.0 x 23.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All Atlas Two-Post Lifts

Specifications

Specifications
Atlas Automotive Equipment PVL9BP Platinum 2-Post Commercial Grade Vehicle Lift, 9’6” Minimum Ceiling Height, ALI Certified, 9,000lb Capacity, Base Plate Design, ALLY Power Unit, For Low Ceiling Use
BendPak Low-Rise Pad Car Lift, 10,000-Lb. Capacity, Model# LR-10000
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 12,000-Lb. Capacity, Model# TP12KC-D
Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX
Capacity
Same

9,000 lb

10,000 lb

12,000 lb

9,000 lb

Max. Rise
Same

6.9 ft

2 ft

6 ft

6 ft

Horsepower
Same

0 HP

3 HP

2 HP

1 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

115/208-230

220

220

Product Weight
Same

1700.0000 lb

1,346 lb

3,000 lb

1,370 lb

Dimensions L x W x H (in.)
Same

113.0 x 38.0 x 23.0 in

-

-

-

Locking Position (qty.)
Same

-

4

1

14
