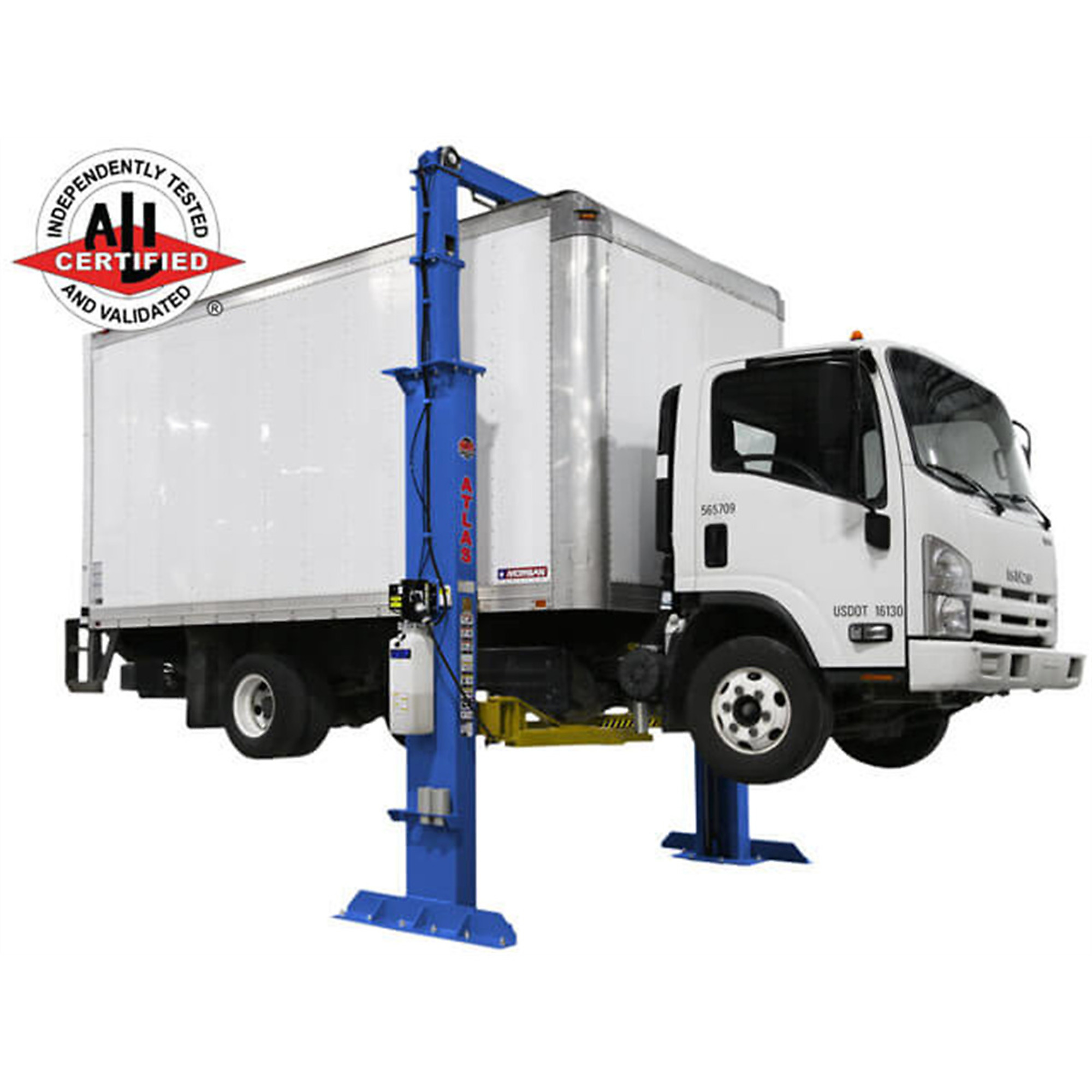

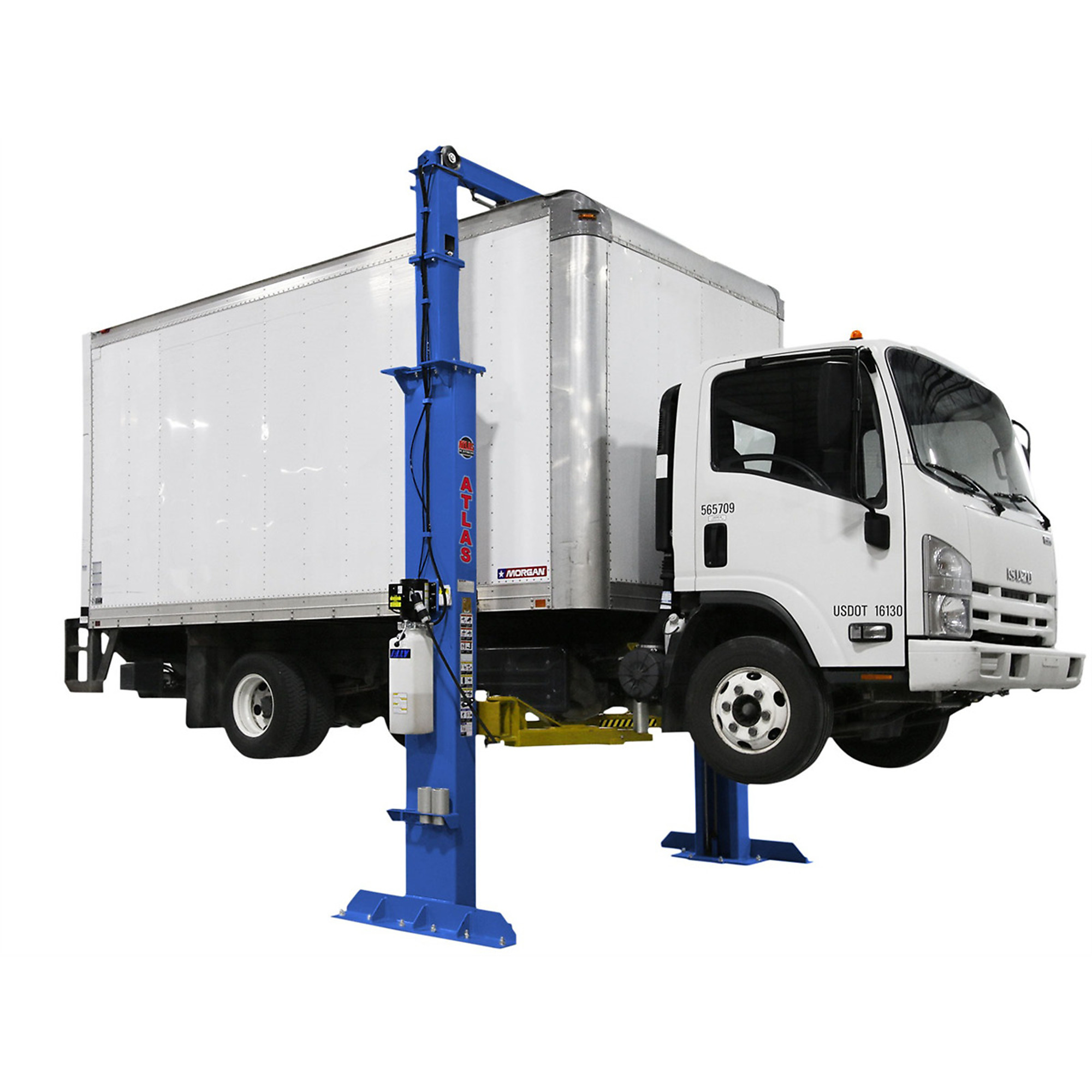

Atlas Automotive Equipment PVL15 Platinum 2-Post Commercial Grade Vehicle Overhead Lift, 15’ Minimum Ceiling Height, ALI Certified, 15,000lb, Extra Tall/Wide, Symmetric Arms, ALLY AL2300 Power Unit

Item# 7066985
Atlas Automotive Equipment PVL15 Platinum 2-Post Commercial Grade Vehicle Overhead Lift, 15’ Minimum Ceiling Height, ALI Certified, 15,000lb, Extra Tall/Wide, Symmetric Arms, ALLY AL2300 Power Unit

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Atlas Automotive Equipment PVL15 Platinum 2-Post Commercial Grade Vehicle Overhead Lift, 15’ Minimum Ceiling Height, ALI Certified, 15,000lb, Extra Tall/Wide, Symmetric Arms, ALLY AL2300 Power Unit

Click or Tap image to Zoom

$13,999.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • COMMERCIAL-GRADE CAPACITY: With a remarkable 15,000 lb. capacity, the Atlas Platinum PVL15 2-Post Lift is ALI Certified and engineered to accommodate long wheelbase trucks and service trucks, ensuring robust performance for demanding professional applications

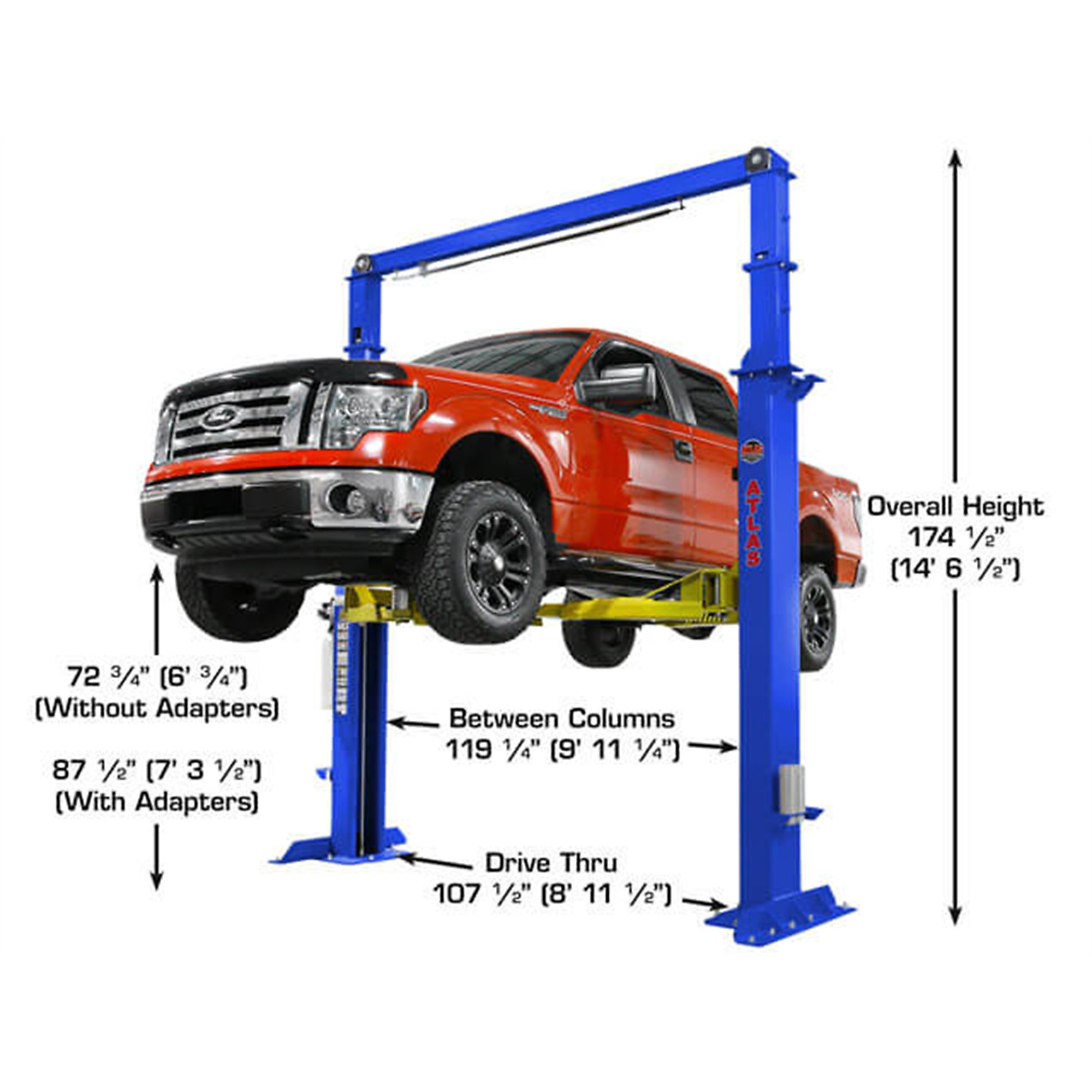

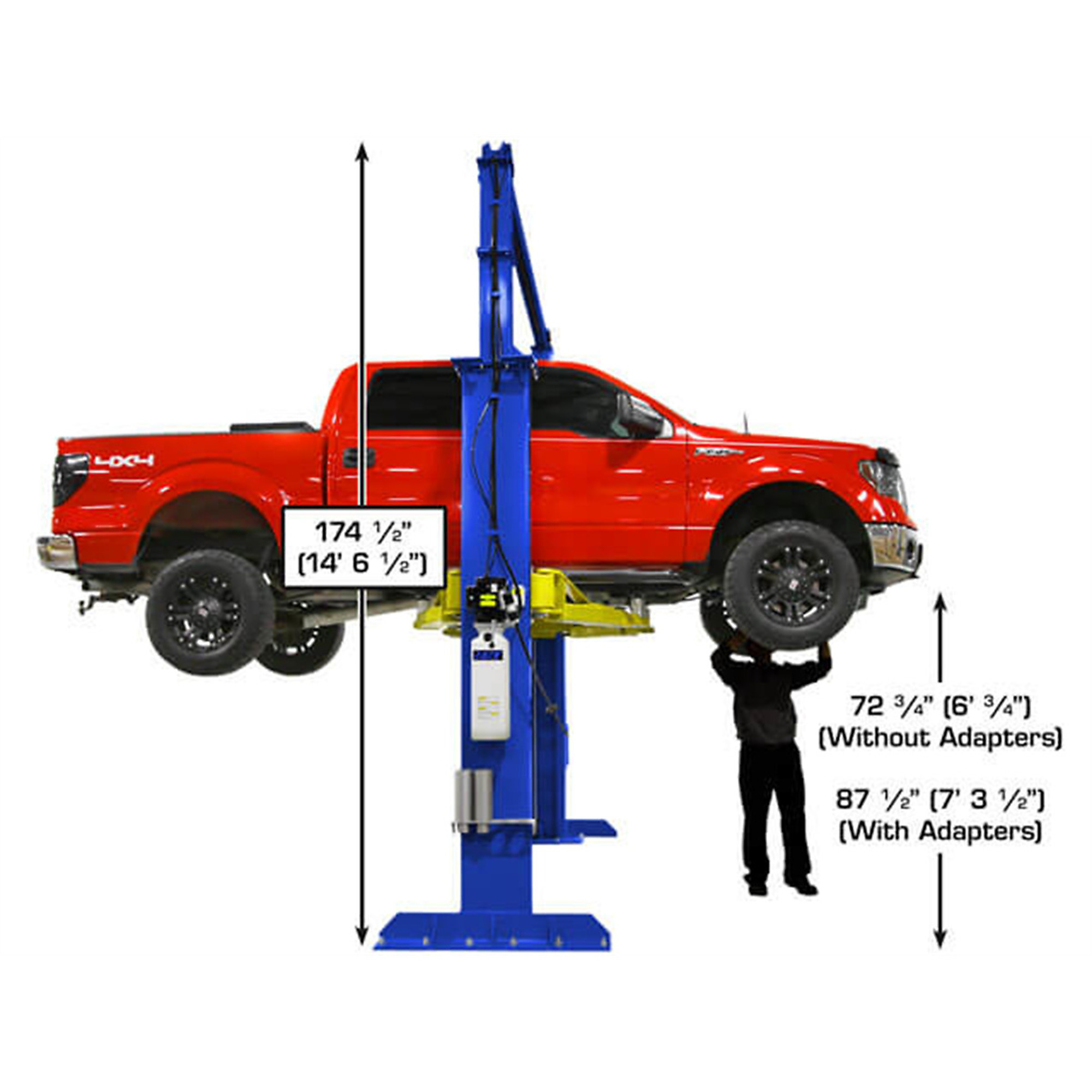

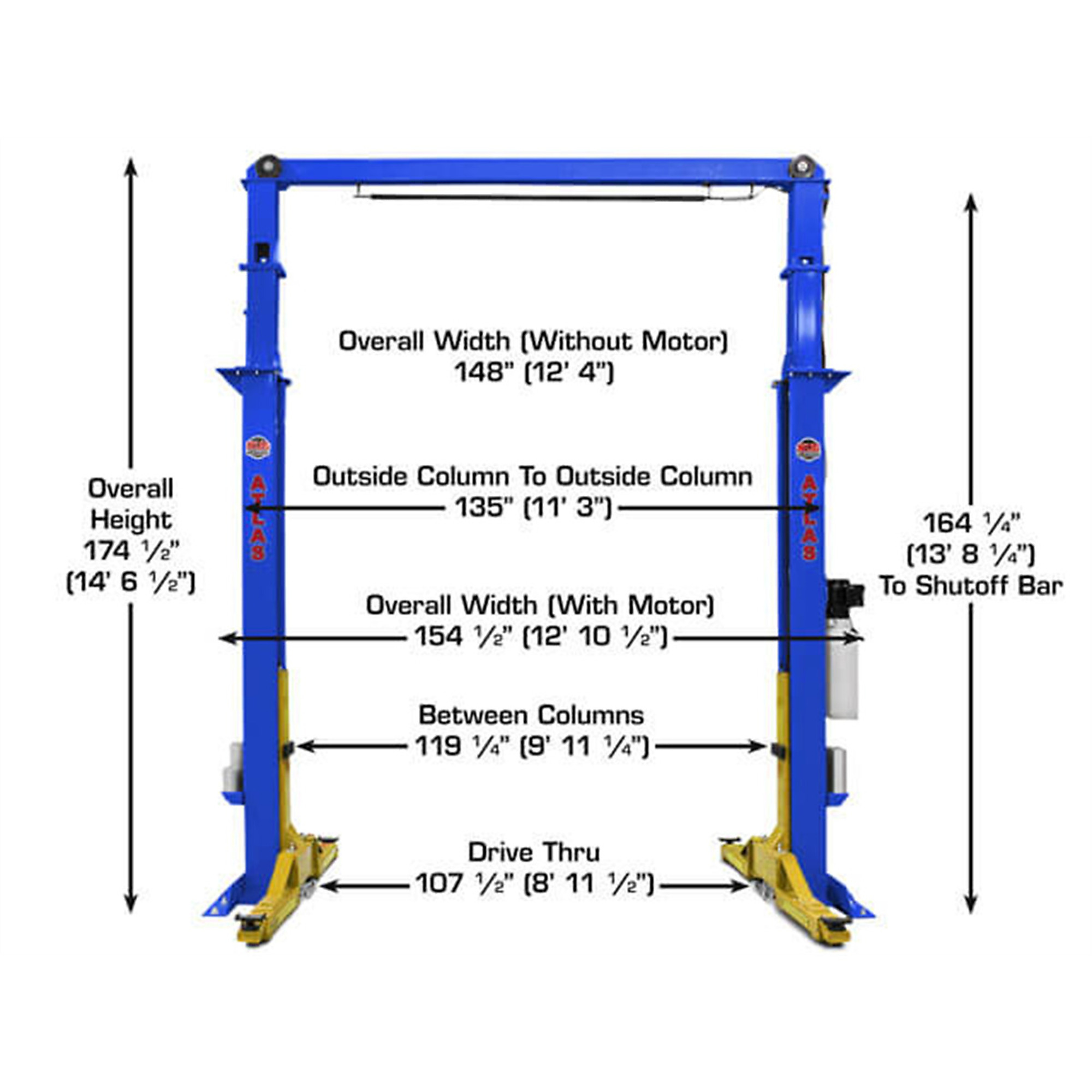

  • VERSATILE HEIGHT OPTIONS: Standing at an impressive 174 1/2" with the option to extend by 2 feet using the Height Extension Kit, this lift is perfect for taller vehicles, providing the flexibility required for diverse automotive needs
  • RELIABLE POWER PERFORMANCE: Equipped with the ALLY Hydraulic AL2300 Power Unit, certified by MET Laboratories Inc., it ensures constant torque with minimal heat generation, thanks to heavy-duty armatures and increased silver content in the motor windings
  • ADVANCED SAFETY MECHANISMS: Features symmetric arms with a professional-grade arm lock restraint system and dual direct-drive hydraulic cylinders, offering superior stability and safe lifting operations for professional garages
  • COMPLETE INSTALLATION KIT: Includes a free 8-piece truck adapter set, 4 screw-up frame adapters, heavy-duty 3/8" equalization cables, and mounting hardware, all designed to ensure hassle-free setup and versatile vehicle service capabilities

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Atlas Platinum PVL15 is an ALI CERTIFIED, commercial grade, 15,000 lb. capacity overhead two-post lift designed to accommodate both long wheel base trucks and service trucks. The Platinum PVL15 has an overall height of 174 1/2in. (14ft. 6 1/2in.), but can be extended by an extra 2ft. to accommodate taller vehicles with the Height Extension Kit. This product features an ALLY Hydraulic AL2300 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

What's Included

    (1) Item

Features + Benefits

  • COMMERCIAL-GRADE CAPACITY: With a remarkable 15,000 lb. capacity, the Atlas Platinum PVL15 2-Post Lift is ALI Certified and engineered to accommodate long wheelbase trucks and service trucks, ensuring robust performance for demanding professional applications
  • VERSATILE HEIGHT OPTIONS: Standing at an impressive 174 1/2" with the option to extend by 2 feet using the Height Extension Kit, this lift is perfect for taller vehicles, providing the flexibility required for diverse automotive needs
  • RELIABLE POWER PERFORMANCE: Equipped with the ALLY Hydraulic AL2300 Power Unit, certified by MET Laboratories Inc., it ensures constant torque with minimal heat generation, thanks to heavy-duty armatures and increased silver content in the motor windings
  • ADVANCED SAFETY MECHANISMS: Features symmetric arms with a professional-grade arm lock restraint system and dual direct-drive hydraulic cylinders, offering superior stability and safe lifting operations for professional garages
  • COMPLETE INSTALLATION KIT: Includes a free 8-piece truck adapter set, 4 screw-up frame adapters, heavy-duty 3/8" equalization cables, and mounting hardware, all designed to ensure hassle-free setup and versatile vehicle service capabilities

Key Specs

AttributeSpecification

item#

7066985

Brand

Atlas

Manufacturer's Warranty

5 year limited warranty

Ship Weight

2600.0 LB

Capacity

15,000 lb

Max. Rise

14.6 ft
AttributeSpecification

Horsepower

0 HP

Motor Phase

Single-phase

Volts

220

Product Weight

2600.0000 lb

Dimensions L x W x H (in.)

142.0 x 49.0 x 45.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All Atlas Two-Post Lifts

Specifications

Specifications
Atlas Automotive Equipment PVL15 Platinum 2-Post Commercial Grade Vehicle Overhead Lift, 15’ Minimum Ceiling Height, ALI Certified, 15,000lb, Extra Tall/Wide, Symmetric Arms, ALLY AL2300 Power Unit
BendPak Low-Rise Pad Car Lift, 10,000-Lb. Capacity, Model# LR-10000
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 12,000-Lb. Capacity, Model# TP12KC-D
Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX
Capacity
Same

15,000 lb

10,000 lb

12,000 lb

9,000 lb

Max. Rise
Same

14.6 ft

2 ft

6 ft

6 ft

Horsepower
Same

0 HP

3 HP

2 HP

1 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

115/208-230

220

220

Product Weight
Same

2600.0000 lb

1,346 lb

3,000 lb

1,370 lb

Dimensions L x W x H (in.)
Same

142.0 x 49.0 x 45.0 in

-

-

-

Locking Position (qty.)
Same

-

4

1

14
