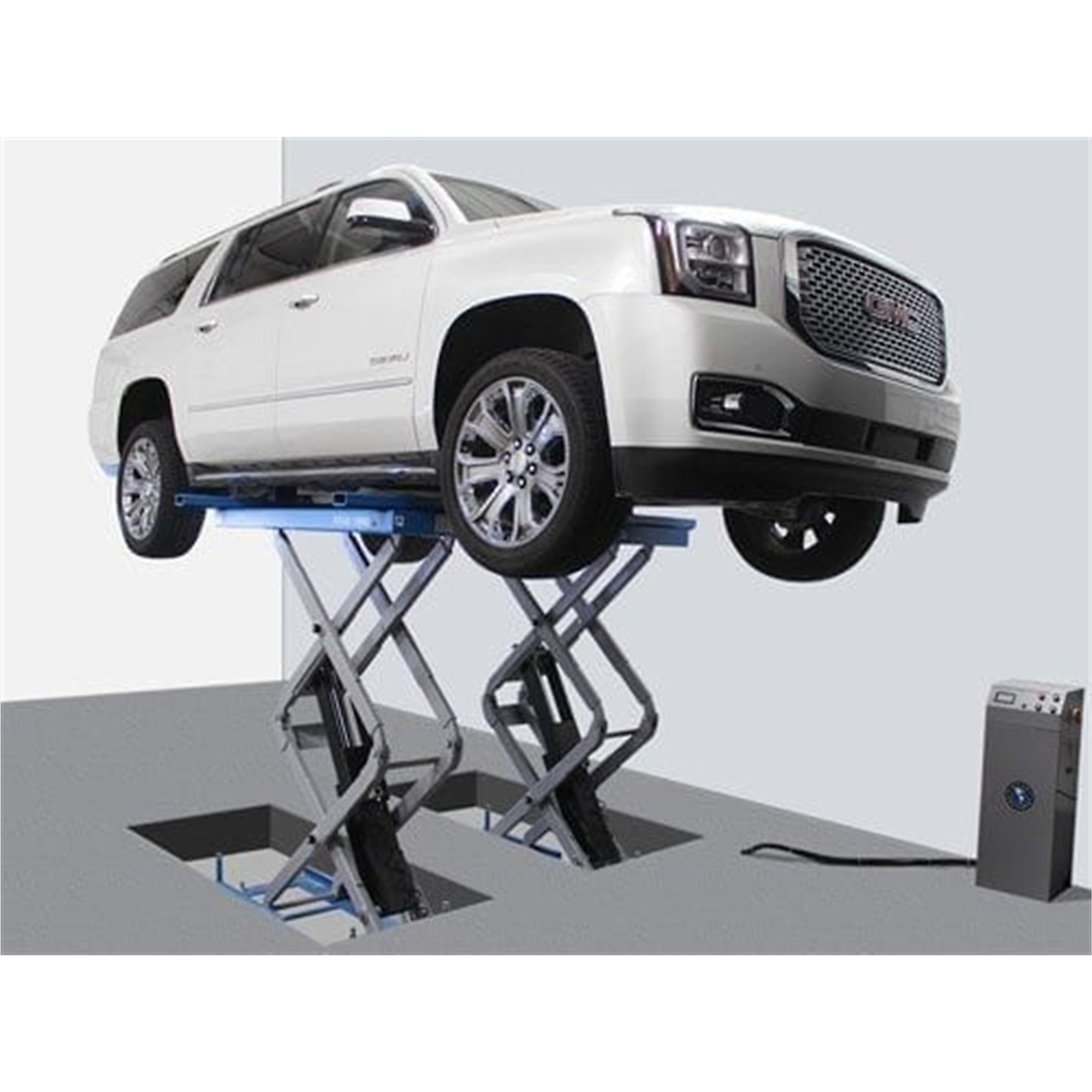

Atlas Automotive Equipment FM9SL In Ground Full-rise Commercial-grade Scissors Lift, Open Center Design, 9,000lbs., Adjustable Width, Air-Operated Single Point Lock Release, Extended Platforms

Item# 7070853
Atlas Automotive Equipment FM9SL In Ground Full-rise Commercial-grade Scissors Lift, Open Center Design, 9,000lbs., Adjustable Width, Air-Operated Single Point Lock Release, Extended Platforms

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Atlas Automotive Equipment FM9SL In Ground Full-rise Commercial-grade Scissors Lift, Open Center Design, 9,000lbs., Adjustable Width, Air-Operated Single Point Lock Release, Extended Platforms

Click or Tap image to Zoom

$7999.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • INNOVATIVE FLUSH MOUNT DESIGN: The Atlas FM9SL offers a clean floor aesthetic and maximizes space with a flush mounted design, ideal for facilities seeking to optimize lift installations per square foot with ease of vehicle positioning
  • ROBUST LIFT CAPACITY: Featuring a 9,000 lb. capacity and platforms extending at both ends, the FM9SL accommodates long wheelbase vehicles while maintaining a compact footprint, ensuring versatile use for various vehicle types
  • USER-FRIENDLY OPERATION: This lift includes a separate self-contained control unit, facilitating efficient and straightforward operations with easy access for maintenance, powered by a reliable 220V single-phase electric system
  • SAFETY AND FUNCTIONALITY: Equipped with air-operated single point lock release, heavy-duty rubber lifting blocks, and grease zerk fittings at each hinge point, offering secure lifting and reduced maintenance challenges
  • DURABLE CONSTRUCTION: Built to withstand commercial use, the FM9SL includes mounting hardware and meets CE certification standards, guaranteeing quality and reliability with a one-year structural and hydraulic warranty

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Atlas FM9SL 9,000 lb. flush mounted scissor lift is the perfect choice for those service facilities that need to maximize the number of vehicle lifts per service area square foot. If you like the “clean floor look” for your service department (no above ground lifts), then the Atlas FM9SL flush mounted scissor lift offers the perfect alternative. Unlike “old school in-ground” lifts, the flush mounted lift requires minimal excavation and the electric/hydraulic power unit is easily accessed during periodic maintenance. The flush mounted platforms offer no “above ground” obstruction and the platforms can be “driven over” from any direction so that a vehicle may be properly positioned in the tightest of spaces. The Atlas FM9SL has both front and rear platform extensions that can be used when lifting a long wheel base pick-up truck. As with any scissor lift that is completely open (no cross support bar in the front or rear to keep the platforms level), the operator must make sure that the vehicle's frame is positioned at least 6in. from the inside of the platform. If too much weight is positioned near the edges of the platform (closer than 6in. from the inside edges), the platforms may become “pigeon toed” and damage may occur. We sell the Atlas scissor lift support bar kit to disperse the narrow frame weight over the entire platform lifting surface

What's Included

    (1) Item

Features + Benefits

  • INNOVATIVE FLUSH MOUNT DESIGN: The Atlas FM9SL offers a clean floor aesthetic and maximizes space with a flush mounted design, ideal for facilities seeking to optimize lift installations per square foot with ease of vehicle positioning
  • ROBUST LIFT CAPACITY: Featuring a 9,000 lb. capacity and platforms extending at both ends, the FM9SL accommodates long wheelbase vehicles while maintaining a compact footprint, ensuring versatile use for various vehicle types
  • USER-FRIENDLY OPERATION: This lift includes a separate self-contained control unit, facilitating efficient and straightforward operations with easy access for maintenance, powered by a reliable 220V single-phase electric system
  • SAFETY AND FUNCTIONALITY: Equipped with air-operated single point lock release, heavy-duty rubber lifting blocks, and grease zerk fittings at each hinge point, offering secure lifting and reduced maintenance challenges
  • DURABLE CONSTRUCTION: Built to withstand commercial use, the FM9SL includes mounting hardware and meets CE certification standards, guaranteeing quality and reliability with a one-year structural and hydraulic warranty

Key Specs

AttributeSpecification

item#

7070853

Brand

Atlas

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2025.0 LB

Capacity

9,000 lb
AttributeSpecification

Max. Lift Height

73.75 in

Lift Type

Full-Rise

Product Weight

2025.0000 lb

Dimensions L x W x H (in.)

72.0 x 60.0 x 48.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
