Ashley Hearth Direct Vent LP Wall Heater with Venting — 17,000 BTU, Model# DVAG17L

Item# 98023
11 of 15 reviewers received a sample product or took part in a promotion
Ashley Hearth Direct Vent LP Wall Heater with Venting — 17,000 BTU, Model# DVAG17L

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ashley Hearth Direct Vent LP Wall Heater with Venting — 17,000 BTU, Model# DVAG17L

Click or Tap image to Zoom

  • 17,000 BTUs
  • Heats up to 570 sq. ft.
  • Matchless piezo lighting
  • Approved for Canada
  • Venting included

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

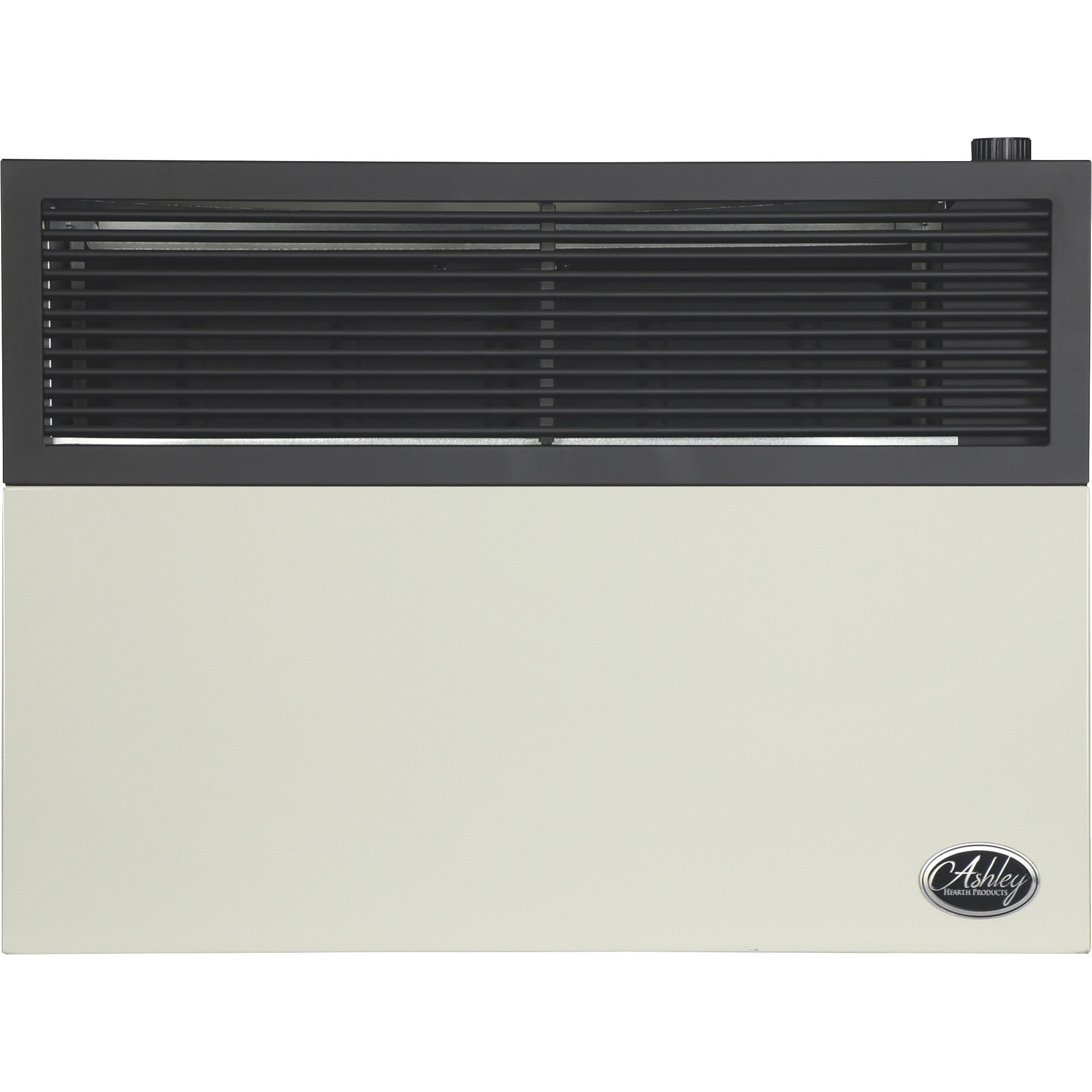

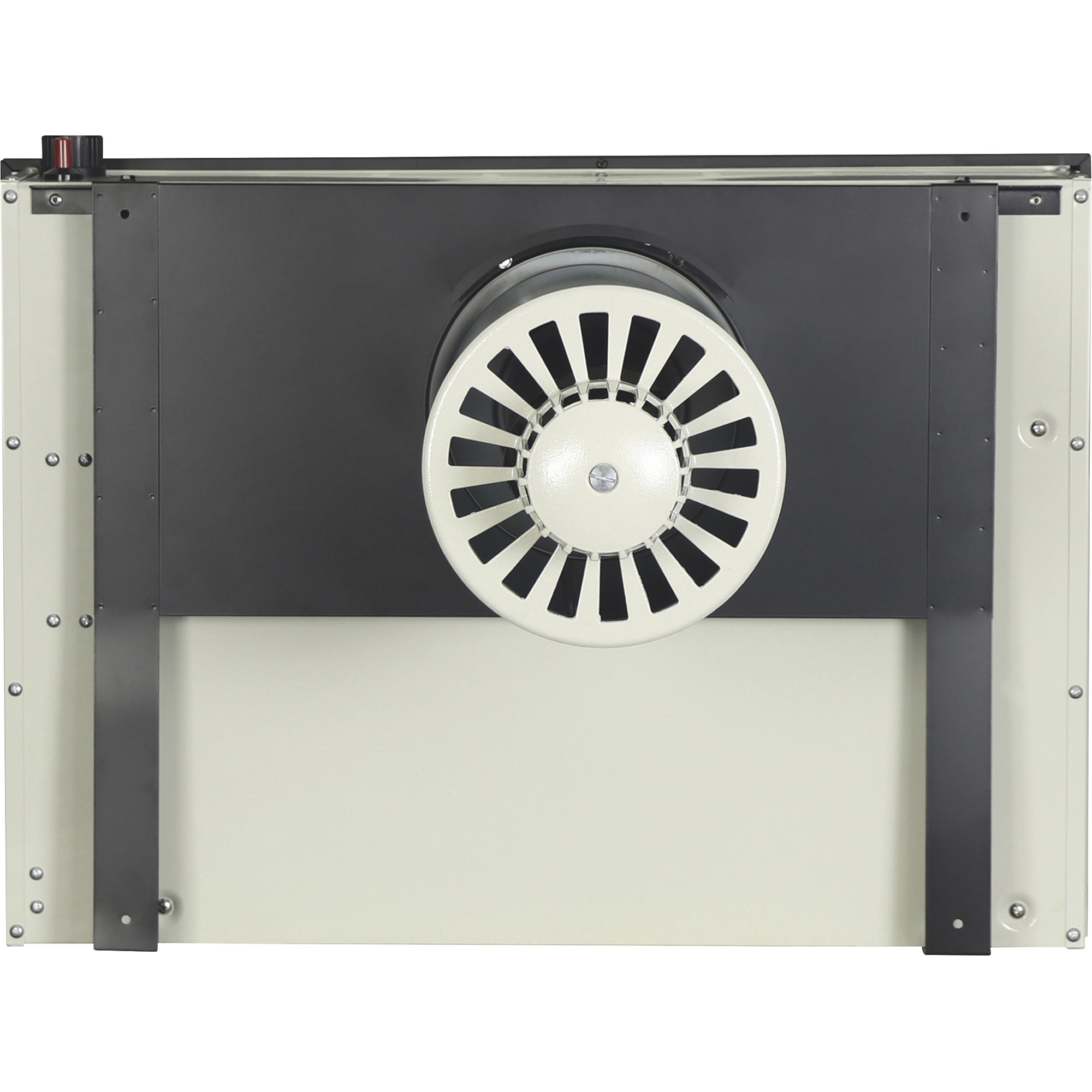

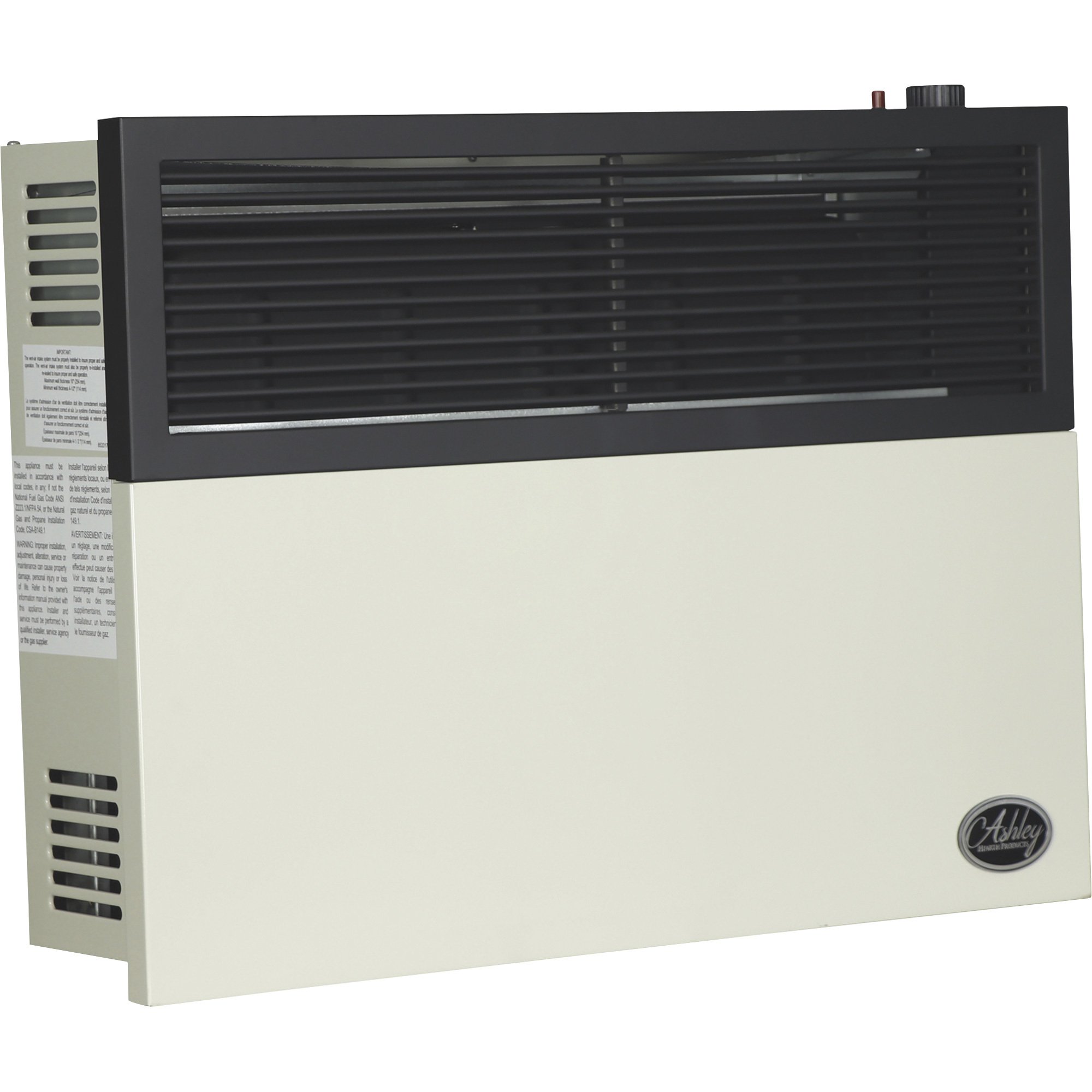

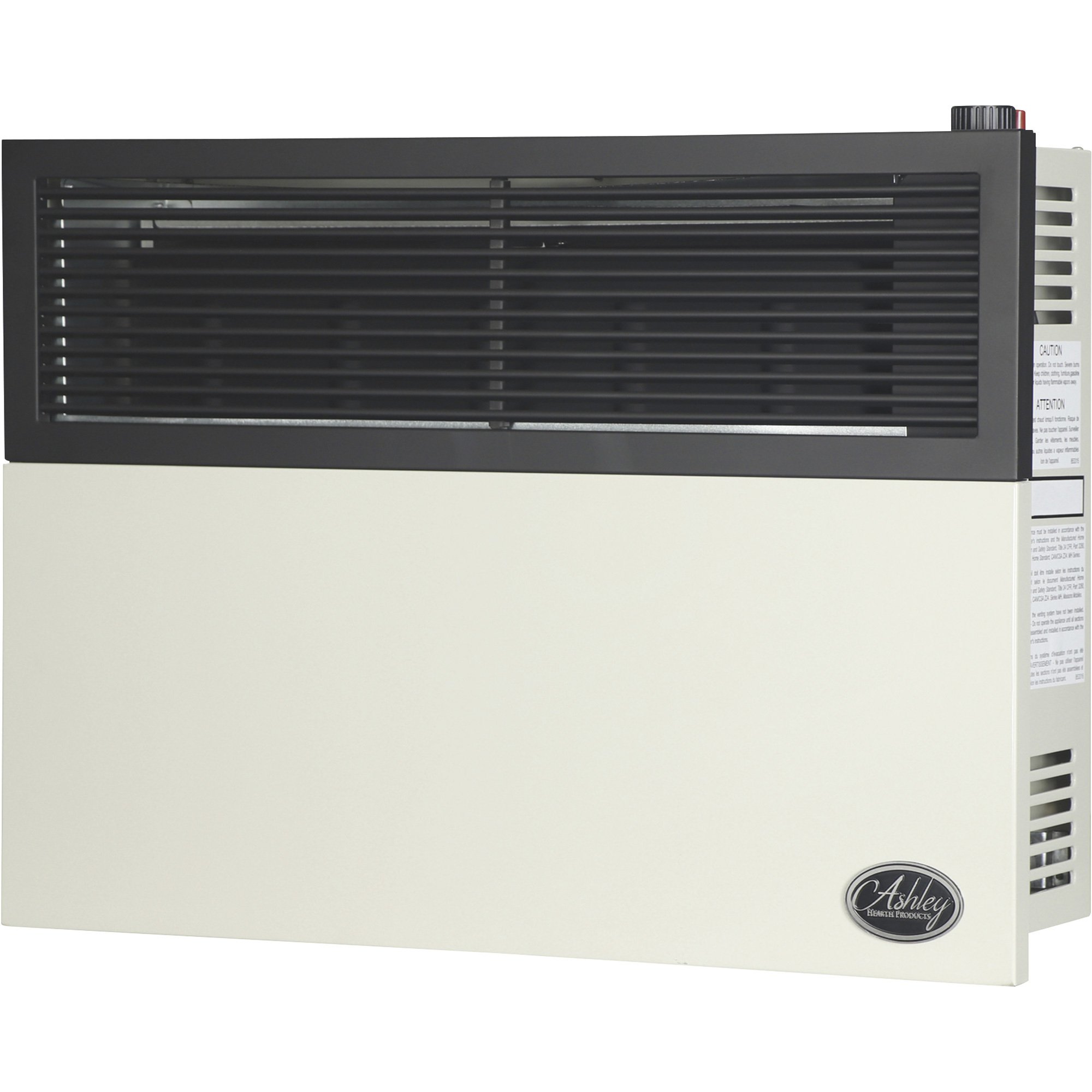

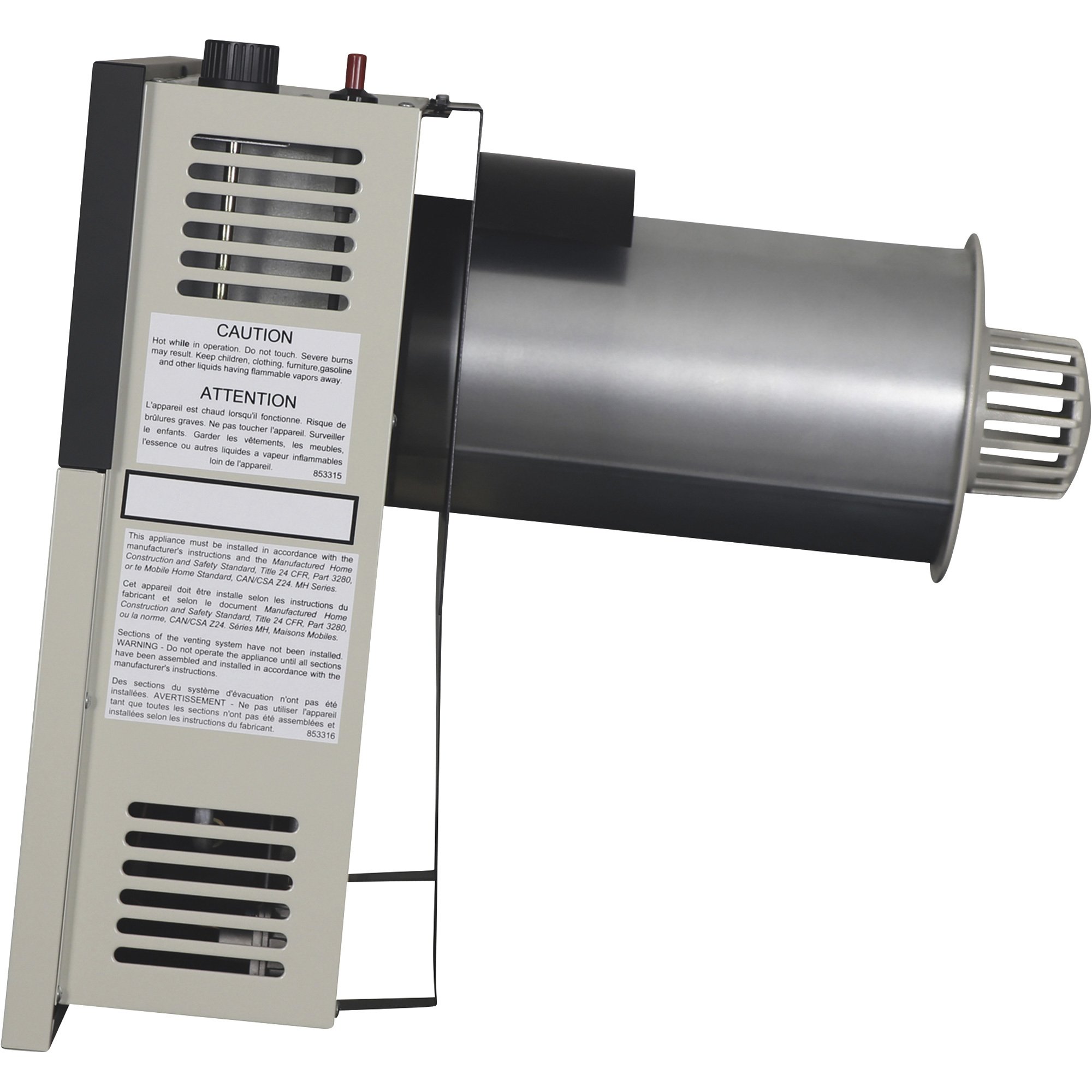

The Ashley Hearth Direct Vent LP Wall Heater with Venting is a space-saving unit that provides the perfect solution to zoned heating. It mounts to an exterior wall, and the adjustable vent assembly adjusts to fit walls from 4 1/2in.–10in. thick. For clean, comfortable heat when and where you want it, the gas flame is completely sealed inside, away from all contact with room air. Only clean, gentle heat, in continuous circulation, is delivered into the room. Windows and doors stay closed because no room air is used for combustion. All venting required to install is included. No electricity needed.

What's Included

  • (1) Wall heater

Downloads

Product Manual

Features + Benefits

  • 17,000 BTUs
  • Heats up to 570 sq. ft.
  • Matchless piezo lighting
  • Approved for Canada
  • Venting included

Key Specs

AttributeSpecification

item#

98023

Brand

Ashley Hearth

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

65.4 LB

Heat Output

17,000 Btu/hour
AttributeSpecification

Heating Capability

570 ft²

Needs Direct Venting

Yes

Product Weight

43 lb

Dimensions L x W x H (in.)

7.875 x 27.625 x 20 in

Reviews

Questions & Answers

15 Reviews This action will navigate to reviews.

Questions

1–10 of 18 Questions
Sort by:

  1. Approximately how long will this unit run on one full 100 lb propane tank?

    1. Just depends on outside temp. This week we had a cold snap with temps at 0 and colder 100# lasted 7 days, bottle before that 100# lasted 3 weeks.

      Helpful?

    2. This heater will use approximately 4.6 gallons of propane per day, or 0.19 gallons per hour, at 17,000 BTU's. A 100lb. propane tank can hold approximately 24 gallons of propane.

      Helpful?

  2. Why do all the reviews say this heater is hard to light. Can this be overcome and can the pilot light be lit with a match?

    1 answer

    1. The pilot light is sealed in the housing and may not be lit manually.

      Helpful?

  3. Can an external thermostat be connected on the unit?

    1 answer

    1. This heater is not designed for use with an external thermostat.

      Helpful?

  4. What 2nd stage regulator recommended for the Ashley 17,000 but vented wall heater?

    1 answer

    1. The supply tank must have its own separate pressure regulator that can reduce the supply tank pressure down to a maximum of 14 inch water column pressure. The item number 25819 two stage regulator will work with this heater.

      Helpful?

  5. Can this unit be mounted on an apartment wall whose outside wall is a garage?

    1 answer

    1. It can be mounted on the outside wall as long as the heater is exhausted to the outside and the clearance to combustibles is met. The heater cannot be vented into the garage.

      Helpful?

  6. Can heater be mounted on stand

    1 answer

    1. The heater could not be mounted on a stand. It would need to be mounted and vented to an outside wall with the included wall mount bracket.

      Helpful?

  7. Would there be any problem with installing this unit in a bathroom?

    1 answer

    1. The heater needs to mounted and vented to an outside wall. It could be installed in a bathroom.

      Helpful?

  8. Does this have a pilot, or does the piezo igniter light the flame every time the unit turns on?

    1 answer

    1. If the heater is ever turned off, the igniter will be used to re light the pilot.

      Helpful?

  9. how does this distribute the heat. Is there a distribution blower?

    1 answer

    1. The heater does not have a blower. It just continuously circulates the heated air into the room.

      Helpful?

  10. I would like to install this on a exterior cinder block wall. My blocks are 16W 8T 4D. The install manual requires a 11X11 square hole. Can I reduce this dimension to 8 x 8 so I can maintain the structural integrity of the blocks?

    1 answer

    1. The venting on this unit requires the square cut-out to be 11-1/4" x 11-1/4". It cannot be cut smaller.

      Helpful?

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
