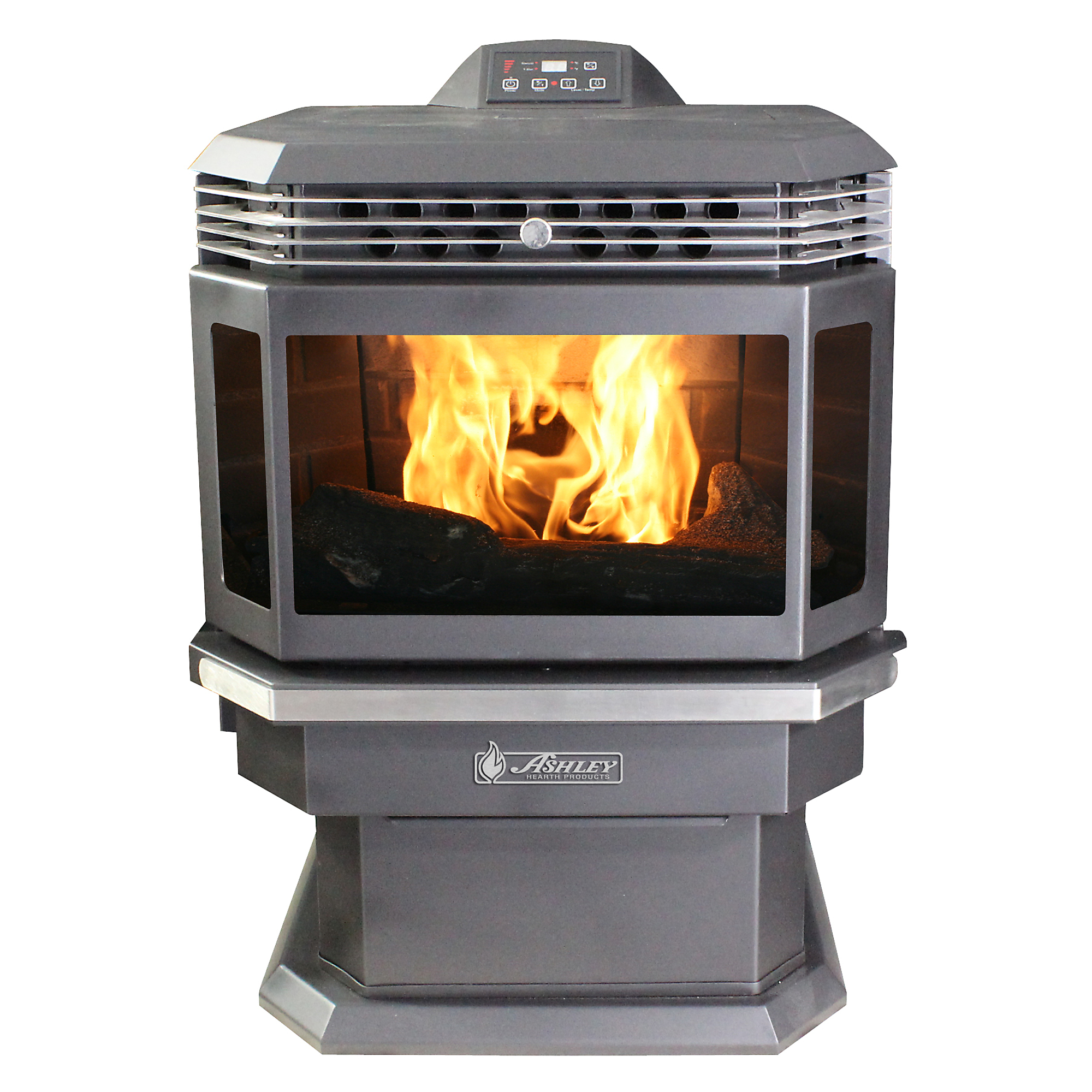

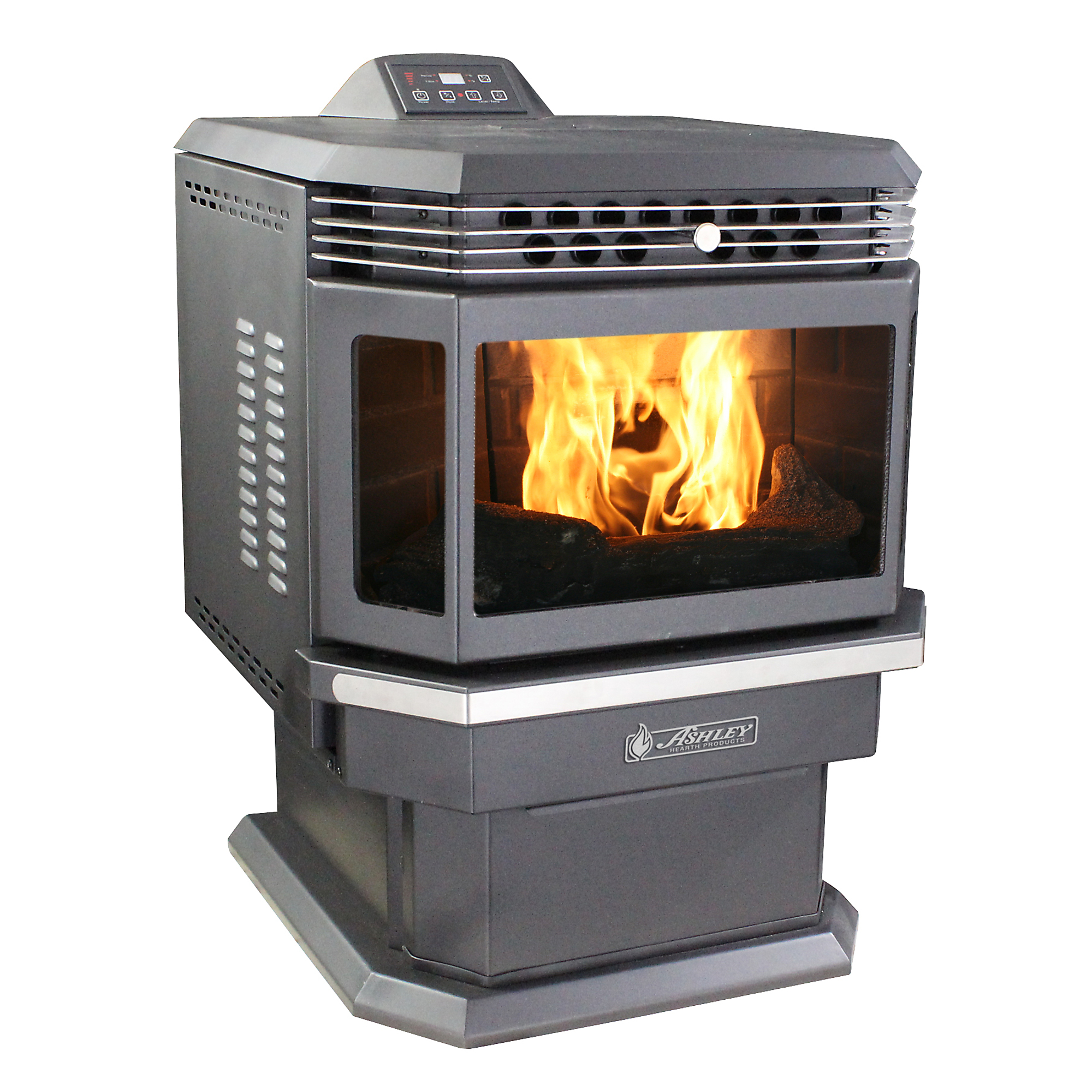

Ashley Hearth Bayfront Pellet Stove — 45 Lb. Hopper, Auto Ignition, Electronic Controls, Model# AP5660

Item# 6734005
Ashley Hearth Bayfront Pellet Stove — 45 Lb. Hopper, Auto Ignition, Electronic Controls, Model# AP5660

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ashley Hearth Bayfront Pellet Stove — 45 Lb. Hopper, Auto Ignition, Electronic Controls, Model# AP5660

Click or Tap image to Zoom

$2129.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 120 cfm blower with automatic circulation to spread heat evenly
  • Air Wash Glass
  • Large bay front window for viewing
  • Integrated Damper Control

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The AP5660 bay front pellet stove is a fully automatic pellet stove with auto ignition and easy to use electronic controls. Setting this pellet heater apart is the wide bay front glass design that gives you a wonderful view of the fire. The stove also has a faux log set and brick fireplace backer giving you the look of a traditional fireplace. It utilizes a temperature control circulation blower to spread heat evenly it is a durable yet sleek design, built for years of high performance.

What's Included

    (1) AP5660

Features + Benefits

  • 120 cfm blower with automatic circulation to spread heat evenly
  • Air Wash Glass
  • Large bay front window for viewing
  • Integrated Damper Control

Key Specs

AttributeSpecification

item#

6734005

Brand

Ashley Hearth

Manufacturer's Warranty

1 year limited warranty

Ship Weight

275.0 LB

Heat Output

48,000 Btu/hour

Fuel Type

Pellet

Heating Capability

2,200 ft²

Color Family

Black

Assembled Height

27 in

Assembled Width

26.25 in
AttributeSpecification

Assembled Depth

24.25 in

Blower Included

Yes

Blower CFM

120 cfm

Heat Settings (qty.)

5

Hopper Capacity

45 lb

Vent-Free

No

EPA Certified

Yes

Product Weight

275.0000 lb

Dimensions L x W x H (in.)

26.19 x 24.25 x 30.5 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Does this stove automatically shut off when the room comes up to temp and restart when the room cools down

    1 answer

    1. The stove will not automatically shut off when it reaches the room temperature. When you run the stove in T-Stat Mode (using its built-in room sensor or an optional wall thermostat), it modulates its output rather than turning off. It will drop down to the lowest setting until the temperature drops below the desired setting, then it will come back up to the higher setting.

      Helpful?

  2. Does this model have a clean out drawer

    1 answer

    1. This stove does feature an ash drawer.

      Helpful?

  3. What diameter of vent do I need?

    1 answer

    1. The vent must use a certified 3-inch or 4-inch “PL” pellet vent system. Use a 3-inch vent as the standard. If your vent run exceeds 12 feet vertically (or installation is more than 2,500 ft above sea level), then you must switch to a 4-inch vent.

      Helpful?

  4. Is this unit electric free?

    1 answer

    1. The pellet stove would need to be plugged into a 110/120 volt outlet.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
