AR North America Axial Radial Drive Pressure Washer Pump, 2400 PSI, 2.2 GPM, Gas, Model# RMW22G24SX-EZ-PKG

Item# 30157
"AR North America Axial Radial Drive Pressure Washer Pump, 2400 PSI, 2.2 GPM, Gas, Model# RMW22G24SX-EZ-PKG"
AR North America Axial Radial Drive Pressure Washer Pump, 2400 PSI, 2.2 GPM, Gas, Model# RMW22G24SX-EZ-PKG

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

AR North America Axial Radial Drive Pressure Washer Pump, 2400 PSI, 2.2 GPM, Gas, Model# RMW22G24SX-EZ-PKG

Click or Tap image to Zoom

$305.95

  • Shipping:

    Factory shipped

  • Store Pickup:

  • 7/8in. hollow shaft
  • Vertical gas engine flange
  • Thermal relief valve
  • Detergent tube with filter

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • AR North America Axial Radial Drive Pressure Washer Pump, 2400 PSI, 2.2 GPM, Gas, Model# RMW22G24SX-EZ-PKG
  • MAG 1 Pressure Washer Pump Oil, 30W, Universal Use, 32oz.
  • NorthStar Pressure Washer Pump Freeze Guard, 12 Oz.
  • 3M Reusable Corded Earplugs, NRR 25dB, Model# 90586-80000
Price for all four:

$333.92

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

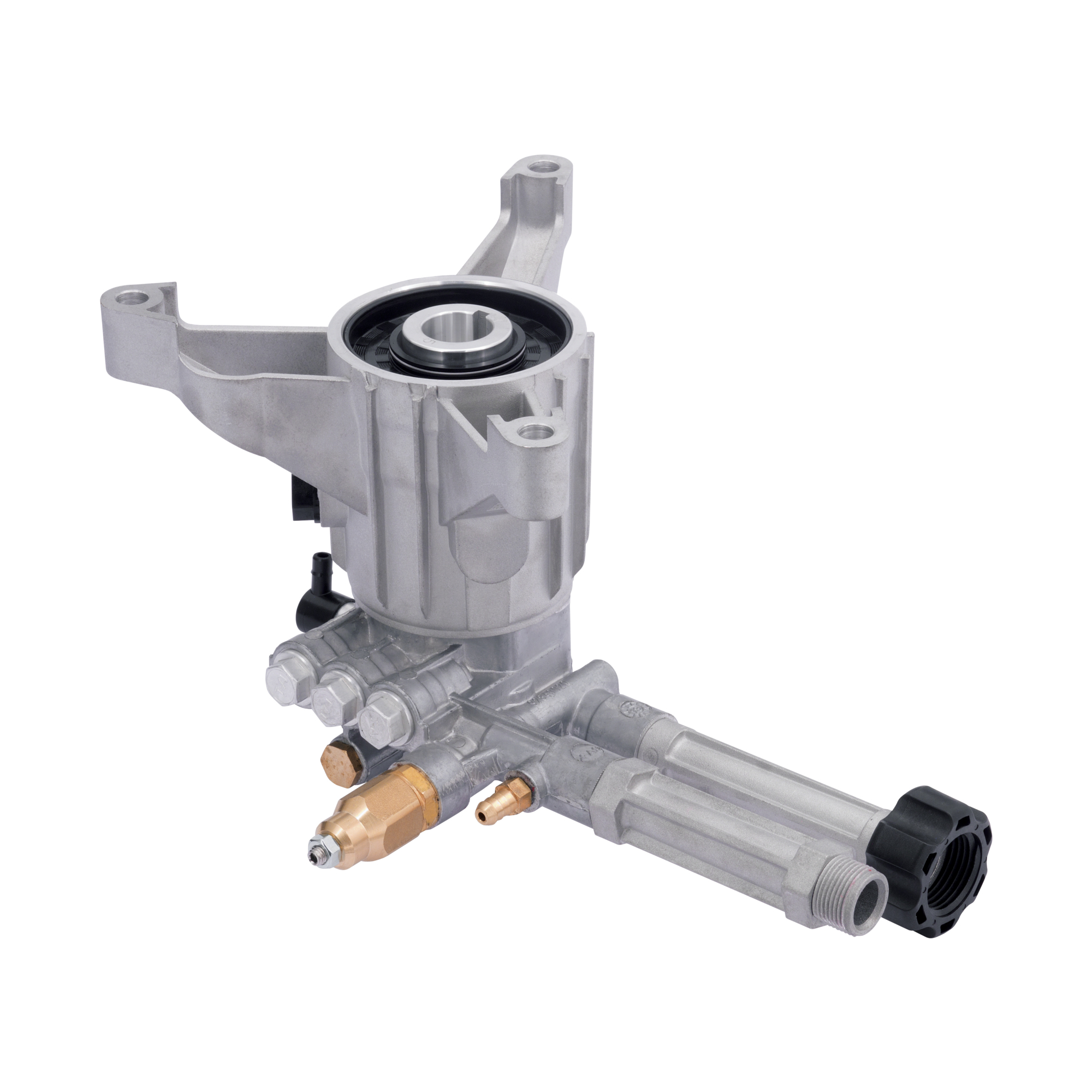

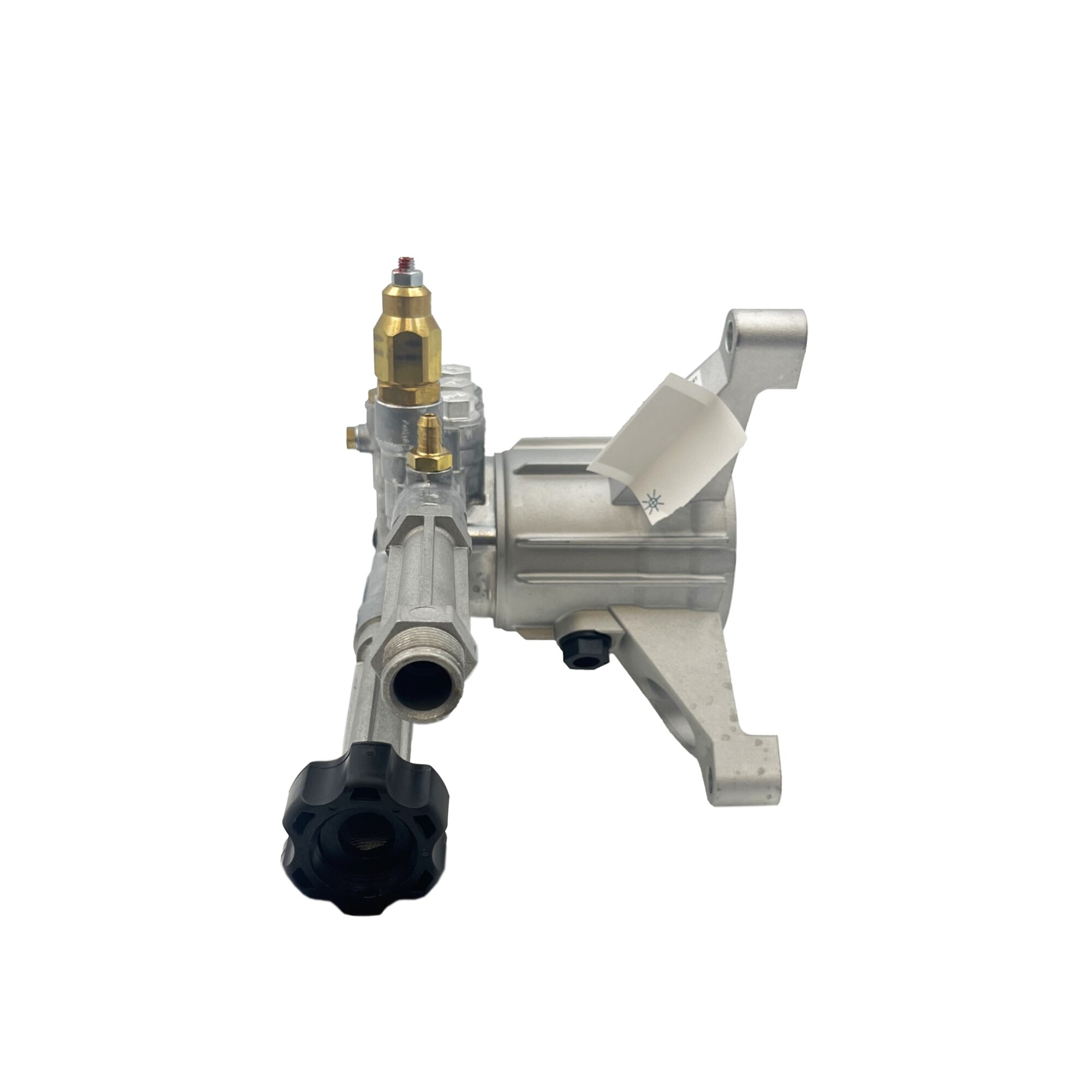

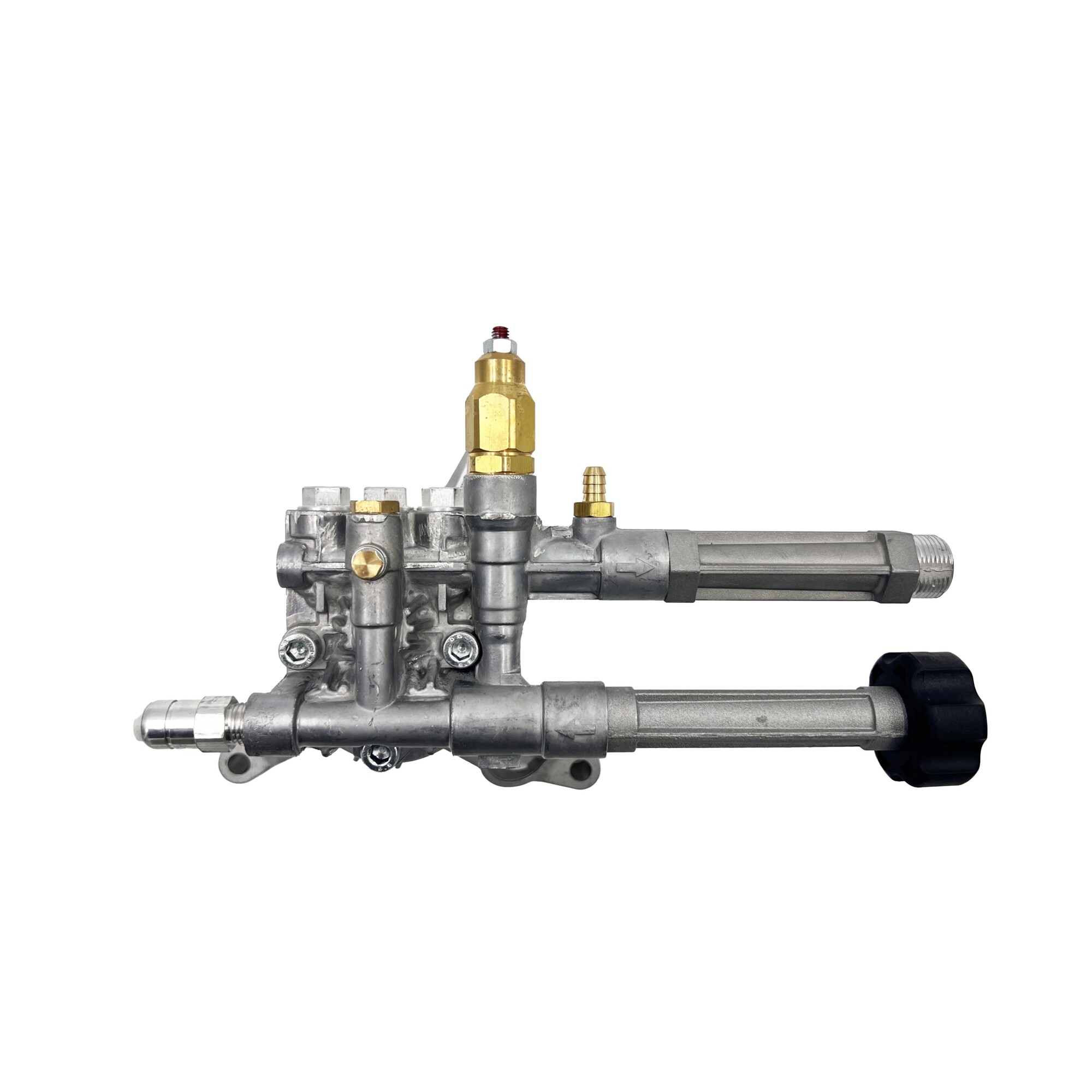

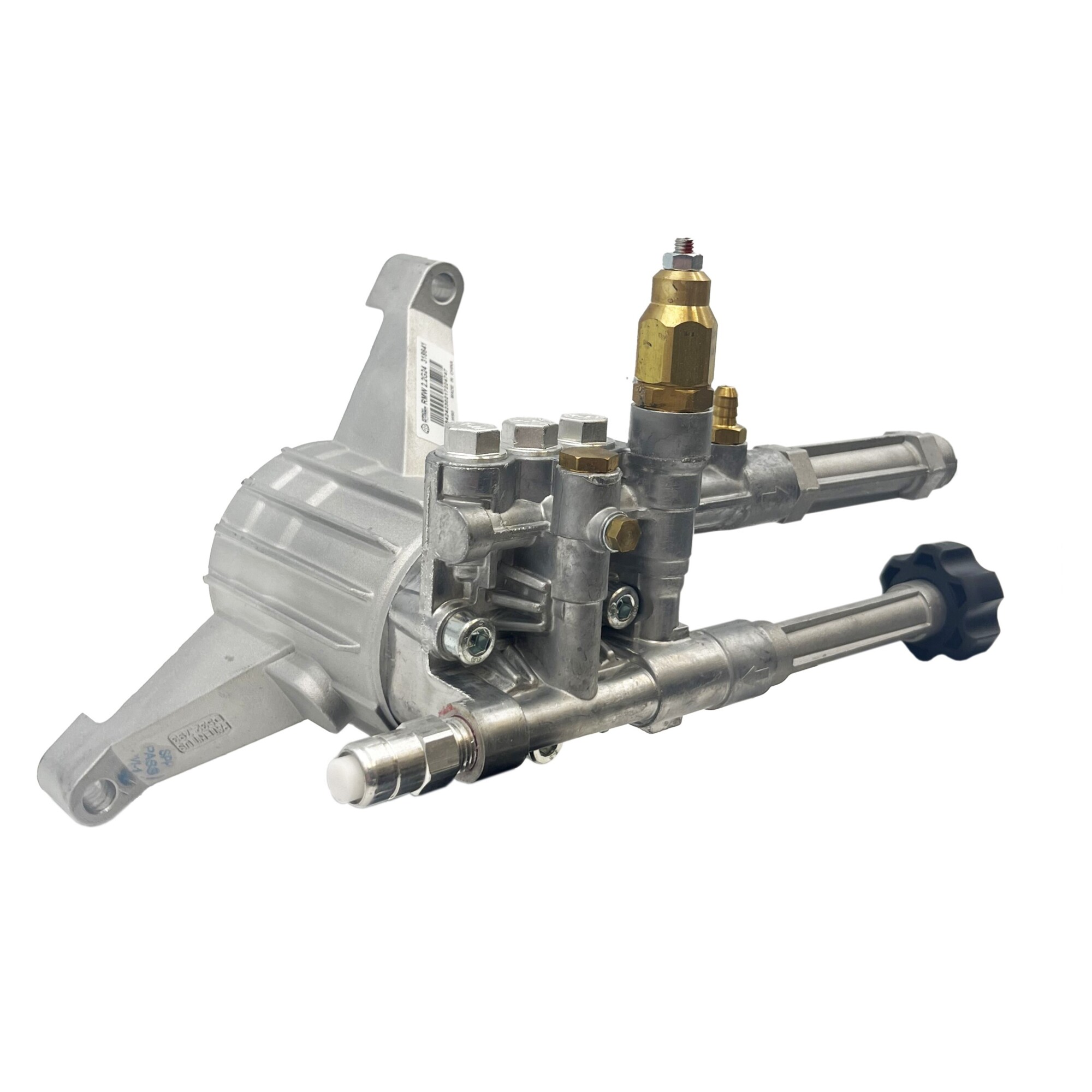

The Annovi Reverberi RMW22G24SX-PKG, D version 7/8in. hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with an aluminum pump head suitable for a wide range of conditions. The RMW22G24SX-PKG can produce up to 2400 Max PSI, 2.2 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RMW22G24SX-PKG weighs in at 7.7 lbs and boasts a sleek compact design.

What's Included

    (1) Pump

Features + Benefits

  • 7/8in. hollow shaft
  • Vertical gas engine flange
  • Thermal relief valve
  • Detergent tube with filter

Key Specs

AttributeSpecification

item#

30157

Brand

AR North America

Manufacturer's Warranty

1 year limited warranty

Ship Weight

7.7 LB

Max. PSI

2,400

GPM

2.2

Product Type

Pump
AttributeSpecification

Material

Aluminum

Max. Temperature

140 °F

Shaft Diameter

0.875 in

Fuel Type

Gasoline

Hose Length

0 ft

Adjustable Pressure

No

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Does this pump have pump oil already installed or does it have oil packaged seperately?

    1 answer

    1. The pump oil is not included. The recommended oil is a non detergent SAE 30 weight oil item number 4043.

      Helpful?

  2. what size bolts dos this unit require,mine are 9 mm or three eights by two and three eights long

    1 answer

    1. The bolts required for this pump are 5/16" dia. and 2 to 2.5 inches in length.

      Helpful?

  3. Can this be mounted on a vertical shaft engine?

    1 answer

    1. This AR North America pressure washer pump would mount to a vertical engine with a 7/8" diameter shaft.

      Helpful?

  4. what is the minimum hp to drive this pump?

    1 answer

    1. This pressure washer pump requires a minimum of 4.8 horsepower.

      Helpful?

  5. What is the bolt pattern measurement?

    1 answer

    1. This AR North America Axial Radial Drive Pressure Washer Pump mounts in an offset Triangle with the following dimensions from center hole to center hole.
      Side 1 = 157.8mm
      Side 2 = 160.2mm
      Side 3 = 196.8mm

      Helpful?

  6. Hose Connections

    Where do the supply hoses connect, on front of washer or rear of washer. I need "front" connections

    1 answer

    1. This AR North America pressure washer pump is a left handed pump, meaning that the unloader valve is to the left of the inlet/outlet. The inlet/outlet connections are the pipes coming out from the side and the inlet is the end with the black fitting. This pump has an offset triangle mounting pattern with the dimensions from center hole to center hole of 6.2125" on side 1, 6.307" on side 2, and 7.75" on side 3. The direction of the inlet and outlet will depend on how the pump is installed to the engine with the available mounting holes.

      Helpful?

  7. what is the shaft size 7/8 or 3/4

    1 answer

    1. The shaft diameter of this AR North America Axial Radial Drive Pressure Washer Pump is 7/8.”

      Helpful?

  8. How to measure mount of pressure washer pump

    I have 7/8 shaft. need to know if mounting holes will fit and how to measure from center of hole to edge of shaft or to center of shaft, etc... Will this one fit?

    1 answer

    1. The mount on the pressure washer pump is an offset triangle pattern. The measurements are from the center of the shaft to the center line of the hole in the leg. The pattern is a standard measurement to the pressure washer industry.

      Helpful?
