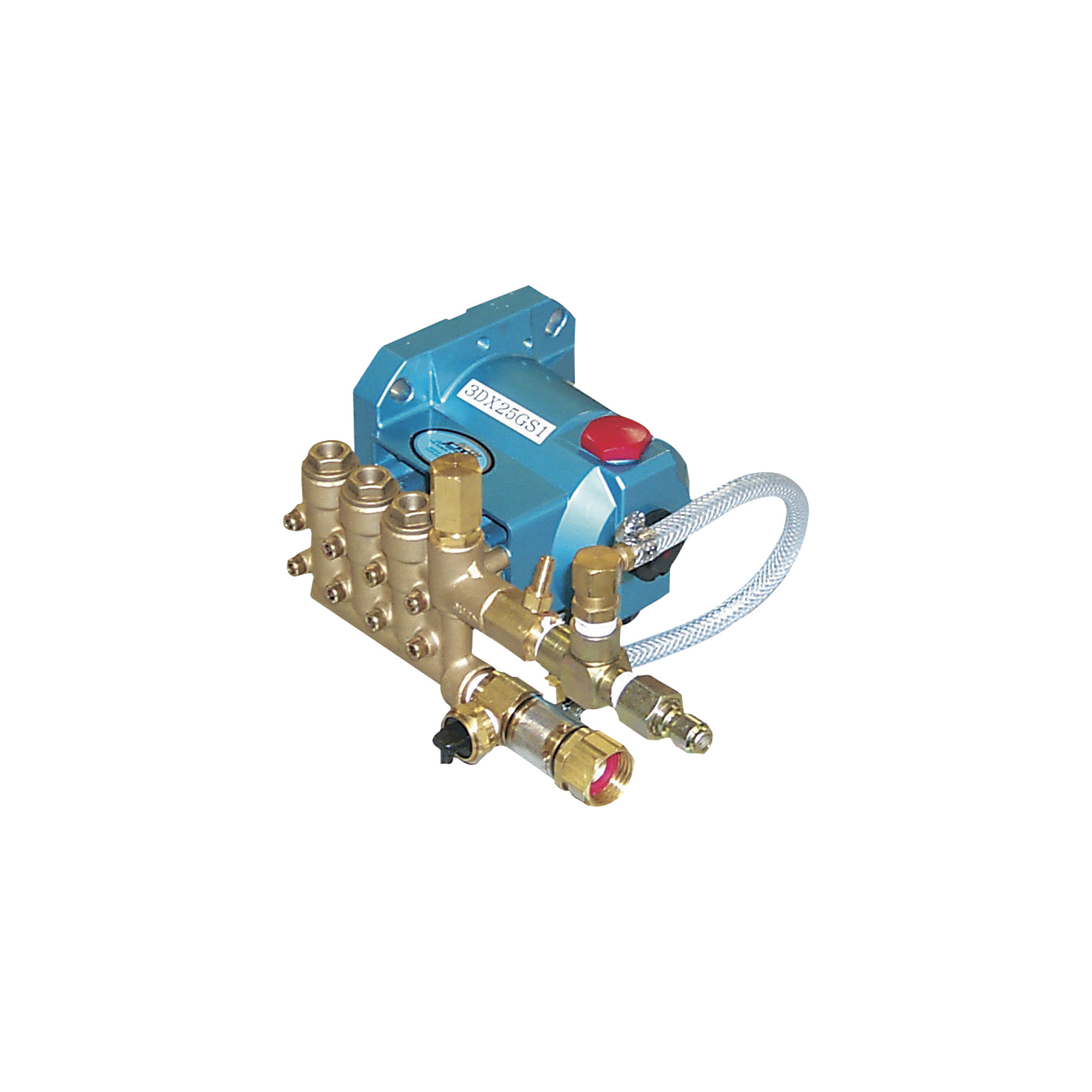

CAT Pumps Pressure Washer Pump, 2750 PSI, 2.5 GPM, Direct Drive, Gas

Item# A1578171
"CAT Pumps Pressure Washer Pump, 2750 PSI, 2.5 GPM, Direct Drive, Gas"
CAT Pumps Pressure Washer Pump, 2750 PSI, 2.5 GPM, Direct Drive, Gas

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

CAT Pumps Pressure Washer Pump, 2750 PSI, 2.5 GPM, Direct Drive, Gas

Click or Tap image to Zoom

$449.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • Pre-plumbed and pre-tested
  • Fits 4-bolt engine face plates
  • Bolts not included; use existing bolts from old pump to install new pump
  • Replaces Item# A1573651

See full description

Complete Your Solution

  • CAT Pumps Pressure Washer Pump, 2750 PSI, 2.5 GPM, Direct Drive, Gas
  • Cat Pumps Pressure Washer Pump Oil, 21 Oz.
  • NorthStar Pressure Washer Pump Freeze Guard, 12 Oz.
  • 3M Reusable Corded Earplugs, NRR 25dB, Model# 90586-80000
Price for all four:

$479.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

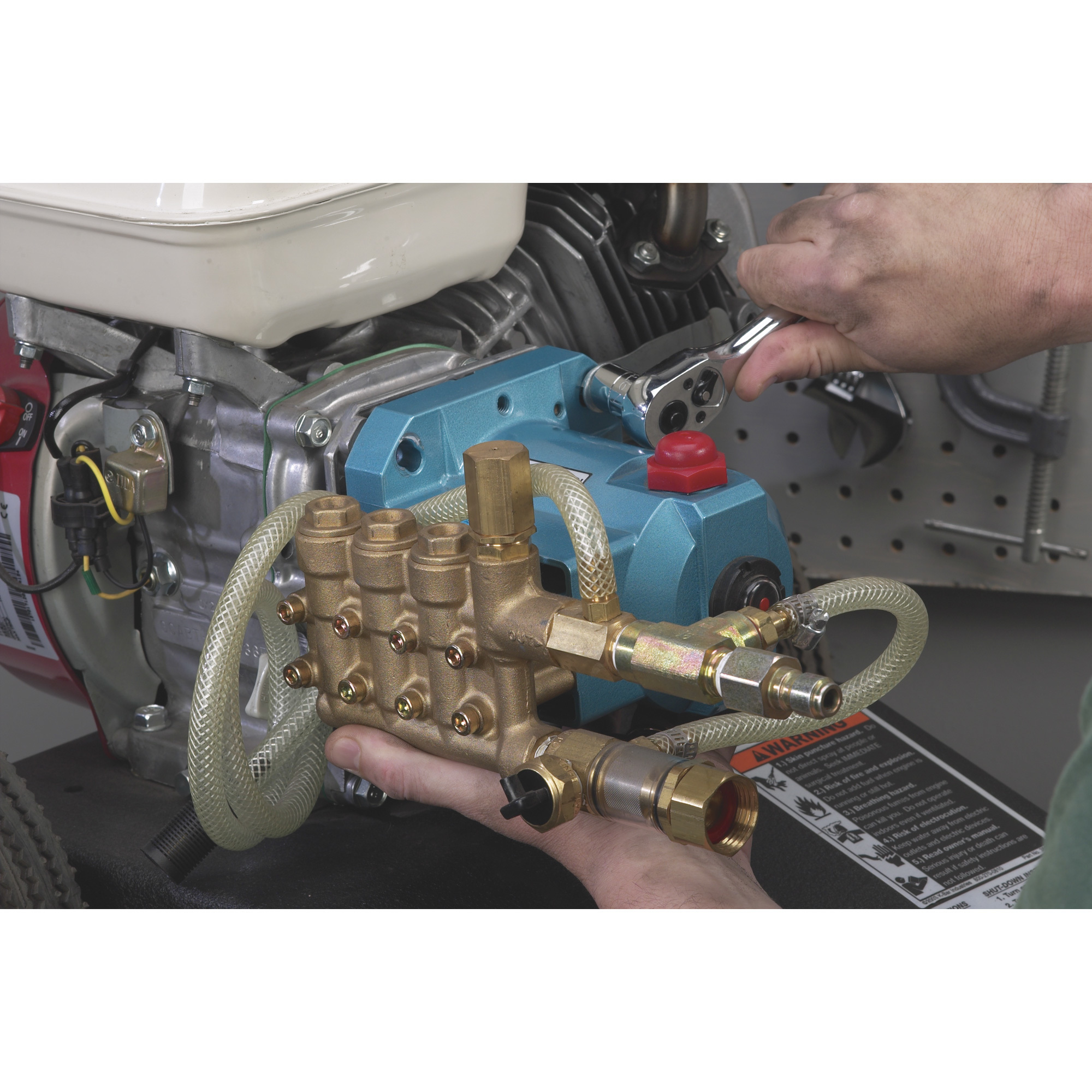

The CAT Pumps Pressure Washer Pump provides a fast changeover, even in the field. Pre-plumbed and pre-tested. Fits 4-bolt engine face plates. Bolts not included; use existing bolts from old pump to install new pump.

What's Included

    (1) Pressure washer pump

Downloads

Product Manual

Features + Benefits

  • Pre-plumbed and pre-tested
  • Fits 4-bolt engine face plates
  • Bolts not included; use existing bolts from old pump to install new pump
  • Replaces Item# A1573651

Key Specs

AttributeSpecification

item#

A1578171

Brand

CAT Pumps

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

15.0 LB

Max. PSI

2,750
AttributeSpecification

GPM

2.5

Horsepower

6.5 HP

Product Type

Pump

Shaft Diameter

0.75 in

Fuel Type

Gasoline

Reviews

Questions & Answers

26 Reviews This action will navigate to reviews.

Questions

1–10 of 26 Questions
Sort by:

  1. is thermal protection or quick connect for hose (as pictured) included in the price of the pump?

    1. YYes they were

      Helpful?

    2. It sure is !!

      Helpful?

    3. Yes. This pump does include both the thermal protection and the quick connect for the high pressure hose.

      Helpful?

  2. Does this pump come with inlet filter as shown in picture

    1. My new 4DNX pump came with the viewable screen filter. It works- Hooked up to a hose with dirt inside and half clogged the filter... Easy to clean out.

      Helpful?

    2. Yes, this pump includes an inlet filter.

      Helpful?

  3. need to know if pump comes with chemical ejector, adjustable pressure regulator, thermal relief valve, and easy start pressure relief. thank you

    1. yes

      Helpful?

    2. The CAT pump does include the chemical ejector, adjustable pressure regulator, thermal relief valve, and the easy start pressure relief features.

      Helpful?

  4. Will this pump replace 2SFX22GS

    1. yes this pump will fit but it will hang out on one side more then it should so a few new holes will need to be drilled in platform to hit right

      Helpful?

    2. To replace a pump, you need to match up PSI, GPM, shaft size and the size of the engine.

      Helpful?

  5. Will this pump fit on a Honda 6.5 hp GX200 motor?

    1. Yes, it will fit

      Helpful?

    2. The requirements for this pump are a 5 to a 6.5 HP, 3/4" shaft engine with a 4 bolt engine face plate.

      Helpful?

  6. Will I need anything else besides the appropriate hose fittings to use this product to replace an old pressure washer pump?

    Also- the Honda GC160 I am using has a short (1 inch) 3/4" diameter keyed shaft. Will this pump work with that shaft length?

    1. You may need the included adapter plate to align with Honda bolt pattern. That eats up about .3 inches. Not knowing HP of GX 160, be sure to verify that you have sufficient ooomph to twist this baby. I think, though, that you'll likely have about 1/2 inch of shaft within pump collar.

      Helpful?

    2. The pump is complete, you simply remove the 4 bolts from the old pump and bolt the new pump on. In regards to this working with your Honda GC engine, it will work on that size of shaft.

      Helpful?

  7. What country was this made in?

    1 answer

    1. The pressure washer pump is made in Japan.

      Helpful?

  8. Do there have any type of warrenty?

    1 answer

    1. This pump comes with a 1 year warranty.

      Helpful?

  9. what is the dia. of bolt hole circle

    1 answer

    1. This has an adapter bracket that features an outside bolt circle of 5-7/8". The inside bolt circle on the adapter is 3-5/8". If the adapter is not used, the crankcase itself has a 5-5/16" and a 5-7/8" bolt circle.

      Helpful?

  10. Does this pump serve to replace my Cat Model 3DX25GSI ?

    1 answer

    1. Our item #A1578171 is the replacement pump for 3DX25GSI with a gas engine. For an electric motor our item #A1573021 would be the suitable replacement.

      Helpful?
