ESAB Rogue 120V, 140 Amp, Inverter MIG Welder , Flux Core Welder, LCD Display Model# 0700301082

Item# 114536
Clearance
ESAB Rogue 120V, 140 Amp, Inverter MIG Welder , Flux Core Welder, LCD Display Model# 0700301082

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ESAB Rogue 120V, 140 Amp, Inverter MIG Welder , Flux Core Welder, LCD Display Model# 0700301082

Click or Tap image to Zoom

  • Large 14-segment display for instantaneous feedback for both voltage and wire feed speed
  • Unique rugged industrial design supporting multiple lift points and cable management
  • Arc dynamics allow fine tune arc based on material being welded
  • Advanced control features include adjustable pre and post flow, burn back control, creep start and 2T/4T trigger latch
  • IP23S rated for indoor/outdoor use

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The ESAB Rogue EM 140 MIG Welder operates on 120V and delivers a 140 Amp output and offers a duty cycle of 30% 90A. This system is designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding. With a weight of only 13 kg (28.8 lbs.), 120V single phase input and compatibility with 6 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field. Max plate thickness is 1/4in.

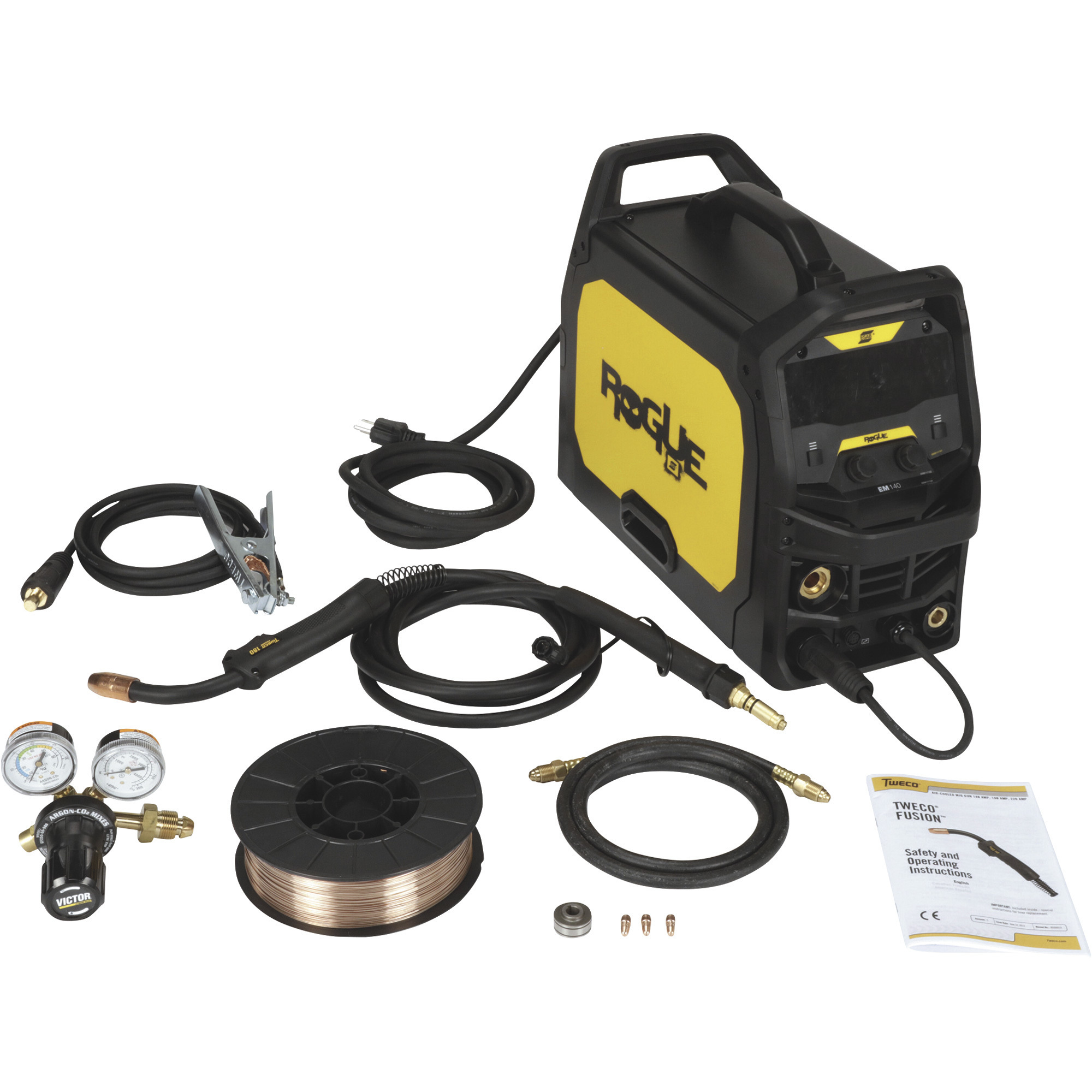

What's Included

    (1) 140 A multi-process power source (1) 3m/10ft. (1) Tweco Fusion 180A MIG Gun (2) Tweco Velocity contact tips: 0.6mm/0.8mm/0.9mm (0.023in./0.030in./0.035in.) (1) Set of feed rolls: 0.6mm/0.8mm (0.023in./0.030in.) V, 0.8mm/0.9mm (0.030in./0.035in.) V, and 0.8mm/0.9mm (0.030 /0.035 in) VK (1) 3m/10ft. work clamp lead set with heavy-duty 50mm OKC connection (1) Victor Ar /CO2 regulator/flow gauge (1) 3m/10ft.) Gas hose (1) 3m/10ft. mains cable with NEMA 5 15P plug (1) Set of ESAB OK AristoRod 12.50 1 kg (2 lb.), 0.8 mm/0.030in. wire

Downloads

Product Manual

Features + Benefits

  • Large 14-segment display for instantaneous feedback for both voltage and wire feed speed
  • Unique rugged industrial design supporting multiple lift points and cable management
  • Arc dynamics allow fine tune arc based on material being welded
  • Advanced control features include adjustable pre and post flow, burn back control, creep start and 2T/4T trigger latch
  • IP23S rated for indoor/outdoor use
  • Max plate thickness: 1/4in.
  • Max spool diameter: 8in.

Key Specs

AttributeSpecification

item#

114536

Brand

ESAB

Manufacturer's Warranty

3 year limited warranty

Ship Weight

51.5 LB

Volts

120

Max. Amps

140

Power Type

140 A multi-process power source
AttributeSpecification

Multi-process

Yes

Welding Processes

Flux-Core, MIG

Duty Cycle

30% @ 90A

Min. Amps

25

Clamp Cable Length

10 ft

Product Weight

28.8 lb

Dimensions L x W x H (in.)

23.2 x 8.7 x 15.2 in

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Does this Tweco gun reqiure 2 different nozzles? 1 for gas and 1 for flux core welding?

    1 answer

    1. Different nozzles will be needed for MIG welding and flux core welding.

      Helpful?

  2. Does the machine weld with electrode?

    1 answer

    1. This welder would not weld with an electrode.

      Helpful?
