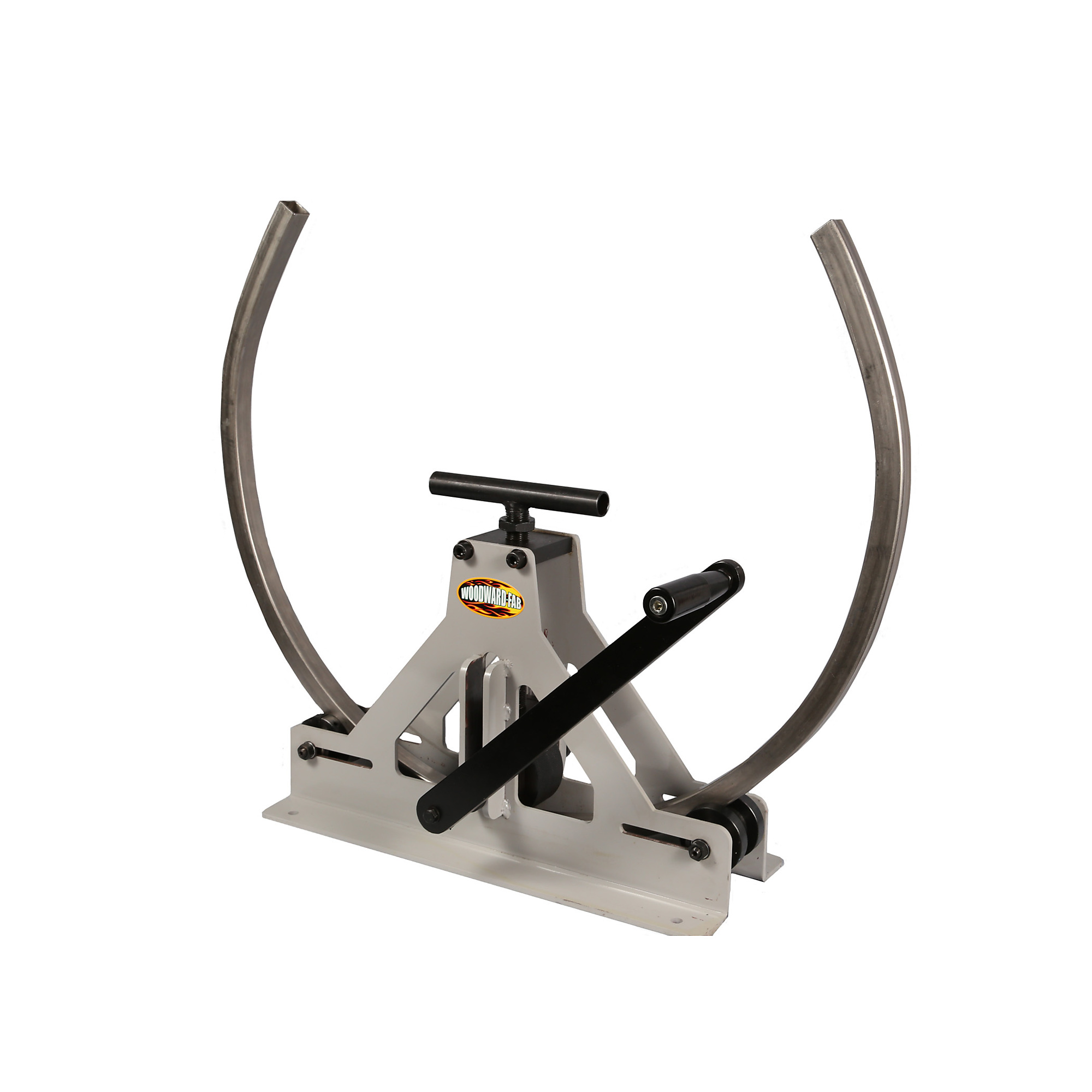

Woodward Fab, Flat Bar and Square Tube Rolling Machine, Max. Bending Radius 12 °, Model# WFTR4

Item# 5945177
Woodward Fab, Flat Bar and Square Tube Rolling Machine, Max. Bending Radius 12 °, Model# WFTR4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Woodward Fab, Flat Bar and Square Tube Rolling Machine, Max. Bending Radius 12 °, Model# WFTR4

Click or Tap image to Zoom

$409.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Roll up to 1/4" thickness 1-3/4" width flat bar solids of mild steel
  • Roll up to 1-1/2" x 1-1/2" square tube up to .065 wall thickness
  • Adjustable lower dies, no need for additional die sets

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Woodward Fab WFTR4 flat bar rolling machine is a 3 die rolling machine that creates architectural rolls in steel and aluminum in flat bar and square tubing. The lower dies are adjustable. Simply loosen the collars of the dies, open them to the required width of flat stock or square tubing then move the material through the lower rollers by turning the crank hand lever clockwise and counterclockwise while applying pressure down on the center roller with the turn screw. The center die set is driven so as you crank the handle it moves the material back and forth. The more pressure applied on the center roller, the tighter the circle created.

What's Included

    (1) Machine

Features + Benefits

  • Roll up to 1/4" thickness 1-3/4" width flat bar solids of mild steel
  • Roll up to 1-1/2" x 1-1/2" square tube up to .065 wall thickness
  • Adjustable lower dies, no need for additional die sets

Key Specs

AttributeSpecification

item#

5945177

Brand

Woodward Fab

Manufacturer's Warranty

1 year limited warranty

Ship Weight

50.0 LB

Max. Bending Radius

12 °

Operation

Manual
AttributeSpecification

Product Type

Ring Roller

Dies Included

Yes

Material

Carbon Steel

Product Weight

46.0000 lb

Dimensions L x W x H (in.)

22.0 x 10.0 x 22.0 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. What is the maximum radius on 3/4 by 3/16 thick flatbar

    1 answer

    1. This rolling machine does not have a maximum radius but only a minimum radius of 18".

      Helpful?

  2. Where made?

    1 answer

    1. This item is manufactured in China.

      Helpful?

  3. Are there roller dies that would also allow this to work with round tubing?

    1 answer

    1. Dies are not available for this tube rolling machine to work with round tubing.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
