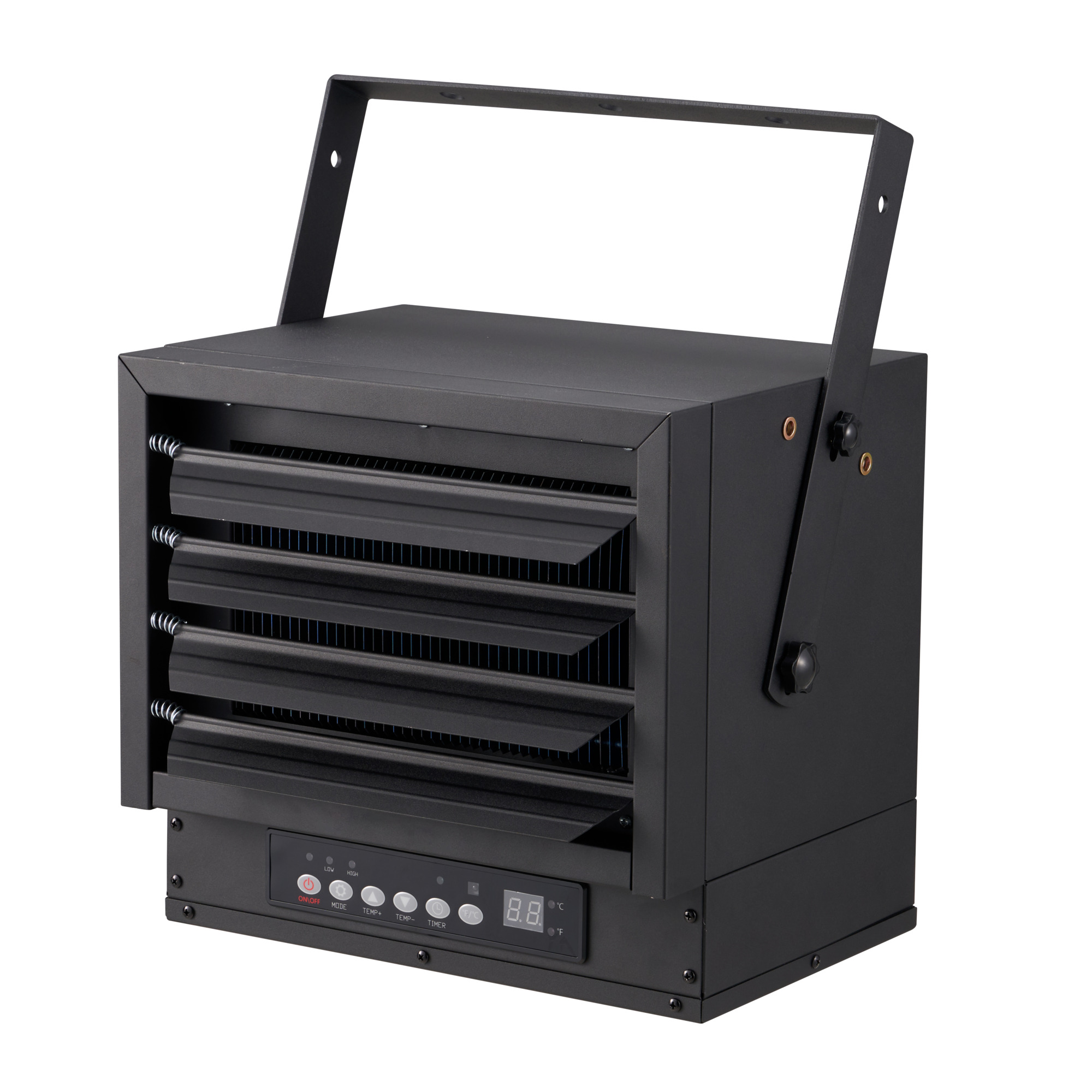

WeWarm 7500W Digital Electric Overhead Garage Heater, 25,590 BTU, 240V, Heating Capability 750 ft², Model# CZ230

Item# 6539074
WeWarm 7500W Digital Electric Overhead Garage Heater, 25,590 BTU, 240V, Heating Capability 750 ft², Model# CZ230

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WeWarm 7500W Digital Electric Overhead Garage Heater, 25,590 BTU, 240V, Heating Capability 750 ft², Model# CZ230

Click or Tap image to Zoom

  • Two heat settings: 6,250W-7,500W
  • Heavy gauge steel body protects heater in harsh environments
  • Fan-forced for wide heat dispersion
  • Thermostat control system
  • Louvers and variable mounting angle provide targeted airflow

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The 7,500W Electric Garage Heater is the perfect choice for keeping your garage, warehouse or workshop toasty and cosy. With two heat settings to suit any need, a sleek, space-saving ceiling mount, a handy manual knob switch and an adjustable thermostat, this heater is as easy to use as it is efficient. It's built to last with an upgraded, commercial-grade heating element and an open motor, so you can be confident it'll keep going strong. And with connections for an external thermostat, you can be sure of getting the perfect temperature every time. It's so lightweight and easy to move around, so you can take it with you wherever you need to go. And it's got an impressive 25,590 BTUs, so you can heat up to 750 sq. ft.! It's also got overheat protection and a caution light, so you can rest easy.

What's Included

    (1) Electric garage heater (1) Mounting bracket and remote control

Features + Benefits

  • Two heat settings: 6,250W-7,500W
  • Heavy gauge steel body protects heater in harsh environments
  • Fan-forced for wide heat dispersion
  • Thermostat control system
  • Louvers and variable mounting angle provide targeted airflow
  • Removable front grill assembly for easy cleaning
  • Overheat protection sensor and power indicator light for enhanced safety
  • Hard-wired installation 240 Volt AC
  • With power on indicator light
  • Convenient controls with a digital thermostat and remote control
  • Integrated digital thermostat control, 12-hour timer, and remote control

Key Specs

AttributeSpecification

item#

6539074

Brand

WeWarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

23.0 LB

Heat Output

25,590 Btu/hour

Heat Type

Forced Air

Heating Capability

750 ft²

Needs Direct Venting

No

Blower Included

Yes

Blower CFM

648 cfm

Amps

31.3
AttributeSpecification

Thermostat Included

Yes

Heat Settings (qty.)

2

Remote Included

Yes

Phase

Single-phase

Volts

240

Watts

7,500

Oxygen Depletion Sensor

No

Hardwired

Yes

Product Weight

20.4600 lb

Dimensions L x W x H (in.)

15.98 x 10.75 x 12.76 in

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Can you run the fan in this unit by itself just to move the air when needed in the garage.

    1 answer

    1. The heater has a fan only setting for year round air circulation.

      Helpful?

  2. Is a neutral wire needed? Or just 2 hots and a ground?

    1 answer

    1. The heated must be grounded and hardwired. The heater requires 8 AWG copper only wire that is rated at 167 degrees Fahrenheit (75 degrees Celsius). The heater will require of a minimum of a 40 amp breaker.

      Helpful?

  3. What size of breaker do you use to run this?

    1 answer

    1. The heater would require a 40-amp dual-pole breaker.

      Helpful?

  4. Can this unit be used in a barn?

    1 answer

    1. This heater may be used in a barn if it is correctly hardwired, shielded from the elements, and positioned away from any combustible materials.

      Helpful?

  5. is the plug 3 prong or 4 prong?

    1 answer

    1. This heater is designed to be hardwired.

      Helpful?

  6. How many amps is needed.

    1 answer

    1. This heater has an amperage rating of 31.3.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
