Western Global FuelCube Gasoline Tank Kit with Vent, Pump and Fuel Gauge, Model# FCPWN0500-11512GP-SNN-G

Item# 114912
Western Global FuelCube Gasoline Tank Kit with Vent, Pump and Fuel Gauge, Model# FCPWN0500-11512GP-SNN-G

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Western Global FuelCube Gasoline Tank Kit with Vent, Pump and Fuel Gauge, Model# FCPWN0500-11512GP-SNN-G

Click or Tap image to Zoom

$6944.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Easily stackable when empty (up to 2 high) to save space in your yard
  • Four-way fork pockets for quick and easy maneuvering and mobility when empty

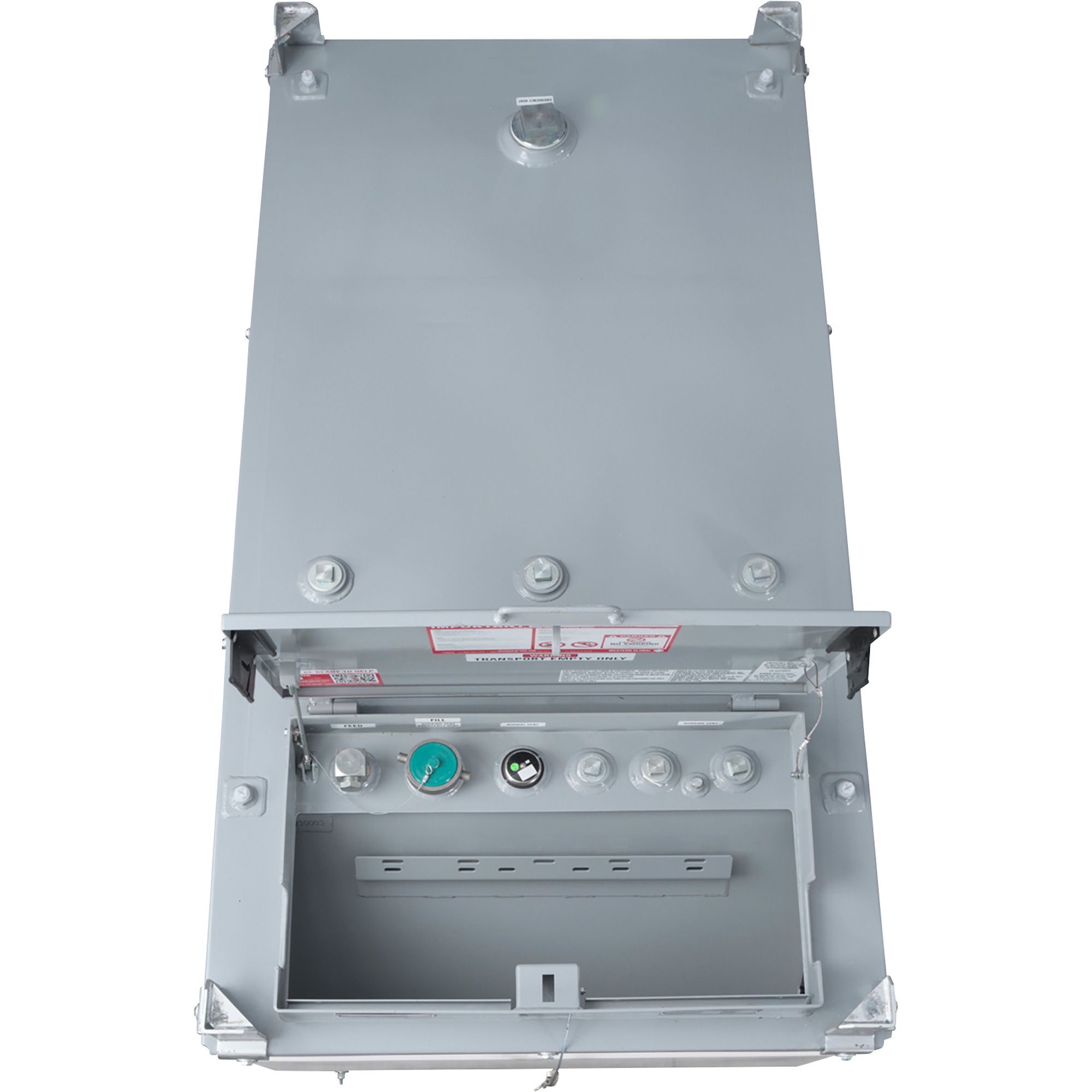

  • Lockable equipment cabinet keeps fuel, ports and equipment safe
  • Double-walled 110% containment to eliminate need for spill pans or basins

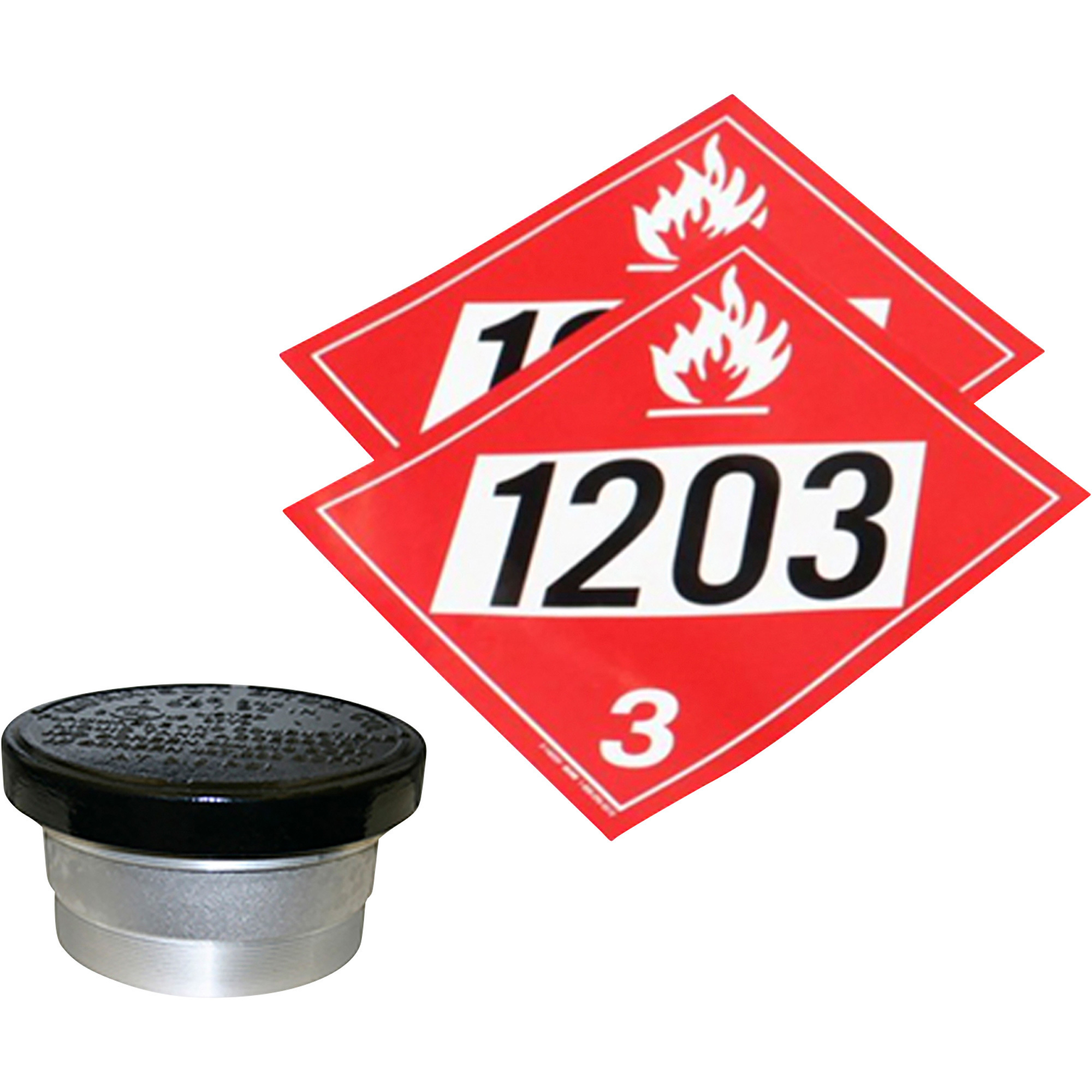

  • Includes emergency venting kit for gasoline usage

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Western Global FuelCube Gasoline Tank Kit with Pump and Fuel Level Gauge is a compact and economic stationary unit designed for onsite fuel supply and fleet refueling. The FuelCube includes features such as an integral, lockable equipment cabinet for security and forklift pockets for easy mobility when empty. This fuel tank has a capacity of 544 gallons with a safe fill capacity of 516 gallons.

What's Included

    (1) FCP500 FuelCube (1) Emergency Venting Kit for Gasoline Usage (1) 115V/12 GPM Pump Kit (1) Fuel Level Gauge

Downloads

Product Manual

Features + Benefits

  • Easily stackable when empty (up to 2 high) to save space in your yard
  • Four-way fork pockets for quick and easy maneuvering and mobility when empty
  • Lockable equipment cabinet keeps fuel, ports and equipment safe
  • Double-walled 110% containment to eliminate need for spill pans or basins
  • Includes emergency venting kit for gasoline usage
  • Includes 115V/12GPM Pump Kit and fuel level gauge

Key Specs

AttributeSpecification

item#

114912

Brand

Western Global

Manufacturer's Warranty

3 year limited warranty

Ship Weight

1600.0 LB

Capacity

544 Gal

Shape

Rectangle

Material

Steel
AttributeSpecification

Color

White

Finish

Painted

Inlet Port

3 in

DOT Approved

No

Compatible With

Gasoline

Product Weight

1,600 lb

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. May these fuel tanks-cubes be used to fill vehicles or are they only supposed to be used to fuel equipment (i.e., tractors/UTV/Generators, etc.)?

    1 answer

    1. This could be used to fuel vehicles.

      Helpful?

  2. Is the product made for underground storage

    1 answer

    1. This tank is designed to be an above ground fuel storage tank. It cannot be buried underground.

      Helpful?

  3. Can this tank be used to safely store gasoline inside a barn or garage?

    1 answer

    1. Use of this tank to store gasoline in a barn or garage is not determined by the tank, but by local codes and regulations. It is best to reach out to the local fire department for this information.

      Helpful?

  4. need a part number on the filler return block.

    1 answer

    1. A filler return block is not included on this model.

      Helpful?

  5. What is the hose length on the dispenser portion? I have seen 12' but was wondering if that can be extended and if so what is teh max length it could be extended to?

    1 answer

    1. The hose length is 12'. The hose can be extended, however the pump will have a max discharge distance of 18.2 feet.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
