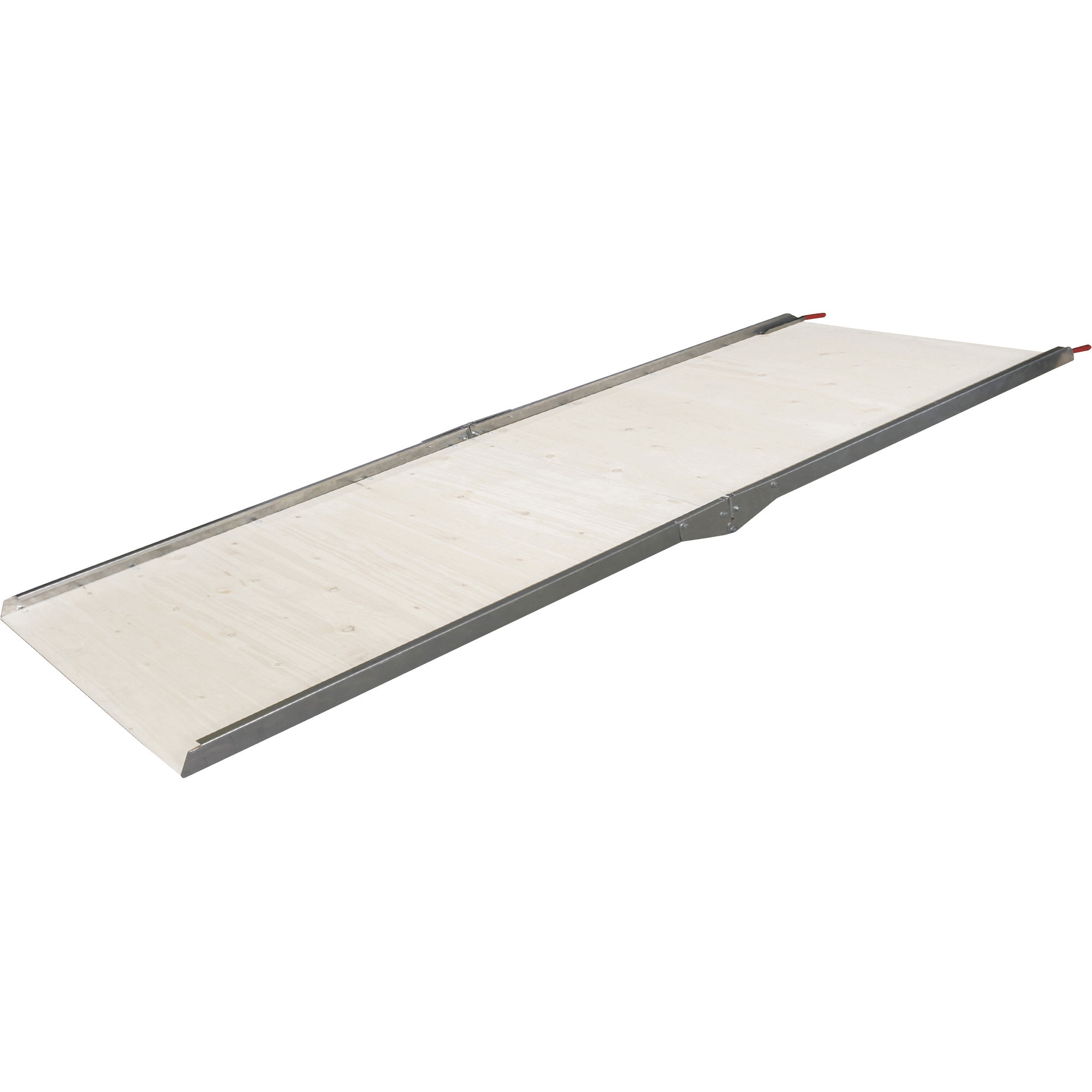

West Build-Your-Own Utility Ramp Kit, 600-Lb. Capacity, 10ft.L, Model# 1243

Item# 46711
West Build-Your-Own Utility Ramp Kit, 600-Lb. Capacity, 10ft.L, Model# 1243

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

West Build-Your-Own Utility Ramp Kit, 600-Lb. Capacity, 10ft.L, Model# 1243

Click or Tap image to Zoom

  • Ideal for loading/unloading scooters, wheelchairs, strollers, walking, cargo
  • 10ft. length
  • 600-lb. load capacity
  • 30in.-42in. maximum lift (4 or 5 steps)
  • Great for pickup truck access

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The West 10ft. Utility Ramp Kit is designed to load anything that rolls or has wheels, to a maximum lift of 30in. You supply the decking material (3/4in. plywood recommended), cut it to your desired width (up to 48in.W), then attach the side guide rails that are supplied in the kit. The guide rails add strength and prevent you from rolling off the side of the ramp. Ideal for scooters, wheelchairs, strollers, walking, cargo and more. Includes two rubber-coated support fingers. Folding design allows for compact storage. Made of galvanized steel for strength and corrosion protection. Plywood not included.

What's Included

    (8) Joint plates (4 left, 4 right) (4) Beam braces (2 left, 2 right) (4) Main beams (2 left, 2 right) (2) Support fingers (1) Hardware pack

Downloads

Product Manual

Features + Benefits

  • Ideal for loading/unloading scooters, wheelchairs, strollers, walking, cargo
  • 10ft. length
  • 600-lb. load capacity
  • 30in.-42in. maximum lift (4 or 5 steps)
  • Great for pickup truck access
  • Requires two pieces of plywood, 60in. long each, cut to desired width
  • 48in. max. width
  • Side guide rails add strength and prevent you from rolling off the side of the ramp
  • High-strength double side beams and hinges
  • Folds for compact storage
  • Galvanized steel for strength and corrosion protection
  • Supplied with two rubber-coated support fingers
  • Includes hardware to attach the 3/4in. decking material
  • Plywood not included
  • Easy Assembly

Key Specs

AttributeSpecification

item#

46711

Brand

West

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

48.0 LB

Material

Multiple
AttributeSpecification

Capacity

600 lb

Folding

Yes

Max. Ramp Length

124 in

Fastening Hardware Included

Yes

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Width of ramp? both rolling surface width and total width

    1 answer

    1. This is a build your own ramp, it is just the frame and brackets. You add the plywood. The maximum width it can be is 48".

      Helpful?

  2. How high is the hinge in the middle when open?  It must fit in slot under truck bed.

    1 answer

    1. The height of the hinge in the middle when the ramp is open would be 5".

      Helpful?

  3. How does this anchor to the porch?

    1 answer

    1. This is not intended to be anchored, the support fingers would just sit on the ledge of the porch.

      Helpful?

  4. What supports this ramp from the bottom on a 2 foot rise? How heavy is it to move?

    1 answer

    1. These brackets weight about 50 pounds prior to adding the lumber, this kit includes beam braces for additional support, and has an overall weight capacity of 600 lbs.

      Helpful?
