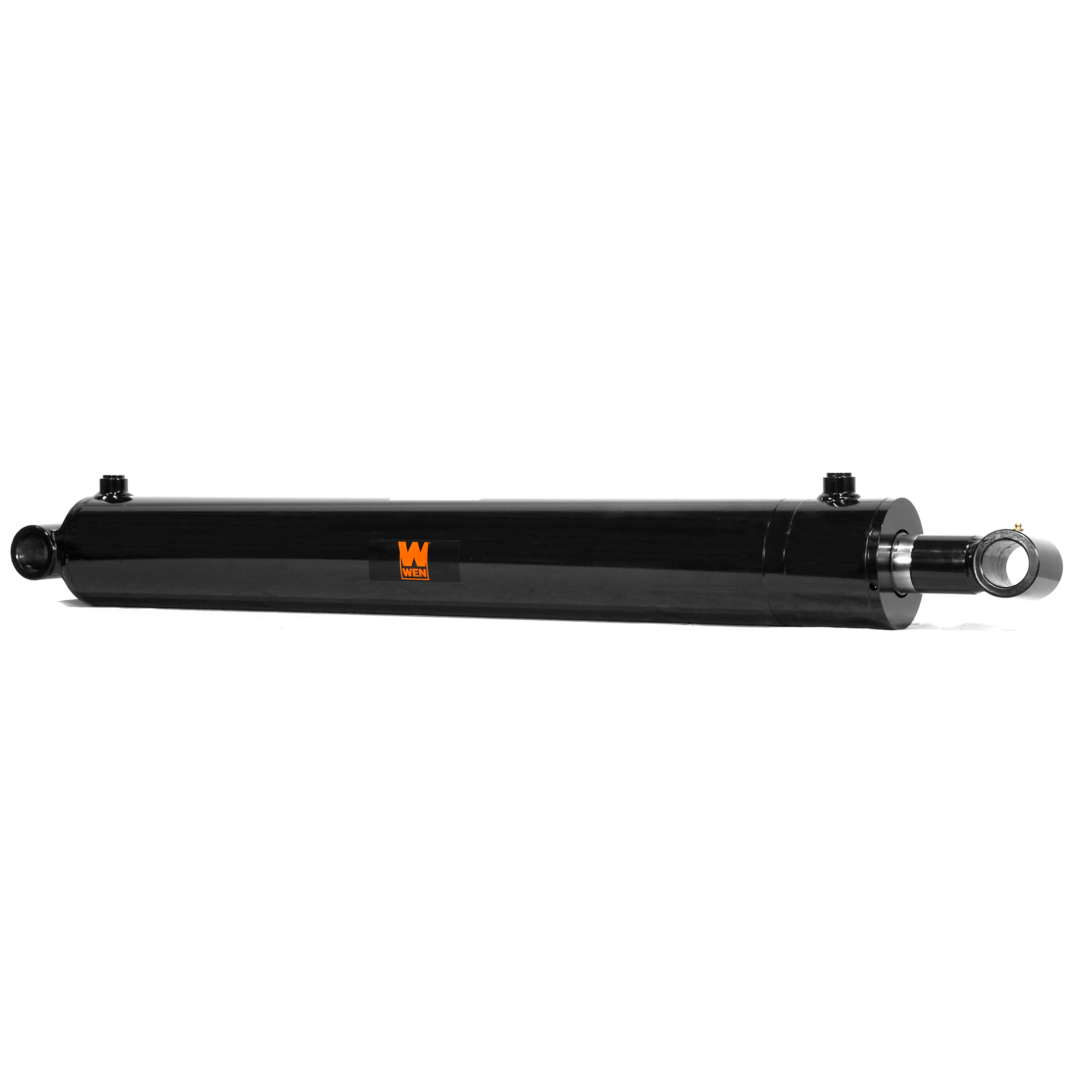

WEN WT-4048 Cross Tube Hydraulic Cylinder with 4-inch Bore and 48-inch Stroke

Item# 7061017
WEN WT-4048 Cross Tube Hydraulic Cylinder with 4-inch Bore and 48-inch Stroke

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN WT-4048 Cross Tube Hydraulic Cylinder with 4-inch Bore and 48-inch Stroke

Click or Tap image to Zoom

  • Double-acting steel-welded design creates pressure up to 3000 PSI
  • Features a 4-inch bore, a 48-inch stroke, and a 2-inch rod diameter
  • SAE-8 port (3/4 inch-16UNF) connects easily to your hydraulic hose
  • Retracted 58-inch cylinder extends out to 106 inches in length
  • Includes a polished chrome-plated rod, and a two-year warranty

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Remember when you had a cylinder that lasted? Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Hydraulic Cylinder. This double-acting cross tube hydraulic cylinder withstands operating pressures of up to 3000 PSI. The SAE-8 port (3/4in.-16UNF) attaches easily to the hydraulic hose of your choice. With a 4in. bore and a 48in. stroke, this durable cylinder goes from a retracted length of 58in. all the way out to an extended length of 106in. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a high-tensile ground and polished chrome-plated rod, and an ASTM A536 65-45-12 ductile iron piston. And because it’s a WEN product, your cylinder comes backed by a two-year warranty and a friendly customer help line, all to make sure you remember WEN.

What's Included

    (1) Cross Tube Hydraulic Cylinder with 4-inch Bore and 48-inch Stroke

Features + Benefits

  • Double-acting steel-welded design creates pressure up to 3000 PSI
  • Features a 4-inch bore, a 48-inch stroke, and a 2-inch rod diameter
  • SAE-8 port (3/4 inch-16UNF) connects easily to your hydraulic hose
  • Retracted 58-inch cylinder extends out to 106 inches in length
  • Includes a polished chrome-plated rod, and a two-year warranty

Key Specs

AttributeSpecification

item#

7061017

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

114.2 LB

Max. PSI

4,500

Bore Diameter

4 in
AttributeSpecification

Stroke Length

48 in

Retracted Length

58 in

Extended Length

106 in

Port Size

0.75 in

Product Weight

114.9000 lb

Dimensions L x W x H (in.)

50.25 x 5.32 x 4.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
