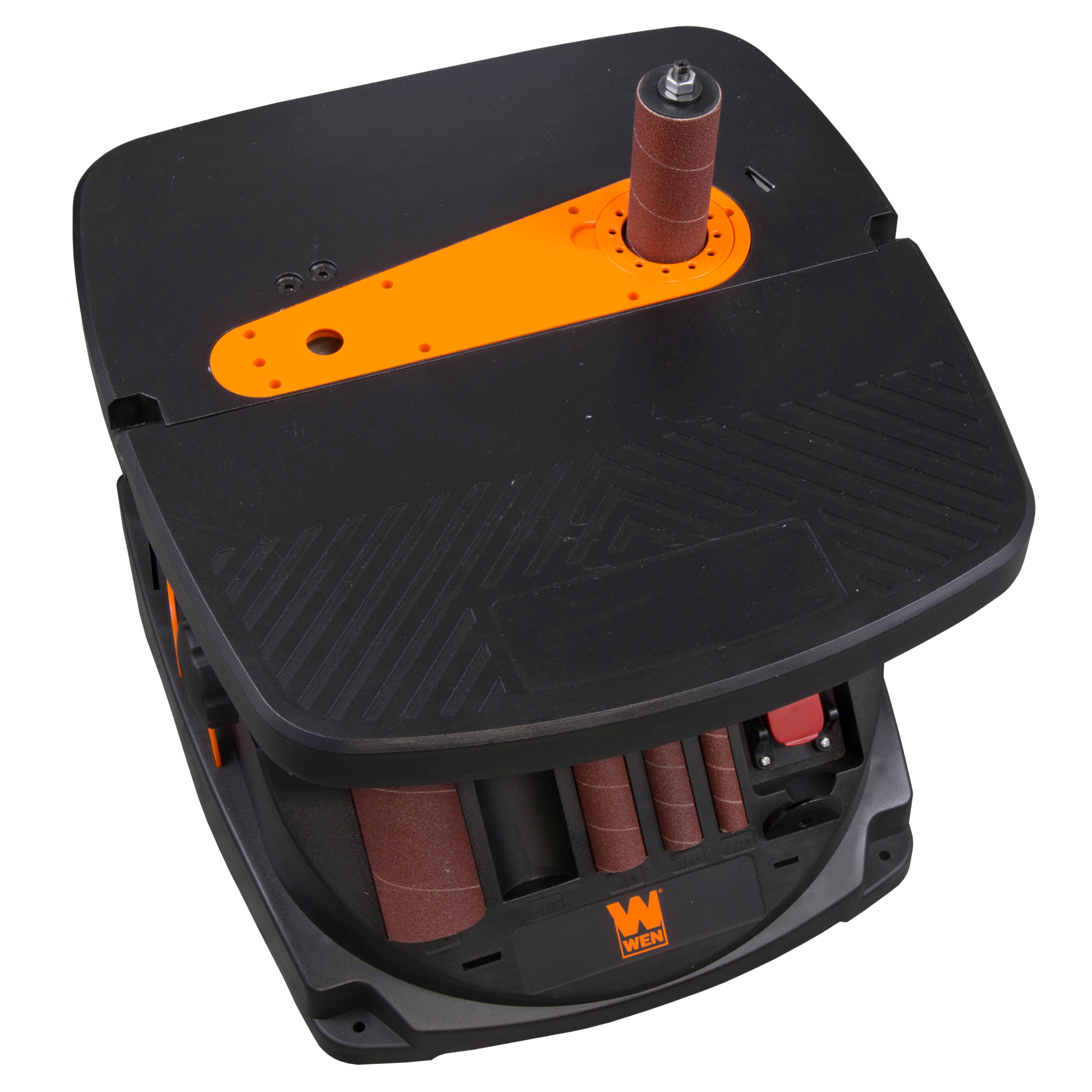

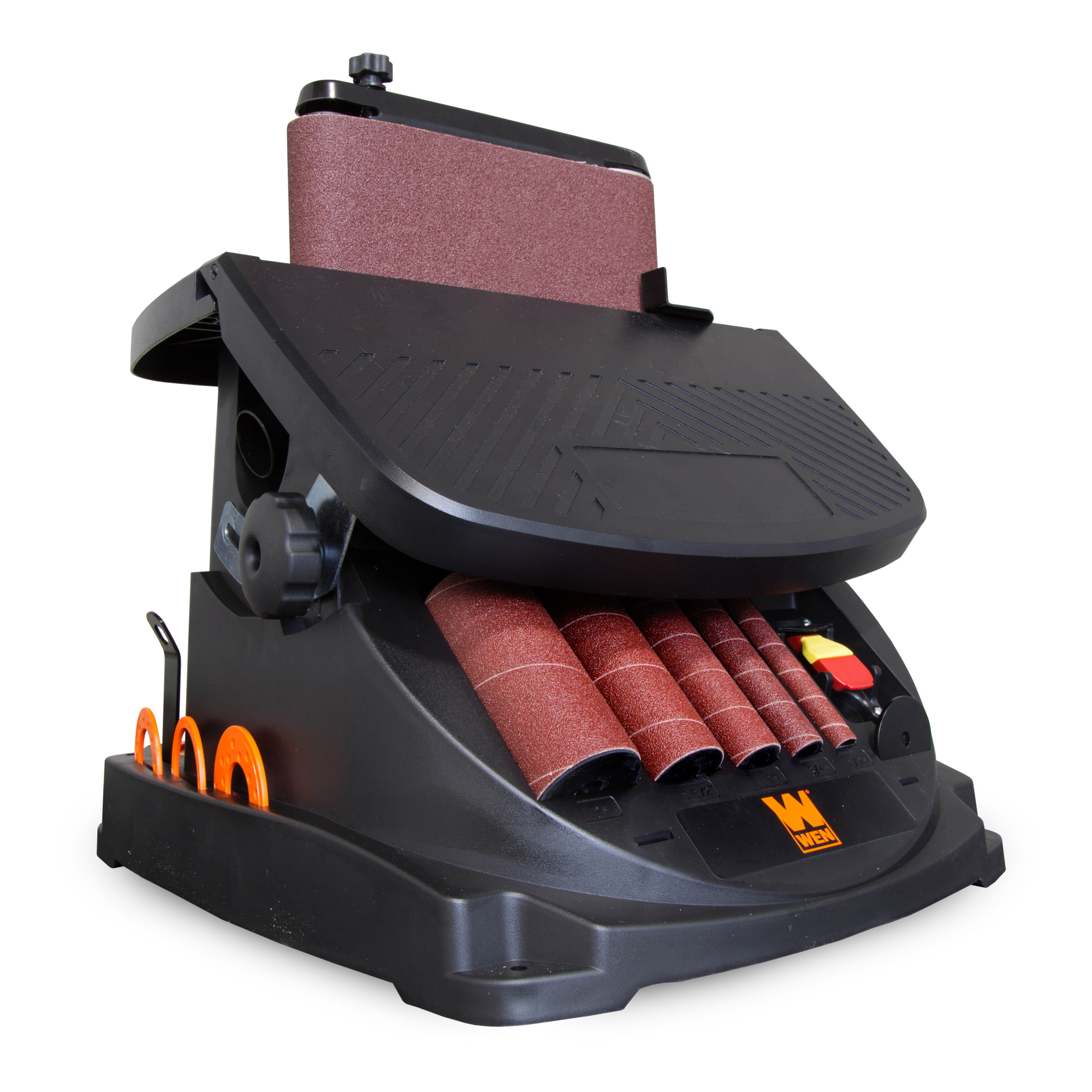

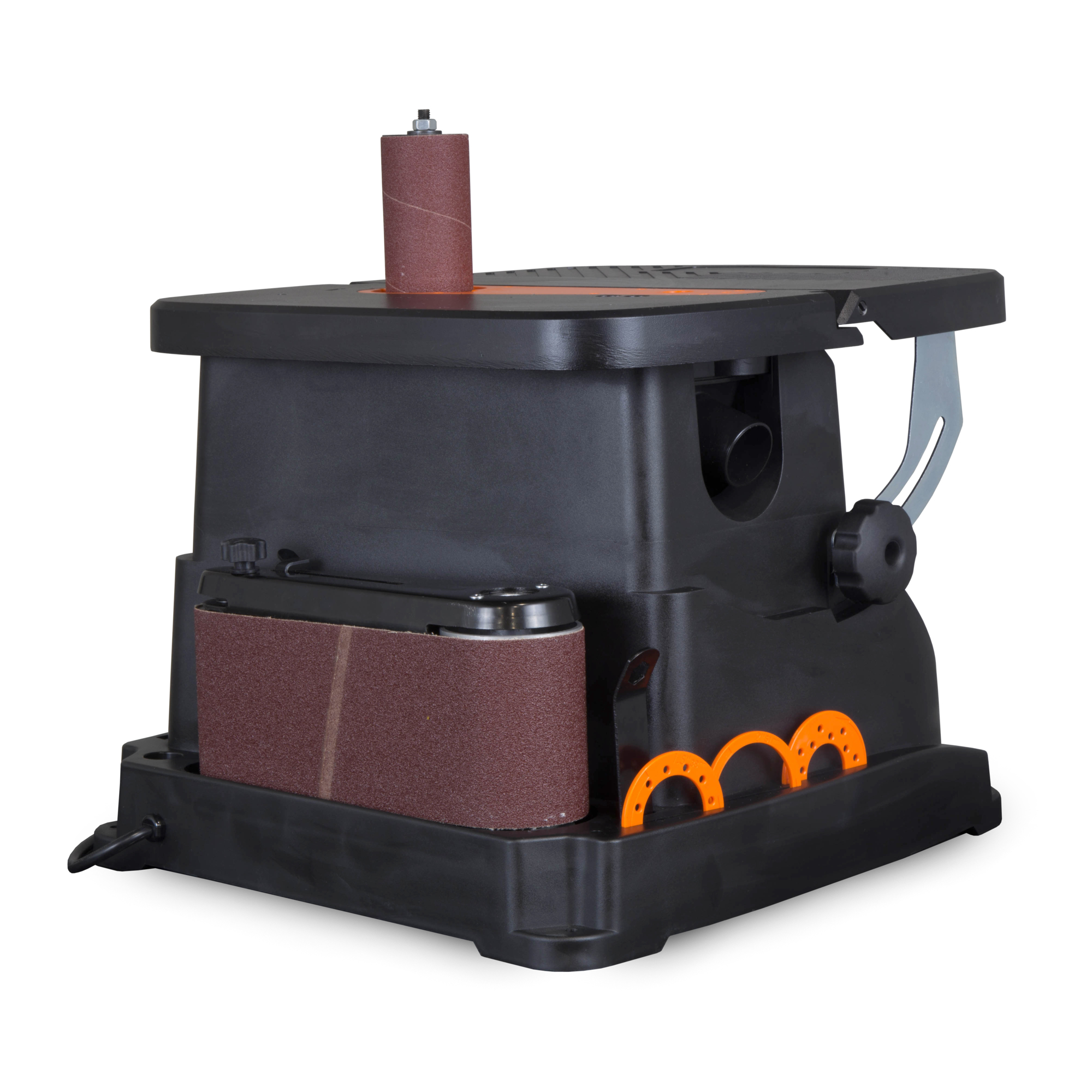

WEN Oscillating Belt and Spindle Sander - 3.5 Amps, 2000 OPM, Model# 6524

Item# 5801632
WEN Oscillating Belt and Spindle Sander - 3.5 Amps, 2000 OPM, Model# 6524

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN Oscillating Belt and Spindle Sander - 3.5 Amps, 2000 OPM, Model# 6524

Click or Tap image to Zoom

$249.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Features 1/2 inch, 3/4 inch, 1 inch, 1-1/2 inch and 2 inch sanding drum sizes and one 4 x 24 inch belt
  • Operate with belt speeds up to 1575 FPM and spindle speeds up to 2000 RPM
  • The 3.5-amp motor oscillates the belt and spindle 58 times per minute with a 5/8-inch stroke
  • Onboard storage maintains organization of all accessories and sandpapers
  • Includes a beveling work table, five throat plates, four rubber sanding drums, one belt sanding attachment and six pieces of 80-grit sandpaper (one for each size spindle/belt)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Remember when you were the king of the twist? Now you can make your belt oscillate without ever setting foot on a dance floor with the WEN Oscillating Belt and Spindle Sander. Sand arcs, curves, contours, faces and more of even the most strangely shaped workpieces. This versatile machine acts as both a spindle sander and a belt sander, oscillating up to 58 times per minute with a 5/8in. stroke. This package includes five different spindle sanding sizes (1/2in., 3/4in., 1in., 1-1/2in. and 2in.) and one 4 x 24in. belt. The powerful 3.5 amp motor rotates the various spindles up to 2000 times per minute and the belt up to 1575ft. per minute. Onboard storage helps to organize all of the throat plates, rubber sanding drums and table inserts included with this sander while the 1-1/2in. dust port allows woodworkers to connect a dust collection system to minimize clean up. Adjust the table anywhere from 0 to 45 degrees to help take on angled edges and surfaces. This sander also comes with six pieces of 80 grit sandpaper: one for the belt and five for each respective size spindle diameter. And because its a WEN Product. a nationwide network of skilled service technicians and a friendly customer help line. It’s time to shake things up with the WEN Oscillating Belt and Spindle Sander. Remember when you could easily sand any curve or edge your heart desired? Remember WEN.

What's Included

    (1) Oscillating Belt and Spindle Sander

Features + Benefits

  • Features 1/2 inch, 3/4 inch, 1 inch, 1-1/2 inch and 2 inch sanding drum sizes and one 4 x 24 inch belt
  • Operate with belt speeds up to 1575 FPM and spindle speeds up to 2000 RPM
  • The 3.5-amp motor oscillates the belt and spindle 58 times per minute with a 5/8-inch stroke
  • Onboard storage maintains organization of all accessories and sandpapers
  • Includes a beveling work table, five throat plates, four rubber sanding drums, one belt sanding attachment and six pieces of 80-grit sandpaper (one for each size spindle/belt)

Key Specs

AttributeSpecification

item#

5801632

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

32.0 LB

Max. Speed

2,000 OPM

Amps

3.5

Cordless

No

Tool Only

Yes

Pad Width

4 in

Pad Length

24 in
AttributeSpecification

Variable Speed

Yes

Volts

120

Dust Collection Type

Port

Dust Collection Port Size

1.5 in

Motor Type

Brushed

Belt Speed

1,575 ft./min.

Disc Speed

2,000 rpm

Storage Type

None

Dimensions L x W x H (in.)

18.5 x 16.5 x 18.0 in

Product Weight

27.0000 lb

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

2 year limited warranty
