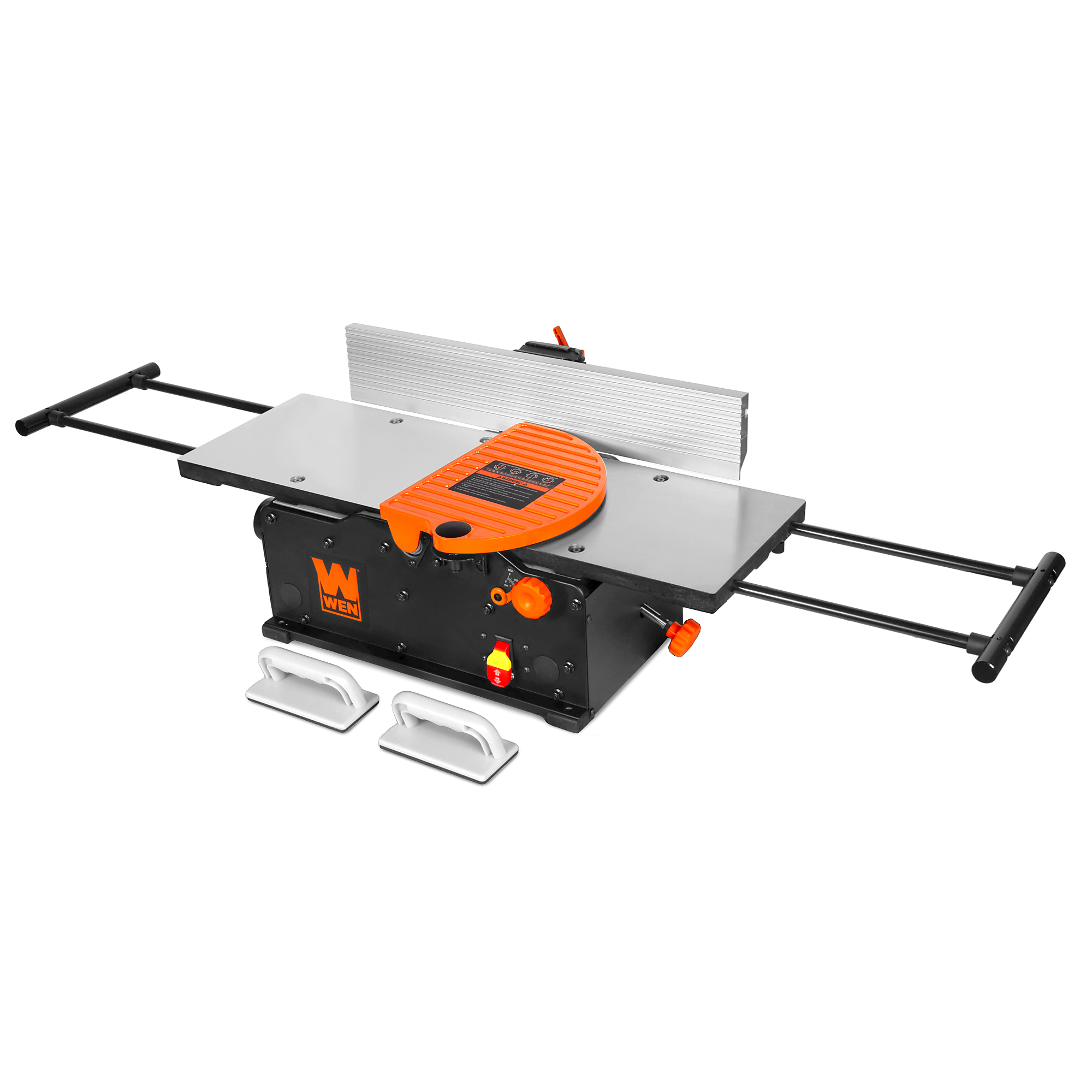

WEN JT1020H 12-Amp 10-Inch Spiral Benchtop Jointer with Extendable Cast-Iron Table

Item# 7211708
New
WEN JT1020H 12-Amp 10-Inch Spiral Benchtop Jointer with Extendable Cast-Iron Table

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN JT1020H 12-Amp 10-Inch Spiral Benchtop Jointer with Extendable Cast-Iron Table

Click or Tap image to Zoom

$648.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

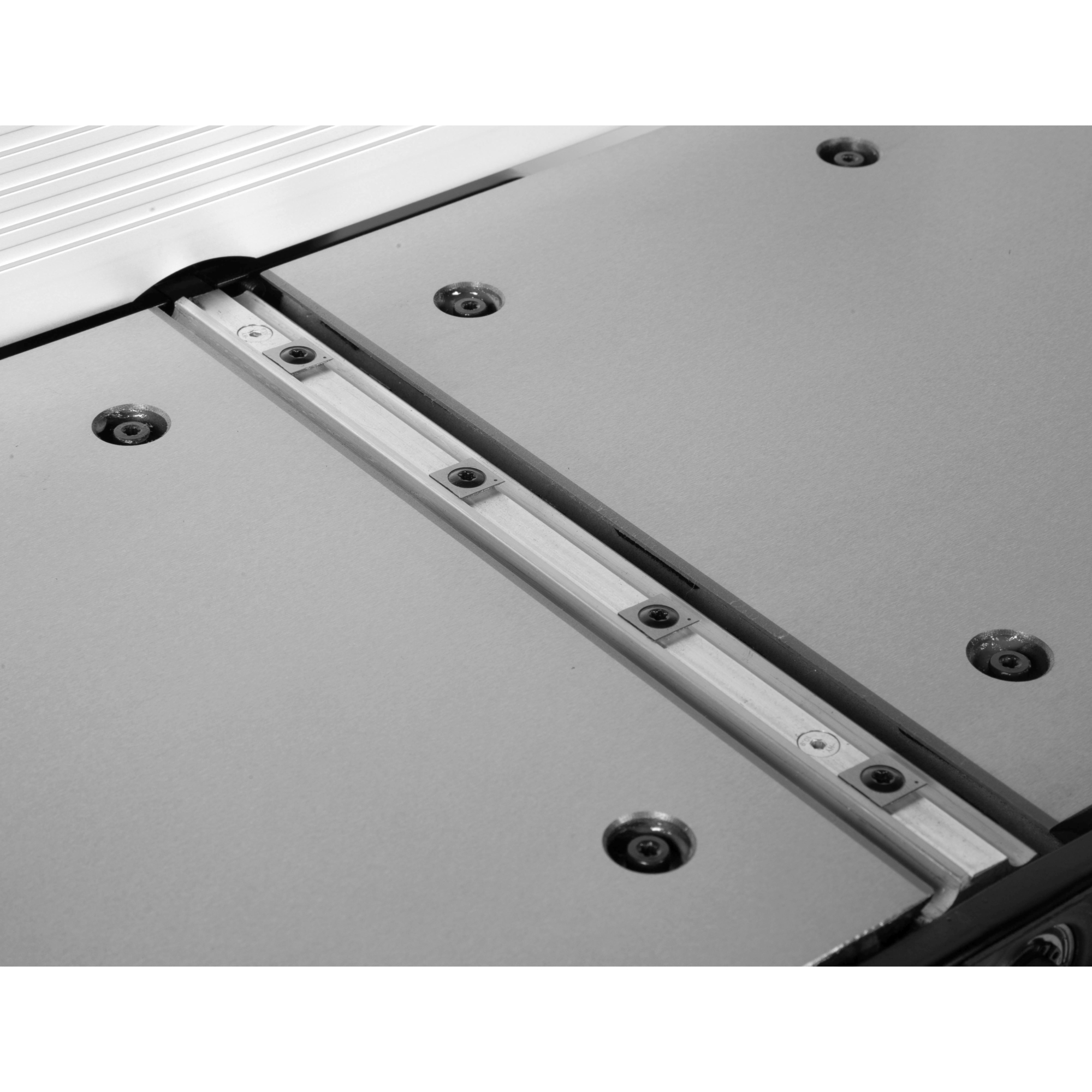

  • Spiral cutterhead system utilizes 20 staggered HSS blades for an ultra-fine-finish 10-inch-wide cut
  • Features a spacious 34-by-10-3/16-inch cast iron table with support arms that extend up to 54 inches
  • Remove 0 to 1/8 of an inch of material with each pass
  • Adjustable 24 by 4-1/4-inch fence bevels up to 45 degrees
  • Includes an onboard depth-of-cut scale, two push blocks, 2-1/2 and 4-inch dust ports, and a two-year warranty

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Remember when you had a perfectly square jointer to flatten out your boards and workpieces? Maximize precision with the WEN 10in. Spiral Benchtop Jointer. Our spiral cutterhead utilizes 20 staggered HSS blades to provide a perfect finish to hard and soft woods alike, while the powerful 12-amp motor rotates the cutterhead up to 11,000 times per minute. Adjust the infeed table to remove 0 to 1/8in. of material with each pass, with a reliable depth-of-cut scale for maximum accuracy. The spacious table measures in at 34 by 10-3/16in., with support arms that extend up to 54in. for longer workpieces. Combined with its heavy-duty, precision-ground cast iron construction, the table maximizes versatility, rigidity and control, while minimizing vibration. Bevel the fence up to 45 degrees to create angled cuts along the faces of your boards. The spring-loaded blade guard helps protect against accidental injury, only exposing a limited section of the cutterhead during jointing operation. This package also includes two push blocks for safer jointing and an onboard dust port for minimal cleanup. Compatible with the WEN BP510H Replacement Spiral Blades and JTA424 Cast Iron Fence. And, because it's a WEN product, the WEN 10in. Benchtop Jointer comes backed by a two-year warranty, a stocked inventory of replacement parts, and a friendly customer help line, all to make sure you remember WEN.

What's Included

    (1) Jointer

Features + Benefits

  • Spiral cutterhead system utilizes 20 staggered HSS blades for an ultra-fine-finish 10-inch-wide cut
  • Features a spacious 34-by-10-3/16-inch cast iron table with support arms that extend up to 54 inches
  • Remove 0 to 1/8 of an inch of material with each pass
  • Adjustable 24 by 4-1/4-inch fence bevels up to 45 degrees
  • Includes an onboard depth-of-cut scale, two push blocks, 2-1/2 and 4-inch dust ports, and a two-year warranty

Key Specs

AttributeSpecification

item#

7211708

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

94.5 LB

Product Type

Jointers

Max. Cutting Depth

0.125 in

Max. Cutting Width

10 in
AttributeSpecification

Cutters (qty.)

20

Max. RPM

11,000

Cutterhead Speed

11,000 rpm

Volts

120

Amps

12

Product Weight

77.1600 lb

Dimensions L x W x H (in.)

34.0 x 21.75 x 12.75 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
