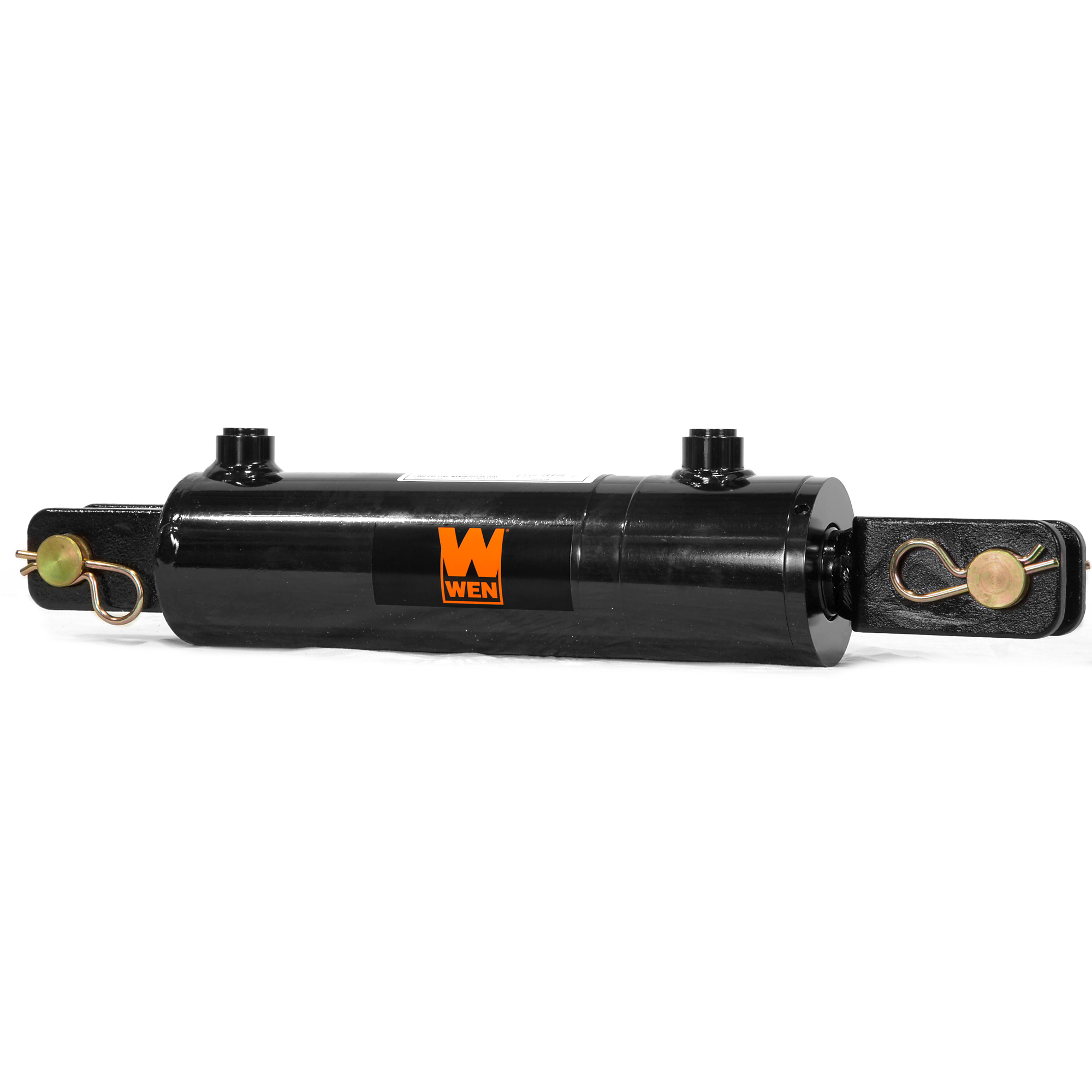

WEN CC-4008 Clevis Hydraulic Cylinder with 4-inch Bore and 8-inch Stroke
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Double-acting steel-welded design handles pressure up to 3000 psi
- Features a 4-inch bore, a 8-inch stroke, and a 2-inch rod diameter
- SAE-8 port (3/4 inch-16UNF) connects easily to your hydraulic hose
- Retracted 18. 25-inch cylinder extends out to 26. 25 inches in length

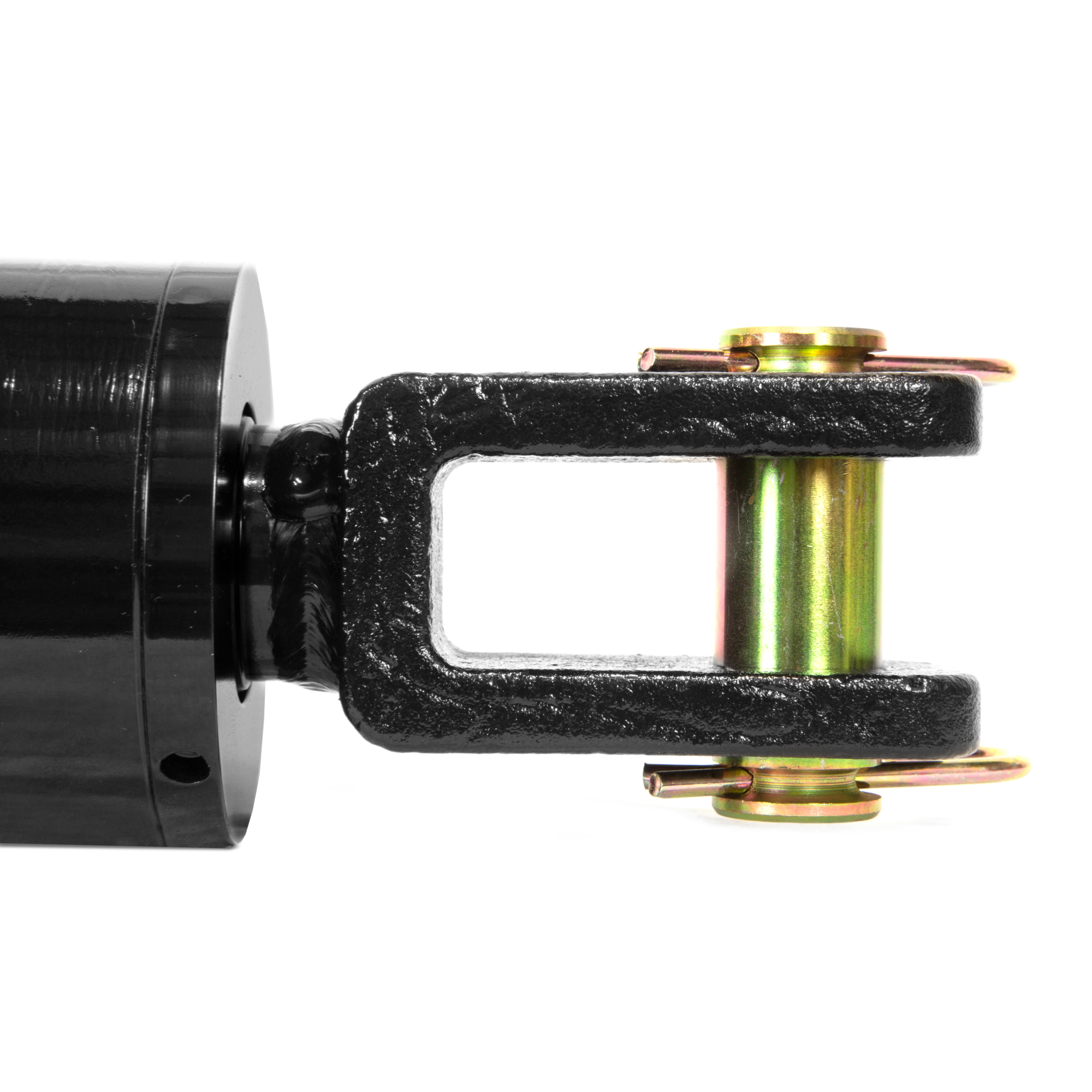

- Includes a 1-inch zinc-plated steel pin, a polished chrome-plated rod, and a two-year
Prop 65 Warning: See Details
See full description
See All Welded Clevis Cylinders
See All WEN Welded Clevis Cylinders
Currently Viewing This Product
Specifications
4,500
3,000
3,000
3,000
4 in
2 in
2 in
3 in
8 in
6 in
8 in
18 in
18.25 in
16.25 in
18.25 in
28.25 in
26.25 in
22.25 in
26.25 in
46.25 in
0.75 in
-
-
-
40.3000 lb
17.7700 lb
19.0900 lb
37.0000 lb
20.3 x 5.31 x 4.5 in
22.25 x 2.0 x 2.0 in
26.25 x 2.0 x 2.0 in
31.0 x 4.0 x 5.0 in
-
1 in
1 in
1 in
-
-
-
1.5 in
-
-
-
21,200 lb
