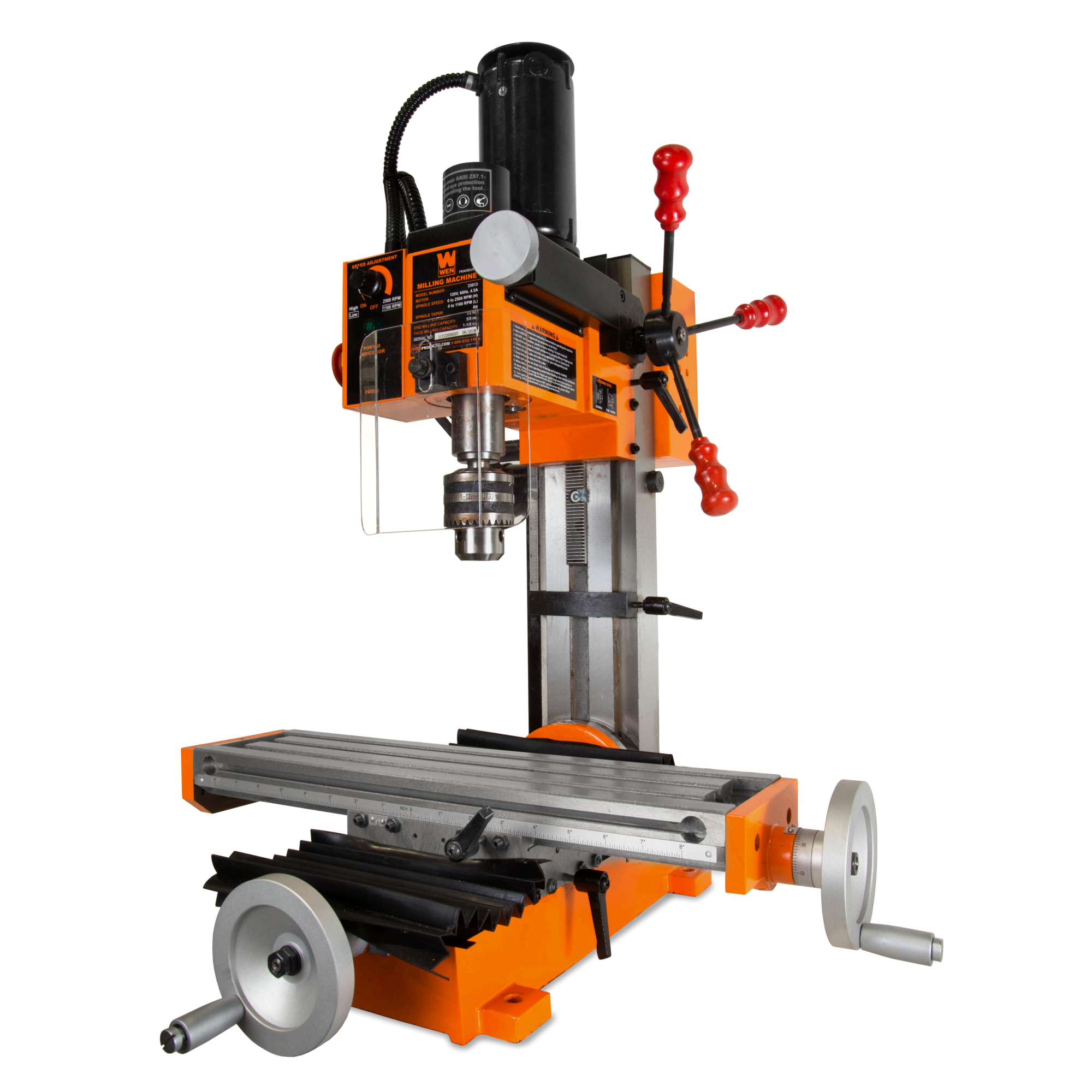

WEN Variable Speed Compact Metal Milling Machine - 4.5A, 0.75 HP, 120 Volts, Model# 33013

Item# 5807911
WEN Variable Speed Compact Metal Milling Machine - 4.5A, 0.75 HP, 120 Volts, Model# 33013

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN Variable Speed Compact Metal Milling Machine - 4.5A, 0.75 HP, 120 Volts, Model# 33013

Click or Tap image to Zoom

$1079.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Variable speed goes anywhere from 100 to 1,100 RPM on the low setting and 100 to 2,500 RPM on the high setting
  • 18-1/8 x 4-3/4 inch table travels 11-13/16 inches along the X-axis and 5-1/8 inches along the Y-axis

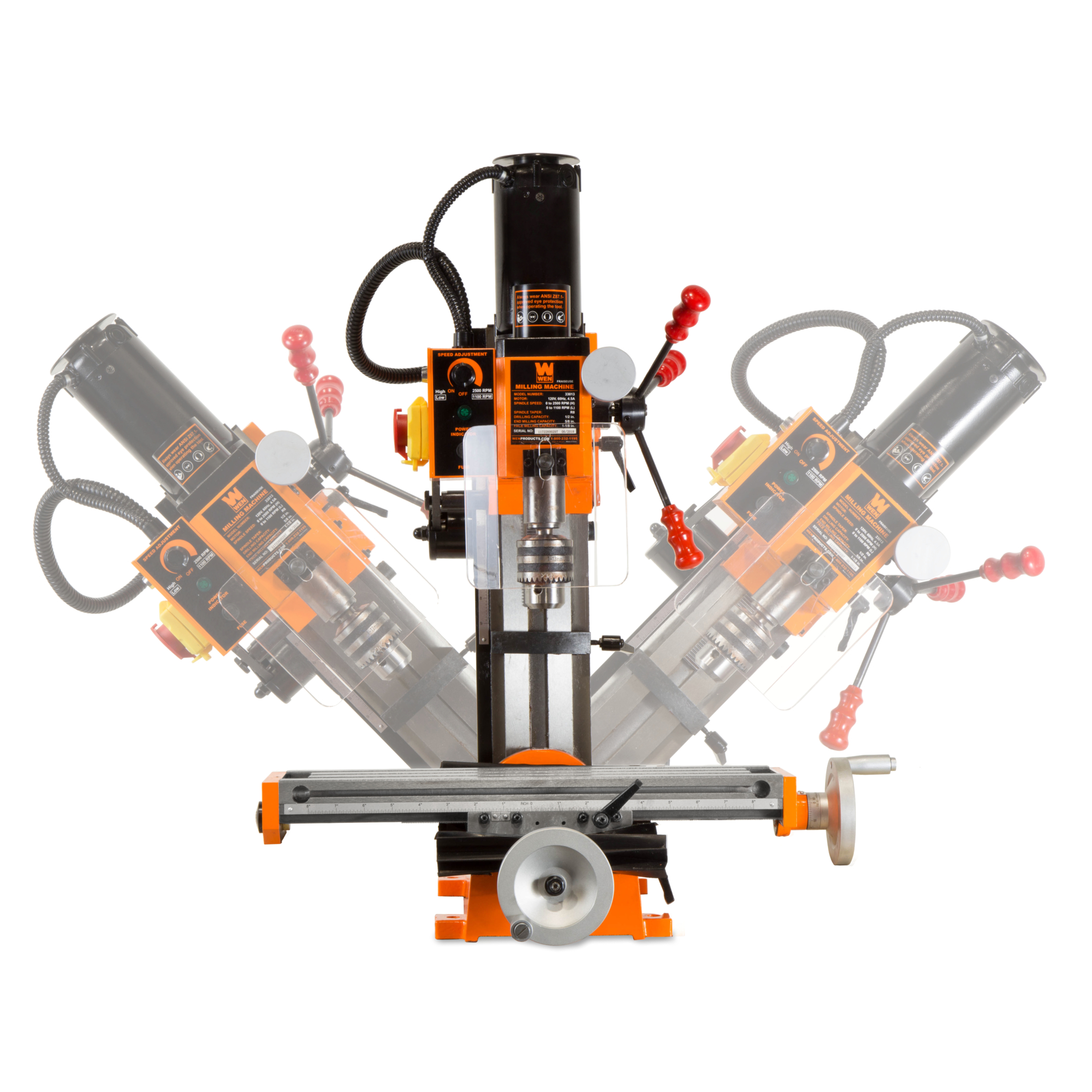

  • Bevel the head and column 45 degrees in either direction for angled cuts in metal, wood, plastic and more
  • Compact cast iron design measures in at 23-1/4 by 22 by 29-1/2 inches in size with an 8-1/2 by 15 inch foot print
  • Includes an R8 spindle taper, a pre-installed drill chuck (1/32 to 1/2 inch), fine-tune adjustment hand wheels, a transparent chuck guard, an emergency stop button, onboard measurement indicators, a 13-inch swing, two M10-1.5 T-nuts, 12mm T-slots, and a two-year warranty

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

WEN, 4.5A Variable Speed Compact Metal Milling Machine, Horsepower 0.75 HP, Volts 120 Model# 33013

What's Included

    (1) 4.5A Variable Speed Single Phase Compact Benchtop Metal Milling Machine with R8 Taper

Features + Benefits

  • Variable speed goes anywhere from 100 to 1,100 RPM on the low setting and 100 to 2,500 RPM on the high setting
  • 18-1/8 x 4-3/4 inch table travels 11-13/16 inches along the X-axis and 5-1/8 inches along the Y-axis
  • Bevel the head and column 45 degrees in either direction for angled cuts in metal, wood, plastic and more
  • Compact cast iron design measures in at 23-1/4 by 22 by 29-1/2 inches in size with an 8-1/2 by 15 inch foot print
  • Includes an R8 spindle taper, a pre-installed drill chuck (1/32 to 1/2 inch), fine-tune adjustment hand wheels, a transparent chuck guard, an emergency stop button, onboard measurement indicators, a 13-inch swing, two M10-1.5 T-nuts, 12mm T-slots, and a two-year warranty

Key Specs

AttributeSpecification

item#

5807911

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

156.53 LB

Horsepower

0.75 HP

Volts

120

Max. Speed

2,500 rpm

360 Degree Head Swivel

No

Product Type

Milling Machine
AttributeSpecification

Drilling Capacity

1/2 in

Chuck Size

Multiple in

Light Included

No

Stand Included

No

Min. Speed

100 rpm

Variable Speed

Yes

Swing

13 in

Product Weight

130.1000 lb

Dimensions L x W x H (in.)

23.25 x 22.0 x 29.5 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Hello...what is a known working vise for this machine? Another...can this machine be easily turned into a CNC machine?

    1 answer

    1. The best known working vise for this milling machine is the WEN 313124A Quick-Release Vise. At this time, we do not carry this vise. There is no specific conversion kit available to convert this unit into a CNC machine, and such a modification is not recommended. Please note that any alterations or modifications may void the warranty.

      Helpful?

  2. Can this machine accept multiple size r8 collets?

    1 answer

    1. The milling machine will accept multiple size R8 collets.

      Helpful?

  3. Does this unit have a vice on the bed?

    1 answer

    1. The milling machine would not have a vise on the bed.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
