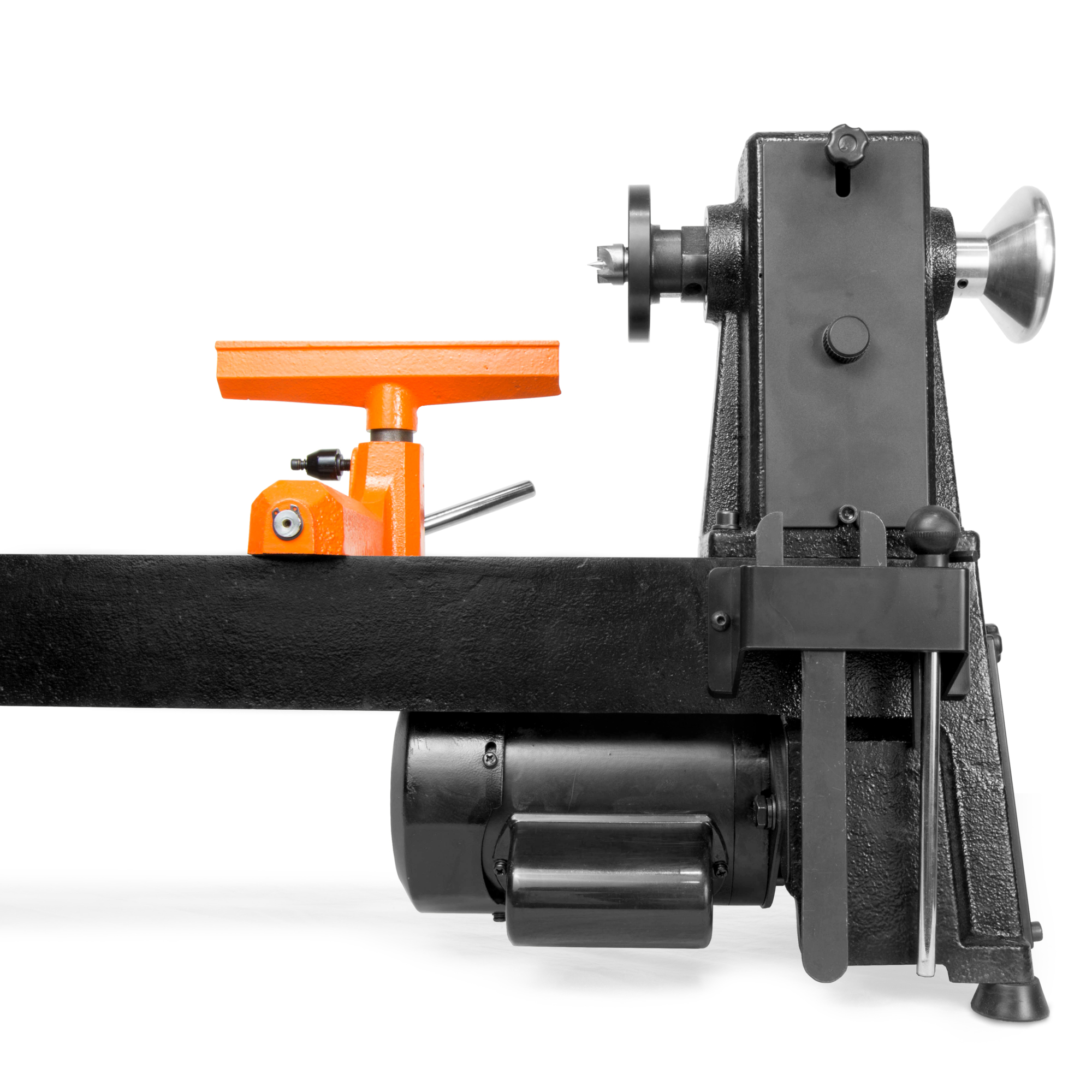

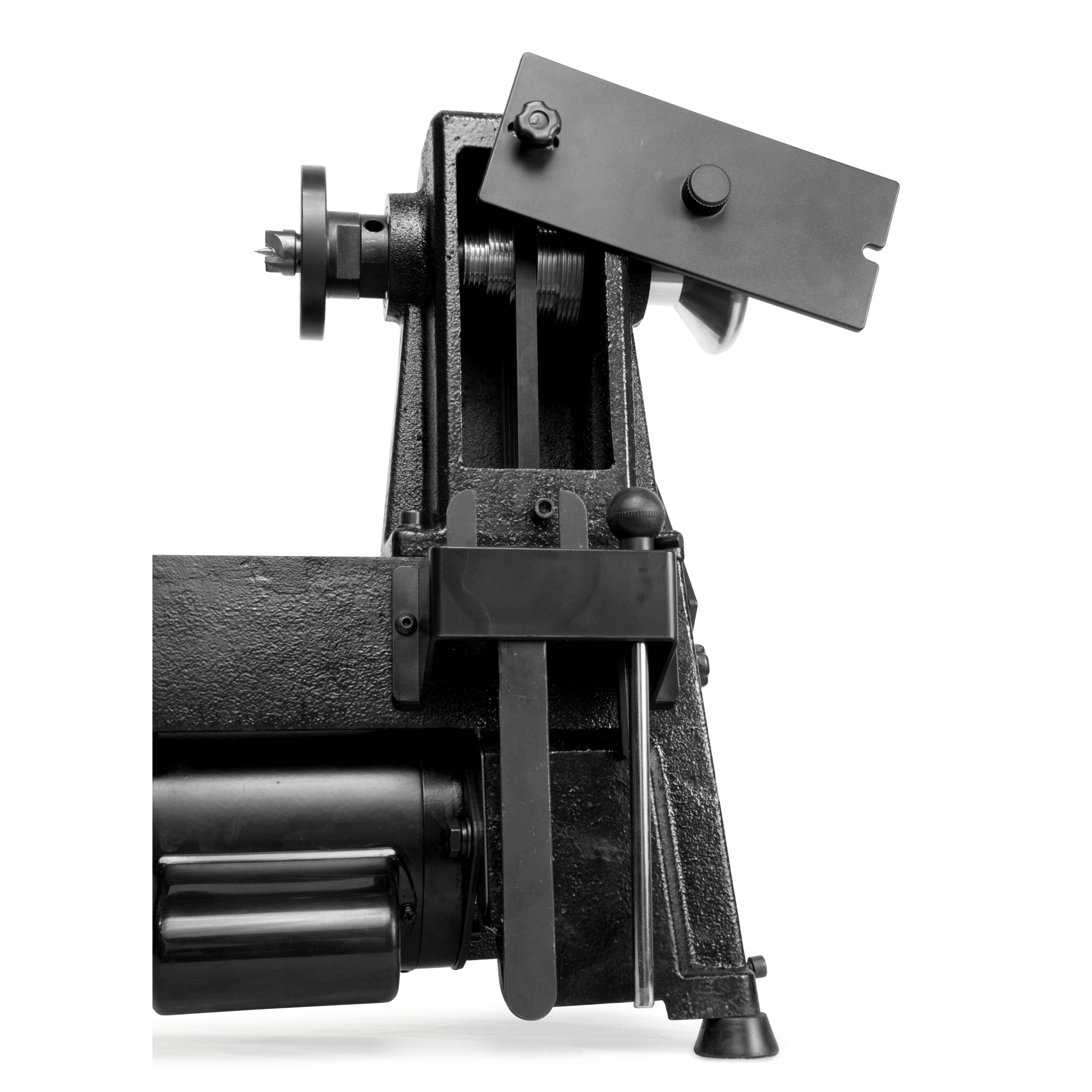

WEN Benchtop Wood Lathe - 12in. x 18in., 4.5 Amp, 5-Speed, 0.75 HP, Model# LA3424

Item# 5812745
WEN Benchtop Wood Lathe - 12in. x 18in., 4.5 Amp, 5-Speed, 0.75 HP, Model# LA3424

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN Benchtop Wood Lathe - 12in. x 18in., 4.5 Amp, 5-Speed, 0.75 HP, Model# LA3424

Click or Tap image to Zoom

$379.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Attack workpieces up to 18 inches long and 12 inches wide
  • Switch between five different speeds: 520, 900, 1400, 2150, or 3400 RPM
  • Includes 3-1/8 inch faceplate for turning bowls, cups and other non-spindle workpieces
  • MT2 tailstock and headstock tapers allow for compatibility with a wide variety of lathe accessories
  • Features a 4.5A motor, an MT2 headstock spur center, an MT2 tailstock live center, an 8-inch tool rest, and an onboard accessory holder

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Remember when you could turn your own table legs? Fill your house with as many table legs as you can with the WEN 12in. by 18in. 5-Speed Wood Lathe. With 5 different operating speeds, you’ll be able to turn workpieces at 520, 900, 1,400, 2,150, or 3400 rotations per minute. The 4.5A motor provides maximum torque while the sturdy 70+ pound build prevents walking and wobbling during operation. This beast of a lathe features an MT2 spindle and tailstock taper to tightly hold your workpieces, along with a 7-7/8in. tool rest for chisel and tool support during operation. The easy-to-use lever clamping system makes adjustments to both the tool rest and the tailstock simple and precise. The WEN Wood Lathe also includes a headstock spur center, a tailstock cup center, a flat wrench, a knockout rod, 2 hex wrenches (3 mm and 5mm), an accessory holder, and a 3-1/8in. faceplate for turning bowls, cups and other non-spindle workpieces. And, because its a WEN product, your lathe comes backed by a two-year warranty, a nationwide network of skilled service technicians and a friendly customer help line. Remember when you could turn pens, bowls, cups, chess pieces and more? Remember WEN.

What's Included

    (1) 4.5-Amp 12-Inch by 18-Inch 5-Speed Benchtop Wood Lathe

Features + Benefits

  • Attack workpieces up to 18 inches long and 12 inches wide
  • Switch between five different speeds: 520, 900, 1400, 2150, or 3400 RPM
  • Includes 3-1/8 inch faceplate for turning bowls, cups and other non-spindle workpieces
  • MT2 tailstock and headstock tapers allow for compatibility with a wide variety of lathe accessories
  • Features a 4.5A motor, an MT2 headstock spur center, an MT2 tailstock live center, an 8-inch tool rest, and an onboard accessory holder

Key Specs

AttributeSpecification

item#

5812745

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

79.1 LB

Distance Between Centers

18 in

Swing

12 in

Min. RPM

520
AttributeSpecification

Max. RPM

3,400

Product Type

Lathe

Volts

120

Amps

4.5

Phase

Single-phase

Product Weight

70.3000 lb

Dimensions L x W x H (in.)

30.25 x 8.75 x 16.25 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
