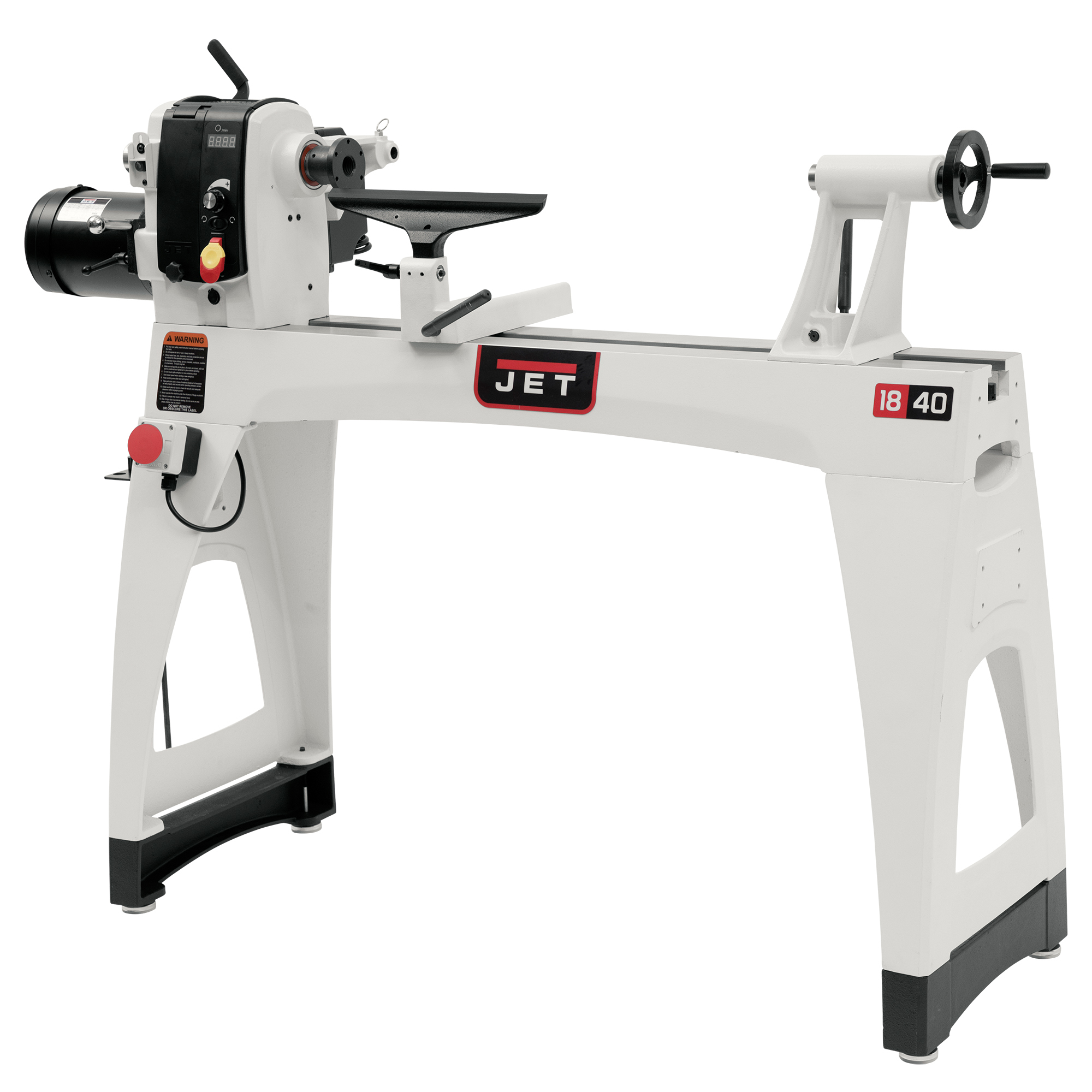

JET 18in. x 40in. Wood Lathe, 2 HP, 230 Volt, Model# JWL-1840EVS

Item# 82764
JET 18in. x 40in. Wood Lathe, 2 HP, 230 Volt, Model# JWL-1840EVS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET 18in. x 40in. Wood Lathe, 2 HP, 230 Volt, Model# JWL-1840EVS

Click or Tap image to Zoom

$3958.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Headstock slides for maximum versatility
  • Extended spindle nose houses dual headstock spindle bearings
  • 4in. cast iron risers allow user to adjust height of lathe for maximum comfort
  • Improved tailstock quill locking mechanism incorporates an anti-rotation key
  • Tailstock features Acme threads for smooth and durable movement

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET 18in. x 40in. Wood Lathe, 2 HP, 230 Volt, Model# JWL-1840EVS
  • 3M Sanding/Drywall/Fiberglass Respirator with Valve, N95, NIOSH Approved, Model# 8511HA1-A
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
Price for all four:

$4018.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The new JET 1840EVS woodworking lathe is designed to be as versatile as you are in the shop. This lathe features a headstock that slides the full length of the bed. The included 4in. cast iron risers allow you to easily choose the working height that maximizes your comfort. And the 1840EVS has electronic infinitely variable speed from 40-3200 RPM to precisely match the lathe speed to the application.

What's Included

    (1) JET 18in. x 40in. Wood Lathe, 2 HP, 230 Volt, Model# JWL-1840EVS

Downloads

Product Manual

Features + Benefits

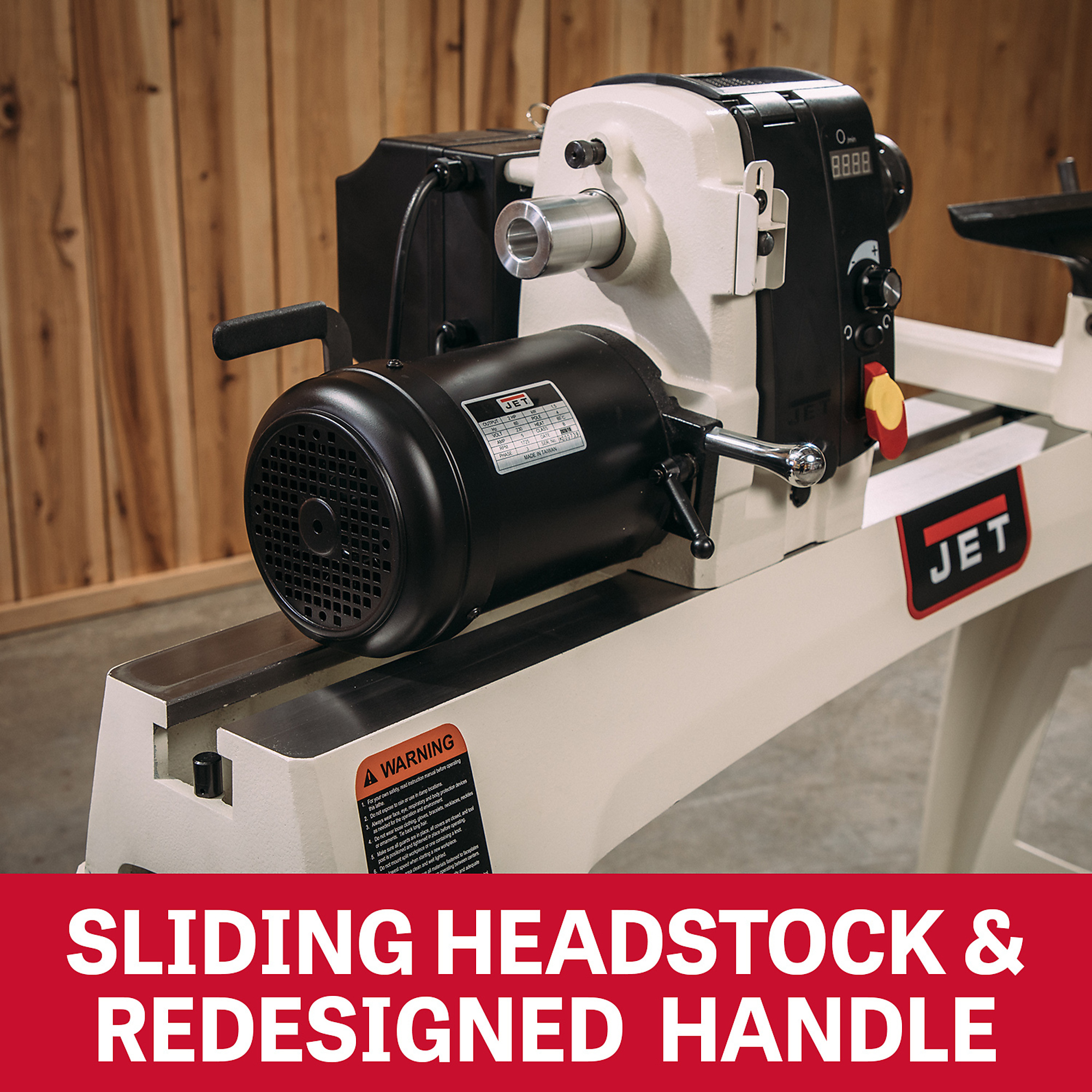

  • Headstock slides for maximum versatility
  • Extended spindle nose houses dual headstock spindle bearings
  • 4in. cast iron risers allow user to adjust height of lathe for maximum comfort
  • Improved tailstock quill locking mechanism incorporates an anti-rotation key

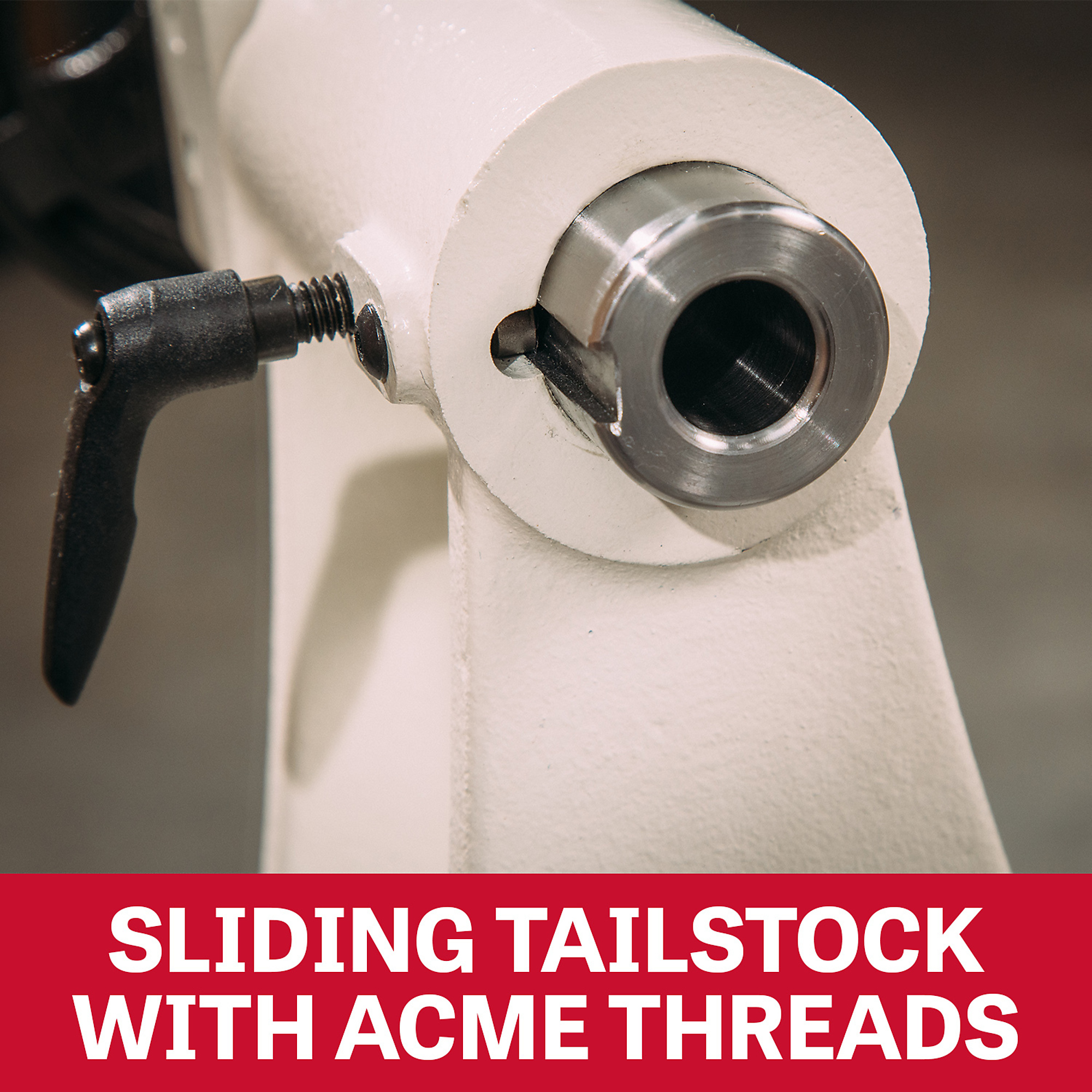

  • Tailstock features Acme threads for smooth and durable movement

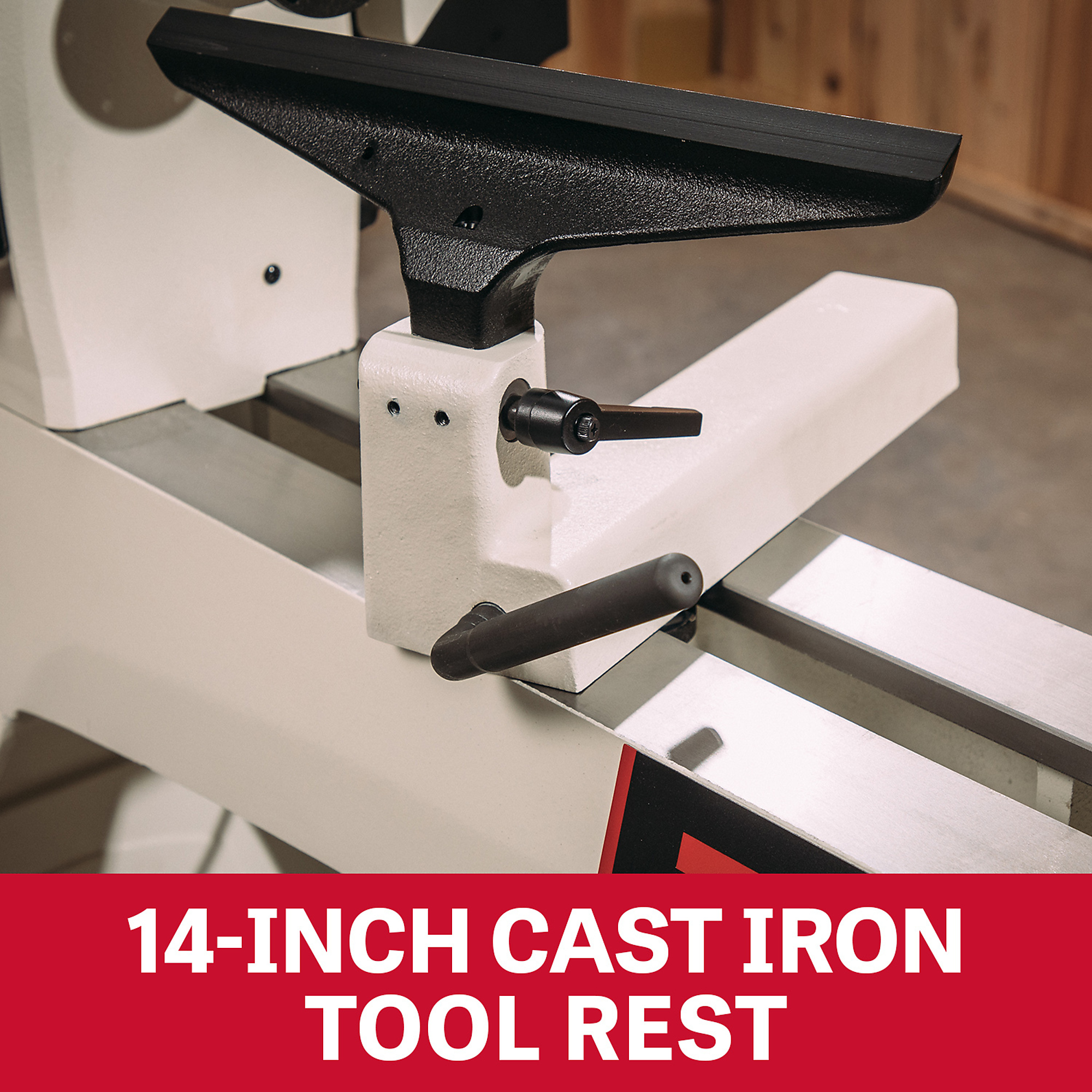

  • Banjo uses non-marring, positive locking wedge system to securely hold tool post
  • Tool post locking mechanism designed for year of consistent strength
  • Spindle lock latch frees up both hands
  • Electronic infinitely variable speed from 40 - 3200 RPM

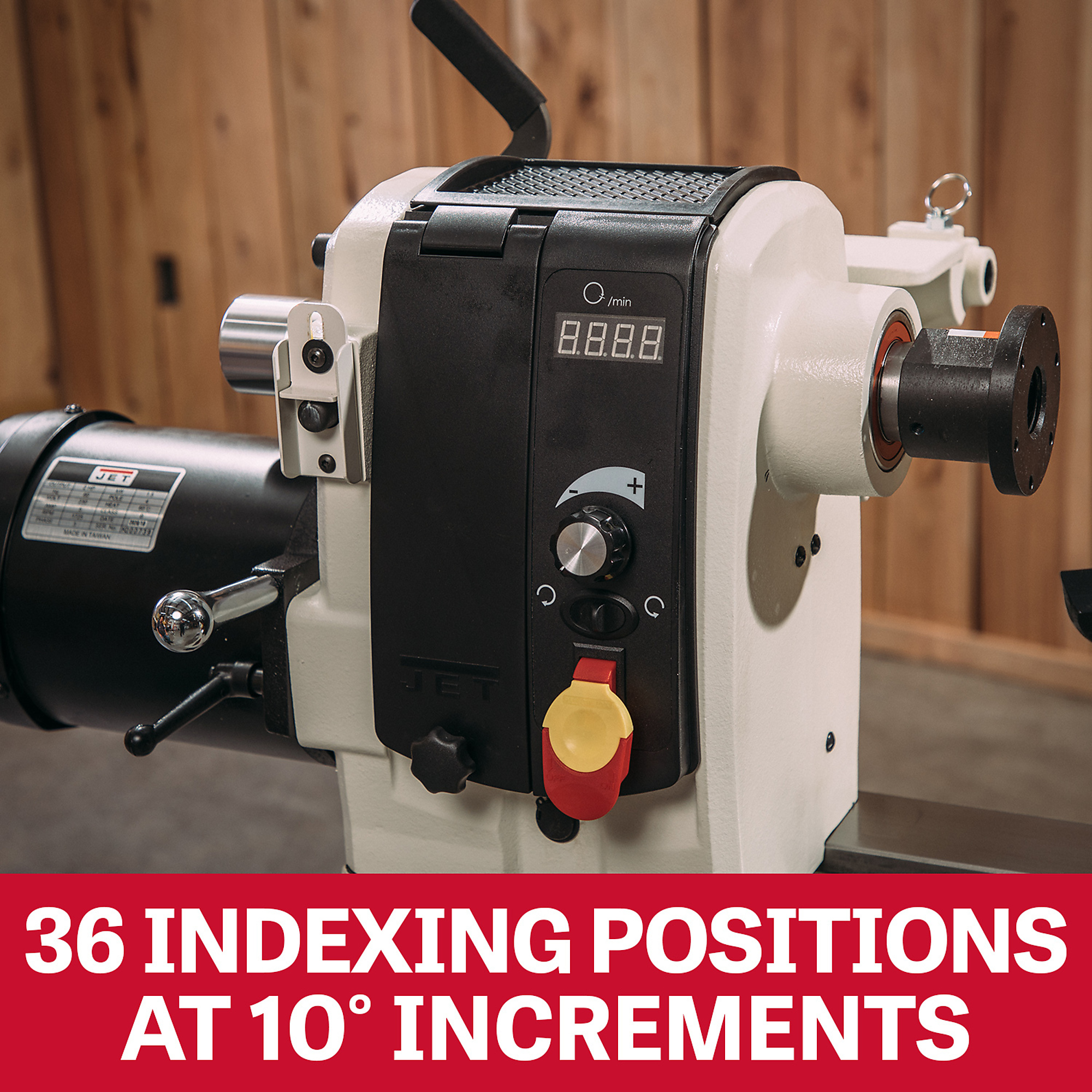

  • 36 integrated indexing positions
  • Newly designed headstock locking handle accessible from front of lathe
  • Remote emergency stop button can be situated along the lathe bed
  • Convenient leg-mounted tool holder
  • Conveniently located digital readout
  • Rubber tool mat on top of headstock
  • E Drive Inverter features a built in EMI filter
  • Inverter is enclosed for added protection

Key Specs

AttributeSpecification

item#

82764

Brand

JET

Manufacturer's Warranty

5 year limited warranty

Ship Weight

484.0 LB

Distance Between Centers

40.5 in

Horsepower

2
AttributeSpecification

Swing

18.5 in

Min. RPM

40

Product Type

Lathe

Product Weight

lb

Dimensions L x W x H (in.)

57.0 x 31.0 x 28.0 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Is there a duplicator/ copy cat attachment for this too?

    1 answer

    1. A duplicator/copy cat attachment is not available for this model.

      Helpful?

  2. The picture show the older version with the swivel head. Is this the newer model without the swivel head?

    1 answer

    1. This model is equipped with a swivel head.

      Helpful?

  3. single phase 230 volt or 3 phase power JWL-1840EVS

    1 answer

    1. This JET wood lathe requires single phase/230 volt power input. This unit has an inverter that converts the single phase input to the 3 phase required by the drive motor.
