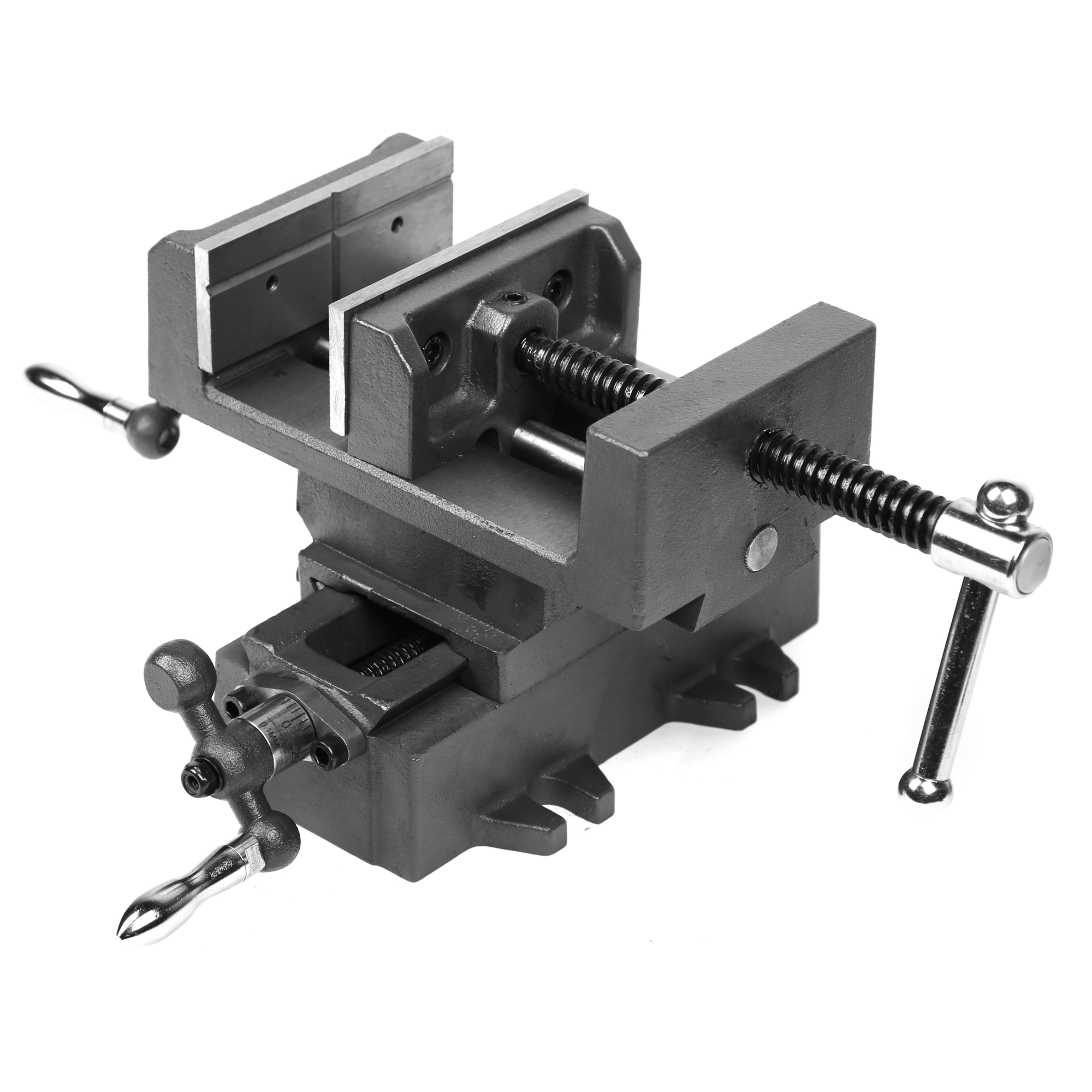

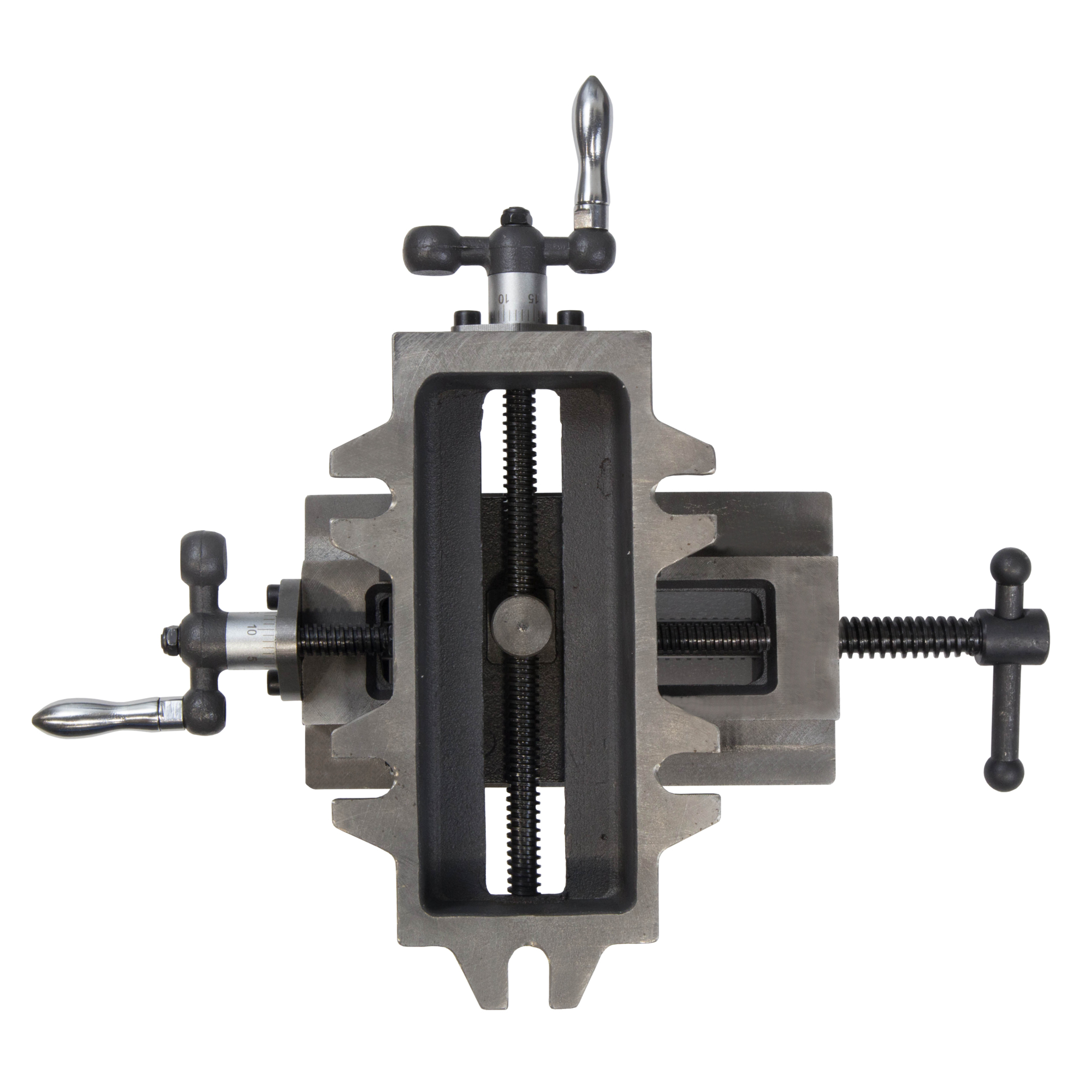

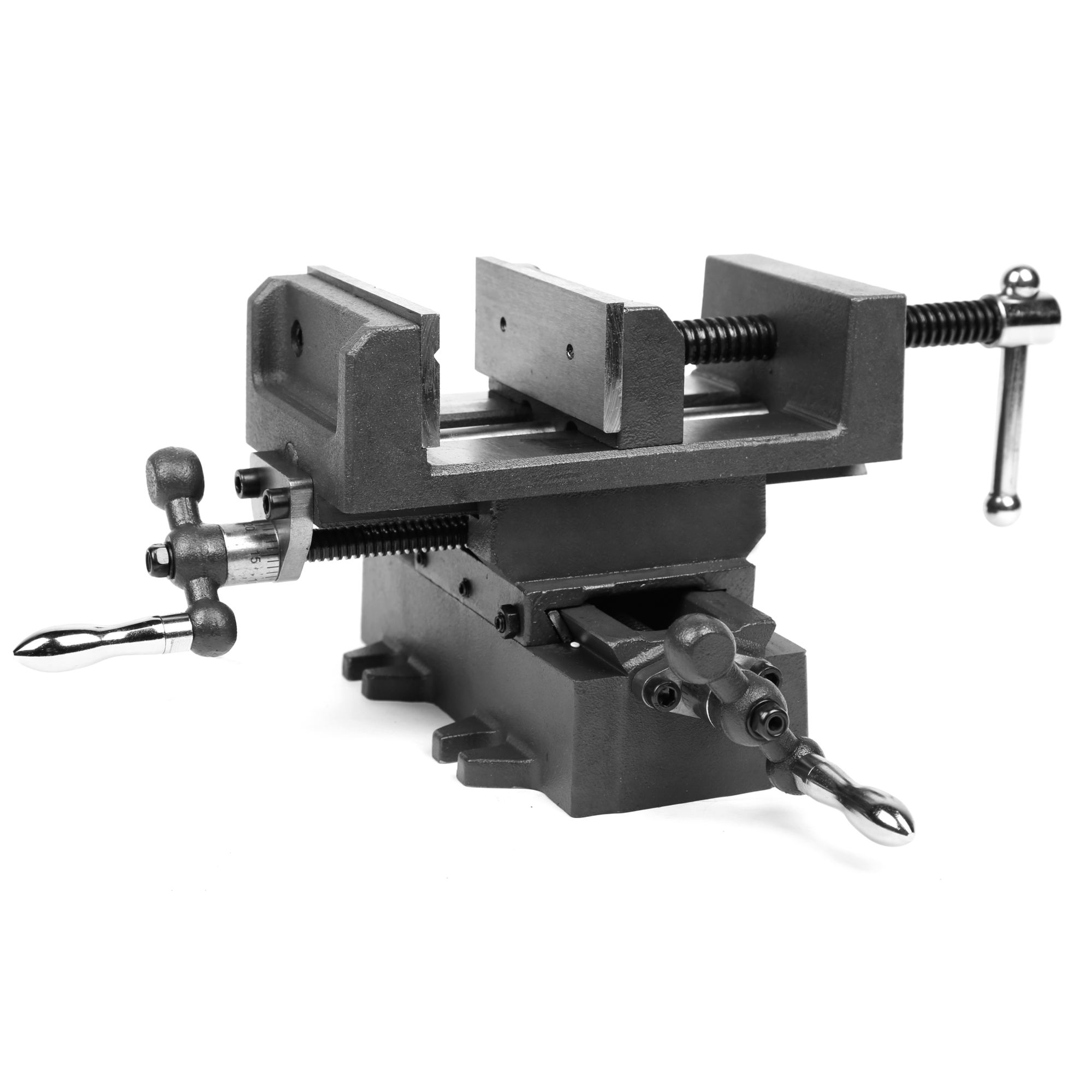

WEN Cross Slide Benchtop and Drill Press Vise - 4.25in., Cast Iron, 4.125in. Jaw Width, 4.5in. Jaw Capacity, Model# CV414

Item# 5733502
WEN Cross Slide Benchtop and Drill Press Vise - 4.25in., Cast Iron, 4.125in. Jaw Width, 4.5in. Jaw Capacity, Model# CV414

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN Cross Slide Benchtop and Drill Press Vise - 4.25in., Cast Iron, 4.125in. Jaw Width, 4.5in. Jaw Capacity, Model# CV414

Click or Tap image to Zoom

$94.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

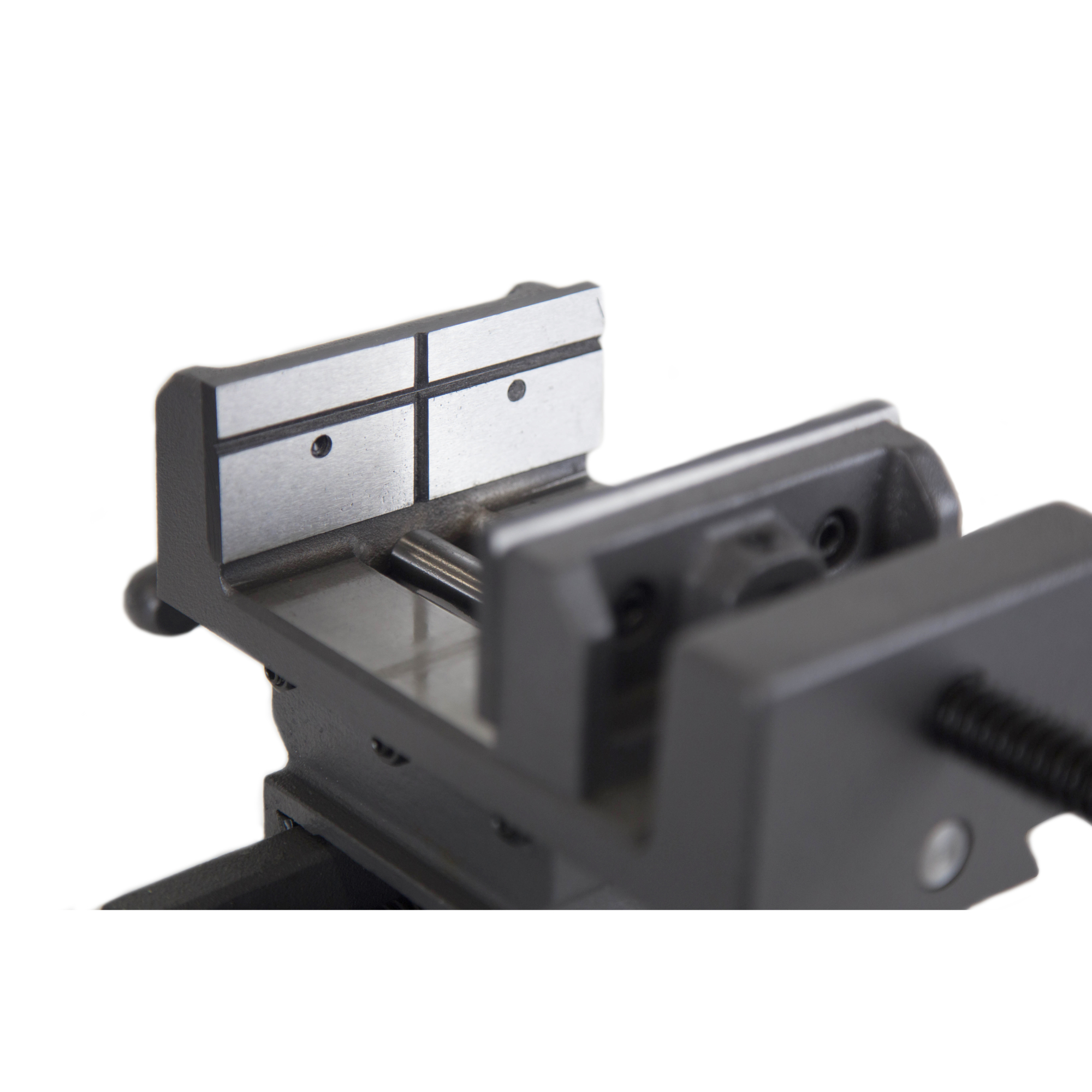

  • 4.25 by 1.25 in. jaws open up to 4.125 in. wide
  • Constructed of industrial-strength powder-coated cast iron

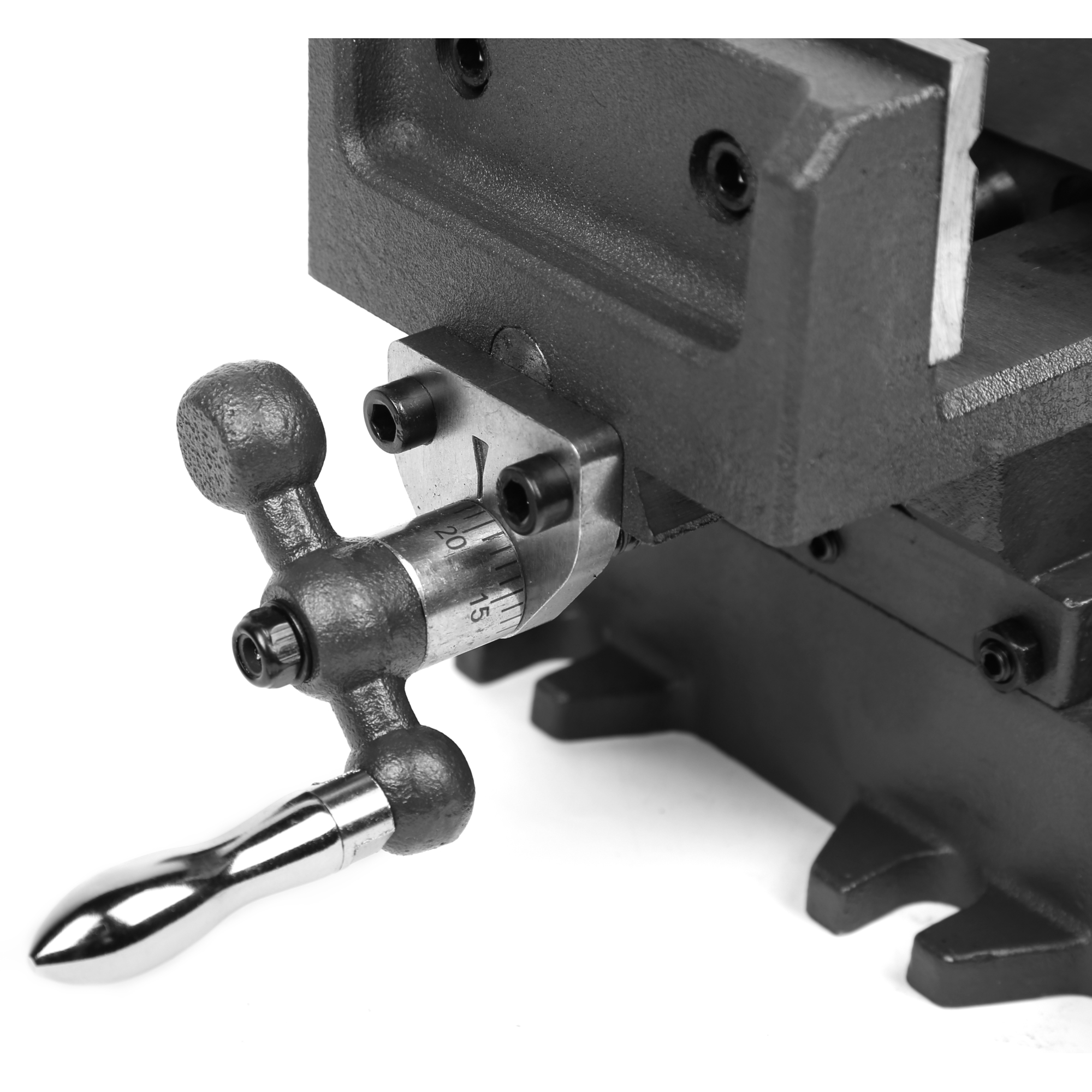

  • Hand wheels feature machine-marked 0.1 mm increments for maximum precision
  • Jaws travel 5.8 in. left and right and 6 in. front and back
  • Universal design compatible with the majority of drill presses on the market (see images for base dimensions)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Remember when you could make fine-tune adjustments with the simple turn of a wheel? The WEN 4.25in. Cross Vise provides stable support for your workpieces. Perfect for incremental drilling and other precision work. Attach it to your bench top, your drill press, your work table and more. Made from heavy duty powder-coated cast iron, the WEN Cross Vise grips tightly onto your workpieces, providing over 1900 pounds of clamping force. The 4.25 by 1.25 jaws open up to 4.125in. wide. Make minor adjustments along either axis with the onboard hand wheels. Each hand wheel features machined 0.1 mm increments, each full turn representing 3 mm of travel. The vise moves a full 5.8in. (148 mm) along the x-axis and 6in. along the y-axis (150 mm), making it the perfect companion for woodworkers and metalworkers alike. The fixed jaw features a V-shaped groove to hold round objects either vertically or horizontally while the removable handles help users easily install the vise into tight spaces. With five 1/2in. mounting brackets positioned around the outside edge of the vise’s base, the WEN Cross Vise is compatible with the majority of drill press tables on the market. And because it’s a WEN product, your cross vise comes backed by a two-year warranty, a nationwide network of skilled service technicians and a friendly customer help line all to make sure you remember WEN.

What's Included

    (1) 4.25 in. Cross Slide Benchtop and Drill Press Vise

Features + Benefits

  • 4.25 by 1.25 in. jaws open up to 4.125 in. wide
  • Constructed of industrial-strength powder-coated cast iron
  • Hand wheels feature machine-marked 0.1 mm increments for maximum precision
  • Jaws travel 5.8 in. left and right and 6 in. front and back
  • Universal design compatible with the majority of drill presses on the market (see images for base dimensions)

Key Specs

AttributeSpecification

item#

5733502

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

22.0 LB

Product Type

Bench Vises

Jaw Width

4.125 in

Jaw Capacity

4.5 in
AttributeSpecification

Material

Cast Iron

Jaw Depth

4.25 in

Base Length

12.75 in

Jaw Length

4.25 in

Double Lock Downs

No

Product Weight

19.1000 lb

Dimensions L x W x H (in.)

12.75 x 12.25 x 6.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
