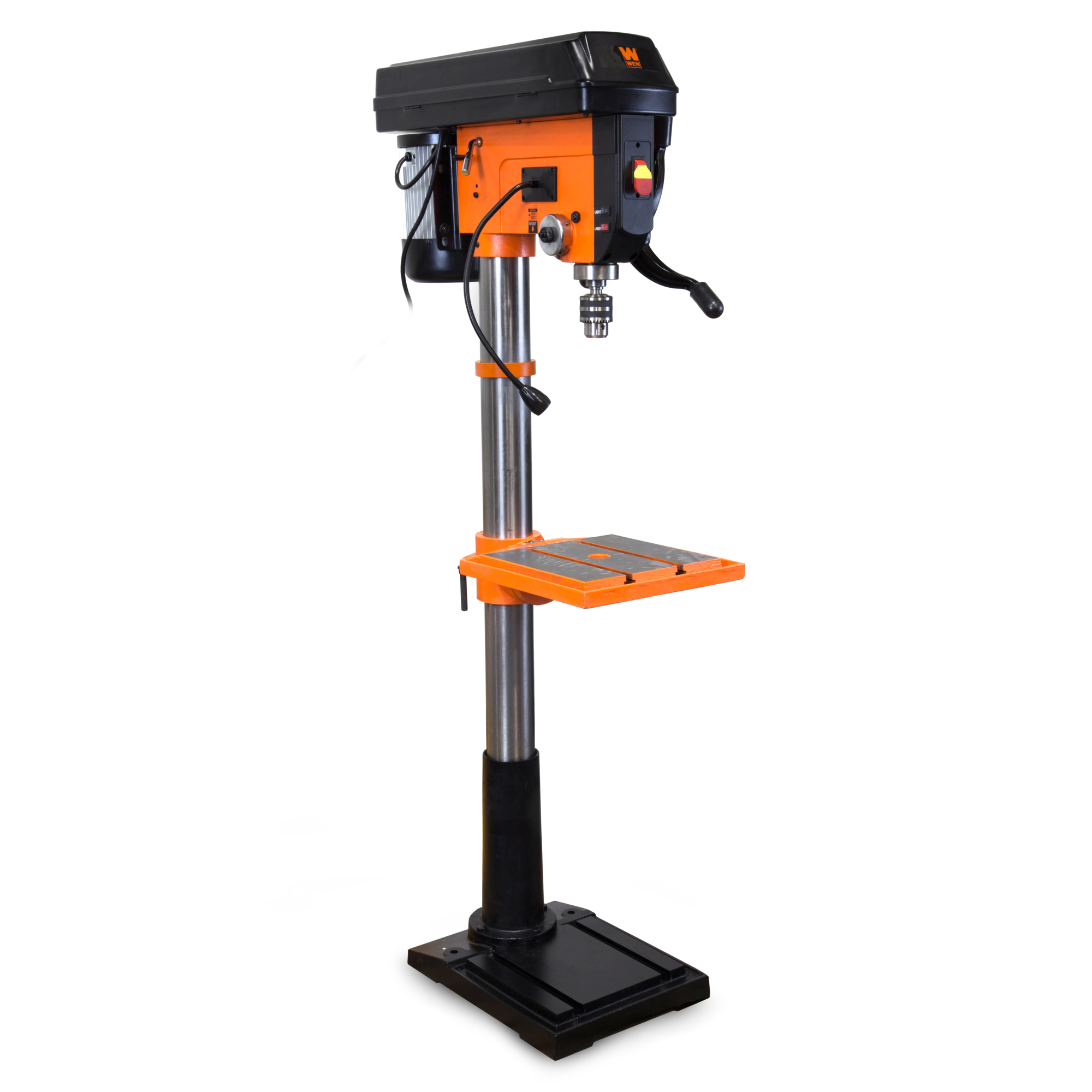

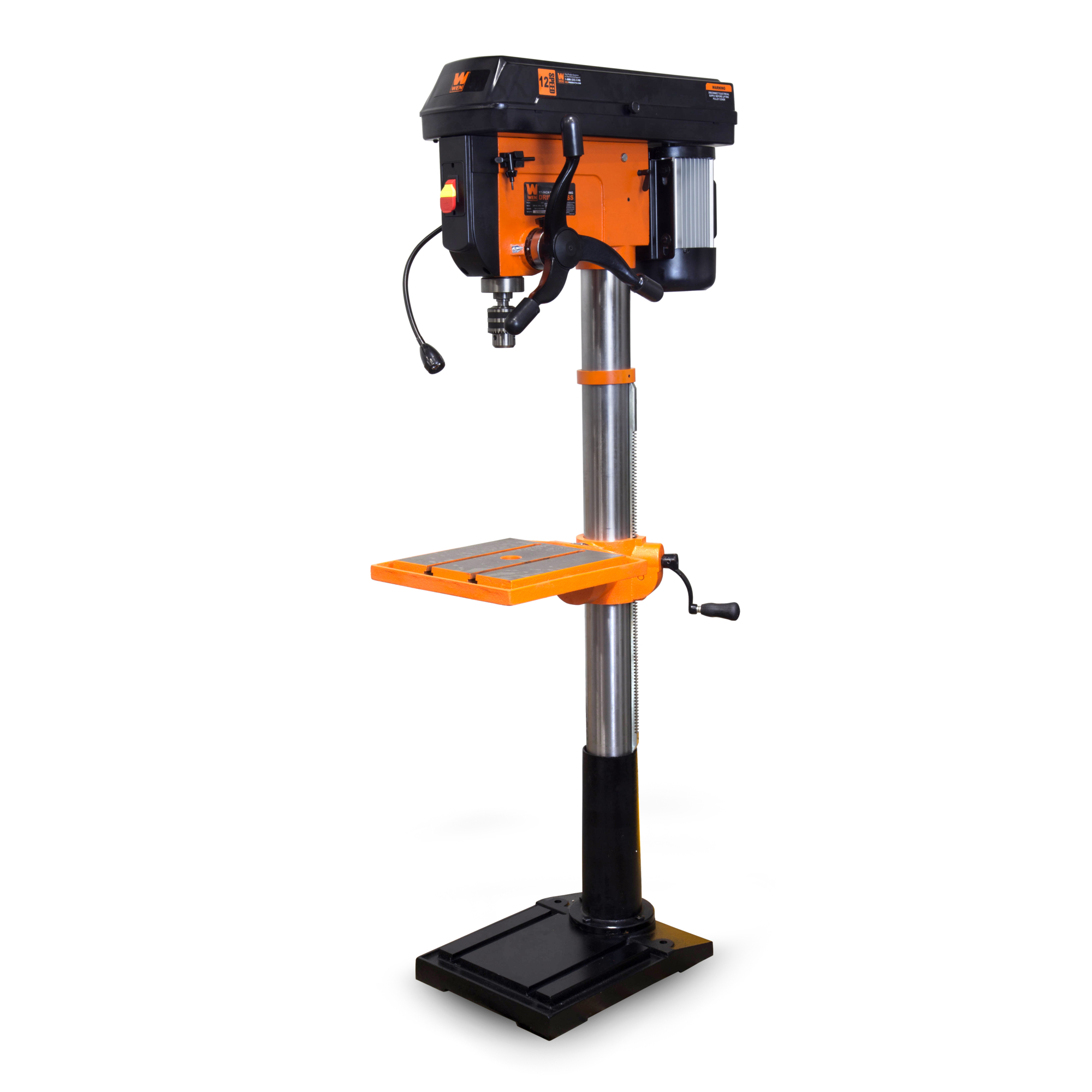

WEN, 13-Amp 17in. 12-Speed Floor Standing Drill Press, Chuck Size 0.625 in, Horsepower 1.93 Model# 4227T

Item# 5805772
WEN, 13-Amp 17in. 12-Speed Floor Standing Drill Press, Chuck Size 0.625 in, Horsepower 1.93 Model# 4227T

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

WEN, 13-Amp 17in. 12-Speed Floor Standing Drill Press, Chuck Size 0.625 in, Horsepower 1.93 Model# 4227T

Click or Tap image to Zoom

$849.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 4-3/4-inch spindle travel makes drilling through 4x4 boards easier than ever
  • Three-spindle design provides twelves speeds from 150 to 3150 RPM
  • High torque performance perfect for metal, hardwood, softwood, plastic and more

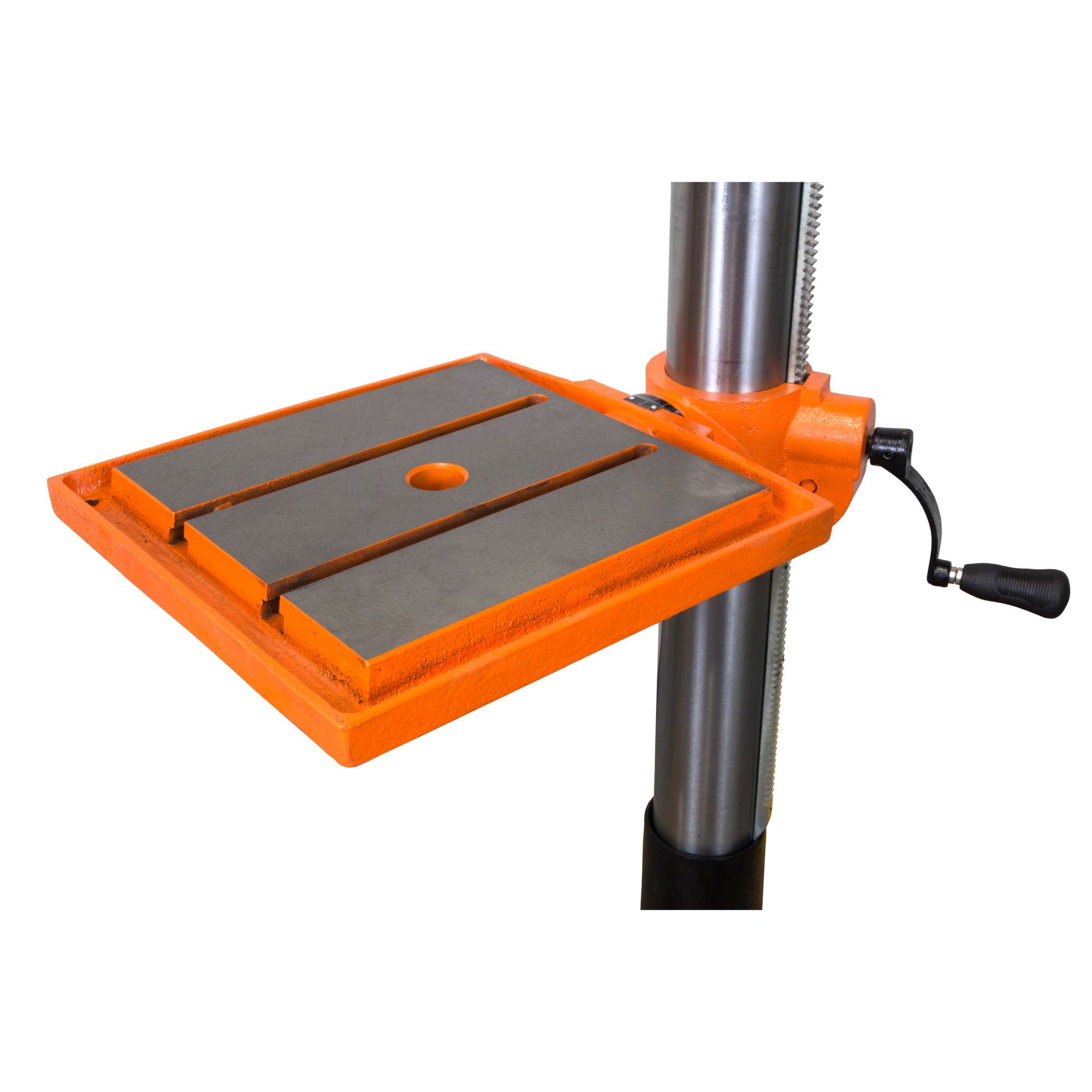

  • 14-inch by 14-inch cast iron work table pivots up to 45 degrees in both directions
  • Measures in at 25 by 12 by 63 inches in size with a weight of 214 pounds

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

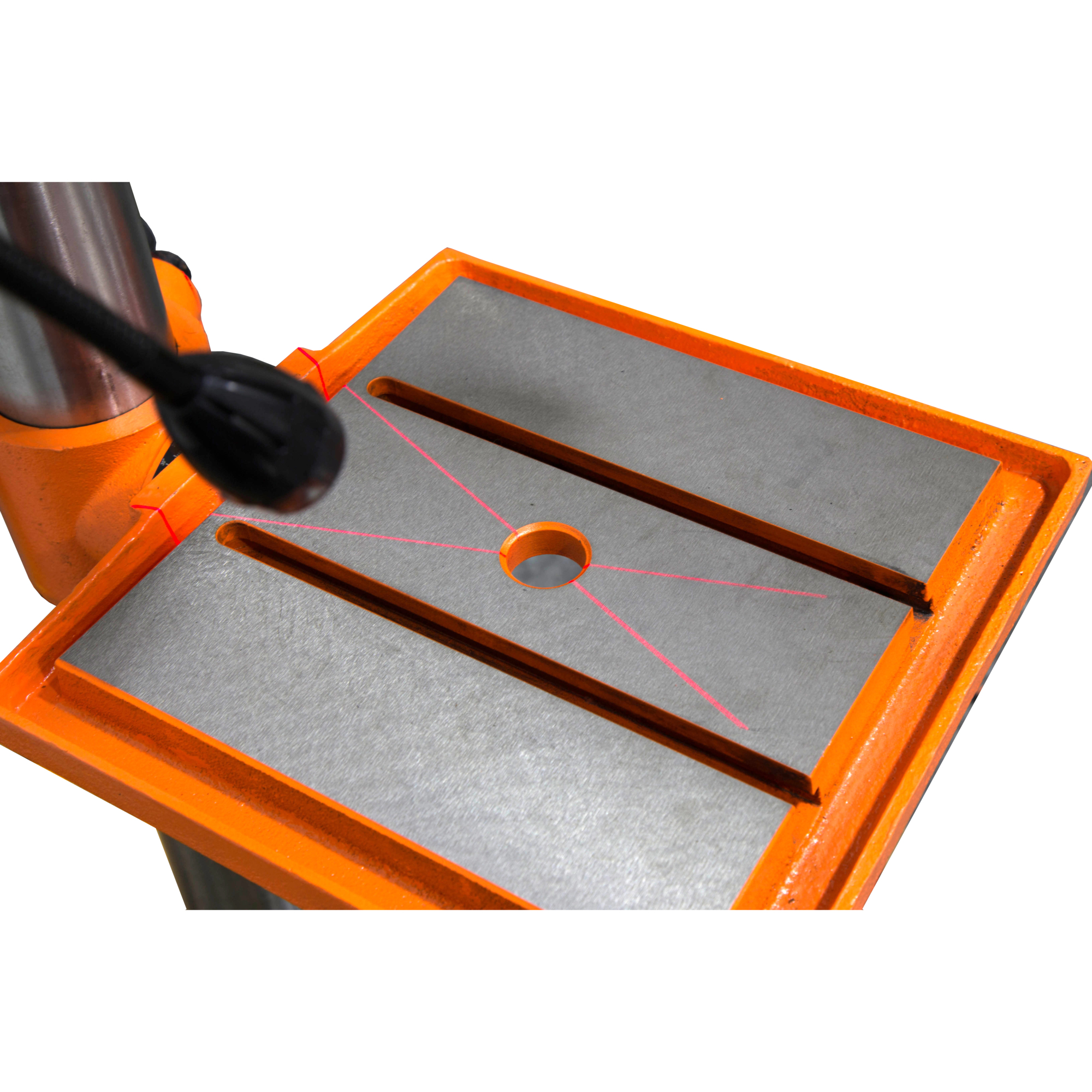

Remember when power tools were actually powerful? The WEN 17in. Twelve-Speed Floor Standing Drill Press meets the needs of both home and professional users. This model includes a full 4-3/4in. of stroke capacity, allowing users a large enough spindle travel to easily drill through a 4x4 board. Adjust the speed to 12 different stops between 150 to 2940 RPM (150, 290, 320, 400, 520, 560, 1,000, 1,240, 1,520, 1,720, 2,150, and 3150 RPM). The 14in. by 14in. cast iron table features a one-inch coolant runoff channel around the outer lip of the table to prevent both the workpieces and the drill bits from overheating. The table also pivots up to 45 degrees in both directions and can be positioned up to 26in. away from the chuck to accommodate even the largest of workpieces. The laser pointer ensures maximum precision during drilling operations, creating an X through the center of your target. The JT3 chuck accepts bits anywhere from 1/16 to 5/8in. in size with onboard key storage to make sure that the chuck key is always close by. Cast iron frame and base gives the machine a hefty support system to prevent the drill press from walking or vibrating during operation. This beast measures in at 30 by 14 by 67in. in size with a weight of 214 pounds. And because it is a WEN product, the WEN 17in. 13-Amp Twelve-Speed Floor Standing Drill Press comes backed by a 2-year warranty, a stocked inventory of replacement parts, and a friendly customer service team. Remember when you had the capacity to drill through a 4X4 all in one smooth stroke? Remember WEN.

What's Included

    (1) 13-Amp 17-Inch 12-Speed Floor Standing Drill Press

Features + Benefits

  • 4-3/4-inch spindle travel makes drilling through 4x4 boards easier than ever
  • Three-spindle design provides twelves speeds from 150 to 3150 RPM
  • High torque performance perfect for metal, hardwood, softwood, plastic and more
  • 14-inch by 14-inch cast iron work table pivots up to 45 degrees in both directions
  • Measures in at 25 by 12 by 63 inches in size with a weight of 214 pounds

Key Specs

AttributeSpecification

item#

5805772

Brand

WEN

Manufacturer's Warranty

2 year limited warranty

Ship Weight

236.0 LB

Chuck Size

0.625 in

Horsepower

1.93

Horsepower

1.93

Volts

120

Max. RPM

3,150
AttributeSpecification

Min. RPM

150

Volts

120

Amps

13

Product Type

Woodworking Drill Presses

Chuck Size

0.625 in

Product Weight

214.0000 lb

Dimensions L x W x H (in.)

14.0 x 30.0 x 67.0 in

Product Weight

214.0000 lb

Dimensions L x W x H (in.)

14.0 x 30.0 x 67.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. What are the dimensions of the base?

    1 answer

    1. The base dimensions are 18" L x 14" W.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
