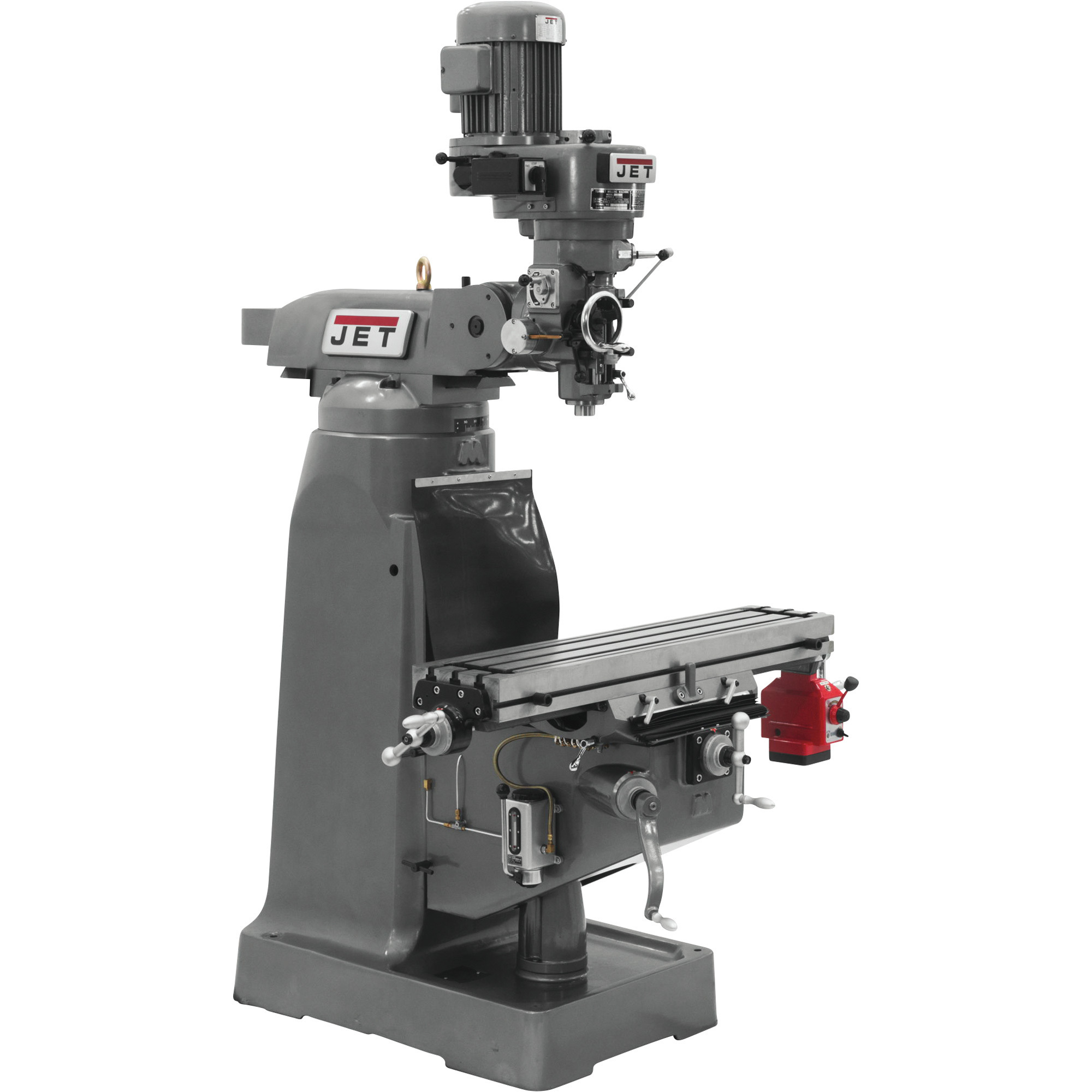

JET Vertical Milling Machine, 16-Speed, 2 HP, 230V, Model# JTM-1

Item# 157618
JET Vertical Milling Machine, 16-Speed, 2 HP, 230V, Model# JTM-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Vertical Milling Machine, 16-Speed, 2 HP, 230V, Model# JTM-1

Click or Tap image to Zoom

$14,219.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Heavy-duty splined motor drive
  • Three-stage power downfeed with automatic stop
  • Heavy-duty spindle brake
  • Adjustable gibs throughout
  • Internal coolant tank built into base for use with coolant system (coolant pump not included)

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Vertical Milling Machine, 16-Speed, 2 HP, 230V, Model# JTM-1
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
Price for all four:

$14,243.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The JTM-1 JET Vertical Milling Machine with X Powerfeed is the perfect solution for maintenance shops, repair shops, schools and light production. The 2 HP motor requires 230V, 3-phase. Durable Meehanite casting and a precision bored and honed milling head. Chromed, large-diameter quill and high-precision Class 7 spindle bearings. Item too large for lift gate. Forklift required for on-site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Milling machine

Downloads

Product Manual

Features + Benefits

  • Heavy-duty splined motor drive
  • Three-stage power downfeed with automatic stop
  • Heavy-duty spindle brake
  • Adjustable gibs throughout
  • Internal coolant tank built into base for use with coolant system (coolant pump not included)
  • One shot lubrication system

Key Specs

AttributeSpecification

item#

157618

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

2200.0 LB

Horsepower

2 HP

Volts

230

Max. Speed

5,440 rpm

360 Degree Head Swivel

Yes

Speeds (qty.)

16

Product Type

Milling Machine
AttributeSpecification

Vertical Stroke

5 in

Chuck Size

5/8 in

Light Included

No

Stand Included

Yes

Variable Speed

No

Max. Spindle Distance

17.5 in

Draw Bar

Yes

Swing

19 in

Product Weight

lb

Dimensions L x W x H (in.)

64.0 x 87.0 x 52.0 in
