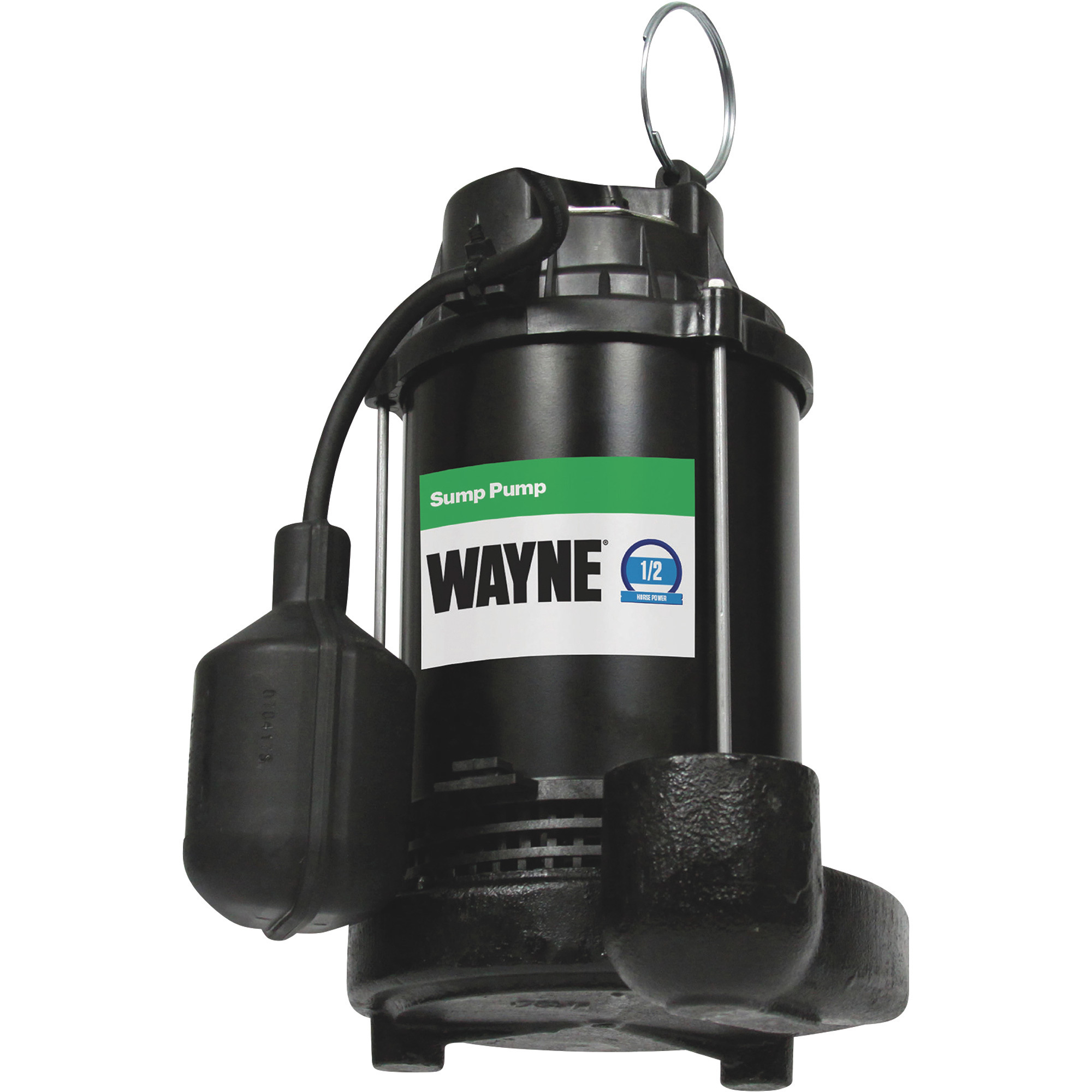

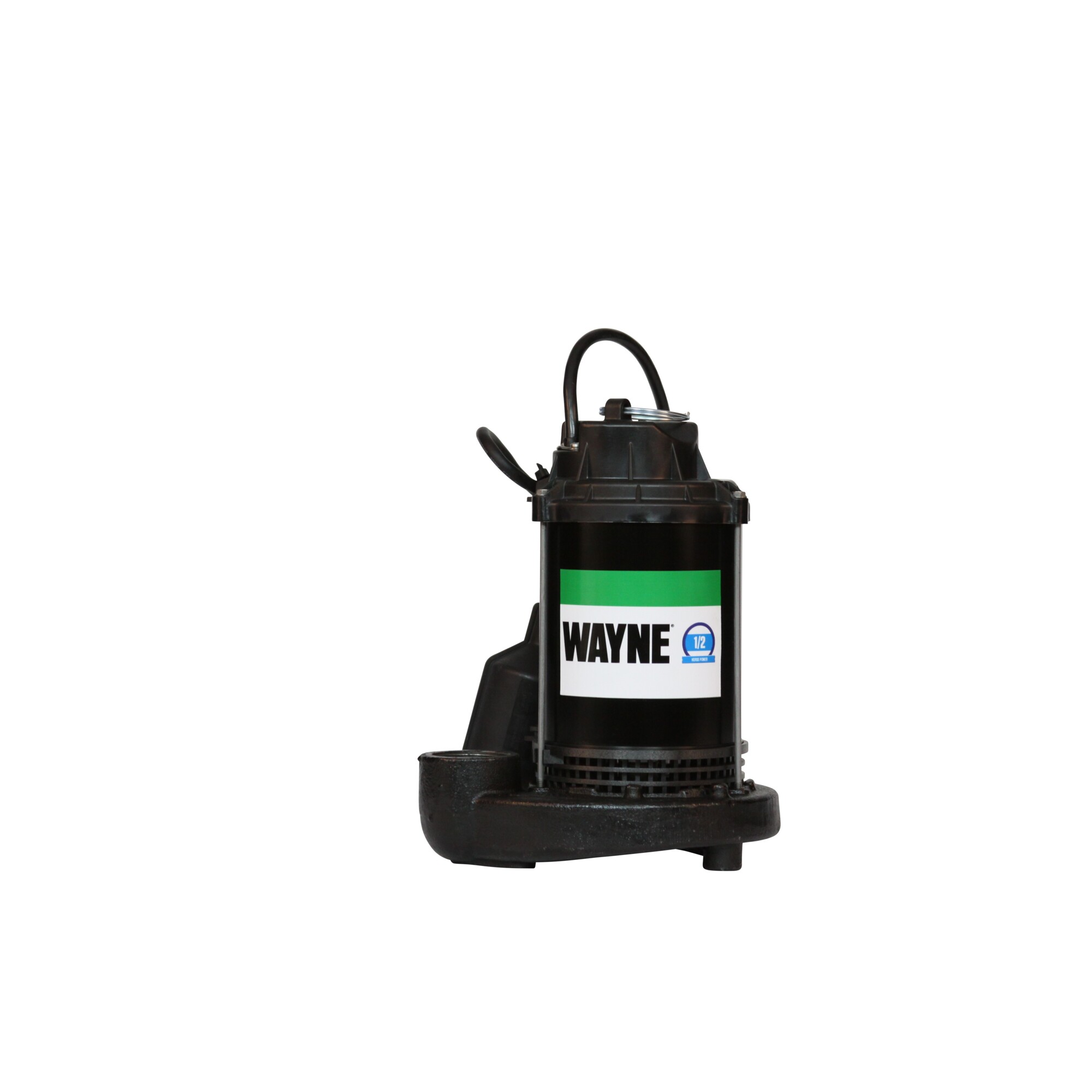

Wayne Submersible Sump Pump, 5100 GPH, 1/2 HP, Model# CDT50

Item# 101861
Wayne Submersible Sump Pump, 5100 GPH, 1/2 HP, Model# CDT50

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Wayne Submersible Sump Pump, 5100 GPH, 1/2 HP, Model# CDT50

Click or Tap image to Zoom

$224.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • INDOOR USE ONLY - This 1/2 HP WAYNE basement sump pump is perfect to keep your basement dry during heavy water flow. Whether it’s rain, snow melting, etc. WAYNE model CDT50 can pump up to 5,100 GPH to keep your basement dry.
  • CUSTOMIZABLE OPERATION: Piggy-back tether float switch for automatic or manual operation: 13" ON level and 7" OFF level; unique top suction design reduces clogging and prevents air lock condition, so no need for weep holes
  • TOUGH AND DURABLE - Corrosion-resistant stainless steel motor housing and fasteners come with a cast-iron volute that provides long life in tough sump pump applications.
  • EFFICIENT DESIGN - The top suction design eliminates air lock and minimizes clogging from any debris in the bottom of the sump pit. Easy to install in about 15 minutes with no need to drill a weep hole!
  • ADDITIONAL FEATURES - 1-1/2” NPT discharge for compliance with building codes. Use in 14” diameter or larger sump basins; UL agency approved.

See full description

Complete Your Solution

  • Wayne Submersible Sump Pump, 5100 GPH, 1/2 HP, Model# CDT50
  • JGB Enterprises Discharge Hose, 1 1/2in. x 25ft., Model# A008-0246-1625
Price for all two:

$287.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Wayne CDT50 submersible sump pump can move up to 5100 gallons per hour (gph). The top suction design filters debris and minimizes clogging. It is a rugged, epoxy coated steel and cast-iron submersible sump pump. This pump is designed for 14in. diameter and larger sump pits. Intended for indoor use only.

What's Included

    (1) Submersible sump pump

Downloads

Product Manual

Features + Benefits

  • INDOOR USE ONLY - This 1/2 HP WAYNE basement sump pump is perfect to keep your basement dry during heavy water flow. Whether it’s rain, snow melting, etc. WAYNE model CDT50 can pump up to 5,100 GPH to keep your basement dry.
  • CUSTOMIZABLE OPERATION: Piggy-back tether float switch for automatic or manual operation: 13" ON level and 7" OFF level; unique top suction design reduces clogging and prevents air lock condition, so no need for weep holes
  • TOUGH AND DURABLE - Corrosion-resistant stainless steel motor housing and fasteners come with a cast-iron volute that provides long life in tough sump pump applications.
  • EFFICIENT DESIGN - The top suction design eliminates air lock and minimizes clogging from any debris in the bottom of the sump pit. Easy to install in about 15 minutes with no need to drill a weep hole!
  • ADDITIONAL FEATURES - 1-1/2” NPT discharge for compliance with building codes. Use in 14” diameter or larger sump basins; UL agency approved.
  • QUALITY YOU DESERVE - Proudly assembled in the USA for quality you can trust. Warrantied for 2 years for dependable & efficient performance

Key Specs

AttributeSpecification

item#

101861

Brand

Wayne

Manufacturer's Warranty

2 year limited warranty

Ship Weight

19.0 LB

Max. Flow

5,100 GPH

Volts

120
AttributeSpecification

Amps

3.8

Power Cord Length

96 in

Housing Material

Steel

Horsepower

0.5

Product Weight

19.0000 lb

Dimensions L x W x H (in.)

9.0 x 9.5 x 11.5 in

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Can this pump be fully submerged in water?

    1 answer

    1. Yes, the Wayne Submersible Sump Pump (Model CDT50) can be fully submerged in water. It is designed for submersible use, with a durable epoxy-coated and cast iron construction that ensures long life in tough sump pump applications. This pump also features a top suction design to reduce clogging and prevent air lock conditions.

      Helpful?

  2. The pump is rated at 5100 GPH. What is the vertical lift at that rating? What is the flow at 10 feet of lift?

    1 answer

    1. The GPH at 0 ft. of lift is 5100 GPH. The GPH at 10 ft. of lift is 3840 GPH.

      Helpful?
