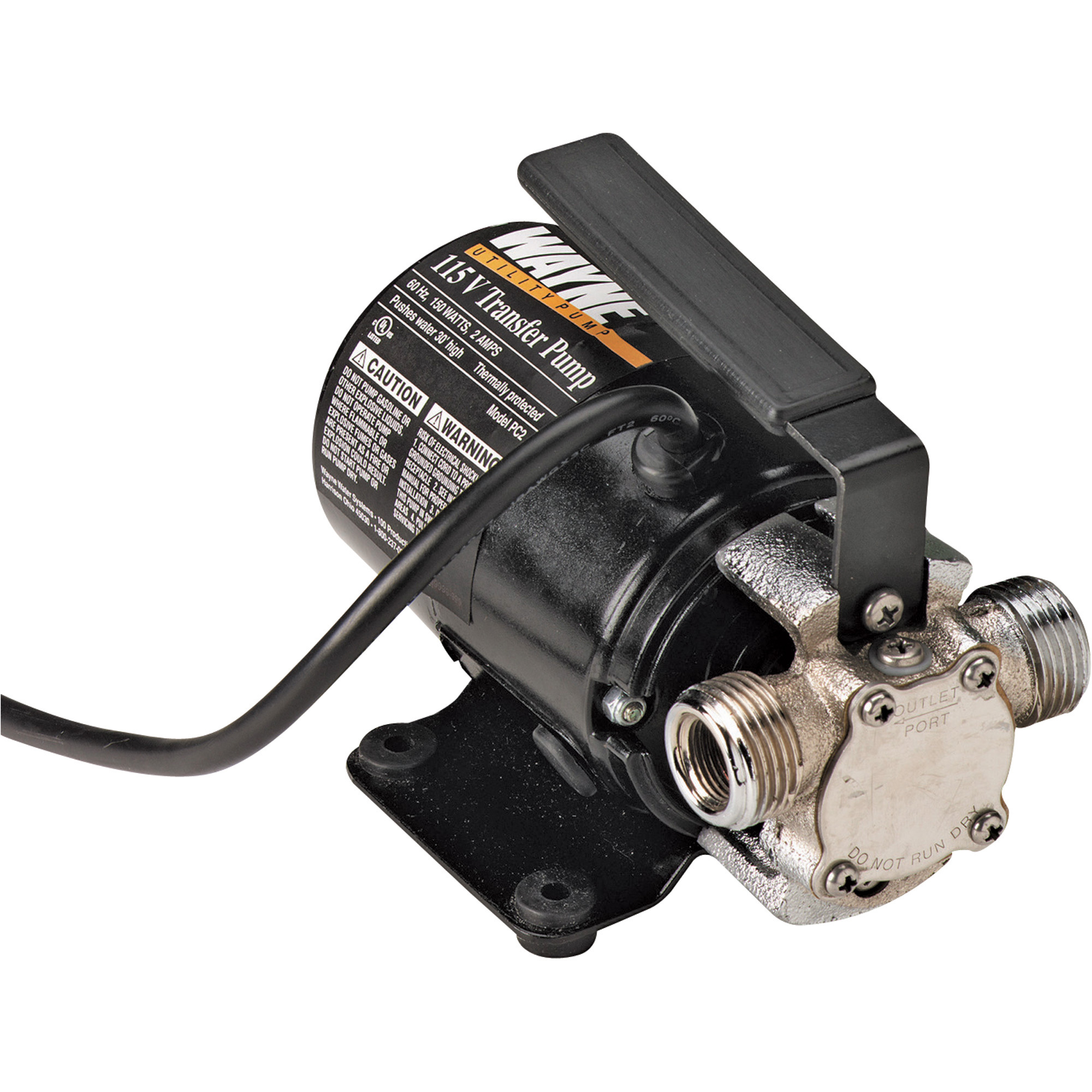

Wayne Self-Priming Transfer Water Pump, 340 GPH, 3/4in. Ports, Model# PC2

Item# 108560
Top Seller
Wayne Self-Priming Transfer Water Pump, 340 GPH, 3/4in. Ports, Model# PC2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Wayne Self-Priming Transfer Water Pump, 340 GPH, 3/4in. Ports, Model# PC2

Click or Tap image to Zoom

$129.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Corrosion-resistant chrome-plated bronze volute
  • 3/4in. chrome-plated bronze connections fit standard garden hoses
  • Convenient carrying handle for easy transport
  • Self-priming pump
  • Oil-less, brush-type motor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Wayne Self-Priming Transfer Water Pump is a portable, lightweight pump that is ideal for household use. Plugs into any standard household outlet. The 6ft. suction hose and suction attachment remove water down to 1/8in. Pump not designed for maintaining or boosting pressure.

What's Included

    (1) Transfer pump (1) 6-ft. suction hose (1) Water suction attachment (1) Replacement parts kit

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Corrosion-resistant chrome-plated bronze volute
  • 3/4in. chrome-plated bronze connections fit standard garden hoses
  • Convenient carrying handle for easy transport
  • Self-priming pump
  • Oil-less, brush-type motor
  • Removes water down to 1/8in. when water suction attachment is used
  • 14 Amp draw
  • Includes 6-ft. suction hose, water suction attachment and parts kit
  • For cold water use only

Key Specs

AttributeSpecification

item#

108560

Brand

Wayne

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

6.6 LB

Max. Flow

340 GPH

Port Size

0.75 in
AttributeSpecification

Volts

115

Max. Head Pressure

40 ft

Vertical Lift

6 ft

Product Weight

lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 7.0 in

Reviews

Questions & Answers

49 Reviews This action will navigate to reviews.

Questions

1–10 of 34 Questions
Sort by:

  1. Can this pump be used to supply a pressure washer?

    1. Not really, this is low pressure with moderate volume, about 5GPM

      Helpful?

    2. This pump is not designed to supply water to a pressure washer. The pump listed below can be used for that application and will provide enough water for a 4.0 gallon per minute pressure washer.

      Helpful?

    3. No, definitely not used for pressure washer. It produces very week pressure not enough to wash car or water the garden.

      Helpful?

  2. Will this unit pump water to 2nd story receptacle?

    If not, please provide recommendation for appropriate pump.
    For use at cabin with gravity-flow water system

    1. No, this pump is not designed to build up any pressure to move water vertically. A better option would be Northern Tool item number 109258, Wayne Stainless Steel Sprinkler Booster Pump.

      Helpful?

    2. No, this pump is not designed to build up any pressure to move water up.
      I would suggest Northern Tool item# 109258.
      This would be a better solution.

      Helpful?

  3. Dish Water

    Will this pump pump cold dish water from a holding tank to a septic system. No harsh chemicals, just Dawn soap.
    Thank You

    1. This is not made for pumping anything but cold, clear water.

      Helpful?

    2. This pump can not pump Dawn dish soap. This pump is only capable of pumping cold water.

      Helpful?

  4. Wayne Pump PC-2

    Does the above pump have a pick-up equipped with an inlet screen, and if it does, what is the mesh size ?

    Is this pump only for clear water use or can it tolerate water with small quantities of silt ?

    Can this pump run dry or does it have an automatic stop ?

    Is this pump self- priming and does it have a minimum delivery height requirement in order to function ?

    1. All of your questions are answered in the specification summary:

      Yes it has a pickup screen, mesh size not specified
      Pump is for clear For cold water use only
      No & no. Can't run dry and the auto stop is you unplugging it.

      Yes, self priming, Minimum or Max delivery height? Minimum would be 0, max suction about 6 feet.

      Helpful?

    2. This pump comes with a suction hose and pick-up attachment but does not have mesh screen.
      This pump is for clear water water use and cannot tolerate water with small quantities of silt.
      This pump cannot be run dry and does not have an automatic stop.
      This pump is self-priming and does not have a minimum delivery height to function.

      Helpful?

  5. Can I pump gasoline from a tank

    1. Absolutely NOT quote specs: For cold water use only

      Helpful?

    2. This AC transfer pump is not designed to pump gasoline. Gasoline transfer could be done with item #109578 shown below..

      Helpful?

  6. Is the vegetable oil really necessary for pump to function?

    1. No, do not need vegetable oil to prime this pump, it's self-primed.

      Helpful?

    2. Vegetable oil is not necessary for the pump to function but does assist in priming functions and protection if the pump were to run dry.

      Helpful?

  7. Can this pump be used to fill a pressure tank.

    Can this pump be used to transfer water from a storage tank into a pressure tank (38 psi)?

    1. No. This pump won't make much pressure due to the rubber impeller design. It is really built for transfer only.

      Helpful?

    2. This tank can not be used to fill a pressure tank.

      Helpful?

  8. Is this a continuous use pump?

    I would like to use it in a 1/2" coiled solar water heater drawing and returning water from an in-ground pool.

    1. No

      Helpful?

    2. This Wayne 115 Volt Transfer Pump is not a continuous use pump, and should be used only for cold water use.

      Helpful?

  9. What is the power consumption?

    Want to run it with a portable generator.

    1. Approx 2 Amps

      Helpful?

    2. The Wayne 115 volt Transfer Pump will have a running power draw of 2 amps(330 watts). The draw under initial start-up will be approximately 6-10 amps(690-1150 watts).

      Helpful?

  10. Can this pump clean warm water?

    I am looking for something to use as an inline water pump that is pumping water through a tankless propane water heater, the heater only runs at 3gpm, but needs 20 to 80 psi. This is a closed loop system, basically heating 160 gallons of water in a water trough, to be used as an "eco" hot tub. Because of the nature of the system, for the last 10 min or so it will be pumping fairly warm water, maybe up to 95 degrees F.

    1. Direct from spec sheet: For cold water use only

      Helpful?

    2. No, this Wayne transfer pump is intended to pump cold water only.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Replacement Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
