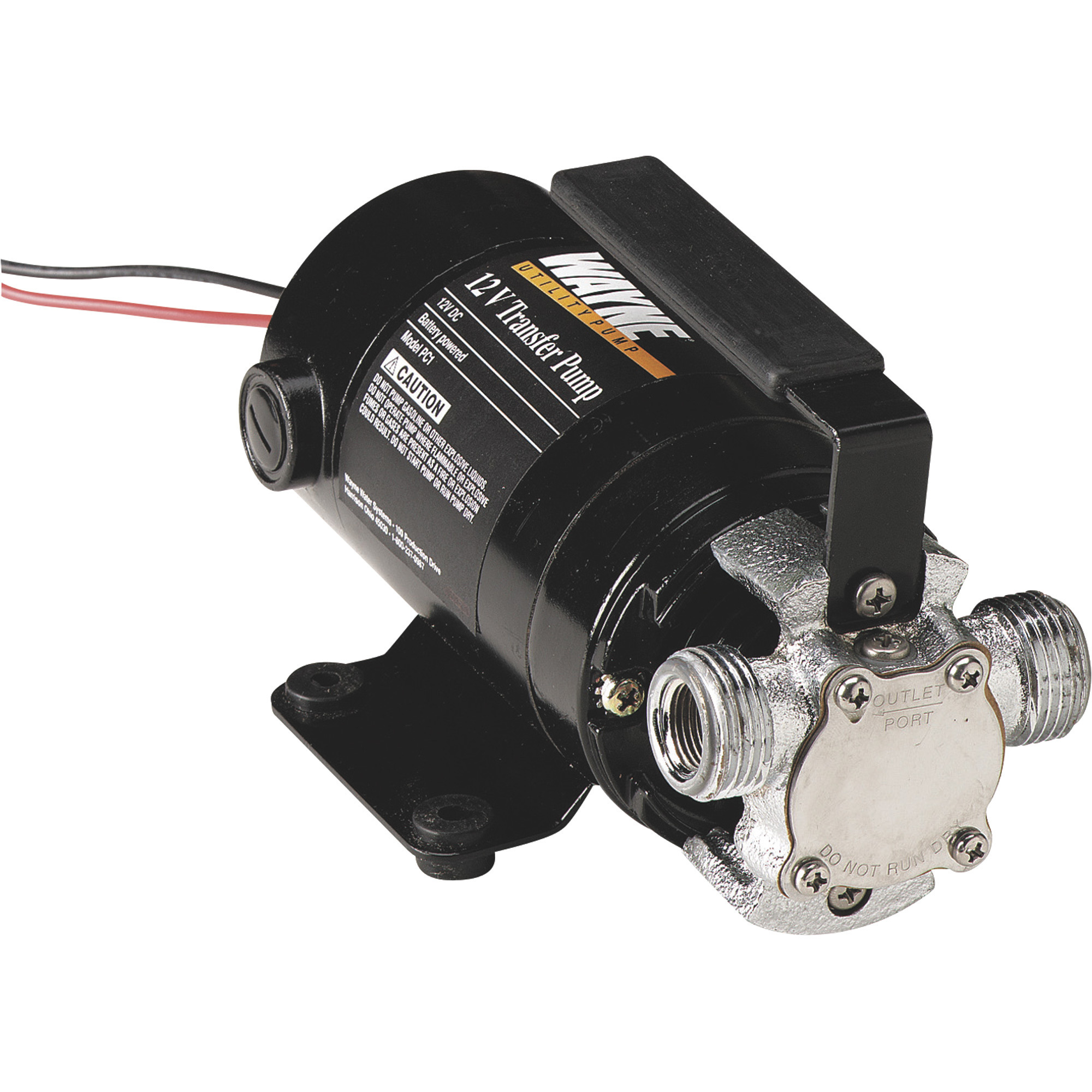

Wayne 12 Volt Self-Priming Transfer Water Pump, 340 GPH, 3/4in. Port, Model# PC1

Item# 108559
Wayne 12 Volt Self-Priming Transfer Water Pump, 340 GPH, 3/4in. Port, Model# PC1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Wayne 12 Volt Self-Priming Transfer Water Pump, 340 GPH, 3/4in. Port, Model# PC1

Click or Tap image to Zoom

$154.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • PORTABLE WATER REMOVAL - This portable WAYNE utility pump is perfect to have with you if you’re on the go. WAYNE model PC1 can easily pump water away down to 1/8" and lift water up to 35 ft.
  • DURABLE CONSTRUCTION - Non-submersible rugged metal pump and motor housing with alligator clamps for connecting power wires to battery
  • EFFICIENT DESIGN – 3/4 in. plated aluminum hose fittings
  • ADDITIONAL FEATURES - Ideal for removing water where high lift is needed: flooded basements, boats, stock tanks, etc.
  • QUALITY YOU DESERVE - Warrantied for 1 year for dependable, efficient performance.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Wayne 12-Volt 335 gph portable battery-powered transfer water pump gets its power from car or marine batteries, with attached battery clips for easy installation and total portability. A 6ft. suction hose attachment removes water within 1/8in. of the surface, and the pump is bronze-plated for a long life and resistance to thread damage. The discharge is threaded to attach to standard garden hoses, and an included replacement parts kit makes repairs easier.

What's Included

    (1) Transfer pump (1) 6-ft. suction hose (1) Water suction attachment (1) Replacement parts kit

Downloads

Product Manual
Play Item Video

Features + Benefits

  • PORTABLE WATER REMOVAL - This portable WAYNE utility pump is perfect to have with you if you’re on the go. WAYNE model PC1 can easily pump water away down to 1/8" and lift water up to 35 ft.
  • DURABLE CONSTRUCTION - Non-submersible rugged metal pump and motor housing with alligator clamps for connecting power wires to battery
  • EFFICIENT DESIGN – 3/4 in. plated aluminum hose fittings
  • ADDITIONAL FEATURES - Ideal for removing water where high lift is needed: flooded basements, boats, stock tanks, etc.
  • QUALITY YOU DESERVE - Warrantied for 1 year for dependable, efficient performance.
  • 40-120°F liquid temp. range

Key Specs

AttributeSpecification

item#

108559

Brand

Wayne

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

8.0 LB

Max. Flow

335 GPH

Port Size

0.75 in
AttributeSpecification

Flow (GPH)

340

Port Size (in.)

3/4

Suction Port Size

3/4

Amps

15

Product Weight

lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 7.0 in

Reviews

Questions & Answers

39 Reviews This action will navigate to reviews.

Questions

1–10 of 30 Questions
Sort by:

  1. Is there a minimum gallon per minute for this pump to start and run ?

    1. No

      Helpful?

    2. Gallons per Minute (GPM) is the measurement of performance on a water pump. It is a constant performance specification with no minimum or maximum range. This pump will transfer water at a constant rate of 5.6 gallons per minute. The water supply does need to be no less than 1/8 inch above the surface (1/8" deep minimum) for this unit to work.

      Helpful?

  2. priming

    What is the process for priming? One review said it has to be primed with vegetable oil, Do you have to prime the pump with vegetable oil before each use?

    1. Yes, if you drain the pump after each use you would have to put vegetable oil in both the inlet and outlet of the pump..
      The impeller spins at a high RPM and does need a lubricant to help prevent failure.
      The vegetable oil will seal and lubricate the impeller and assist in the pulling of water up through the suction hose.

      Helpful?

    2. It is recommended to prime the pump with 1 tablespoon of vegetable oil to both inlet and outlet of the prime. Doing this will help with the pump life.

      Helpful?

  3. What effect will saltwater have on this pump?

    1. This pump is intended for fresh water use only and has not been tested by the manufacturer for use with salt water. Using it with salt water will void the warranty.

      Helpful?

    2. Wayne does not test any of their pumps with salt water.
      If you choose to use the PC1 in that application it will void the warranty.

      Helpful?

  4. What is the impeller made of? and what kind?

    Is this a star impeller?

    1. The impeller is made of rubber and is 6 point "star" shaped.

      Helpful?

    2. Yes, the shape is a 6 point "star" shaped impeller. It is made of rubber.

      Helpful?

  5. will this pump work with gasoline or diesel fuel?

    1. No, it is only recommended for water.

      Helpful?

    2. This pump should not be used with gasoline or diesel fuel. It is intended to be used with water only.

      Helpful?

  6. Maximum water temp.

    The product specs calls out a minimum water temp, but not a maximum. what is the max temp and can this be used on a hot water / boiler system?

    1. I don't think the rubber impeller would take the heat for any length of time.

      Helpful?

    2. The pumps you listed cannot handle the extreme temperature of a boiler system. The maximum temperature for each pump is as follows: Wayne ~ 110 degrees Fahrenheit, NorthStar ~ 140 degrees Fahrenheit, and SHURflo ~ 170 degrees Fahrenheit. At this time Northern Tool does not have a pump capable of handling such an extreme temperature.

      Helpful?

  7. Is this pump capable of operating a water sprinkler?

    1. this pump is not recommended to operate more than 15min at a time. i shut mine down after 15min and let it set for awhile and then turn it on again. besides that, it would seem it would run your battery down using it for a sprinkler for long periods.

      Helpful?

    2. No. The primary function of this item is to remove liquid from one location and transfer it to another location. The attached item would work for this application.

      Helpful?

  8. How much lift does this pump have?

    1. Mine is mounted to the top of an 1100 gallon tank that stands five feet tall and it easily pumps water from the bottom.

      Helpful?

    2. The maximum lift height for the Wayne 12 Volt Transfer Pump would be 10 feet for the suction. The maximum height for discharge would be 30 feet.

      Helpful?

  9. What is the amp-rating (power-supply required) of Wayne 12 Volt Self-Priming Transfer Water Pump — 340 GPH, 3/4in. Port, Model# PC1?

    1 answer

    1. This is a 12 volt water pump and is rated at 15 amps.

      Helpful?

  10. How can I get a replacement impeller part number 66058-WYN1

    1 answer

    1. Please contact the manufacturer for parts directly.

      Helpful?
