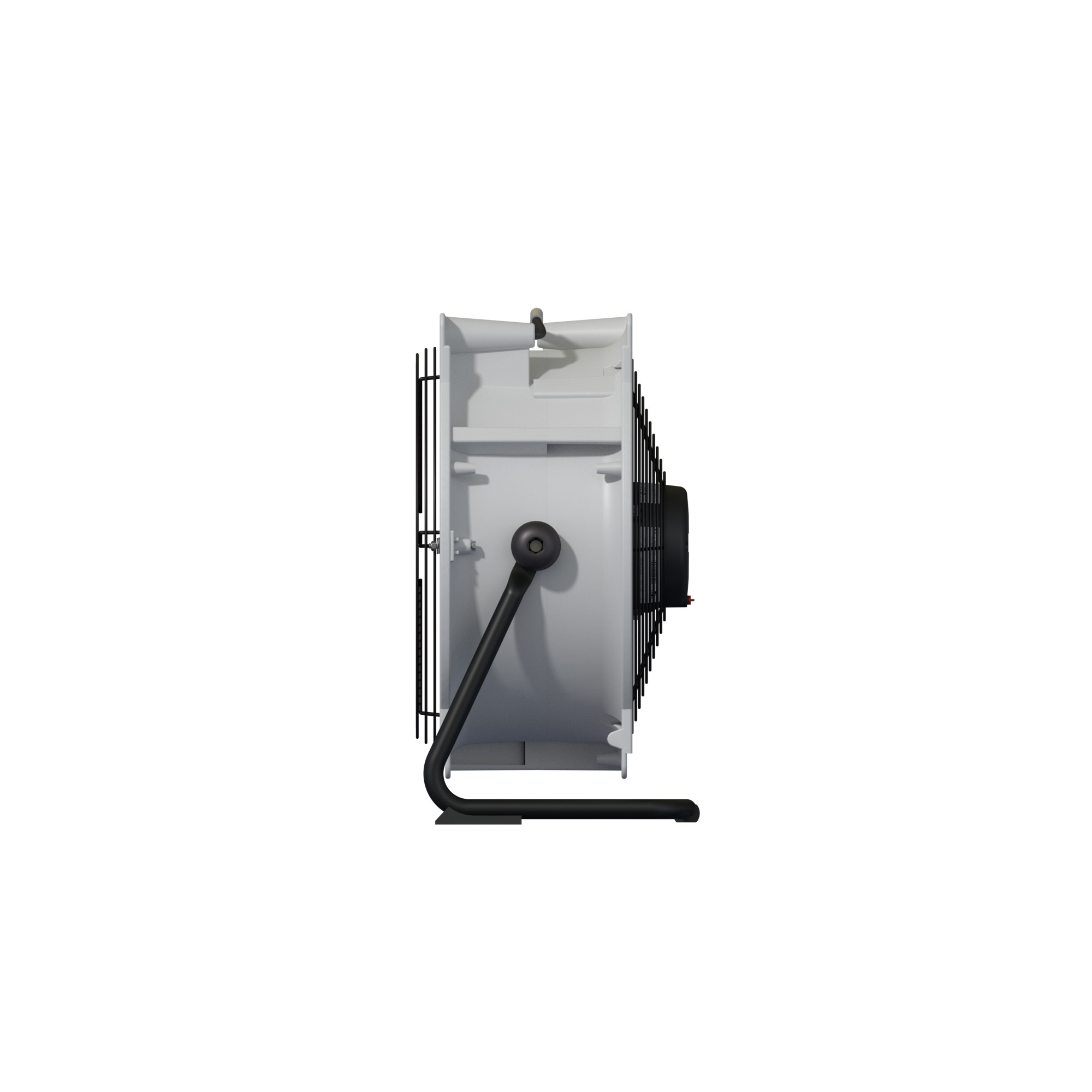

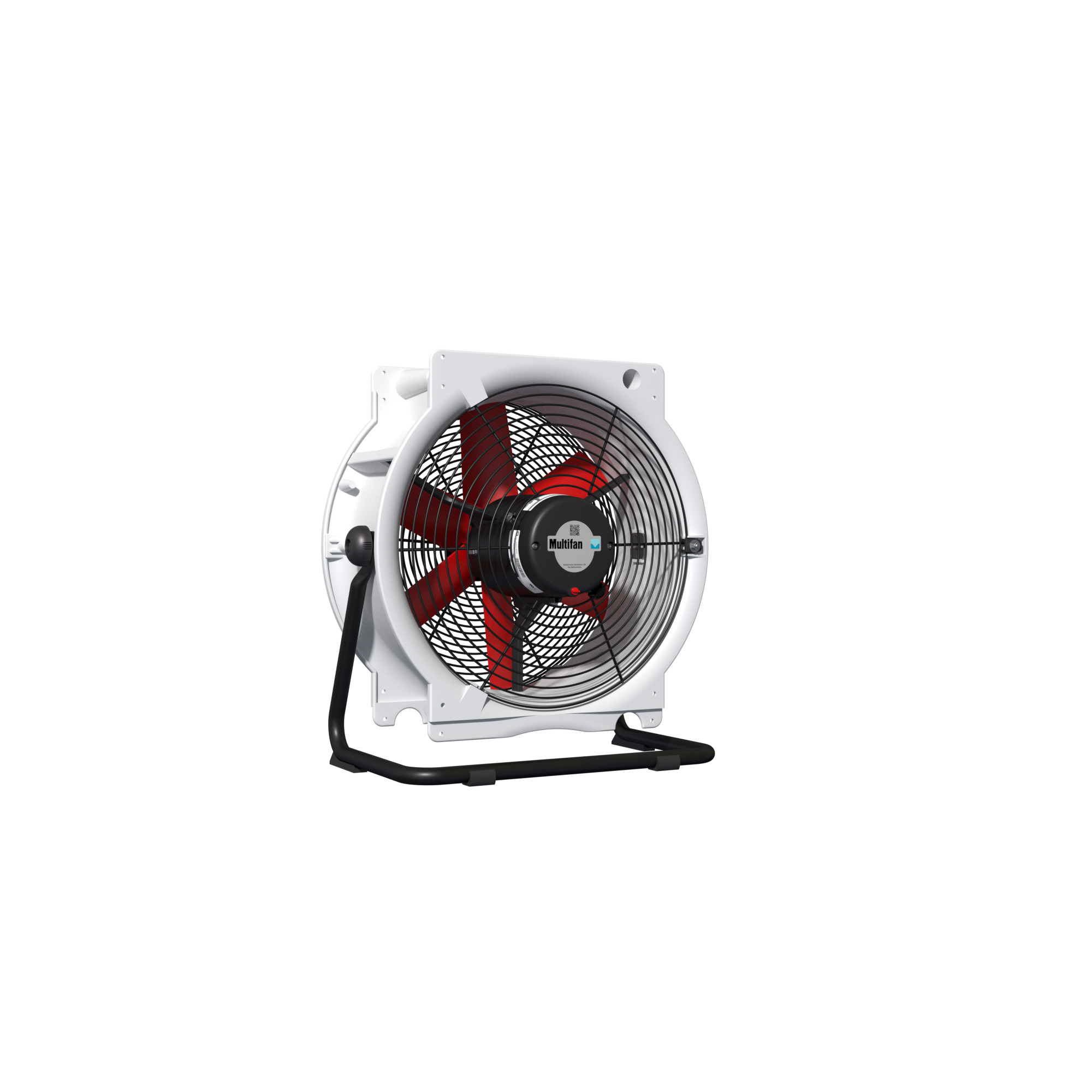

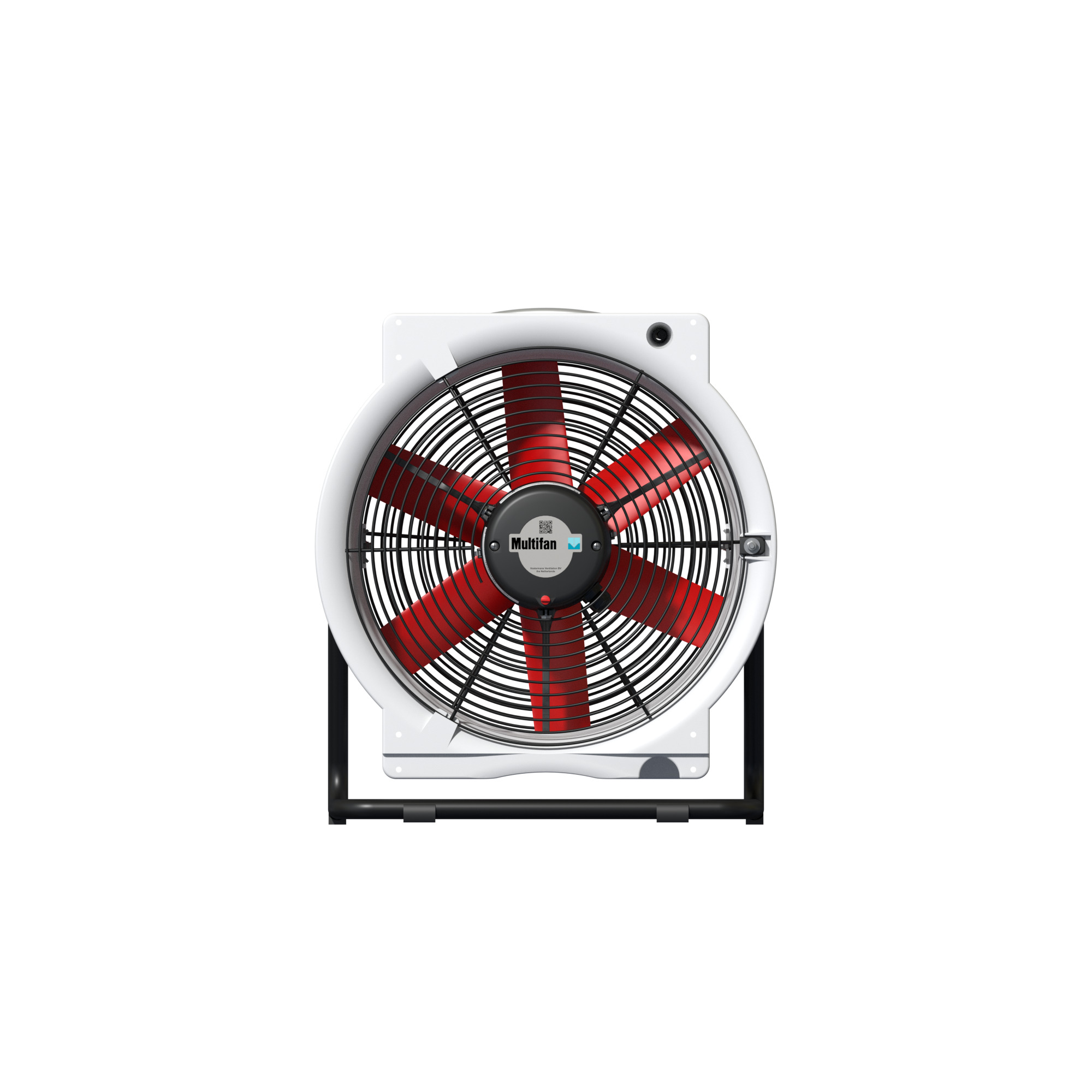

Vostermans Multifan 16in. Truck Dock Circulator Fan, With Mounting Arm and Stirrup, 1/4 HP, 3,294 CFM, Model# B4E4003TDF

Item# 43898
"Vostermans Multifan 16in. Truck Dock Circulator Fan, With Mounting Arm and Stirrup, 1/4 HP, 3,294 CFM, Model# B4E4003TDF"
Top Seller
Vostermans Multifan 16in. Truck Dock Circulator Fan, With Mounting Arm and Stirrup, 1/4 HP, 3,294 CFM, Model# B4E4003TDF

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vostermans Multifan 16in. Truck Dock Circulator Fan, With Mounting Arm and Stirrup, 1/4 HP, 3,294 CFM, Model# B4E4003TDF

Click or Tap image to Zoom

$749.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 16in. diameter fan
  • Severe-duty, harsh environment fan
  • Two-pc. bolt-together venturi
  • Variable speed capable
  • Plastic fan frame, polypropylene impeller and aluminum motor housing

See full description

Complete Your Solution

  • Vostermans Multifan 16in. Truck Dock Circulator Fan, With Mounting Arm and Stirrup, 1/4 HP, 3,294 CFM, Model# B4E4003TDF
  • Vostermans Multifan Mechanical Thermostat, Single Pole, Double Throw, Model# TT15WDCAM1A
  • Tjernlund Plug-In Fan Speed Control, Model# SCP
Price for all three:

$883.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Vostermans Multifan 16in. Truck Dock Circulator Fan provides exceptional performance in high moisture, corrosive and wet environments. Its unique housing design creates tighter airflow for enhanced air movement for spot-cooling operations. Fan is IP55 to be resistant to dust, dirt and water, making it perfectly suited for humid or wet environments and wash-down locations. The motor is totally enclosed in aluminum and the internal components have been protected to Class F, which means the fan offers excellent heat dissipation, allowing operation in hotter than normal environments. Polypropylene impeller is lightweight, which reduces wear on the motor components and extending the fan's life cycle. Mounting arm and stirrup allow fan to be precisely placed for maximum effectiveness.

What's Included

    (1) 16in. dia. fan (1) Mounting arm and stirrup

Downloads

Product Manual

Features + Benefits

  • 16in. diameter fan
  • Severe-duty, harsh environment fan
  • Two-pc. bolt-together venturi
  • Variable speed capable
  • Plastic fan frame, polypropylene impeller and aluminum motor housing
  • UL recognized, TEAO motor -- Class F insulated, suitable for ambient temperature up to 140°F
  • Rated IP55 and UL507 for outdoor or wash-down duty
  • Auto reset thermal protection
  • Sealed ball bearings with C-4 clearance, L-10 life
  • 120V, 1/4 HP, 2.4 Amp motor
  • Delivers up to 3,294 CFM
  • Durable white poly housing
  • Wire guards front and rear
  • Mounting arm and stirrup for precise placement of fan

Key Specs

AttributeSpecification

item#

43898

Brand

Multifan

Manufacturer's Warranty

3 year limited warranty

Ship Weight

105.0 LB

Fan Diameter

16 in

Air Delivery

3,294 cfm

Volts

120

Amps

2.4
AttributeSpecification

Housing Material

Polypropylene

Max. Fan Speed

1,600 rpm

Power Cord Length

10 ft

Watts

270

Horsepower

0.25 HP

Product Weight

lb

Dimensions L x W x H (in.)

23.5 x 23.5 x 16.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Pedestal Fan Accessories

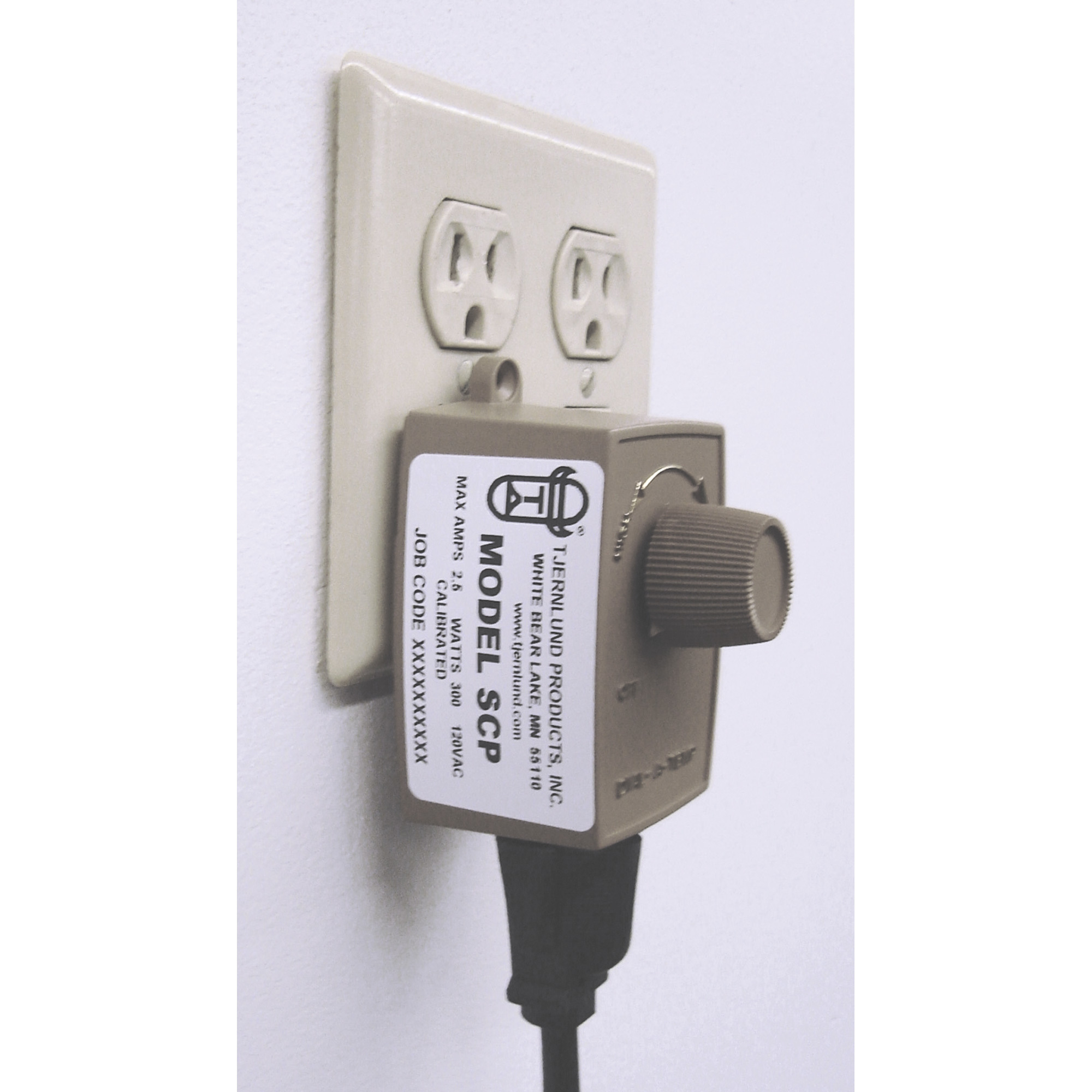

Tjernlund Plug-In Fan Speed Control, Model# SCP
