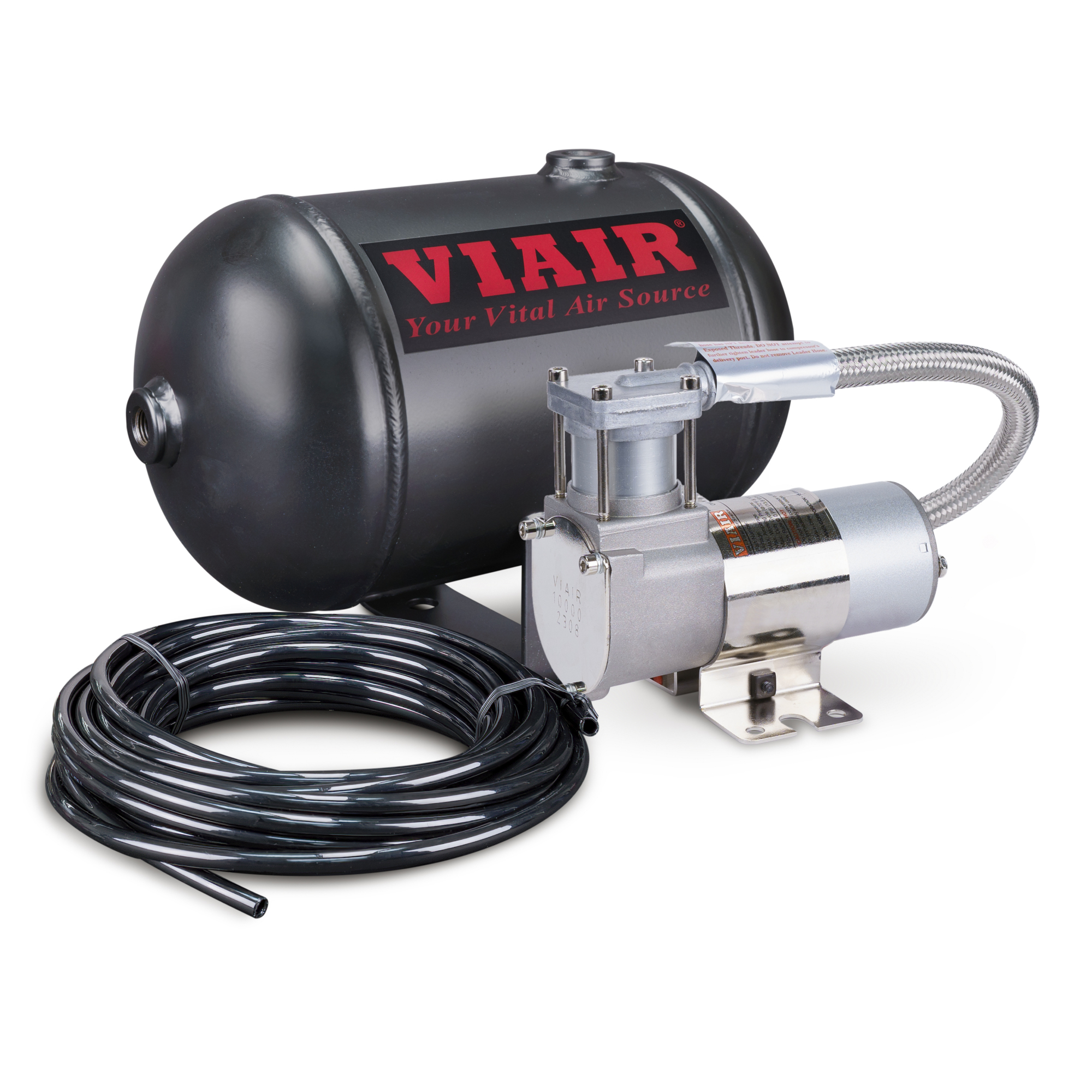

Viair, Ultra-Light Duty Onboard Air System, Horsepower 0.25 HP, Air Tank Size 1 Gal, Volts 12 Model# 10000

Item# 6433202
Viair, Ultra-Light Duty Onboard Air System, Horsepower 0.25 HP, Air Tank Size 1 Gal, Volts 12 Model# 10000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Viair, Ultra-Light Duty Onboard Air System, Horsepower 0.25 HP, Air Tank Size 1 Gal, Volts 12 Model# 10000

Click or Tap image to Zoom

$191.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Compact onboard air system for small pneumatic applications
  • 98C air compressor offers reliable performance up to 105 PSI
  • Includes a 1.0-gallon air tank for versatile air storage
  • Complete kit with pressure switch, safety valve, and mounting hardware
  • Easy integration into your vehicle's onboard air system

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Ultra Light Duty Onboard Air System can be used to pressurize the included 1.0 gallon air tank for air horn use, off road air locking differential use, and a host of other light duty pneumatic needs. While not intended to inflate tires, this onboard air system provides a reliable smaller volume, in a cost effective package.

What's Included

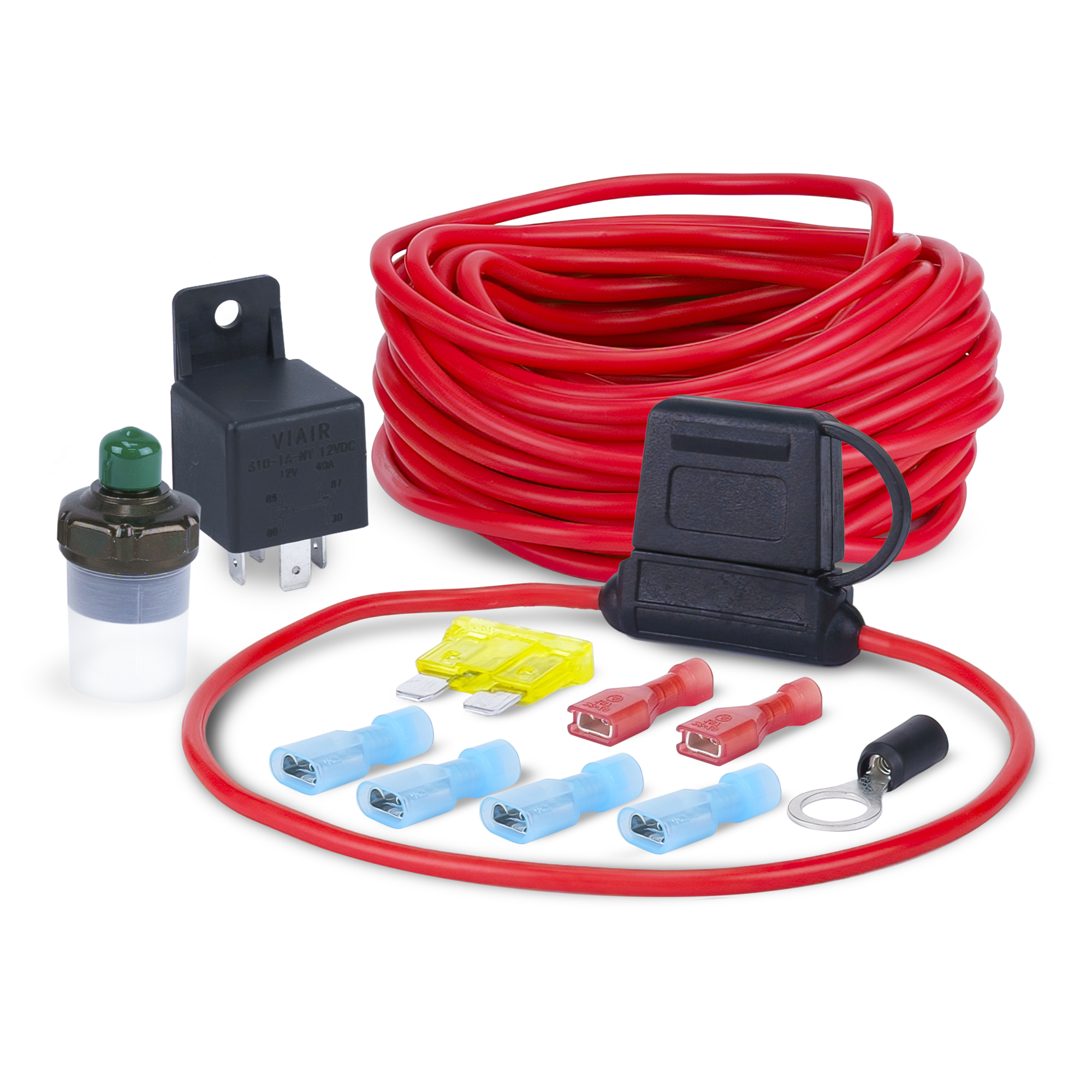

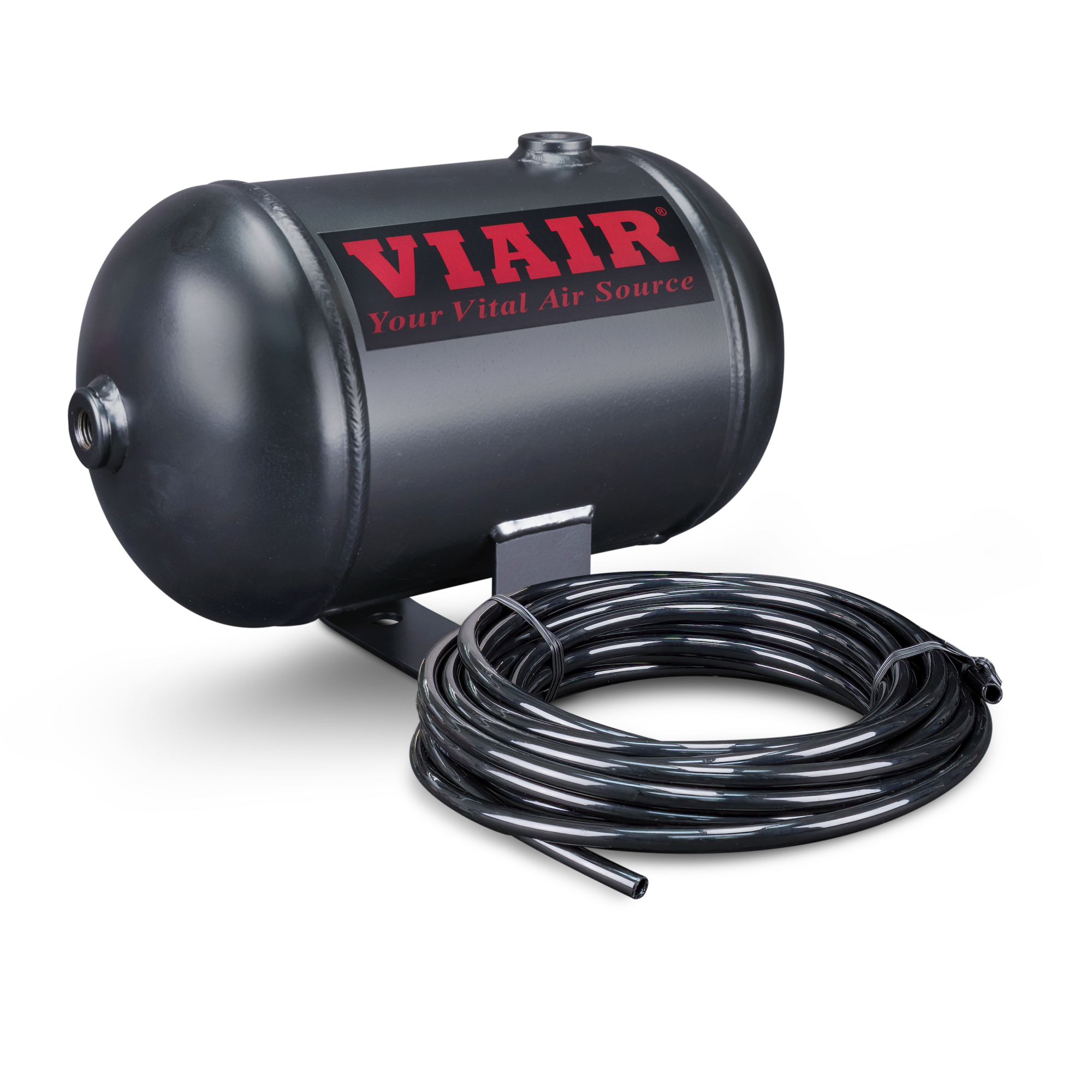

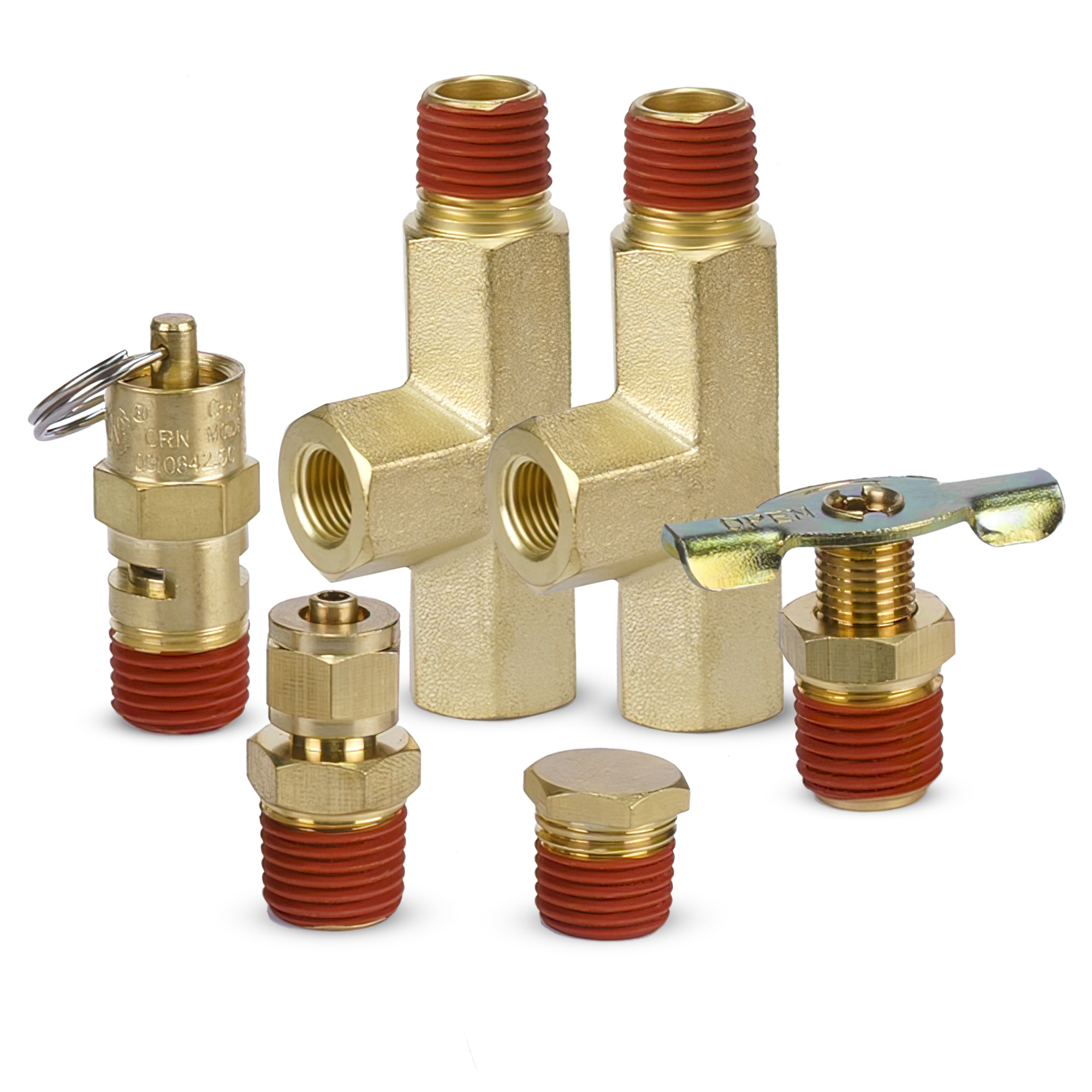

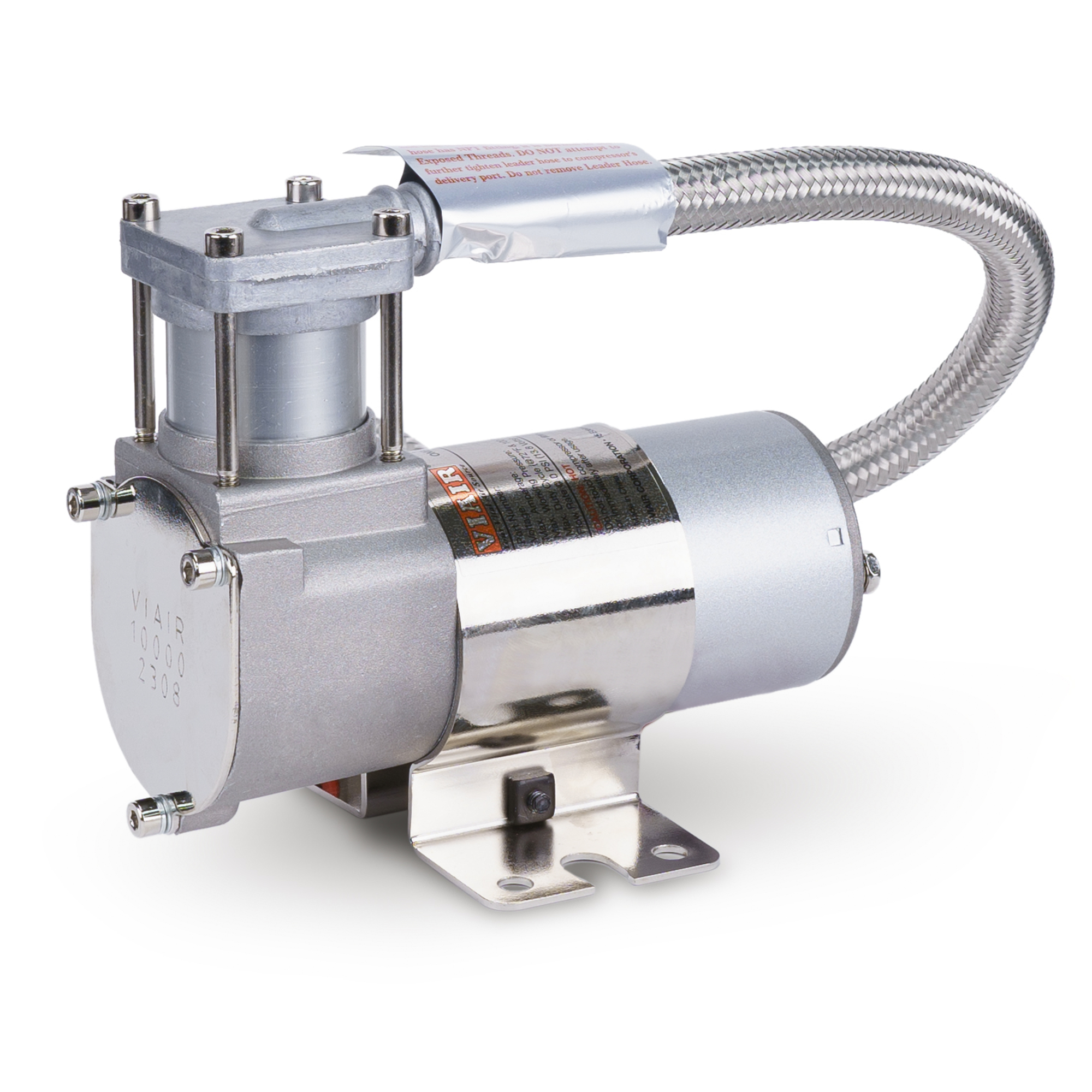

    (1) 1.0-gallon air tank (1) 98C air compressor (1) Omega bracket with mounting hardware (1) Pressure switch (85 PSI on / 105 PSI off) (1) 40-amp relay (1) 145 PSI safety valve (1) T-fitting (1/4 M x 1/4 F x 1/8 F) (1) T-fitting (1/4 M x 1/4 F x 1/4 F) (1) Drain cock (1) Compression fitting (1) 1/4 in plug (M) (2) 1/4 in (M) NPT to 1/8 in (F) BSP adapters (1) 20 ft 16-gauge wire with inline fuse holder (1) Accessory airline (1) Electrical connections

Features + Benefits

  • Compact onboard air system for small pneumatic applications
  • 98C air compressor offers reliable performance up to 105 PSI
  • Includes a 1.0-gallon air tank for versatile air storage
  • Complete kit with pressure switch, safety valve, and mounting hardware
  • Easy integration into your vehicle's onboard air system

Key Specs

AttributeSpecification

item#

6433202

Brand

Viair

Manufacturer's Warranty

1 year limited warranty

Ship Weight

13.0 LB

Horsepower

0.25 HP

Air Tank Size

1 Gal

Volts

12
AttributeSpecification

Max. PSI

100

Air Outlets (qty.)

1

Working Pressure

100 PSI

Pump Drive

Direct

Oil Required

No

Lubrication System

Oil-Free

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
