Viair, Medium Duty Onboard Air System, Horsepower 0.25 HP, Air Tank Size 2.5 Gal, Volts 12 Model# 10003

Item# 6433253
6 of 7 reviewers received a sample product or took part in a promotion
Viair, Medium Duty Onboard Air System, Horsepower 0.25 HP, Air Tank Size 2.5 Gal, Volts 12 Model# 10003

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Viair, Medium Duty Onboard Air System, Horsepower 0.25 HP, Air Tank Size 2.5 Gal, Volts 12 Model# 10003

Click or Tap image to Zoom

$400.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Intended for inflation of tires up to 33 inch. Designed to be installed and mounted onto the vehicle.
  • Includes all parts needed for installation of you very own onboard air solution for tire maintenance and small pneumatic tools, except for air hose.
  • Comes with one VIAIR 325C air compressor anda 110 to 145PSI pressure switch.
  • 150 PSI maximum working pressure and 33% duty cycle
  • Can be used to inflate helper bags for load leveling, inflate four tires up to 31 inches in diameter or use with heavy duty air horns. One year manufacturer's defect warranty included with copy of the receipt. Please check the manufacturer's website for a wiring diagram.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

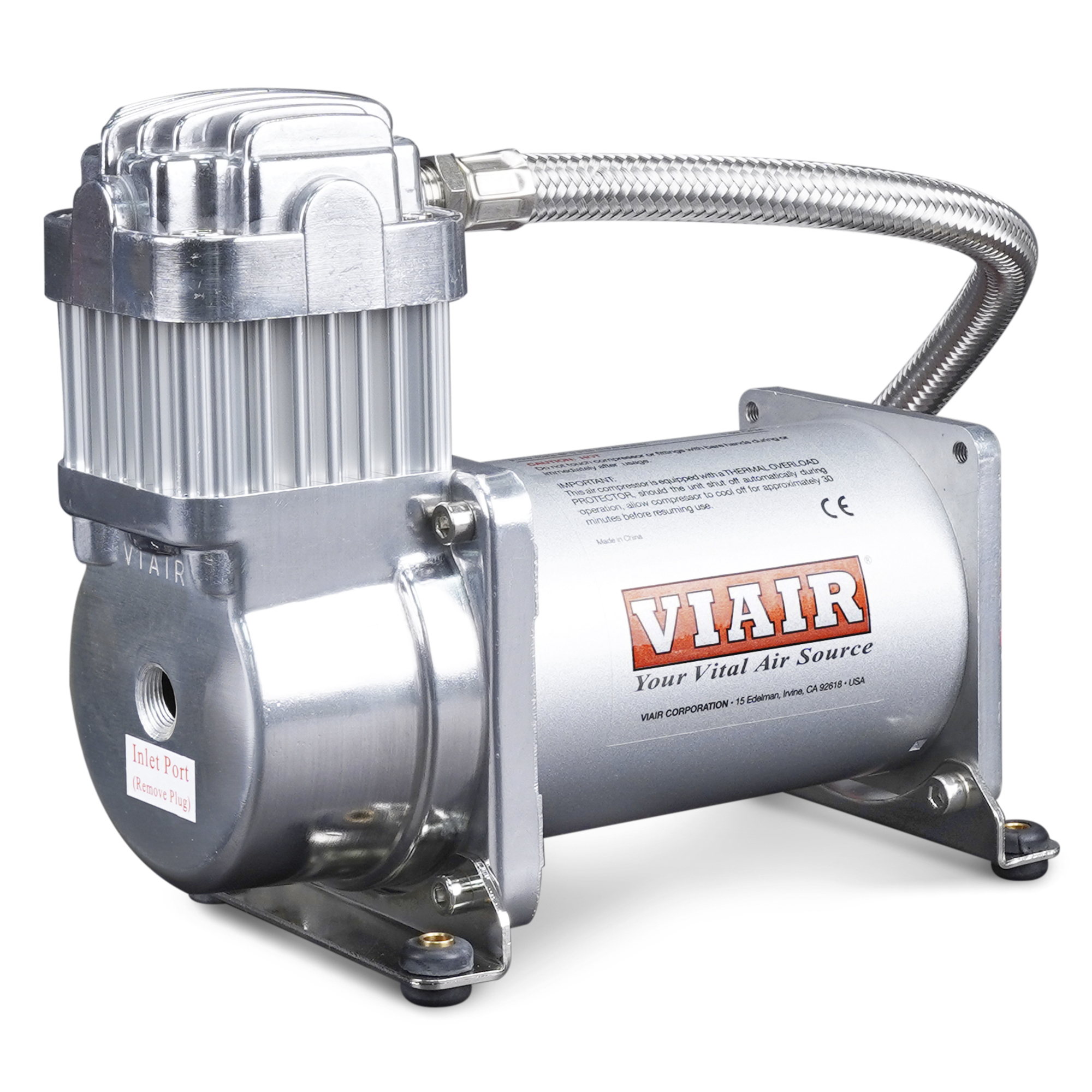

VIAIR’s Medium Duty Onboard Air System is a pre-packaged compressed air solution that provides a 33% duty cycle 325C compressor, 2.5 gallon air tank, and all components needed to install basic vehicle-based pneumatics.

What's Included

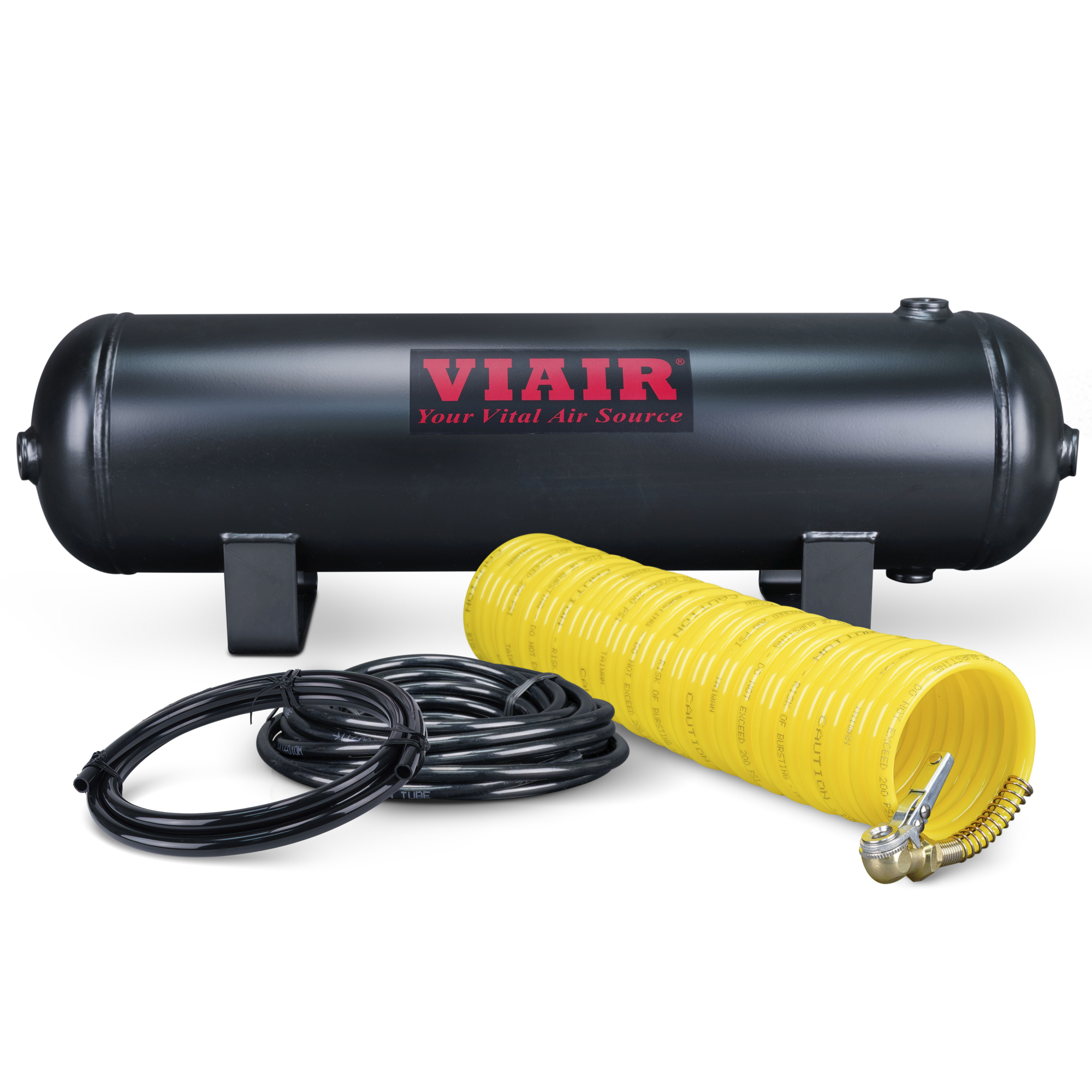

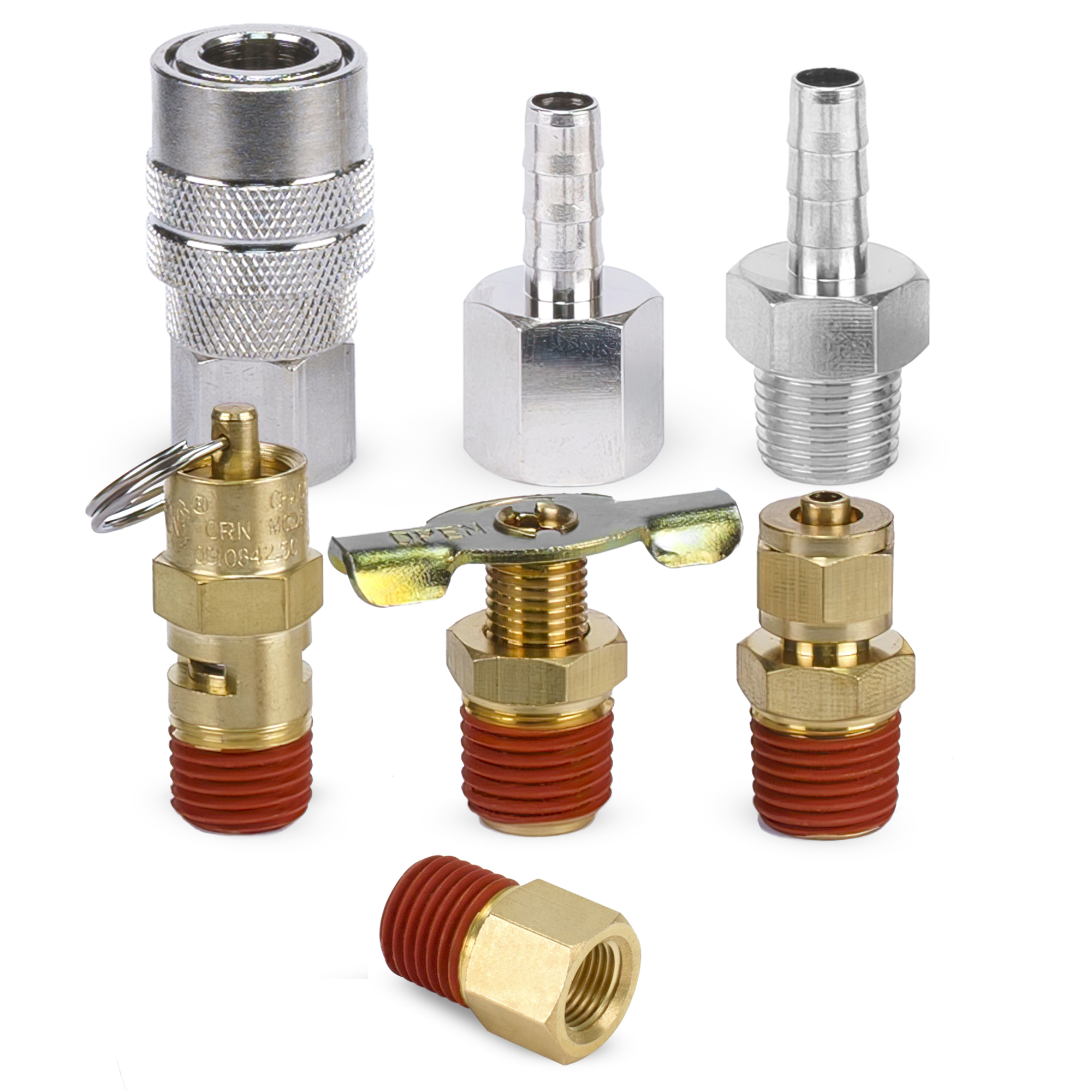

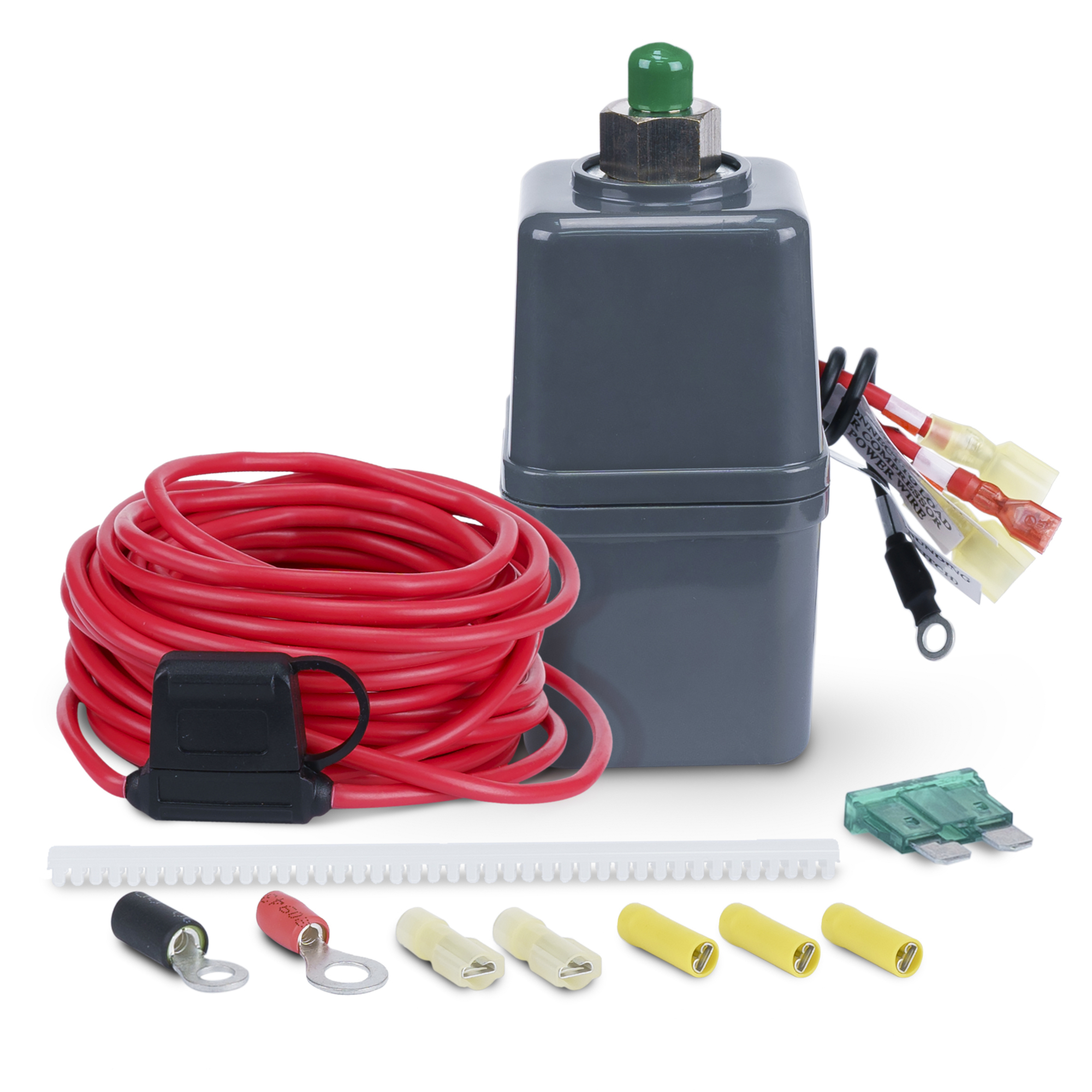

    (1) 2.5-gallon air tank (1) 325C air compressor (1) Dash panel gauge with ON/OFF switch (1) Pressure switch with relay (110 PSI on / 145 PSI off) (1) Reducer (1/8 in F to 1/4 in M) (1) 1/4 in quick connect coupler (M) (1) 175 PSI safety valve (1) Drain cock (1) 20 ft 12-gauge wire with inline fuse holder (1) 4 in grommet strip (1) Accessory airline (1) Electrical connections

Features + Benefits

  • Intended for inflation of tires up to 33 inch. Designed to be installed and mounted onto the vehicle.
  • Includes all parts needed for installation of you very own onboard air solution for tire maintenance and small pneumatic tools, except for air hose.
  • Comes with one VIAIR 325C air compressor anda 110 to 145PSI pressure switch.
  • 150 PSI maximum working pressure and 33% duty cycle
  • Can be used to inflate helper bags for load leveling, inflate four tires up to 31 inches in diameter or use with heavy duty air horns. One year manufacturer's defect warranty included with copy of the receipt. Please check the manufacturer's website for a wiring diagram.

Key Specs

AttributeSpecification

item#

6433253

Brand

Viair

Manufacturer's Warranty

1 year limited warranty

Ship Weight

30.0 LB

Horsepower

0.25 HP

Air Tank Size

2.5 Gal

Volts

12
AttributeSpecification

Max. PSI

150

Air Outlets (qty.)

1

Working Pressure

150 PSI

Pump Drive

Direct

Oil Required

No

Lubrication System

Oil-Free
