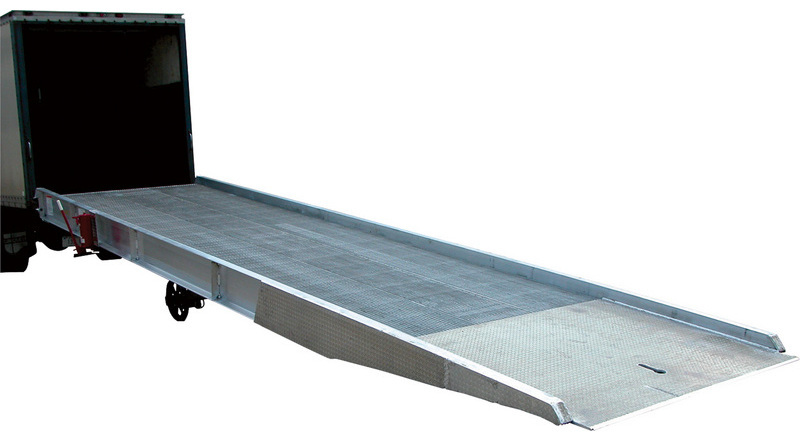

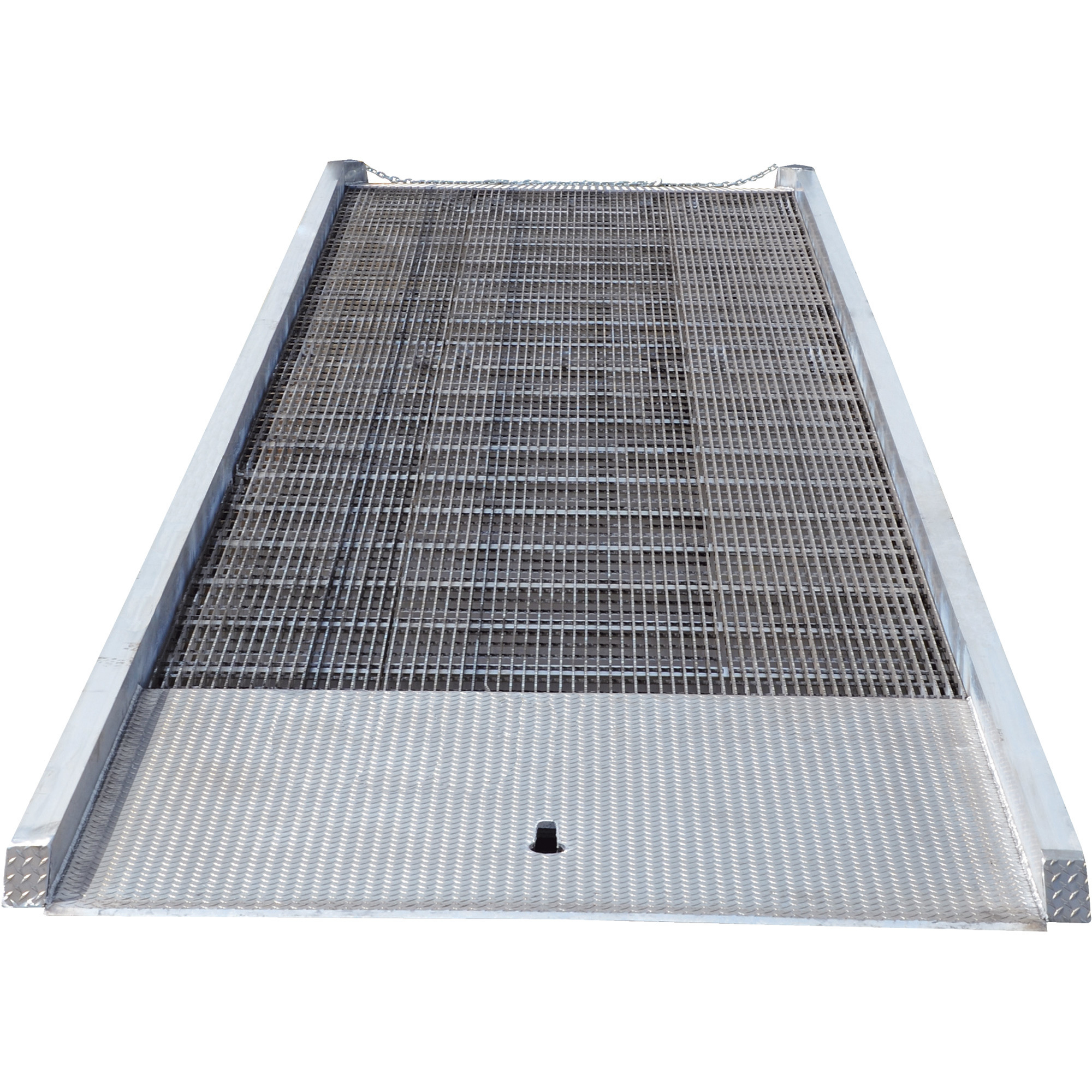

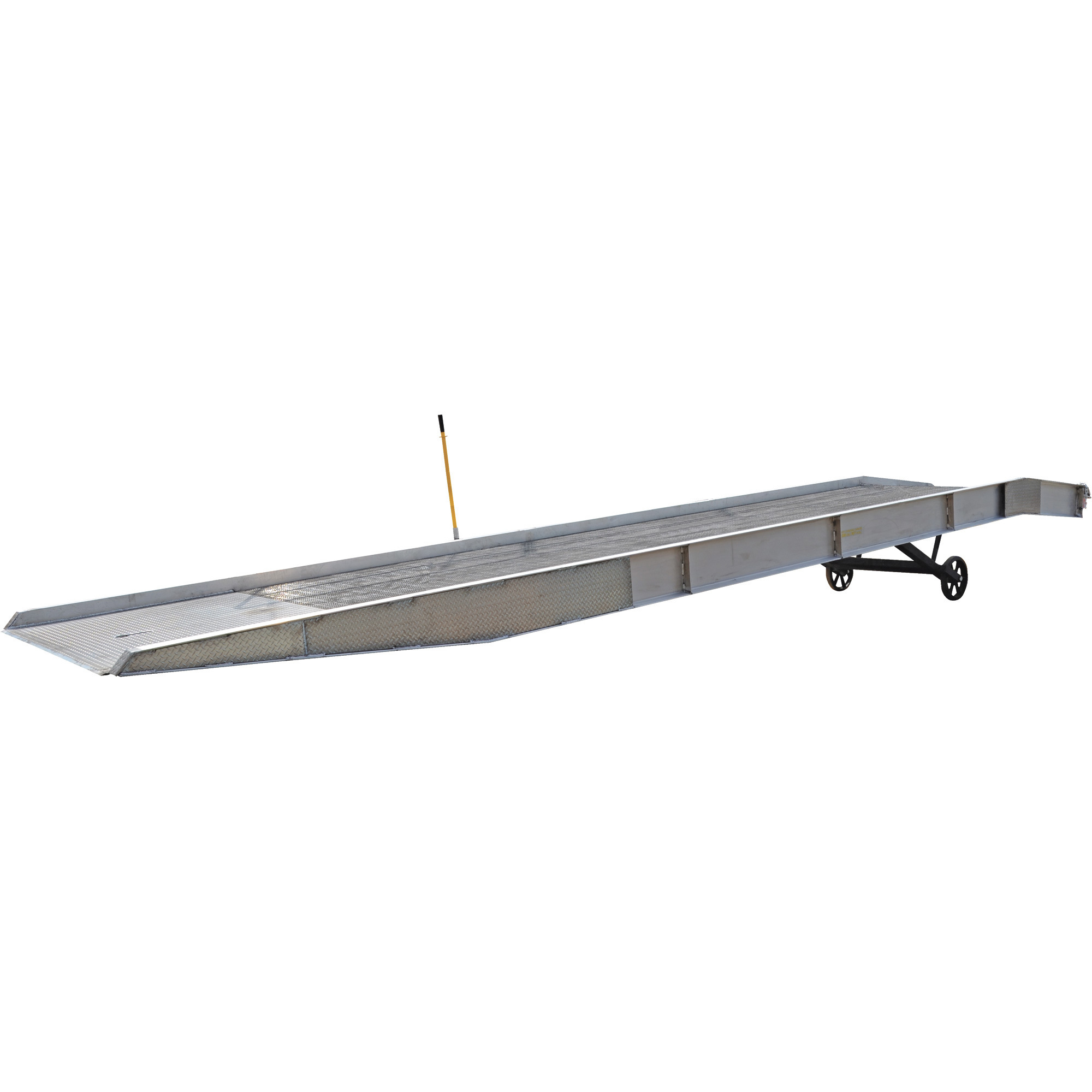

Vestil Aluminum Yard Ramp - 36ft.L x 93in.W, 16,000-Lb. Capacity, Rust-Resistant Grating, Model# AY-169336-L
1 Included
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$31,289.99
Buy 2 or more at $30,038.39 ea.
- Manual hand pump system with flow control valve for height adjustment allows for one-person lifting
- Service height range 37 in. to 63 in.
- Aluminum understructure is durable, yet lighter weight when compared to steel models
- Positive aluminum traction grating allows rain and snow to fall through while helping to maintain a safe walking surface
- Safety locking chains securely attach to the trailer and must be installed prior to use
See full description
What's Included
- (1) Aluminum yard ramp
Features + Benefits
- Manual hand pump system with flow control valve for height adjustment allows for one-person lifting
- Service height range 37 in. to 63 in.
- Aluminum understructure is durable, yet lighter weight when compared to steel models
- Positive aluminum traction grating allows rain and snow to fall through while helping to maintain a safe walking surface
- Safety locking chains securely attach to the trailer and must be installed prior to use
- 18 in. x 5 in. mold-on-rubber tires for moving ramp into position
- Built-in 4 in. H safety curbs help to prevent loads from falling off sides
- 15 in. overlap lip bridges the gap between ramp and truck floor
- Rubber bumpers are included to protect truck and ramp when attaching ramp to truck
- Rubber shock absorbers
- Several optional accessories are available (sold separately)
See All Yard Ramps
See All Vestil Yard Ramps
Currently Viewing This Product
Item # 4803994
$23,729.99
Specifications
Specifications
Vestil Aluminum Yard Ramp - 36ft.L x 93in.W, 16,000-Lb. Capacity, Rust-Resistant Grating, Model# AY-169336-L
Discount Ramps Yard Ramp & Platform Kit, Steel, 22,000lb. Capacity, Model# RYR-Platform
Vestil Aluminum Yard Ramp with Steel Grating
Vestil Overlap-Style Steel Yard Ramp
Material
Same
Aluminum
Steel
-
-
Total Capacity
Same
16,000 lb
22,000 lb
-
-
Included (qty.)
Same
1
1
-
-
Folding
Same
No
No
-
-
Surface Width
Same
87 in
102 in
-
-
Max. Ramp Length
Same
432 in
543 in
-
-
Adjustable Length
Same
No
No
-
-
Product Weight
Same
3657.0000 lb
8694.0000 lb
-
-
Dimensions L x W x H (in.)
Same
432.0 x 95.0 x 45.0 in
543.0 x 82.0 x 62.0 in
-
-
Load Capacity per Ramp
Same
-
22,000 lb
-
-
Min. Ramp Length
Same
-
543 in
-
-
Fastening Hardware Included
Same
-
Yes
-
-
