Discount Ramps, 37ft. L Steel Portable Yard Ramp w/ 22000 lb Cap, Max. Ramp Length 444 in, Surface Width 81.5 in, Total Capacity 22000 lb, Model# RYR-37-22

Item# 4803273
Top Seller1 Included
Discount Ramps, 37ft. L Steel Portable Yard Ramp w/ 22000 lb Cap, Max. Ramp Length 444 in, Surface Width 81.5 in, Total Capacity 22000 lb, Model# RYR-37-22

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Discount Ramps, 37ft. L Steel Portable Yard Ramp w/ 22000 lb Cap, Max. Ramp Length 444 in, Surface Width 81.5 in, Total Capacity 22000 lb, Model# RYR-37-22

Click or Tap image to Zoom

$18,049.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Manufactured from durable steel with two solid 18” rubber tires
  • Measures 37' L x 81-1/2" W
  • 22,000 lb. weight capacity
  • 8" guard rails, integrated safety chains, and drop-down legs for added safety
  • Serrated steel mesh surface allows moisture and debris to fall through and provides additional traction

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

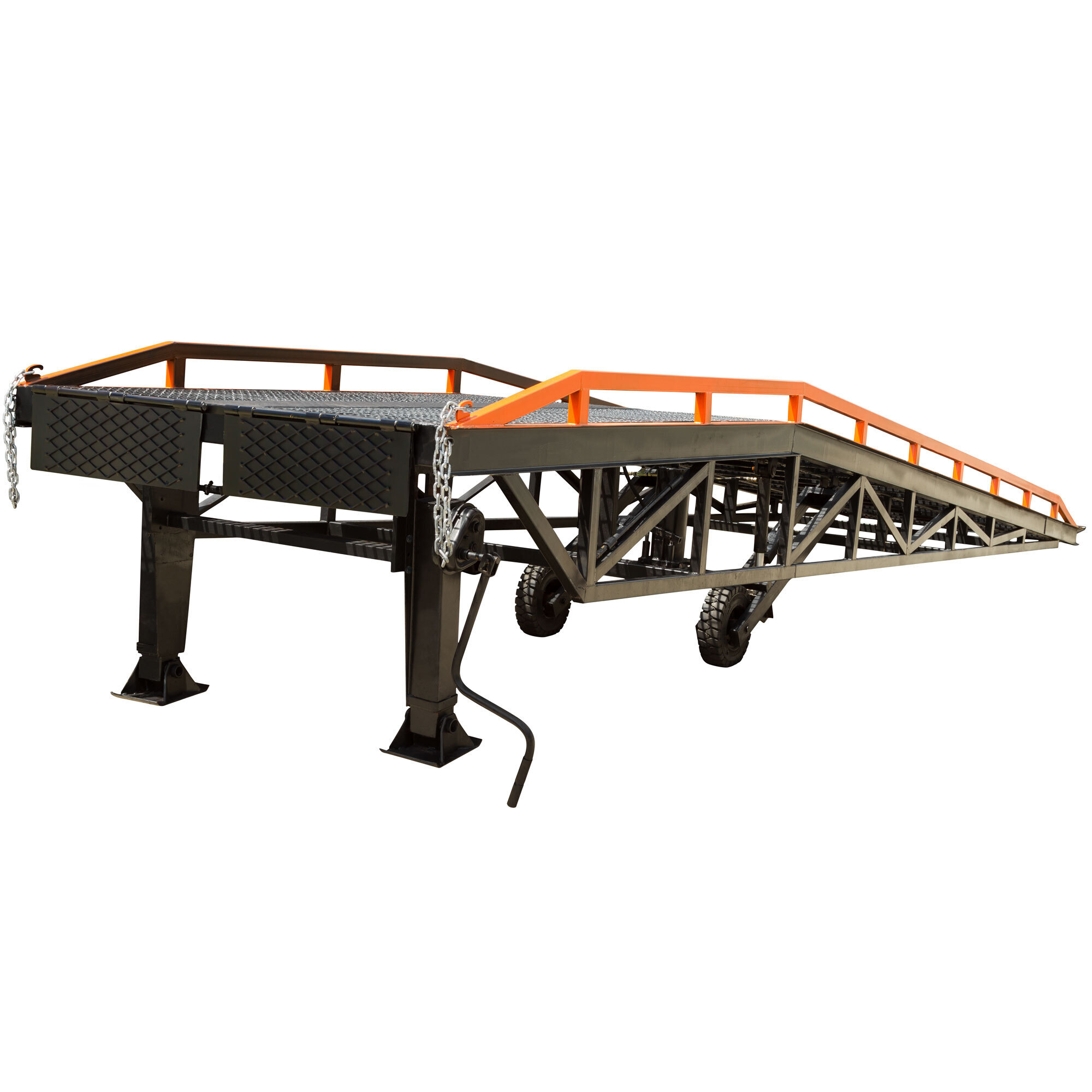

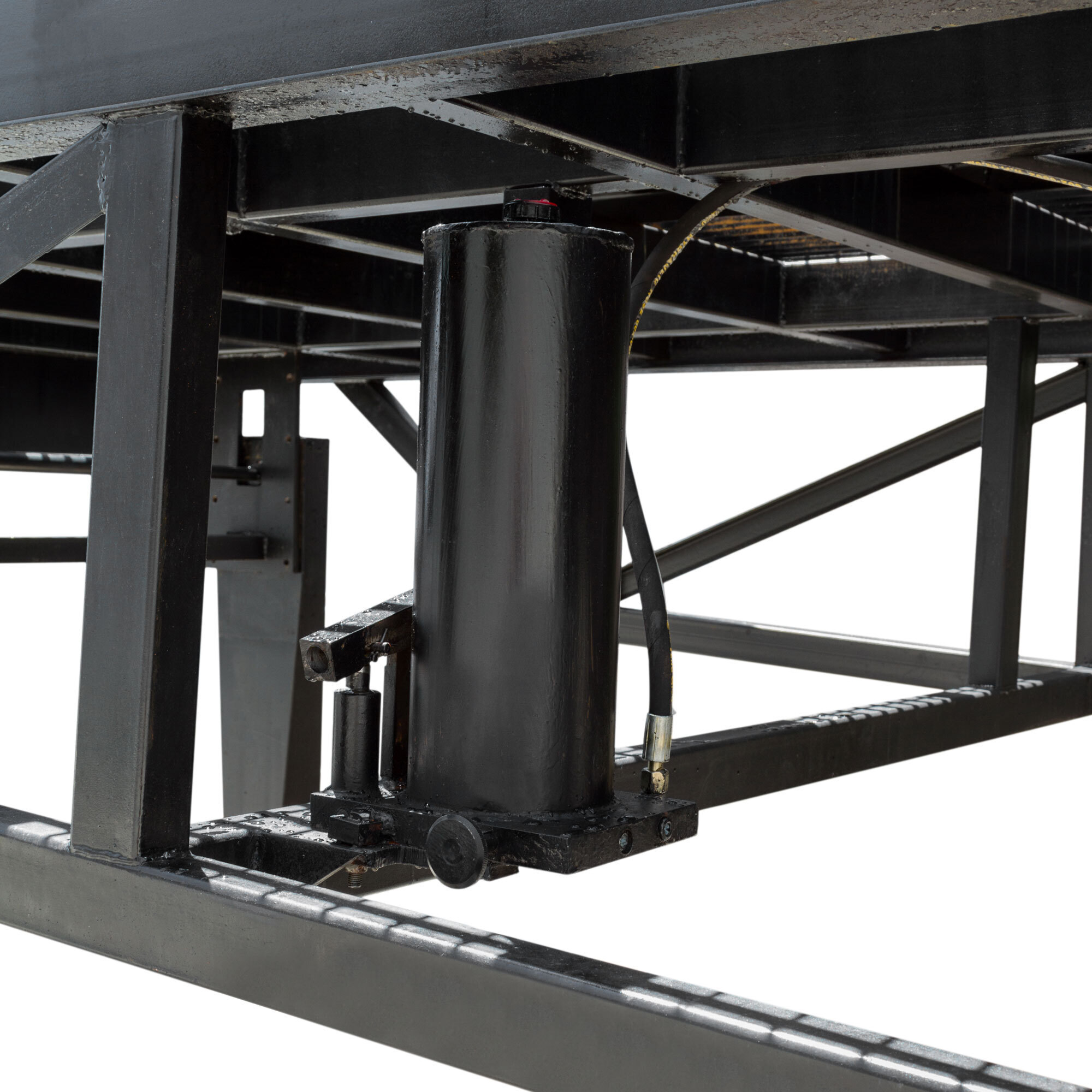

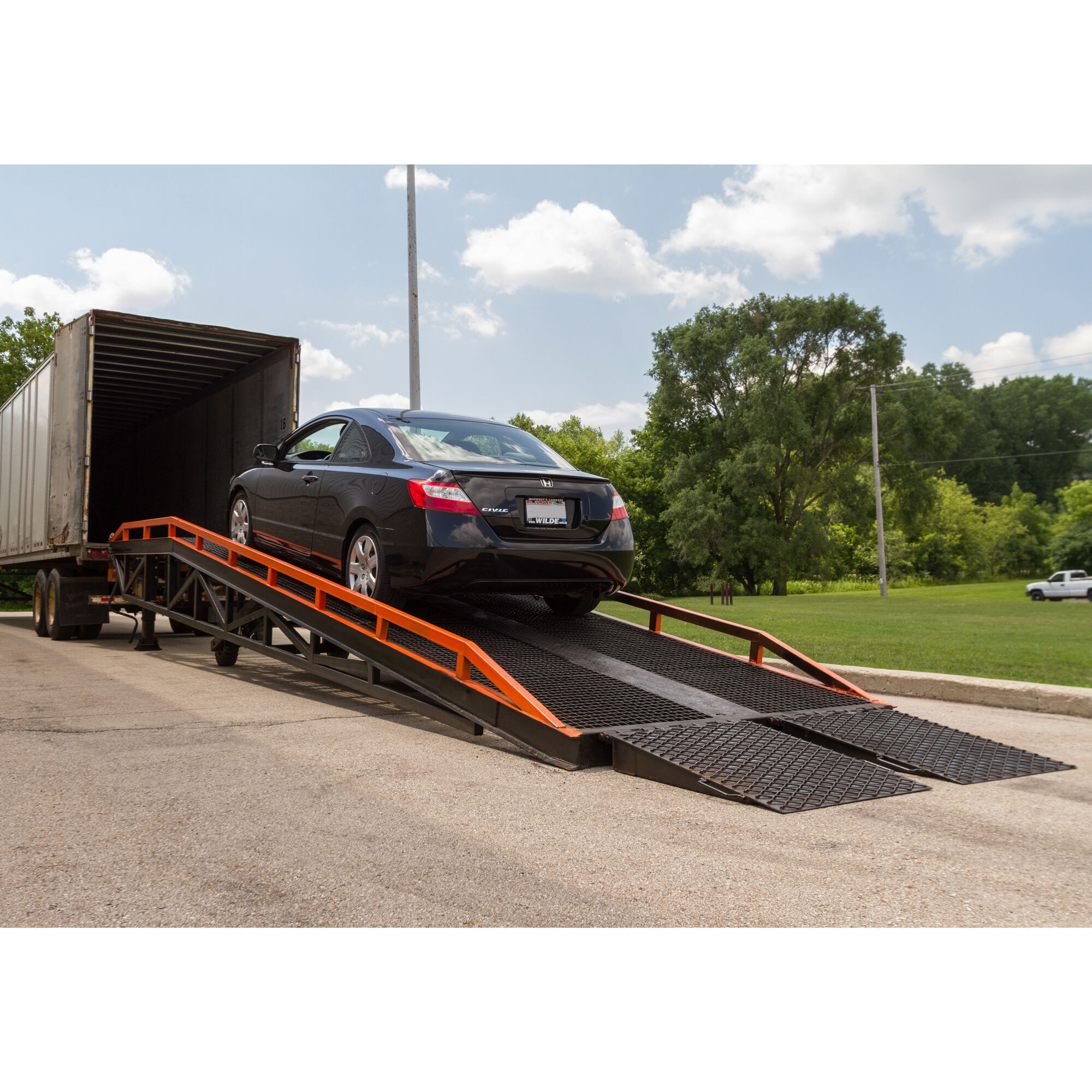

This steel yard ramp is designed for loading and unloading a truck, trailer, or railcar when dock space isn’t available. Manufactured from durable steel, this yard ramp has a 22,000 lb. weight capacity and measures 37’ L x 81-1/2” W. The surface of the ramp includes a middle diamond plated strip that is surrounded by serrated steel grating, which allows for snow, dirt, and debris to fall through, preventing dangerous build-up on the ramp (please note, the grated surface of this ramp is not designed for forklift turning maneuvers). Additional safety features include 8” tall side rails on either side to prevent forklifts from driving over the edges, and two 60” safety chains to hold the ramp secure to the loading surface. The chains can be attached to a semi-truck trailer’s ICC bumper to prevent the ramp from kicking out. This yard ramp also includes a dual action hydraulic pump for smooth raising and lowering of the yard ramp. To use the pump, simply push the lever forward or back to raise the front and open the release valve to safely lower the ramp into position. The pump is conveniently stored internally for safety and protection.

What's Included

    (1) 1

Features + Benefits

  • Manufactured from durable steel with two solid 18” rubber tires
  • Measures 37' L x 81-1/2" W
  • 22,000 lb. weight capacity
  • 8" guard rails, integrated safety chains, and drop-down legs for added safety
  • Serrated steel mesh surface allows moisture and debris to fall through and provides additional traction

Key Specs

AttributeSpecification

item#

4803273

Brand

Discount Ramps

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

5717.0 LB

Material

Steel

Total Capacity

22,000 lb

Included (qty.)

1

Folding

No
AttributeSpecification

Load Capacity per Ramp

22,000 lb

Surface Width

81.5 in

Max. Ramp Length

444 in

Min. Ramp Length

444 in

Adjustable Length

No

Fastening Hardware Included

Yes

Product Weight

5717.0000 lb

Dimensions L x W x H (in.)

444.0 x 82.0 x 62.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

12 months parts/12months labor
