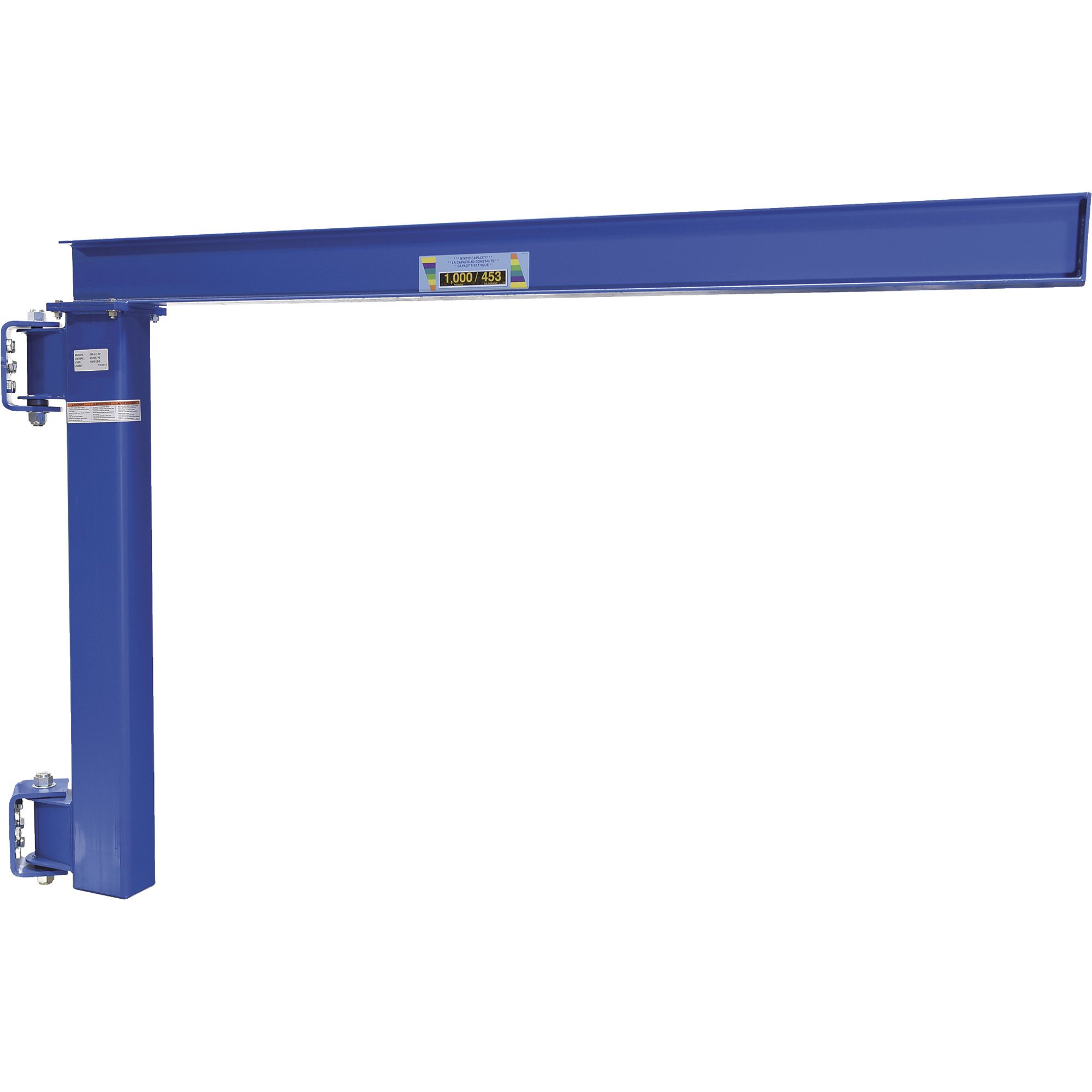

Vestil Wall-Mounted Jib Crane for Low Ceilings

Item# 1031441
Vestil Wall-Mounted Jib Crane for Low Ceilings
Vestil Wall-Mounted Jib Crane for Low Ceilings

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Wall-Mounted Jib Crane for Low Ceilings

Click or Tap image to Zoom

From

$919.99

Choose Options for complete product description, reviews and purchasing.

CAPACITY (LBS.)

See full description

  • Description

  • Reviews

  • Q & A

  • Accessories

  • Warranty

Product Summary

The Vestil Wall-Mounted Jib Crane for Low Ceilings has an under-structure design for use in areas with low ceilings. Precision-tapered bearing for jib boom rotation. Full 180° rotation for use in most applications. Painted blue finish. Complies with OSHA, ANSI and CMAA specifications. NOTE: Customer must ensure unit is properly installed and floor strength is adequate to support job crane usage. Trolley and hoist not included. Available in assorted capacities.

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. can you weld brackets to steal beam, if you were unable to threw bolt system

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane - 1,000-Lb. Capacity, Low Ceiling Design, 180° Rotation, Model# JIB-LC-6"

    1. The jib crane could be welded to the steel beam, as long as it is secure and can handle the weight of 1000 pounds that the jib crane is rated for.

      Helpful?

  2. I purchased a JIB-LC-20, wall mounted Jib Crane. What size and type of mounting bolts should I use? It is being bolted into a vertical Steel I-Beam.

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane for Low Ceilings - 2,000-Lb. Capacity, 180-Degree Rotation, Model# JIB-LC-20"

    1. Per the manual listed on our web, you would need to drill 13/16" holes for mounting. You would use either 5/8 or 3/4" hardware. The manufacturer does not list a type of bolt to be used, you would need to determine the proper hardware for the amount of pressure that would be applied to the crane.

      Helpful?

  3. can i get the crane any longer then 80

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane - 1,000-Lb. Capacity, Low Ceiling Design, 180° Rotation, Model# JIB-LC-6"

    1. 80 inches of usable length is the best offered for this style of Jib crane.

      Helpful?

  4. Would a bannon trolley 54435 work on this crane?

    I want a top hung hoist like the Bannon 1100. and the trolley 54435.

    Would this combination work with this jib crane?

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane - 1,000-Lb. Capacity, Low Ceiling Design, 180° Rotation, Model# JIB-LC-6"

    1. This Vestil wall-mounted jib crane features a 4" I-beam flange width for attaching a trolley. The Bannon item # 54355 trolley works with 3-5" I-beams so this would be compatible.

      Helpful?

  5. what quick install trolley do you recommend?

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane - 1,000-Lb. Capacity, Low Ceiling Design, 180° Rotation, Model# JIB-LC-6"

    1. The Vestil 1,000 pound quick install Manual Trolley, item #856436 could be used with this Jib Crane.

      Helpful?

  6. What is the factor of safety at the rated 2000lb capacity?

    Would like to know the factor of safety at the rated 2000lbs capacity rating.

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane for Low Ceilings - 2,000-Lb. Capacity, 180-Degree Rotation, Model# JIB-LC-20"

    1. This unit is accompanied by a Certificate of Compliance and Capacity Verification from Vestil. A test weight in the range of 100% to 125% of the maximum rated load is applied during testing.

      Helpful?

  7. Floor ratings, I don't understand what you mean?

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane - 600-Lb. Capacity, Low Ceiling Design, Model# JIB-LC-6"

    1. The Vestil Wall-Mounted Jib Crane is meant to installed on a floor that is a minimum of 4 1/2 inches of reinforced concrete.

      Helpful?

Warranty

Manufacturer's Warranty

3 month parts/no labor
