Vestil Wall-Mounted Jib Crane - 600-Lb. Capacity, Low Ceiling Design, Model# JIB-LC-6

Item# 103145
Vestil Wall-Mounted Jib Crane - 600-Lb. Capacity, Low Ceiling Design, Model# JIB-LC-6

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

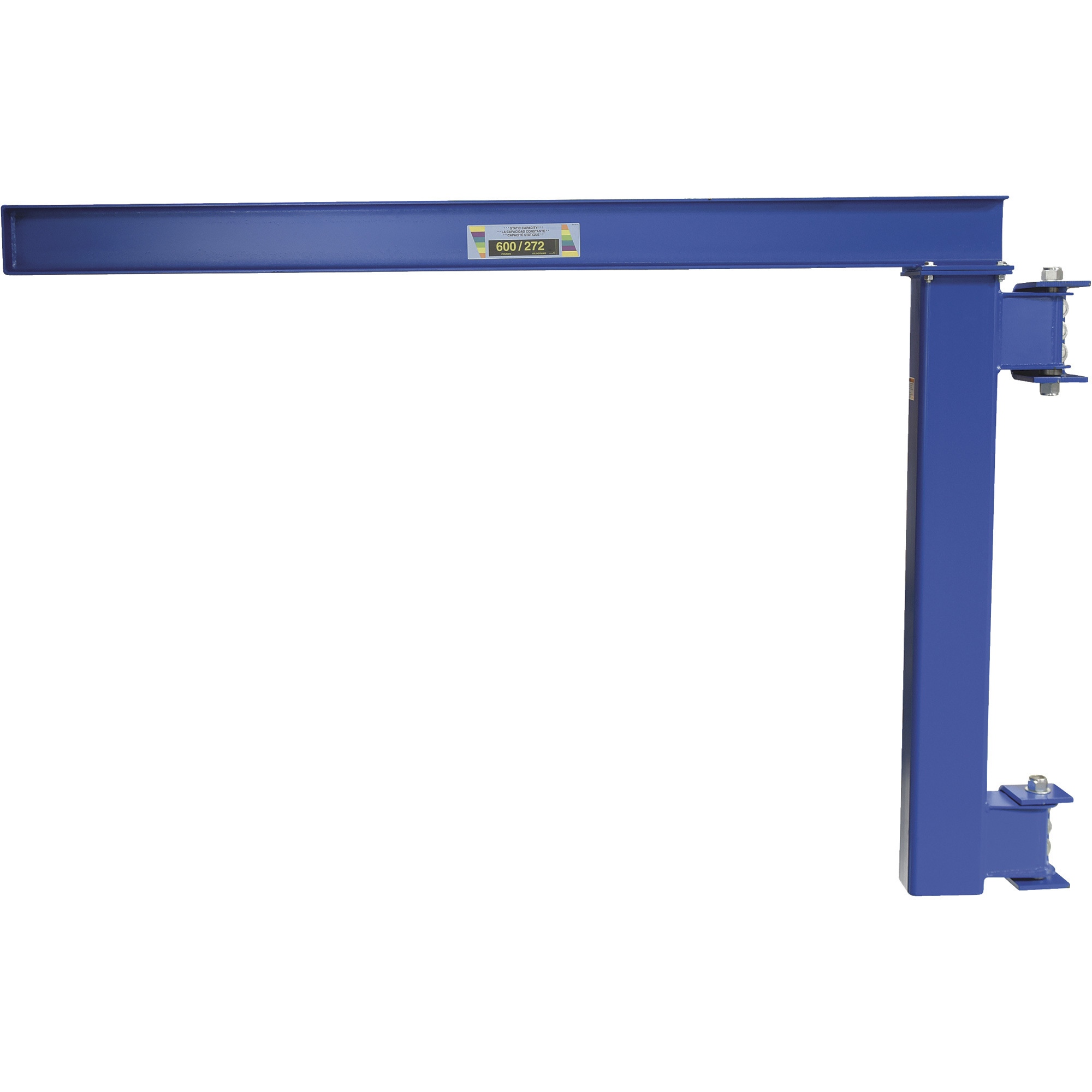

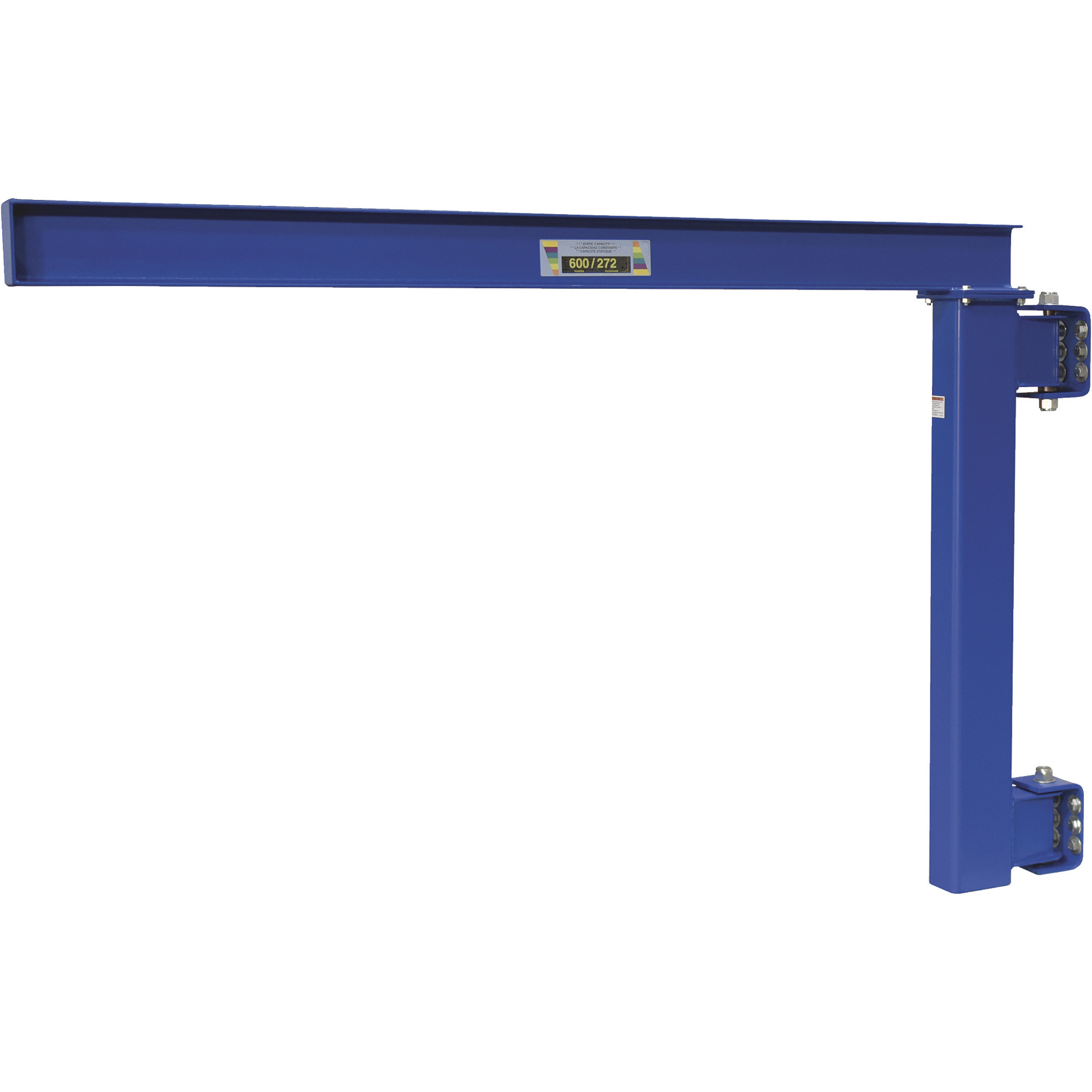

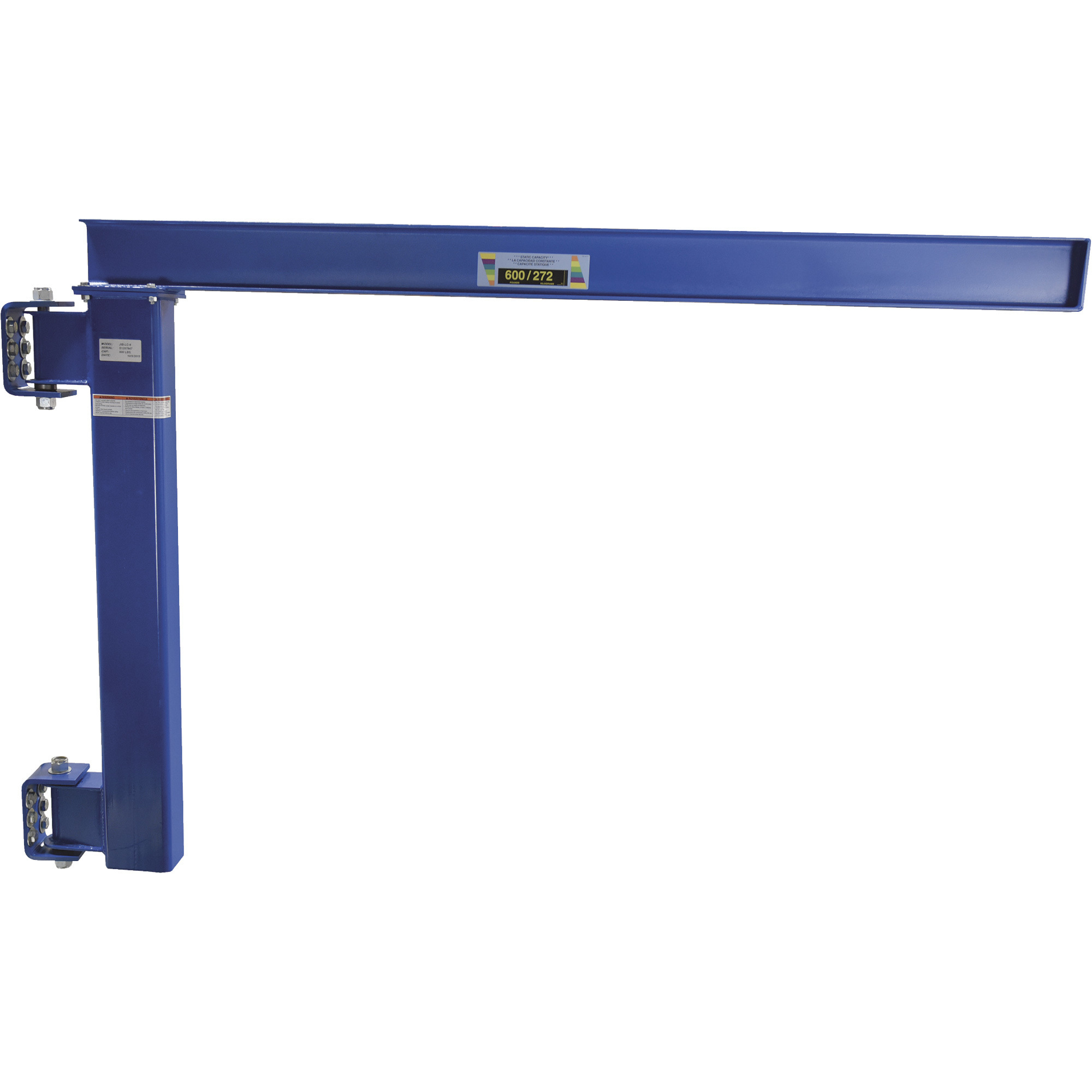

Vestil Wall-Mounted Jib Crane - 600-Lb. Capacity, Low Ceiling Design, Model# JIB-LC-6

Click or Tap image to Zoom

$1057.56

Choose Options for complete product description, reviews and purchasing.

CAPACITY (LBS.)

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Designed to assist workers in the maneuvering of materials as well as achieving maximum headroom where low ceilings are of concern
  • Cantilever style jib crane mounts to true vertical wall members
  • Increases personnel productivity by lifting awkward materials
  • Hoist and Trolley sold separately

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Under-structure design for use in areas with low ceilings. Precision-tapered bearing for jib boom rotation. Full 180° rotation for use in most applications. Painted blue finish. Complies with OSHA, ANSI and CMAA specifications. NOTE: Customer must ensure unit is properly installed and floor strength is adequate to support job crane usage. Trolley and hoist not included. U.S.A.

What's Included

    (1) Wall-mounted jib crane

Downloads

Product Manual
Additional Product Info Additional Product Info2

Key Specs

AttributeSpecification

item#

103145

Brand

Vestil

Manufacturer's Warranty

1 year limited warranty

Ship Weight

164.0 LB

Mount Type

Wall

Capacity

600 lb
AttributeSpecification

Overall Boom Length

96.13 in

Overall Height

63 in

Degree of Rotation

180

Usable Boom Length

80 in

Product Weight

399.0000 lb

Dimensions L x W x H (in.)

96.0 x 45.0 x 15.0 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. can you weld brackets to steal beam, if you were unable to threw bolt system

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane - 1,000-Lb. Capacity, Low Ceiling Design, 180° Rotation, Model# JIB-LC-6"

    1. The jib crane could be welded to the steel beam, as long as it is secure and can handle the weight of 1000 pounds that the jib crane is rated for.

      Helpful?

  2. I purchased a JIB-LC-20, wall mounted Jib Crane. What size and type of mounting bolts should I use? It is being bolted into a vertical Steel I-Beam.

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane for Low Ceilings - 2,000-Lb. Capacity, 180-Degree Rotation, Model# JIB-LC-20"

    1. Per the manual listed on our web, you would need to drill 13/16" holes for mounting. You would use either 5/8 or 3/4" hardware. The manufacturer does not list a type of bolt to be used, you would need to determine the proper hardware for the amount of pressure that would be applied to the crane.

      Helpful?

  3. can i get the crane any longer then 80

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane - 1,000-Lb. Capacity, Low Ceiling Design, 180° Rotation, Model# JIB-LC-6"

    1. 80 inches of usable length is the best offered for this style of Jib crane.

      Helpful?

  4. Would a bannon trolley 54435 work on this crane?

    I want a top hung hoist like the Bannon 1100. and the trolley 54435.

    Would this combination work with this jib crane?

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane - 1,000-Lb. Capacity, Low Ceiling Design, 180° Rotation, Model# JIB-LC-6"

    1. This Vestil wall-mounted jib crane features a 4" I-beam flange width for attaching a trolley. The Bannon item # 54355 trolley works with 3-5" I-beams so this would be compatible.

      Helpful?

  5. what quick install trolley do you recommend?

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane - 1,000-Lb. Capacity, Low Ceiling Design, 180° Rotation, Model# JIB-LC-6"

    1. The Vestil 1,000 pound quick install Manual Trolley, item #856436 could be used with this Jib Crane.

      Helpful?

  6. What is the factor of safety at the rated 2000lb capacity?

    Would like to know the factor of safety at the rated 2000lbs capacity rating.

    1 answer
    Originally posted on "Vestil Wall-Mounted Jib Crane for Low Ceilings - 2,000-Lb. Capacity, 180-Degree Rotation, Model# JIB-LC-20"

    1. This unit is accompanied by a Certificate of Compliance and Capacity Verification from Vestil. A test weight in the range of 100% to 125% of the maximum rated load is applied during testing.

      Helpful?

  7. Floor ratings, I don't understand what you mean?

    1 answer

    1. The Vestil Wall-Mounted Jib Crane is meant to installed on a floor that is a minimum of 4 1/2 inches of reinforced concrete.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
