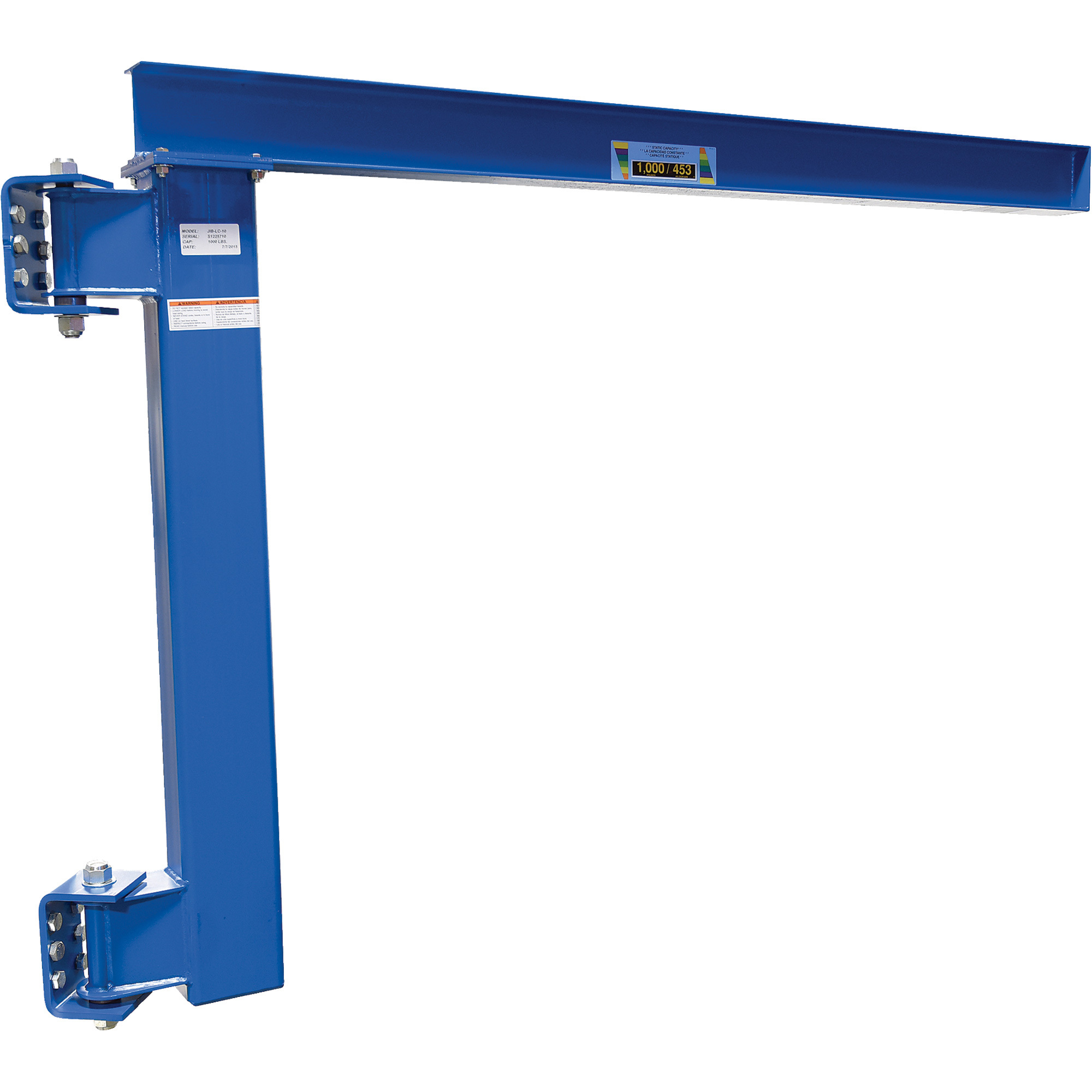

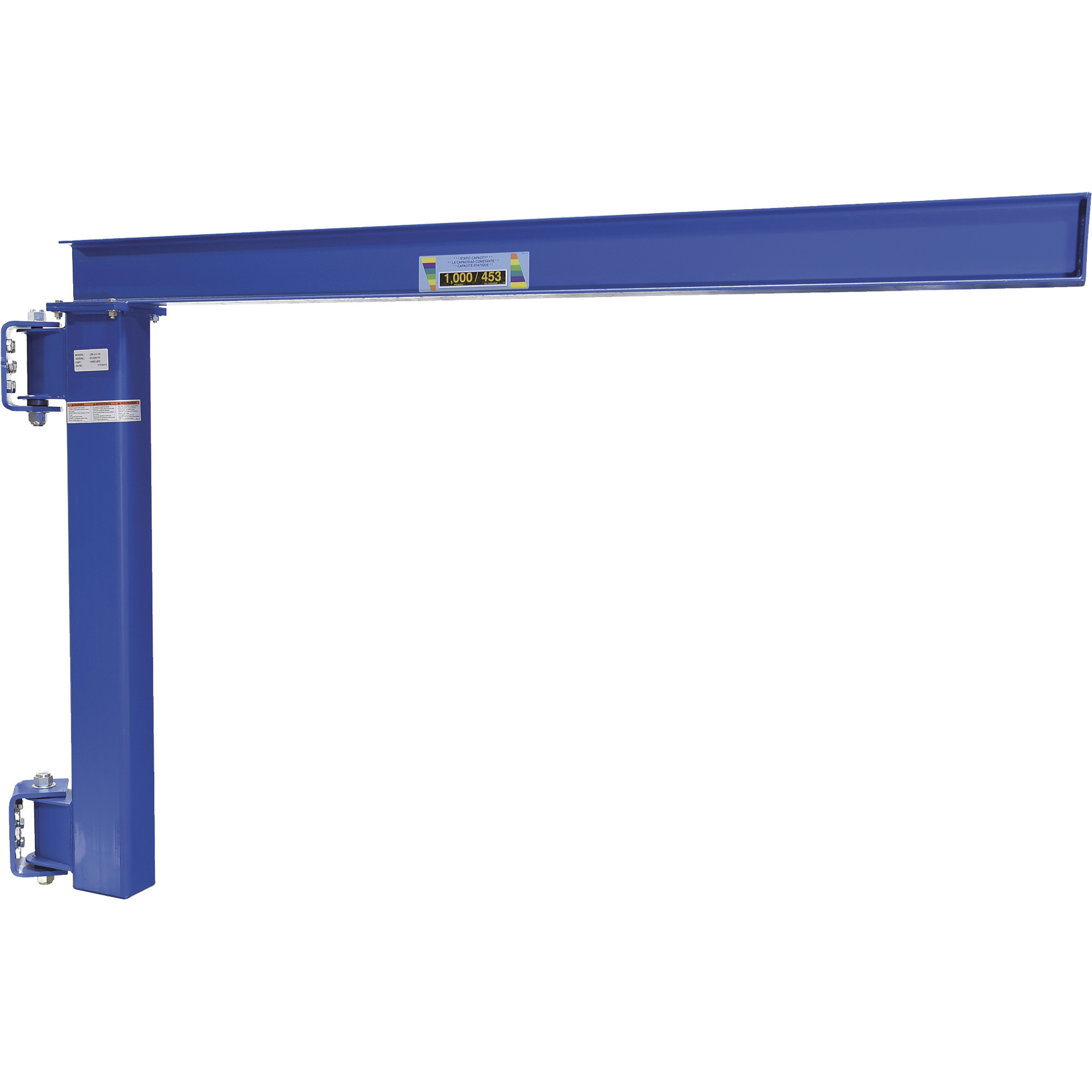

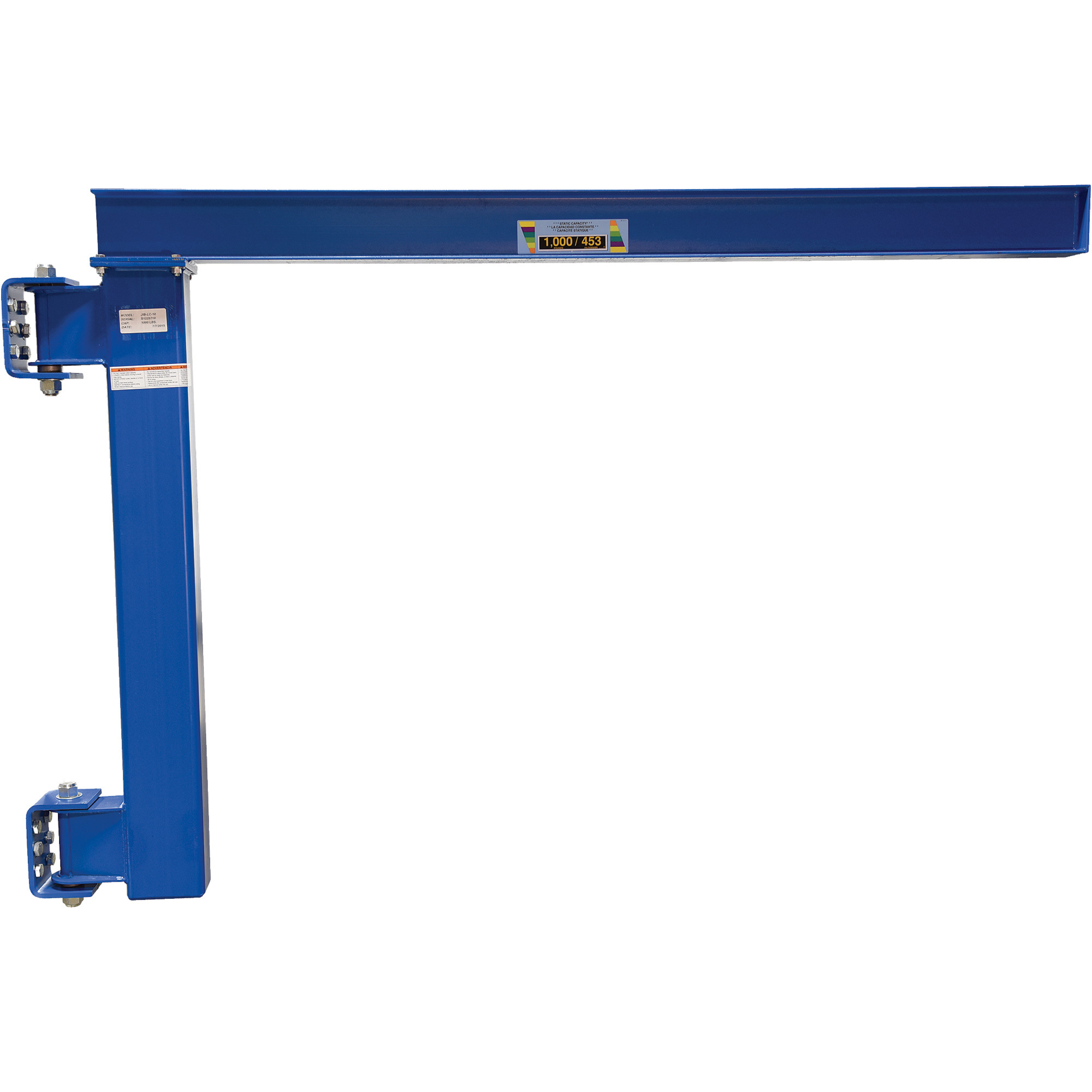

Vestil Wall-Mounted Jib Crane - 1,000-Lb. Capacity, Low Ceiling Design, 180° Rotation, Model# JIB-LC-6

Name: Vestil Wall-Mounted Jib Crane for Low Ceilings
Brand: Vestil
SKU: 1031441

Item# 103146

"Vestil Wall-Mounted Jib Crane - 1,000-Lb. Capacity, Low Ceiling Design, 180° Rotation, Model# JIB-LC-6"

Click or Tap image to Zoom

$1042.96

Choose Options for complete product description, reviews and purchasing.

CAPACITY (LBS.)

Quantity

Save to List

Shipping:
Factory shipped
Heavy/large item. Lift gate service available.
Store Pickup:
Not available - online only

Designed to assist workers in the maneuvering of materials as well as achieving maximum headroom where low ceilings are of concern
Cantilever style jib crane mounts to true vertical wall members
Increases personnel productivity by lifting awkward materials
Hoist and Trolley sold separately

See full description

Product Summary

Under-structure design for use in areas with low ceilings. Precision-tapered bearing for jib boom rotation. Full 180° rotation for use in most applications. Painted blue finish. Complies with OSHA, ANSI and CMAA specifications. NOTE: Customer must ensure unit is properly installed and floor strength is adequate to support job crane usage. Trolley and hoist not included. U.S.A.

What's Included

(1) Wall-mounted jib crane

Downloads

Product Manual

Additional Product Info Additional Product Info2

Key Specs

Attribute	Specification
item#	103146
Brand	Vestil
Manufacturer's Warranty	1 year limited warranty
Ship Weight	399.0 LB
Mount Type	Wall
Capacity	1,000 lb

Attribute	Specification
Overall Boom Length	96.13 in
Overall Height	63 in
Degree of Rotation	180
Usable Boom Length	80 in
Product Weight	292.0000 lb
Dimensions L x W x H (in.)	92.0 x 29.0 x 13.0 in

Reviews

Questions & Answers

Questions

1–7 of 7 Questions

a year ago

can you weld brackets to steal beam, if you were unable to threw bolt system

1 answer
1. ProductExpert6

  a year ago

  The jib crane could be welded to the steel beam, as long as it is secure and can handle the weight of 1000 pounds that the jib crane is rated for.

  Helpful?
3 years ago

I purchased a JIB-LC-20, wall mounted Jib Crane. What size and type of mounting bolts should I use? It is being bolted into a vertical Steel I-Beam.

1 answer

Originally posted on "Vestil Wall-Mounted Jib Crane for Low Ceilings - 2,000-Lb. Capacity, 180-Degree Rotation, Model# JIB-LC-20"
1. ProductExpert6

  3 years ago

  Per the manual listed on our web, you would need to drill 13/16" holes for mounting. You would use either 5/8 or 3/4" hardware. The manufacturer does not list a type of bolt to be used, you would need to determine the proper hardware for the amount of pressure that would be applied to the crane.

  Helpful?
5 years ago

can i get the crane any longer then 80

1 answer
1. ProductExpert38

  5 years ago

  80 inches of usable length is the best offered for this style of Jib crane.

  Helpful?
6 years ago

Would a bannon trolley 54435 work on this crane?

I want a top hung hoist like the Bannon 1100. and the trolley 54435.
Would this combination work with this jib crane?

1 answer
1. ProductExpert30

  6 years ago

  This Vestil wall-mounted jib crane features a 4" I-beam flange width for attaching a trolley. The Bannon item # 54355 trolley works with 3-5" I-beams so this would be compatible.

  Helpful?
7 years ago

what quick install trolley do you recommend?

1 answer
1. ProductExpert6

  7 years ago

  The Vestil 1,000 pound quick install Manual Trolley, item #856436 could be used with this Jib Crane.

  Helpful?
8 years ago

What is the factor of safety at the rated 2000lb capacity?

Would like to know the factor of safety at the rated 2000lbs capacity rating.

1 answer

Originally posted on "Vestil Wall-Mounted Jib Crane for Low Ceilings - 2,000-Lb. Capacity, 180-Degree Rotation, Model# JIB-LC-20"
1. ProductExpert29

  8 years ago

  This unit is accompanied by a Certificate of Compliance and Capacity Verification from Vestil. A test weight in the range of 100% to 125% of the maximum rated load is applied during testing.

  Helpful?
12 years ago

Floor ratings, I don't understand what you mean?

1 answer

Originally posted on "Vestil Wall-Mounted Jib Crane - 600-Lb. Capacity, Low Ceiling Design, Model# JIB-LC-6"
1. ProductExpert25

  12 years ago

  The Vestil Wall-Mounted Jib Crane is meant to installed on a floor that is a minimum of 4 1/2 inches of reinforced concrete.

  Helpful?
