Dutton-Lainson Single Speed Hand Winch with Automatic Brake, 2500-Lb. Capacity, Model# DLB2500A

Item# 638611
"Dutton-Lainson Single Speed Hand Winch with Automatic Brake, 2500-Lb. Capacity, Model# DLB2500A"
Top Seller

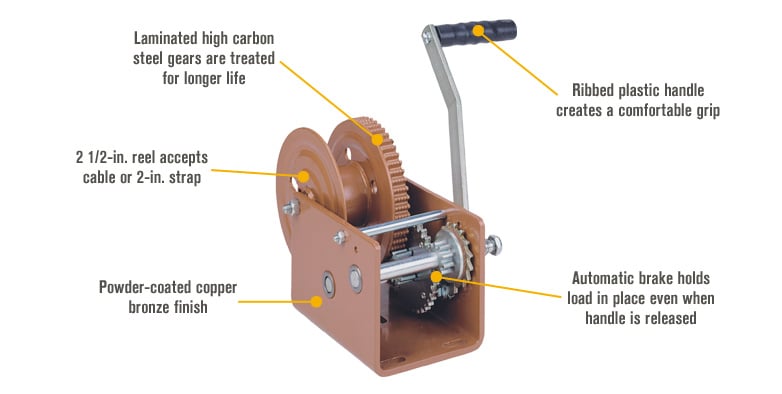

Dutton-Lainson Single Speed Hand Winch with Automatic Brake, 2500-Lb. Capacity, Model# DLB2500A

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dutton-Lainson Single Speed Hand Winch with Automatic Brake, 2500-Lb. Capacity, Model# DLB2500A

Click or Tap image to Zoom

$139.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • /2in. diameter drum
  • Bronze powder-coated finish
  • Cranks in and out under load
  • Self-locking winch does not freewheel, making it ideal for vertical lifting

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Multiple application winch to raise or lower boats, sailboat keels, grain augers and more. Automatic brake holds load in position when handle is released. Minimum operating load of 175 Lbs. Rugged steel construction, 9 3/8in. handle.

What's Included

    (1) Winch with auto brake

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • /2in. diameter drum
  • Bronze powder-coated finish
  • Cranks in and out under load
  • Self-locking winch does not freewheel, making it ideal for vertical lifting

Key Specs

AttributeSpecification

item#

638611

Brand

Dutton-Lainson

Manufacturer's Warranty

5 year limited warranty

Ship Weight

16.0 LB
AttributeSpecification

Product Type

Hand Winch

Load Capacity

2,500 lb

Drum Capacity

34 ft

Gear Ratio

17.3:1

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. Since the Dutton-Lainson Winch with Auto Brake is not free wheeling, do you have to turn handle to unreel cable, rather than just pulling the cable?

    1. Yes you have to turn handle.

      Helpful?

    2. To un-reel this Dutton-Lainson Winch, you would have to turn the handle counterclockwise.

      Helpful?

  2. Is this winch available in a left and right hand application? Do you sell stainless steel cables with a hook to go with this winch?

    1 answer

    1. The handle for this model is unable to be moved. A 5/16" cable is unavailable from Northern Tool.

      Helpful?

  3. can the handle operate on both sides. or do i need a right and left hand winch

    1 answer

    1. The handle on this unit cannot be switched to the other side.

      Helpful?

  4. Will the body and gears hold up in a saltwater environment?

    1 answer

    1. The winch is not rated for salt water environments.

      Helpful?

  5. Do you need 175 lbs. on the cable to extend it? Or can you use a 25lb. standard cable weight?

    1 answer

    1. The winch would require the minimum 175 lbs on the cable.

      Helpful?

  6. external power

    can i use an cordless drill in place of the handle to extend and retract the cable, in not do you make one with a 2500lb or more capacity? jerry

    1 answer

    1. This is intended to be hand cranked only. I was unable to find a model suitable for use with a drill.

      Helpful?

  7. Is this winch made in the USA?

    1 answer

    1. This winch is manufactured in the USA.

      Helpful?

  8. How does it mount and is mounting hardware included?

    1 answer

    1. For maximum strength and safety this winch should be mounted with three 3/8" bolts (M10), washers and lock washers. The hardware is not included

      Helpful?

  9. what would be lb rating on double line pull

    1 answer

    1. This winch is not rated for double line pull.

      Helpful?

  10. U bolt

    Can this be attached to a 2 7/8 inch car dolly tongue with Ubolts and do you sell the cable ?

    1 answer

    1. The Dutton-Lainson winch has a mounting pattern of 7" x 4 3/8" which will mount to a flat surface only. We are unable to provide cable for this winch.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
