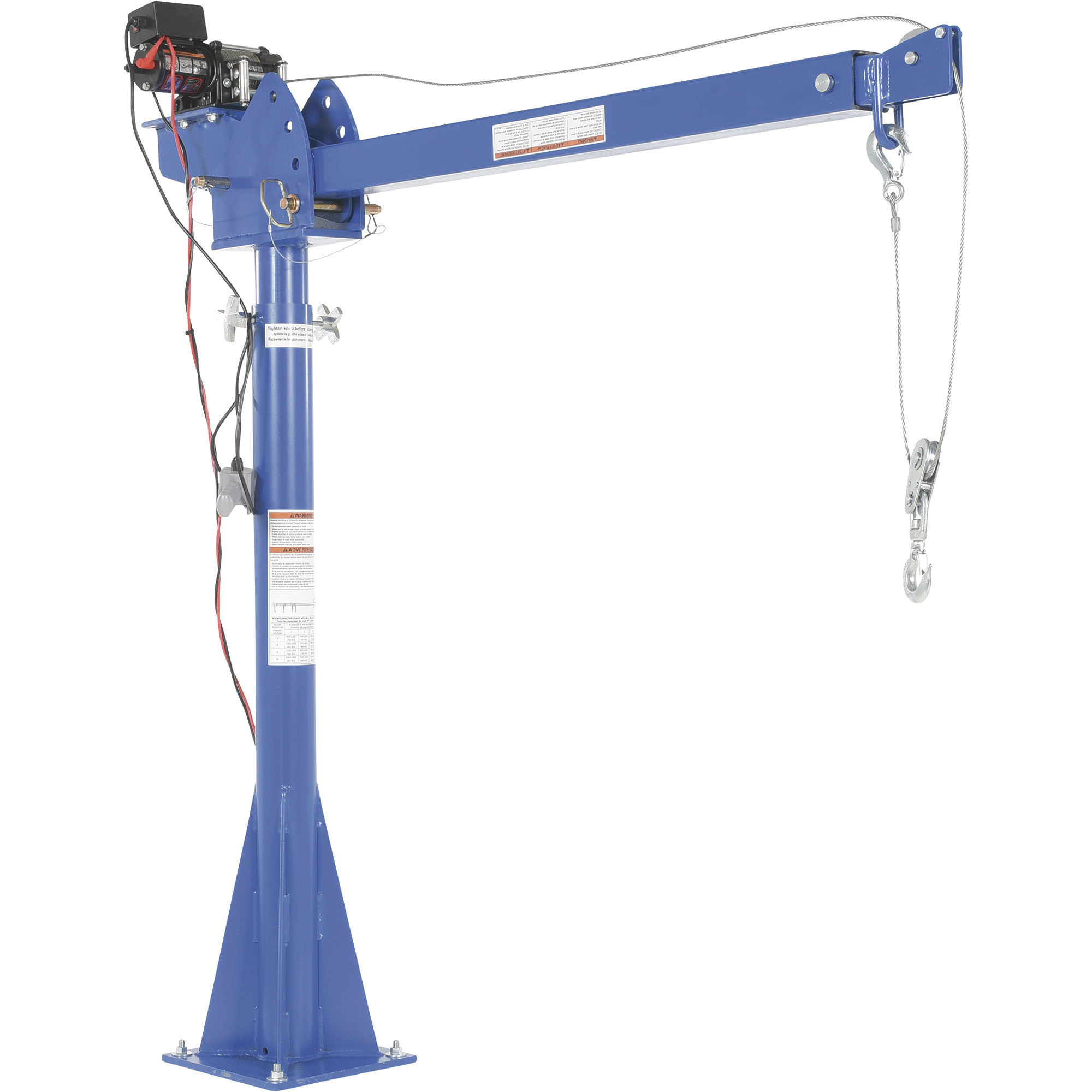

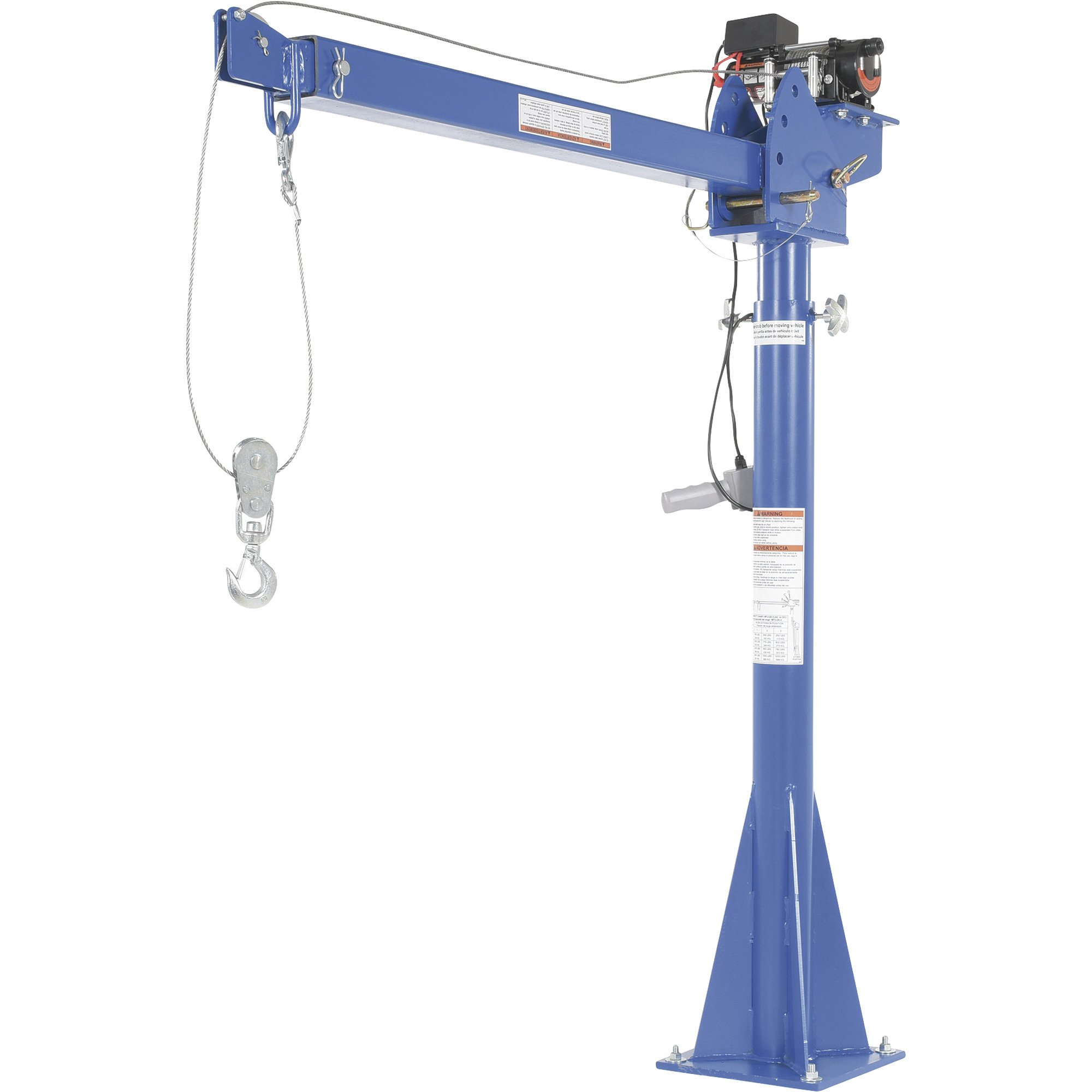

Vestil Power Lift Jib Crane - 2,000-Lb. Capacity, 12V DC, 52in. to 87in. Boom Reach, Model# WTJ-20-4-DC

Item# 855991
Vestil Power Lift Jib Crane - 2,000-Lb. Capacity, 12V DC, 52in. to 87in. Boom Reach, Model# WTJ-20-4-DC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Power Lift Jib Crane - 2,000-Lb. Capacity, 12V DC, 52in. to 87in. Boom Reach, Model# WTJ-20-4-DC

Click or Tap image to Zoom

$3179.99

Choose Options for complete product description, reviews and purchasing.

CAPACITY (LBS.)

BOOM REACH (IN.)

BOOM HEIGHT (IN.)

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Operation: 12V DC
  • Load capacity: 2,000 lbs.
  • Boom reach: 52in. to 87in.

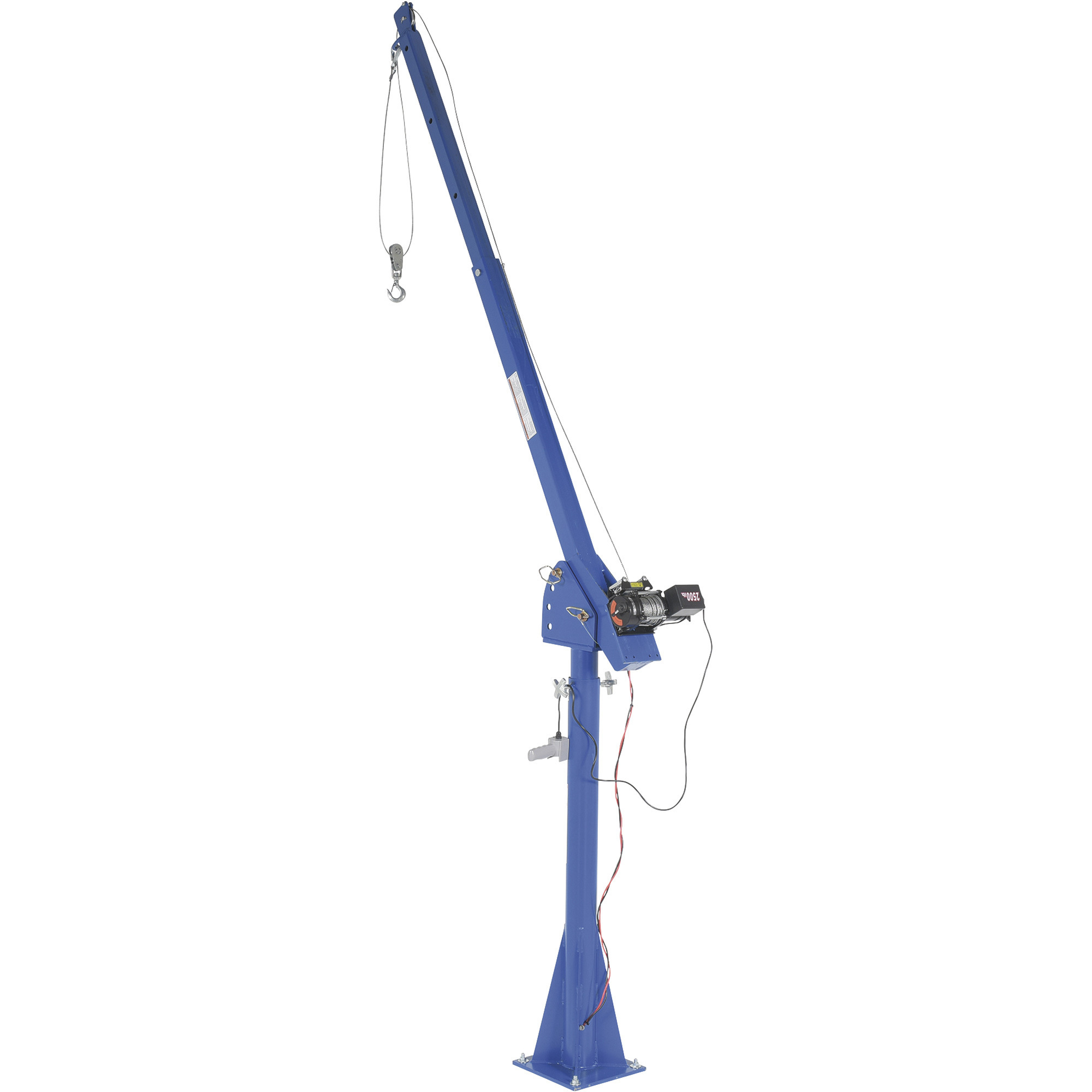

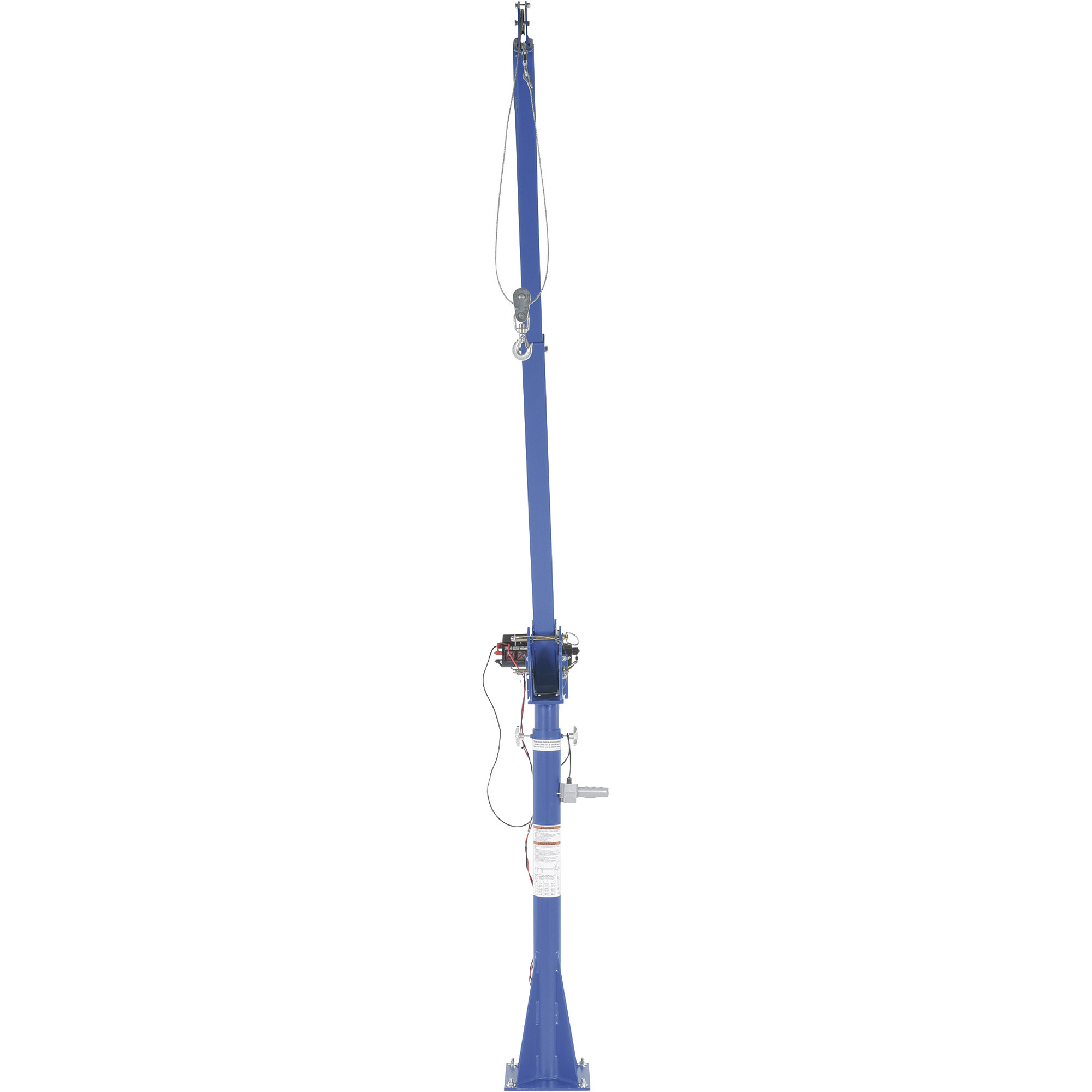

  • Boom adjusts in 12in. increments and can be positioned at 3 elevations
  • 12ft. removable plug-in pendant control

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Vestil power lift jib crane is designed for material handling applications on docks, in warehouses or in truck beds. Intermittent use crane features rotation hand brakes that offer unlimited 360° positioning. U.S.A.

What's Included

    (1) Power lift jib crane

Downloads

Product Manual
Additional Product Info
Safety Data Sheet
Play Item Video

Key Specs

AttributeSpecification

item#

855991

Brand

Vestil

Manufacturer's Warranty

3 month limited warranty

Ship Weight

260.0 LB

Mount Type

Floor

Capacity

2,000 lb
AttributeSpecification

Overall Boom Length

94.5 in

Overall Height

59.5 in

Degree of Rotation

360

Volts

12

Product Weight

260.0000 lb

Dimensions L x W x H (in.)

67.0 x 30.0 x 18.0 in

Reviews

Questions & Answers

Questions

1–7 of 7 Questions
Sort by:

  1. can you rotate this with a load of 1500 lbs

    Originally posted on "Vestil Power Lift Jib Crane - 1,500-Lb. Capacity, 12V DC, 42in. to 66in. Boom Reach, Model# WTJ-E-15-3-DC"

    1. Yes, the crane can be rotated manually with a load capacity of 1,500 lbs.

      Helpful?

    2. The crane can be rotated manually with a load capacity of 1,500 lbs.

      Helpful?

  2. need a winch motor 28-158-003

    1 answer

    1. The replacement motor, 28-158-003 for this model, cannot be purchased directly from us. Please contact Vestil for availability.

      Helpful?

  3. Does this spin manually or is it a power spin?

    1 answer
    Originally posted on "Vestil Power Lift Jib Crane - 1,500-Lb. Capacity, 12V DC, 42in. to 66in. Boom Reach, Model# WTJ-E-15-3-DC"

    1. This jib crane rotates manually.

      Helpful?

  4. what is the weight capacity when boom is fully extended?

    1 answer

    1. The maximum weight with the boom fully extended at 20 degrees is 850 pounds. At 40 degrees the capacity is 1,050 pounds and at 60 degrees the capacity is 1,800 pounds.

      Helpful?

  5. What is the power rating in watts of the winch on this product?

    1 answer
    Originally posted on "Vestil Power Lift Jib Crane - 1,500-Lb. Capacity, 12V DC, 42in. to 66in. Boom Reach, Model# WTJ-E-15-3-DC"

    1. The Vestil Jib Crane is powered by DC (direct current) and is not wattage rated.

      Helpful?

  6. what is the power source

    Does this thing have a rechargable battery with it or how does it get power. I am interested in a 12 volt rechargable hoist.

    1 answer
    Originally posted on "Vestil Power Lift Jib Crane - 1,500-Lb. Capacity, 12V DC, 42in. to 66in. Boom Reach, Model# WTJ-E-15-3-DC"

    1. This is powered by a 12 volt battery. It will either hook up to the vehicles battery or you can use a external battery of your choice. The crane comes with manual.

      Helpful?

  7. Can I get this in 110 volt ac instead of 12 volt dc?

    1 answer

    1. This Jib Crane is offered in an AC version as well. Please follow the link below for Northern Tool's product page for this item.

      Helpful?

Warranty

Manufacturer's Warranty

3 month limited warranty
