Vestil Galvanized Hydraulic Pickup Truck Jib Crane - Hand Winch, 1,000 lbs. Extended/2,000 lbs. Retracted, Model# WTJ-4-G

Item# 37438
"Vestil Galvanized Hydraulic Pickup Truck Jib Crane - Hand Winch, 1,000 lbs. Extended/2,000 lbs. Retracted, Model# WTJ-4-G"
Vestil Galvanized Hydraulic Pickup Truck Jib Crane - Hand Winch, 1,000 lbs. Extended/2,000 lbs. Retracted, Model# WTJ-4-G

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Galvanized Hydraulic Pickup Truck Jib Crane - Hand Winch, 1,000 lbs. Extended/2,000 lbs. Retracted, Model# WTJ-4-G

Click or Tap image to Zoom

$1059.28

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • Manual cable winch lifts and lowers the lift hook to a maximum height of 97in. in extended mode and 86in. in retracted mode
  • Includes 32ft. x 3/16in. cable (24ft. usable cable length)
  • Pre-drilled 10.5in. x 10.5in. base plate makes mounting quick and easy
  • Handles up to 1,000 lbs. in extended mode and 2,000 lbs. in retracted mode
  • Includes one grab hook, one chain slot lock and one sling hook with latch

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

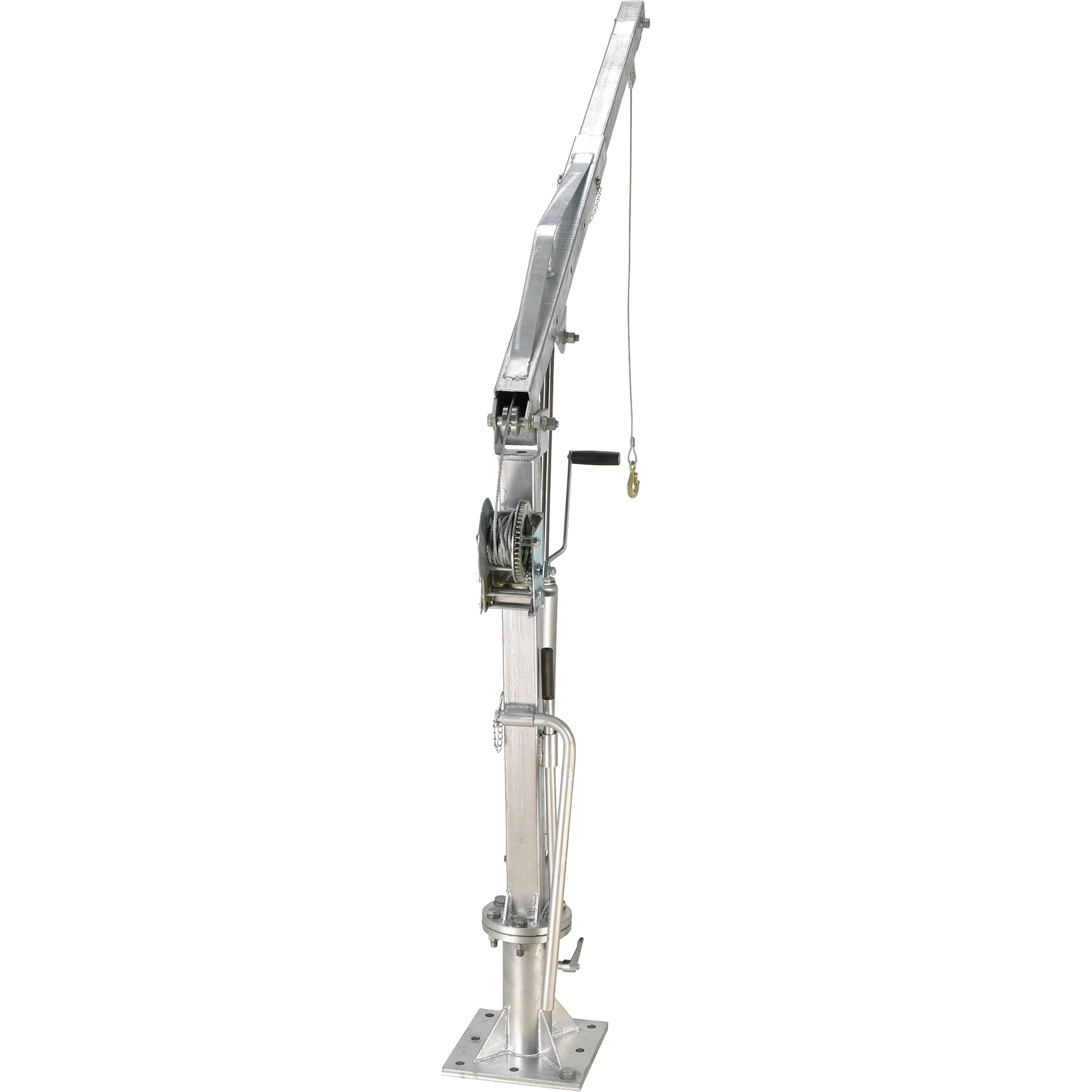

The Vestil rugged galvanized steel winch truck jib crane effortlessly lifts items from the ground to truck bed height, then rotates them into the cargo area. The telescopic boom design with manual hydraulic hand pump pivots the boom up and down and swivels 360° for maximum accessibility.

What's Included

    (1) Winch truck jib crane

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Manual cable winch lifts and lowers the lift hook to a maximum height of 97in. in extended mode and 86in. in retracted mode
  • Includes 32ft. x 3/16in. cable (24ft. usable cable length)
  • Pre-drilled 10.5in. x 10.5in. base plate makes mounting quick and easy
  • Handles up to 1,000 lbs. in extended mode and 2,000 lbs. in retracted mode
  • Includes one grab hook, one chain slot lock and one sling hook with latch
  • Unit is designed for vertical lifting only
  • Do not use unit for lifting personnel or overhead lifting

Key Specs

AttributeSpecification

item#

37438

Brand

Vestil

Manufacturer's Warranty

3 month limited warranty

Ship Weight

218.0 LB

Mount Type

Floor

Capacity

2,000 lb

Overall Boom Length

52 in
AttributeSpecification

Overall Height

48.75 in

Degree of Rotation

360

Mounting Base Width

10.5 in

Mounting Base Length

10.5 in

Portable

Yes

Product Weight

218.0000 lb

Dimensions L x W x H (in.)

48.0 x 40.0 x 19.0 in

Reviews

Questions & Answers

13 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. Does this come with the base plate?

    1. Yes.

      Helpful?

    2. Yes, the base plate is included with this unit.

      Helpful?

  2. Can this unit be mounted to a wooden boat dock?

    can it be used to put a 350 chevy marine engine from the dock onto a boat?

    1. We do not recommend mounting this to a wooden boat dock.

      Helpful?

    2. This unit is inteded for truck bed installation and contains a 1,000 lb. capacity. Utilizing this product for a different use should only be done so under the discretion of the user.

      Helpful?

  3. Can the main unit be removed from the base unit when not in use?

    I would use a crane hoist like this on occasions but would like to be able to remove and store when not in use.

    1. the unit bolts down so in theory yes
      i will be installing mine with the recieveing nuts welded to a plate under the bed of my truck thus allowing the complete unit to be removed when not needed.

      Helpful?

    2. This Vestil crane can be lifted out of the swivel base for storage.

      Helpful?

  4. Can this jib crane be mounted to a concrete floor in a garage to change mower blades

    1. The product is intended for truck installation. You can install to a concrete floor by using 5/8”dia. X 8” long j-anchors.

      Helpful?

    2. The product is intended for truck installation. However, the unit may be installed to a concrete floor by using 5/8”dia. X 8” long j-anchors.

      Helpful?

  5. where can I get replacement parts for the Vestil WTJ-4?

    1 answer

    1. Please contact our parts department at 1-800-657-0516 for assistance locating parts. Parts are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  6. What is the minimum swing radius for this Jib Crane?

    1 answer

    1. The minimum swing radius would be 0 degrees and the maximum would be 360 degrees.

      Helpful?

  7. Good Morning Can I get some more information about this jack? 1.0 Height of the elbow on the crane from the floor. 2.0 Does this crane have the winch with a clutch?

    1 answer

    1. The height from the floor to the elbow is 48 inches. The winch does not have a clutch.

      Helpful?

  8. Can the hand pump be replaced with a powered hydraulic cylinder?

    1 answer

    1. Replacing the existing cylinder may affect the cranes range of motion and weight ratings. Custom modifications done to this unit would void the warranty and is not recommended.

      Helpful?

  9. Can this crane fold and be stowed over the wheel well like item 52534

    1 answer

    1. This unit can fold and be stowed over the wheel well for use.

      Helpful?

  10. Can the winch be removed and replaced with an electric winch?

    1 answer

    1. The manual winch cannot be replaced with an electric winch.

      Helpful?

Warranty

Manufacturer's Warranty

3 month limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
