The base plate dimensions are 17" L x 17" W. The center to center distance between the mounting holes is 7". The distance from the edge of the mounting plate to the mounting holes will be 1.5". The size of the mounting hole is 1".

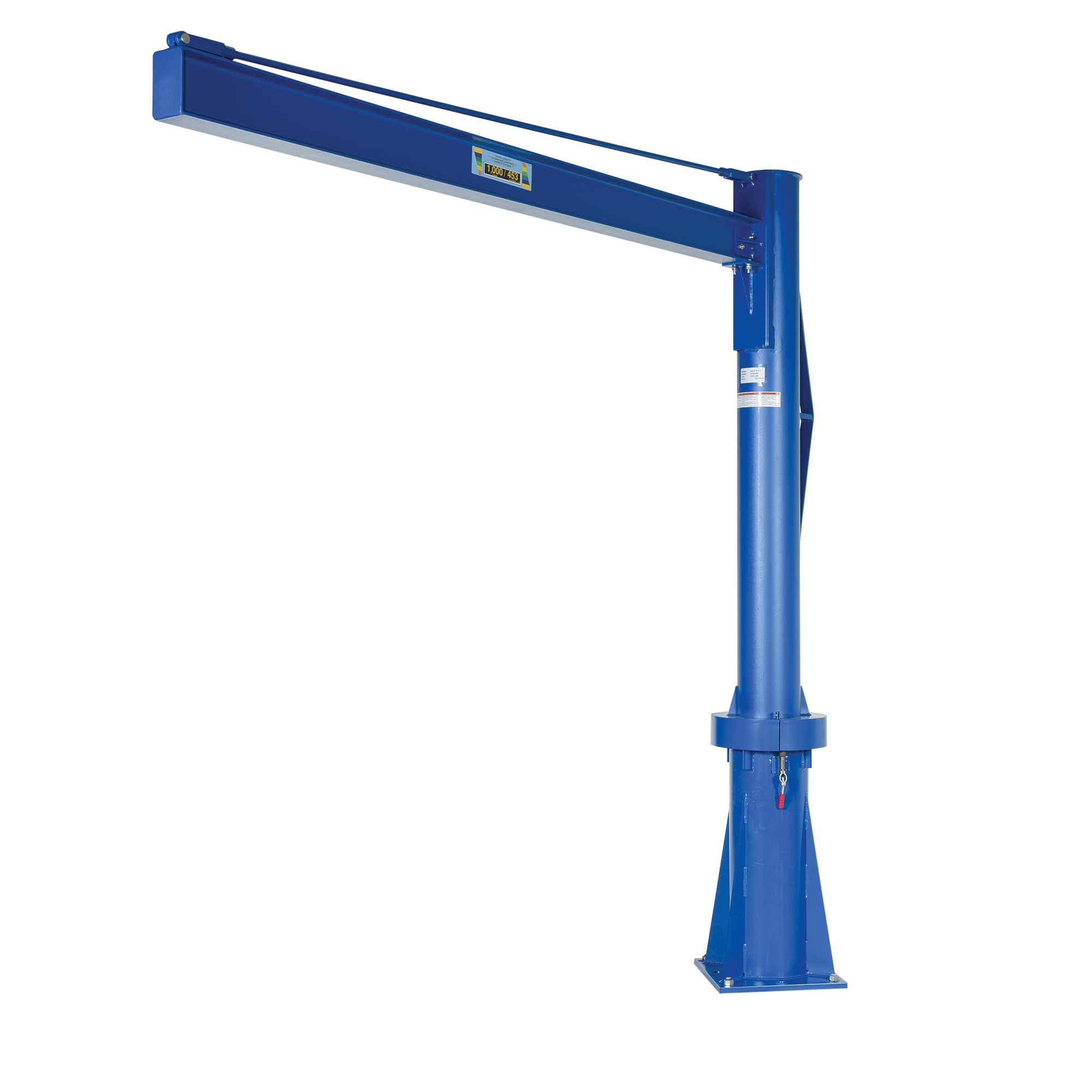

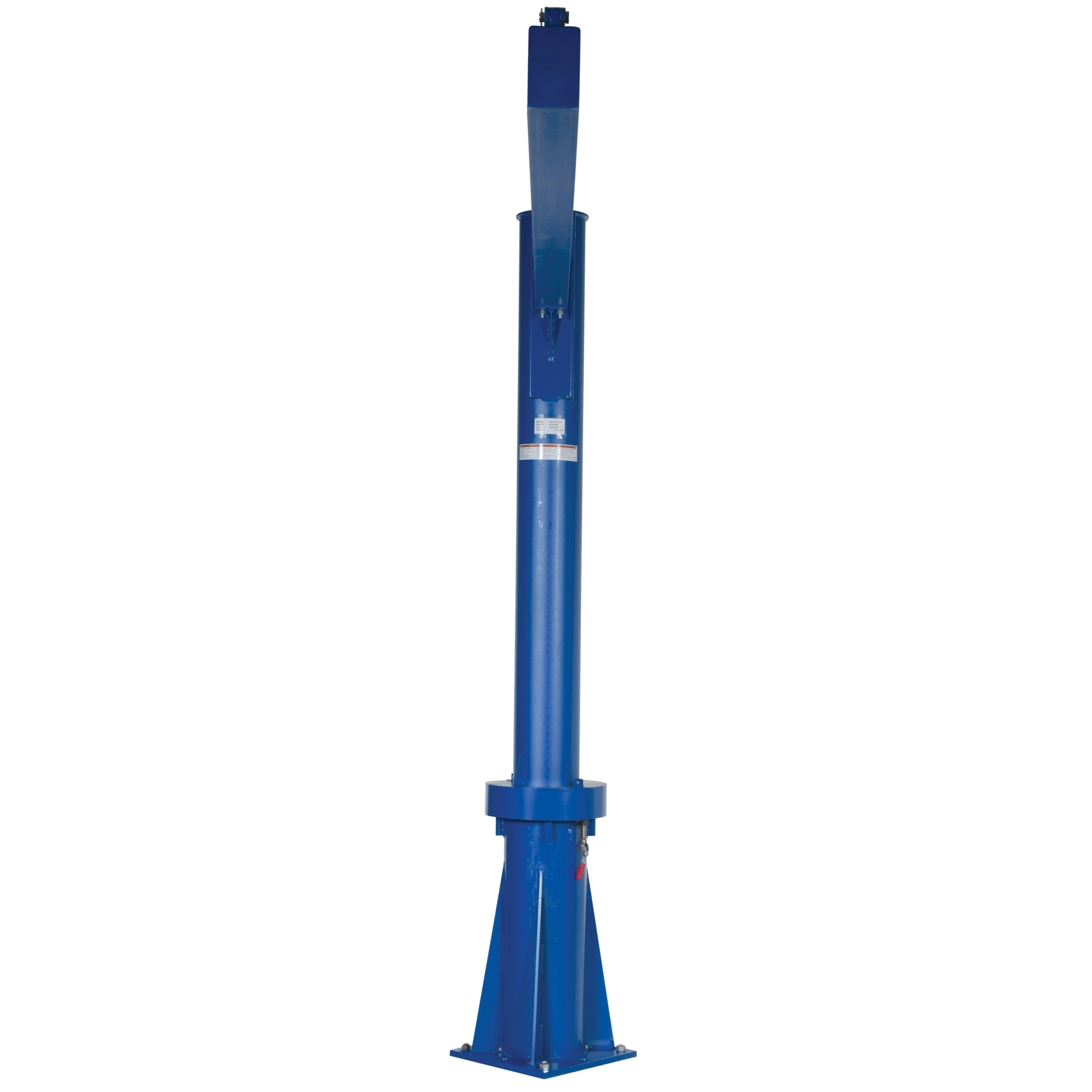

Vestil Multi-Station Jib Crane - 1000 Lb. Capacity, Floor Mount, 96in. Boom Length, Model# JIB-P-10-8-8
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$2975.32
- Six (6) inch high I-beam with four (4) inch flange width
- Hand operated manual brake
- Arm manually rotates 360 degrees for maximum versatility
- Rugged welded steel construction provides long lasting use
- Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications.
See full description
See All Jib Cranes
See All Vestil Jib Cranes
Currently Viewing This Product
Specifications
Specifications
Vestil Multi-Station Jib Crane - 1000 Lb. Capacity, Floor Mount, 96in. Boom Length, Model# JIB-P-10-8-8
OZ Lifting Products, Hoist clamp and wall-mouting arm, 1000 lb capacity for use with manual or electric chain hoist, Model # OBH230-WALL-HC
OZ Lifting Products, Hoist clamp, 1000 lb capacity for use with manual or electric chain hoist, Model # OBH-HC
OZ Lifting Products, Hoist clamp and pipe-mouting arm, 1000 lb capacity for use with manual or electric chain hoist, Model # OBH230-HC
Mount Type
Same
Floor
Wall
Other
Other
Capacity
Same
1,000 lb
1,000 lb
1,000 lb
1,000 lb
Overall Boom Length
Same
96 in
40.5 in
0 in
40.5 in
Overall Height
Same
108.688 in
17.75 in
0 in
17.75 in
Degree of Rotation
Same
360
-
-
-
Mounting Base Width
Same
17 in
-
-
-
Mounting Base Length
Same
17 in
-
-
-
Product Weight
Same
641.0000 lb
43.0000 lb
2.0000 lb
38.0000 lb
Dimensions L x W x H (in.)
Same
111.375 x 17.0 x 108.6875 in
46.0 x 19.0 x 7.0 in
6.0 x 6.0 x 3.0 in
46.0 x 19.0 x 7.0 in
Portable
Same
-
-
Yes
-
