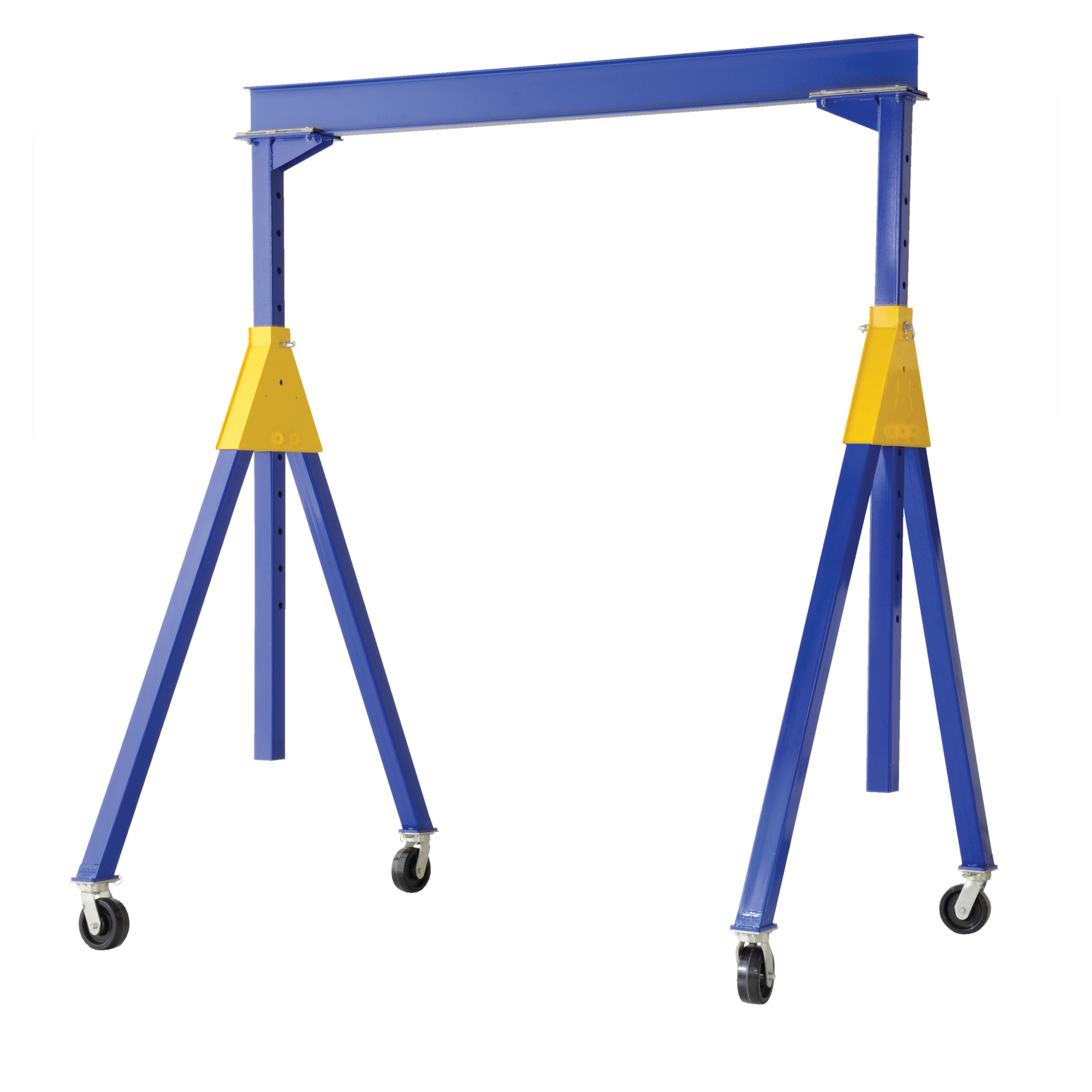

Vestil Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Casters 20 Ft.Wide x 12 Ft. Max Usable Height 6,000 Lb. Capacity Blue

Item# 4718731
Vestil Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Casters 20 Ft.Wide x 12 Ft. Max Usable Height 6,000 Lb. Capacity Blue

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Casters 20 Ft.Wide x 12 Ft. Max Usable Height 6,000 Lb. Capacity Blue

Click or Tap image to Zoom

$4249.99
Easy Financing Available | Learn More

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel phenolic casters with four-way position locks for safe positioning
  • Easily maneuvered between stations when unloaded
  • All units comply with applicable CMAA and ANSI specifications
  • Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications.

See full description

Complete Your Solution

  • Vestil Steel Knock-Down Adjustable Height Gantry Crane with Phenolic Casters 20 Ft.Wide x 12 Ft. Max Usable Height 6,000 Lb. Capacity Blue
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
  • Strongway Manual Chain Hoist, 6600-Lb. Capacity, 20ft. Lift

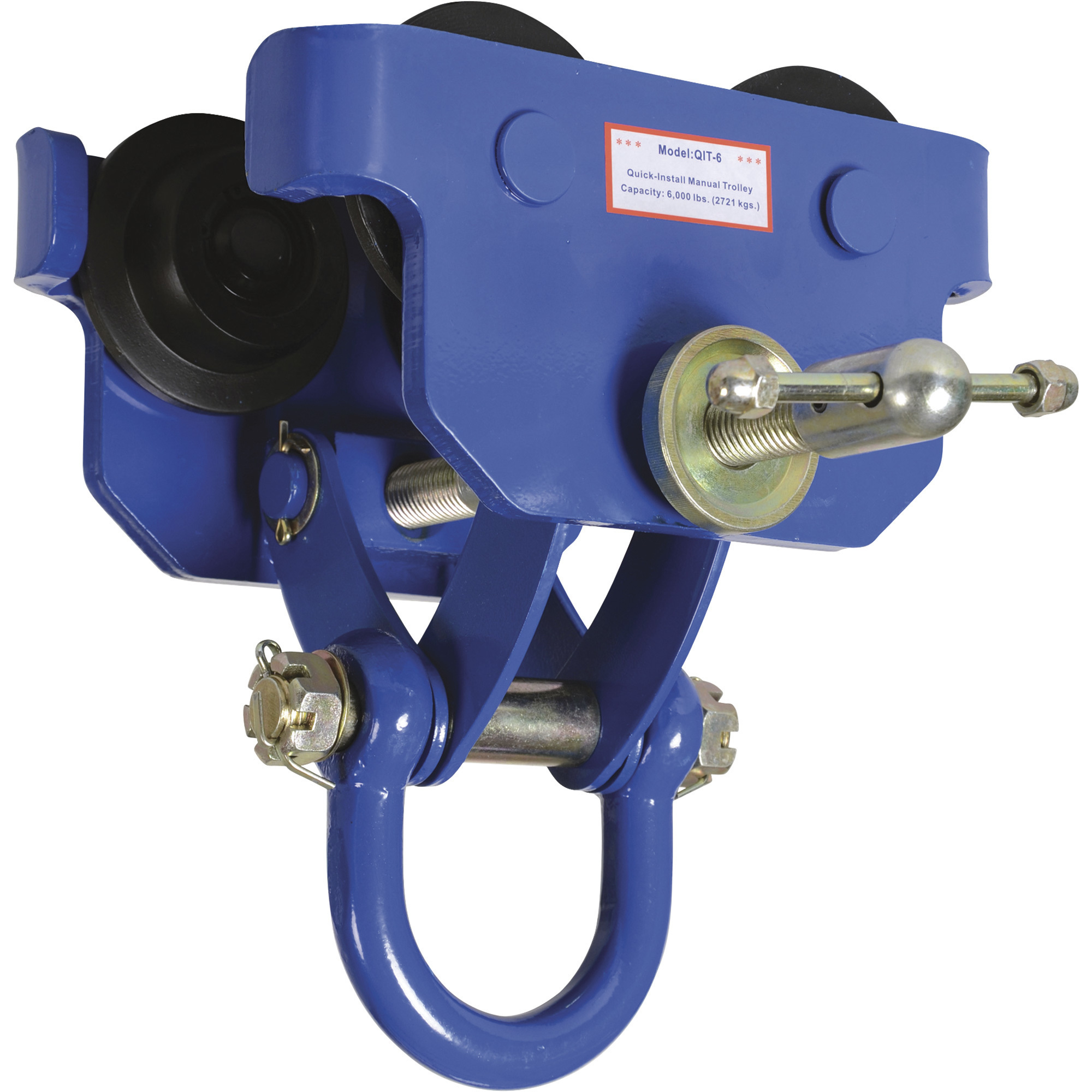

  • Vestil Steel Quick Install Manual Trolley, 11in. x 16-7/8in. x 14-9/16in., 6000-Lb. Capacity, Blue, Model# QIT-6
Price for all four:

$4830.38

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) position locking swivel casters with roller bearings. Locks the rigging in 1 of 4 positions; you can set the wheels and push the gantry crane forward, back, left or right. There is an optional total locking casters that lock the rigging in any position and locks the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up. Assembly is required.

What's Included

    (1) Gantry Crane (1) I-Beam

Features + Benefits

  • Heavy-duty welded steel construction for long lasting use
  • Each unit includes four swivel phenolic casters with four-way position locks for safe positioning
  • Easily maneuvered between stations when unloaded
  • All units comply with applicable CMAA and ANSI specifications
  • Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications.

Key Specs

AttributeSpecification

item#

4718731

Brand

Vestil

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1527.0 LB

Material

Steel

Load Capacity

6,000 lb
AttributeSpecification

I-Beam Length

240 in

I-Beam to Ground

91 in

Flange Width

6.5 in

Product Weight

1419.0000 lb

Dimensions L x W x H (in.)

239.75 x 76.25 x 157.6875 in
