The I-Beam is15' L X 8" H X 4" W.

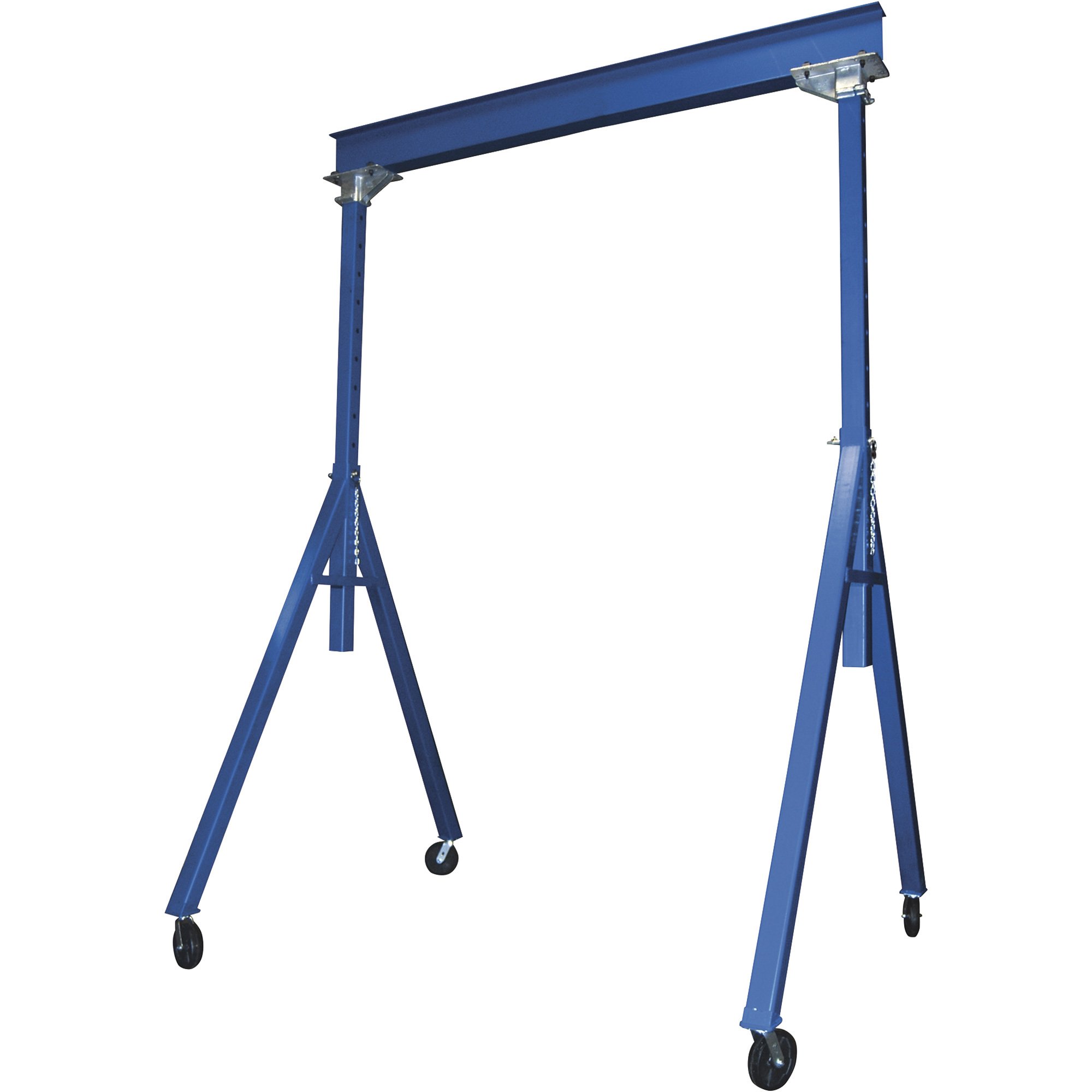

Vestil Adjustable Steel Gantry Crane
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
From
$2627.92
Save up to $2223.63
Choose Options for complete product description, reviews and purchasing.
IBEAM LENGTH/HEIGHT
UNDER IBEAM USABLE HEIGHT
- Quick setup designed for semi-permanent applications

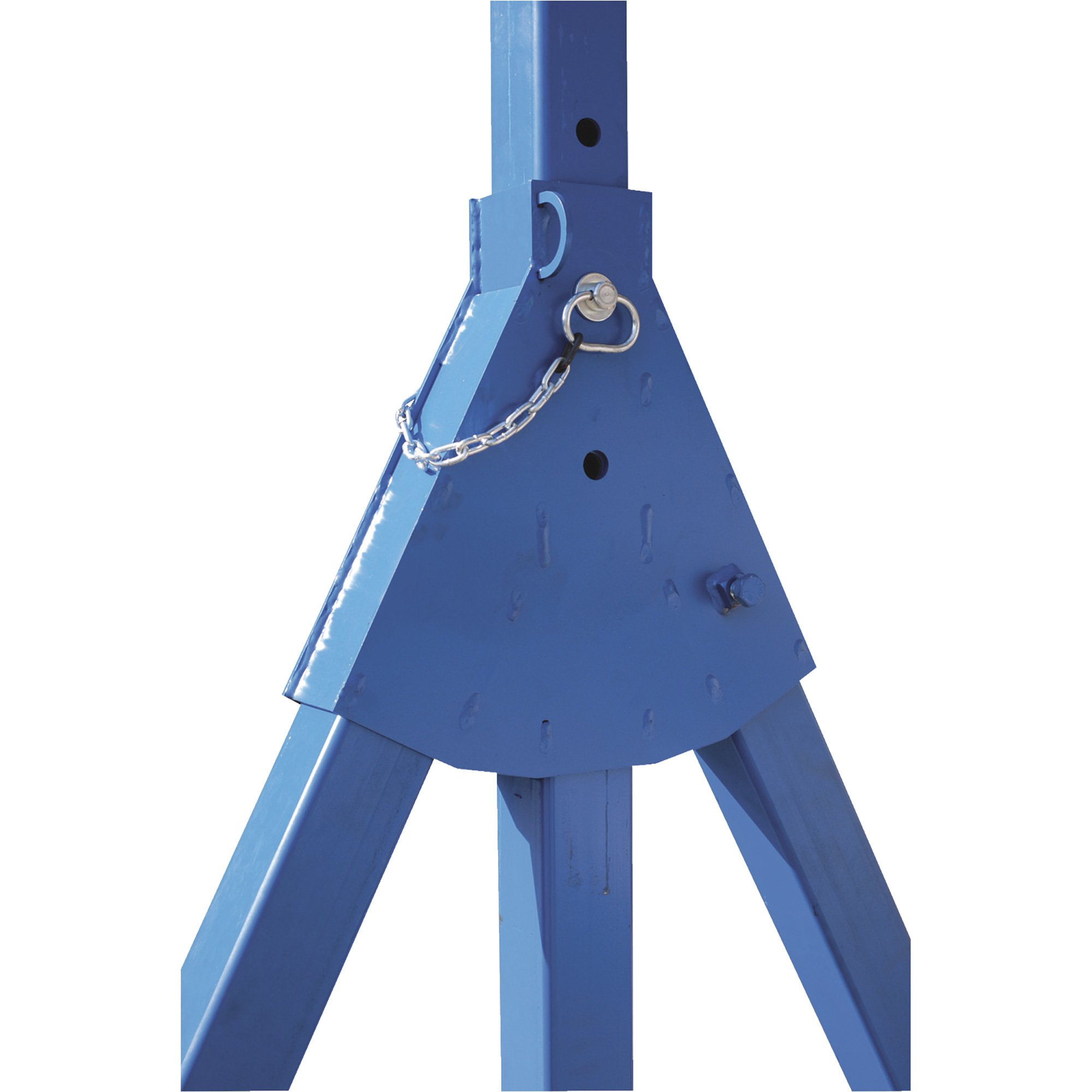

- Multiple-position adjustable height frame to match your lifting needs
- Heavy-duty solid steel construction provides years of service

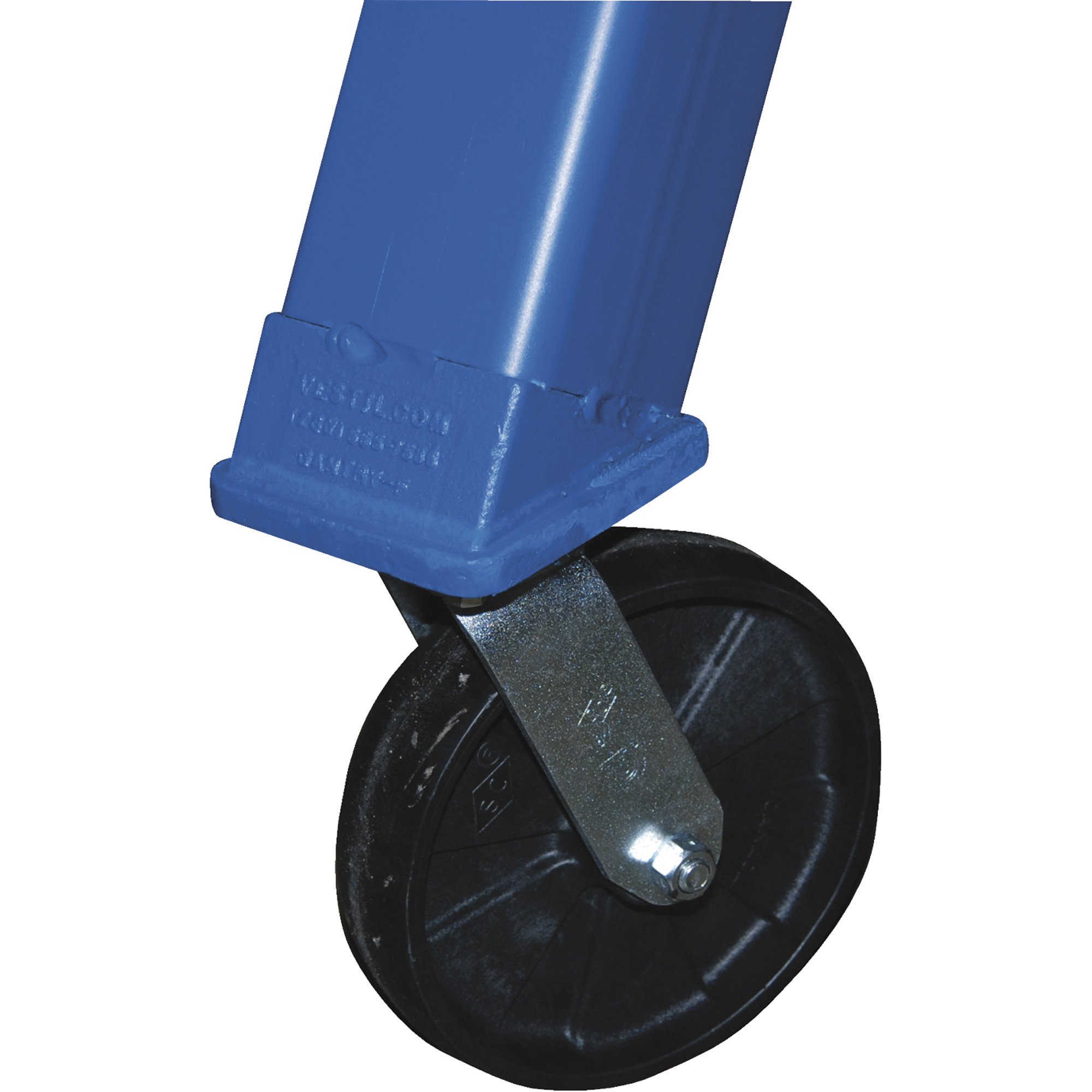

- Large, locking swivel casters provide maneuverability and can be removed for permanent applications
- Painted blue finish adds durability
See full description
What's Included
- (1) Gantry crane
- (1) I-beam
- (2) Side frames
- (4) Casters
- (1) Box of hardware
Features + Benefits
- Quick setup designed for semi-permanent applications
- Multiple-position adjustable height frame to match your lifting needs
- Heavy-duty solid steel construction provides years of service
- Large, locking swivel casters provide maneuverability and can be removed for permanent applications
- Painted blue finish adds durability
- Requires assistance from fork truck to setup

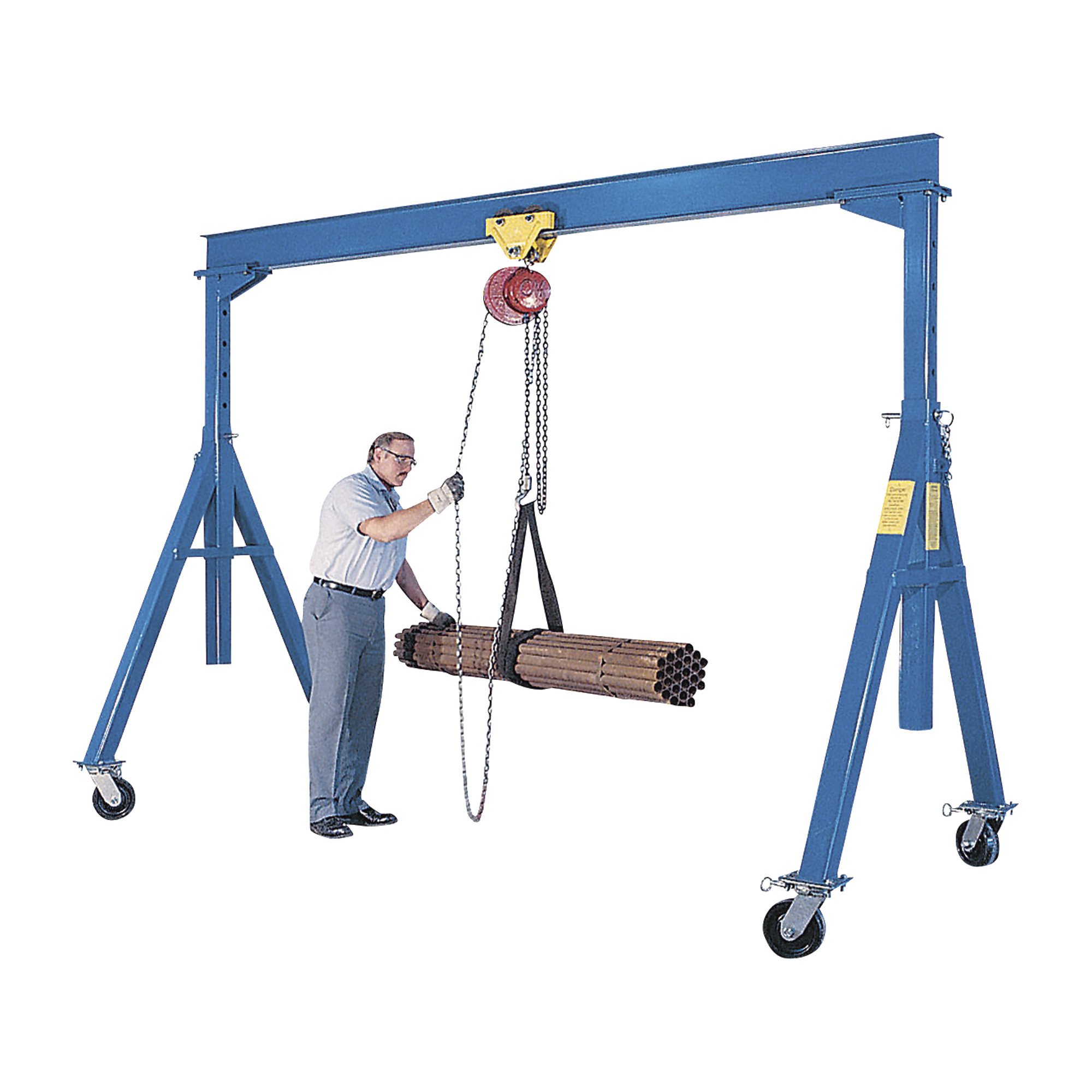

- Hoist and trolley (pictured) are sold separately
- Products should be inspected frequently to ensure safe operation
- Optional lever ratchet available for easy one-person height adjustment — contact a sales representative for additional information
Features + Benefits
- Quick setup designed for semi-permanent applications
- Multiple-position adjustable height frame to match your lifting needs
- Heavy-duty solid steel construction provides years of service
- Large, locking swivel casters provide maneuverability and can be removed for permanent applications
- Painted blue finish adds durability
- Requires assistance from fork truck to setup
- Hoist and trolley (pictured) are sold separately
- Products should be inspected frequently to ensure safe operation
- Optional lever ratchet available for easy one-person height adjustment — contact a sales representative for additional information
-
What is the Bean Length ,width and height
-
Helpful?
-
The I-Beam has dimensions of 15 feet length x 8 inch height x 4 inches wide
Helpful?
-
-
What is the size of the horizontal lifing beam? I need to see if my trolley will work with this gantry crane
-
The beam is 15 feet long, 8 inches tall, and 4 inches wide.
Helpful?
-
The Overall dimensions for the beam are: 15 feet long, 8 inches tall, and 4 inches wide
Helpful?
-
-
How high will it go
1 answer-
The beam-to-floor height ranges from 60 inches (5 feet) to 84 inches (7 feet) in 2-inch increments, providing 13 adjustable height positions.
Helpful?
-
-
What trolley is good for the setup ?
1 answer-
I will list two trolley options below that would work good on this gantry crane.
Helpful?
-
-
I need to move an old truck body, off a frame and move it across the garage, will this do it?
1 answer-
This gantry crane would suit your purpose as long as you purchase the optional v-groove track and v-groove wheels from the manufacturer directly. The accessories would enable you to move the gantry crane while it is under load.
Helpful?
-
-
Is this crane OSHA approved? Is it ANSI approved?
1 answer-
This crane is both OSHA and ANSI approved.
Helpful?
-
-
what is the maximum under H-beam height? AHs-4-15-12
1 answer-
The I beam height is adjustable from 7'6" to 12'.
Helpful?
-
-
What is the overall hight of this product when set at the lowest and the Highest settings
I have 8 foot ceiling in my garage,
1 answer-
The under I beam measurement at the lowest is 7.6 feet and the highest is at 12 feet. The top beam (horizontal) is 8 inches high.
Helpful?
-
