Vestil Steel Fixed Gantry Crane with Swivel Phenolic Casters - 15ft., 4,000-Lb. Capacity, Blue, Model# FHS-4-15

Item# 103161
Vestil Steel Fixed Gantry Crane with Swivel Phenolic Casters - 15ft., 4,000-Lb. Capacity, Blue, Model# FHS-4-15

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Steel Fixed Gantry Crane with Swivel Phenolic Casters - 15ft., 4,000-Lb. Capacity, Blue, Model# FHS-4-15

Click or Tap image to Zoom

$2555.87

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Industrial steel gantry cranes are designed for transporting and positioning materials
  • Solid steel construction will provide years of service

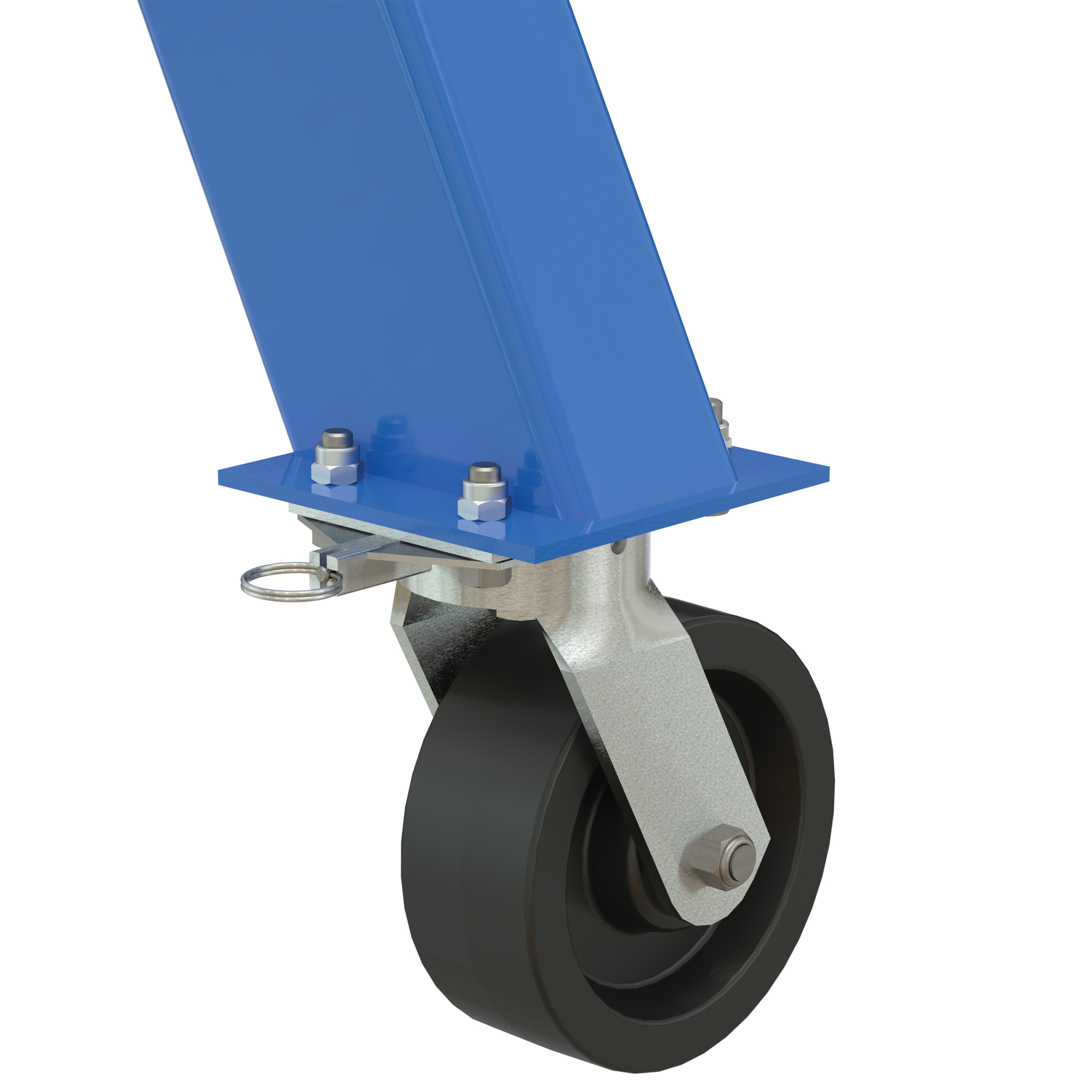

  • Large 8in. dia. locking swivel phenolic casters with roller bearings facilitate easy mobility from one area to another when unloaded
  • More economical and flexible than permanent cranes
  • Quick setup design

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Vestil Steel Fixed Gantry Crane with Swivel Phenolic Casters features heavy-duty, welded steel construction for use in permanent applications. Painted blue finish with warning/operating stickers; 4 swivel phenolic casters with 4-way position locks. Complies with applicable CMAA and ANSI specifications. Gantry crane is NOT to be moved while loaded. Trolley and hoist not included.

Note: Inspect frequently to insure safe operation; final testing and inspection is the user's responsibility after final assembly has been completed.

What's Included

    (1) Gantry crane (1) I-Beam (4) casters

Downloads

Product Manual
Additional Product Info Additional Product Info2

Features + Benefits

  • Industrial steel gantry cranes are designed for transporting and positioning materials
  • Solid steel construction will provide years of service
  • Large 8in. dia. locking swivel phenolic casters with roller bearings facilitate easy mobility from one area to another when unloaded
  • More economical and flexible than permanent cranes
  • Quick setup design
  • Blue finish
  • Also available in additional sizes
  • Hoist and trolley sold separately

Key Specs

AttributeSpecification

item#

103161

Brand

Vestil

Manufacturer's Warranty

1 year limited warranty

Ship Weight

879.0 LB

Material

Steel

Load Capacity

4,000 lb

Load Capacity (lbs.)

4,000

I-Beam Length

180 in

I-Beam Length (ft.)

15
AttributeSpecification

I-Beam to Ground

128.31 in

Flange Width

4 in

Flange Width (in.)

4

Product Weight

786.0000 lb

Dimensions L x W x H (in.)

179.75 x 64.5 x 128.3125 in

Base Width

64.5 in

I-Beam H x W (in.)

8 x 4

Crane L x W (in.)

180 x 64 1/2

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. What is the lead-time on this product?

    1 answer

    1. Currently the estimated lead time is 4-6 business days.

      Helpful?

  2. How wide and tall

    1 answer

    1. The overall dimensions are 179.75'' long, 64.5'' wide, and 128.3'' high.

      Helpful?

  3. what is the height to the bottom of the Ibeam? Floor to the bottom of the beam

    1 answer

    1. From the floor to the bottom of the I-beam is 121".

      Helpful?

  4. What is the distance between the legs?

    1 answer

    1. The usable I beam length is 149.75". The base width is 65.5".

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
