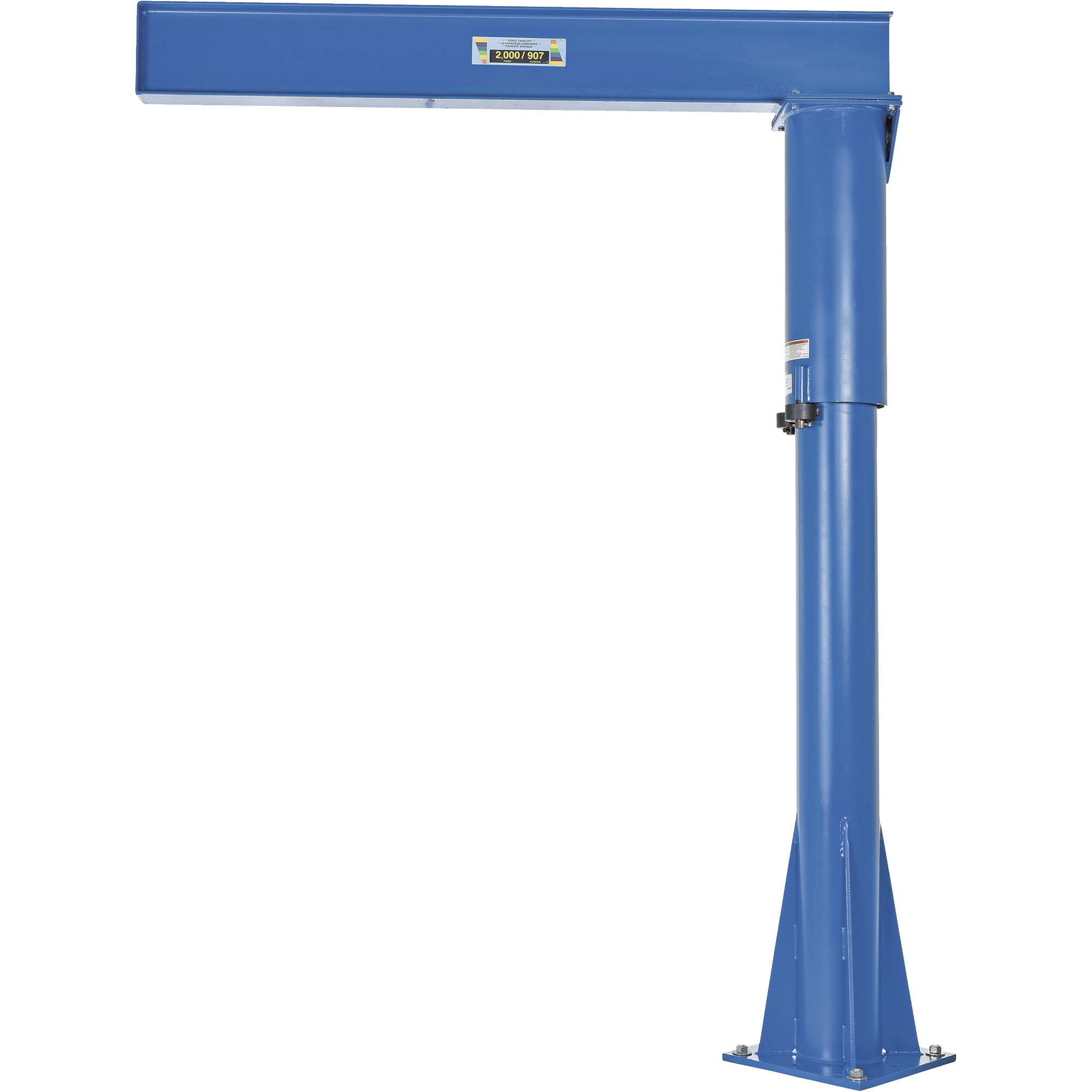

Vestil Floor Mounted Jib Crane - 2,000-Lb. Capacity, 360° Rotation, Model# JIB-FM-20

Item# 103143
"Vestil Floor Mounted Jib Crane - 2,000-Lb. Capacity, 360° Rotation, Model# JIB-FM-20"
On Sale
Vestil Floor Mounted Jib Crane - 2,000-Lb. Capacity, 360° Rotation, Model# JIB-FM-20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Floor Mounted Jib Crane - 2,000-Lb. Capacity, 360° Rotation, Model# JIB-FM-20

Click or Tap image to Zoom

$1799.11

Choose Options for complete product description, reviews and purchasing.

CAPACITY (LBS.)

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Fixed height floor mounted jib adapts well to many applications
  • Full 360° rotation allows personnel to completely utilize their workstation
  • Solid steel construction will assist workers in lifting awkward material
  • 80 in. overall I-beam length with a usable length of 70 in.
  • Requires reinforced concrete pad for installation

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Heavy-duty welded steel construction with precision-tapered bearing for jib boom rotation. Full 360° rotation for use in most applications. Painted blue finish. Complies with OSHA, ANSI and CMAA specifications. Trolley and hoist not included. NOTE: Customer must ensure unit is properly installed and floor strength is adequate to support job crane usage. U.S.A.

What's Included

    (1) Jib crane

Downloads

Product Manual
Additional Product Info Additional Product Info2

Key Specs

AttributeSpecification

item#

103143

Brand

Vestil

Manufacturer's Warranty

1 year limited warranty

Ship Weight

651.0 LB

Mount Type

Floor

Capacity

2,000 lb
AttributeSpecification

Overall Boom Length

82.5 in

Overall Height

109.6 in

Degree of Rotation

360

Usable Boom Length

70 in

Product Weight

651.0000 lb

Dimensions L x W x H (in.)

102.0 x 49.0 x 23.0 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–10 of 19 Questions
Sort by:

  1. Can this be adjusted for height?

    Originally posted on "Vestil Floor Mounted Jib Crane - 300-Lb. Capacity, 360-Degree Rotation, Model# JIB-FM-3"

    1. This Vestil Floor Mounted Jib Crane has a fixed height and cannot be adjusted.

      Helpful?

    2. This model has a fixed height and can not be adjusted.

      Helpful?

  2. where do the two big flat washers go? thanks

    1 answer
    Originally posted on "Vestil Floor Mounted Jib Crane - 300-Lb. Capacity, 360-Degree Rotation, Model# JIB-FM-3"

    1. The (2) 1 1/8" flat washers model 33098 will install on the two front mounting bolts under the roller bearing assembly. Please refer to the manual page 3 for installation drawing.

      Helpful?

  3. How tall is this unit?

    1 answer

    1. The overall height of the Jib crane is 109.5 inches. The under I beam clearance is 99.5".

      Helpful?

  4. Is this a tapered flange beam (S beam) or a parallel flange beam (W beam)? Will all correct width trolleys you sell work with this crane? I'm looking at trolley Item# 57075. Thanks, Josh

    1 answer

    1. This jib crane has a standard I-beam that will work with our trolley item #57075. The flanges are not tapered.

      Helpful?

  5. I need to know the total span for the crane and the part# for trolley. Thanks, Zia

    1 answer
    Originally posted on "Vestil Floor Mounted Jib Crane - 600-Lb. Capacity, 360° Rotation, Model# JIB-FM-6"

    1. The overall length of the beam is 80 inches. The usable length is 70 inches. The manual trolley item number 4868907 (model QIT-06) is recommended for the crane.

      Helpful?

  6. Is a safety guard available to protect operator hands from the thrust roller pinch points?

    1 answer

    1. The manufacturer does not make a safety guard for this jib crane.

      Helpful?

  7. what is the foundation specs for the JIB-FM-3

    Specs for 300lb and 600lb Vestil Floor Mounted Jib Crane. the only thing that showed is if I wanted it to be portable and I do not, it will be mounted permanently to the floor. Thanks

    1 answer
    Originally posted on "Vestil Floor Mounted Jib Crane - 300-Lb. Capacity, 360-Degree Rotation, Model# JIB-FM-3"

    1. Please check your local codes and ordinances for regulations applicable to the crane and its location. The manufacturer states 60-pound bags of concrete mix (about 40 bags for the 18” base, or about 80 bags for the 36” base).

      Helpful?

  8. Is this Product rated for Outdoor use. Also can it be mounted on an engineered stationary steel frame that is rated to handle more load than the Jib?

    1 answer

    1. This jib crane is suitable for indoors and outdoors in most non-classified industrial and commercial locations. This jib crane’s base must be filled with concrete and must remain on a level, compacted, and improved surface whenever a load is applied to its boom.

      Helpful?

  9. Question: can the I beam be longer 10', is the load capacity seperate from the hoist

    Hi, can I get a 10' usable I beam?
    Is the hoist weight included in the 600 lb capacity or allowed to added on and the load capacity is 600 lb plus the hoist?

    1 answer
    Originally posted on "Vestil Floor Mounted Jib Crane - 600-Lb. Capacity, 360° Rotation, Model# JIB-FM-6"

    1. A longer beam is not available for this jib crane. The weight capacity will include the combined weight of the trolley, hoist, and payload.

      Helpful?

  10. Can it be bolted to a 5 in concrete floor that has fiber reinforcement

    1 answer
    Originally posted on "Vestil Floor Mounted Jib Crane - 600-Lb. Capacity, 360° Rotation, Model# JIB-FM-6"

    1. This product cannot be bolted to a 5" concrete floor that has fiber reinforcement.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
