This Vestil Floor Mounted Jib Crane has a fixed height and cannot be adjusted.

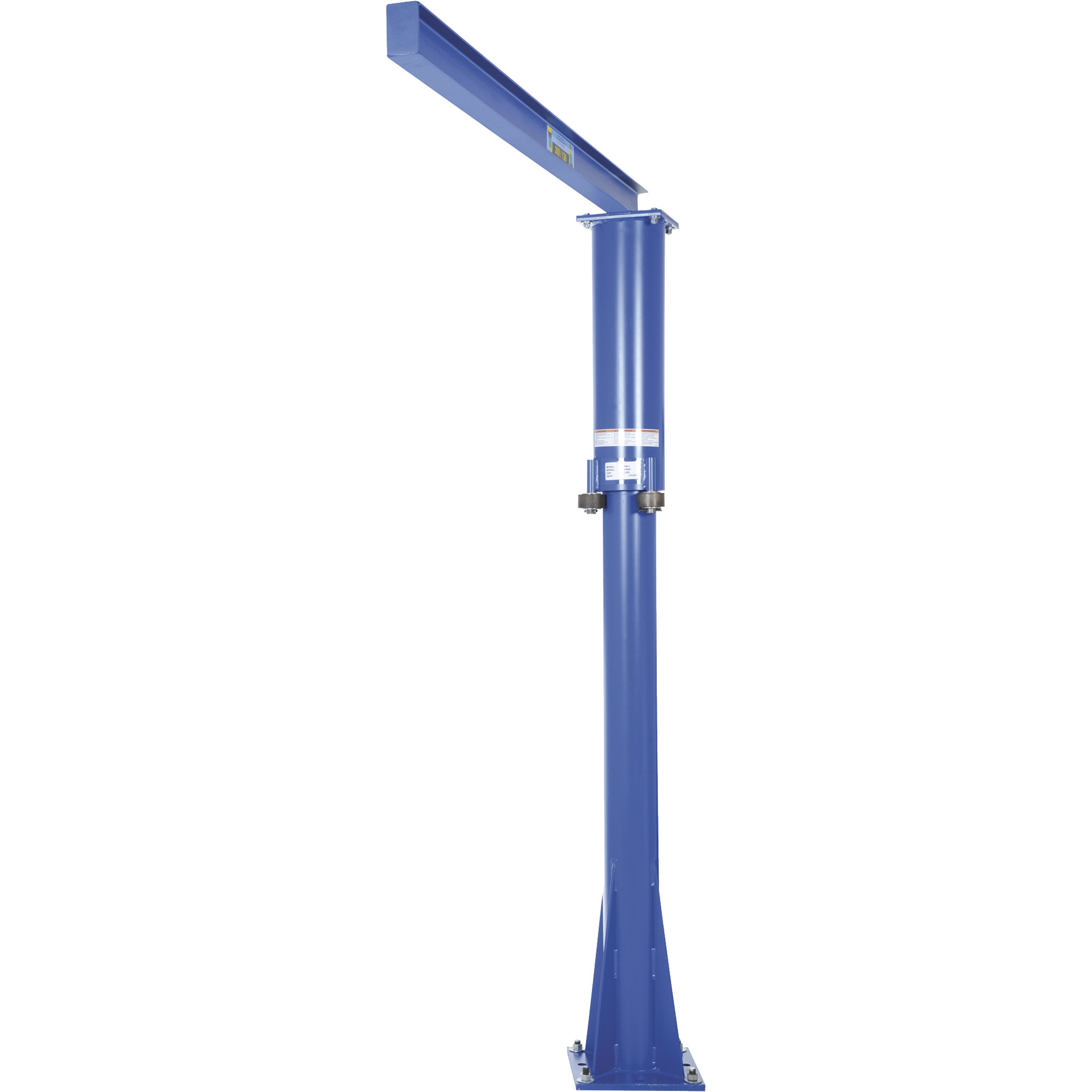

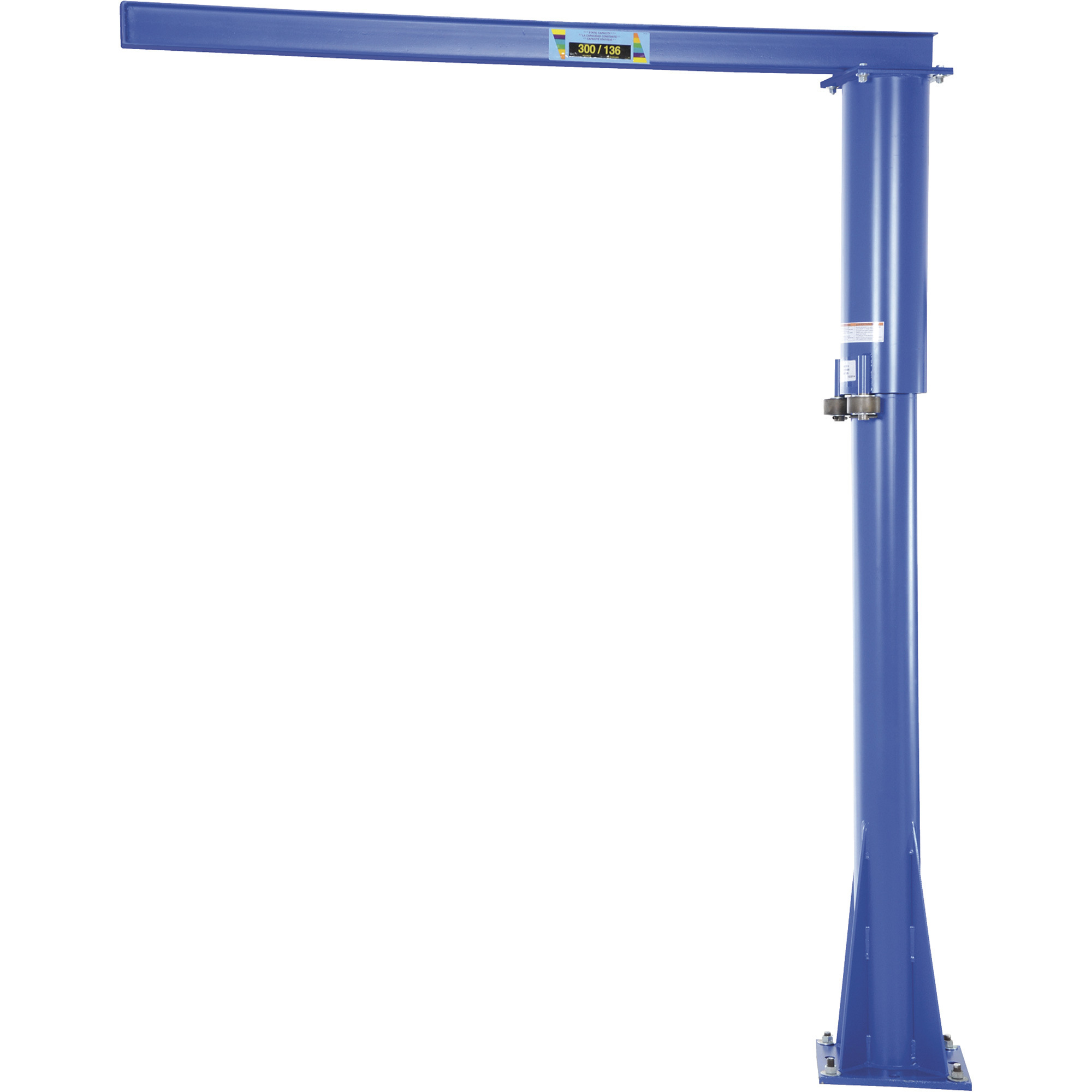

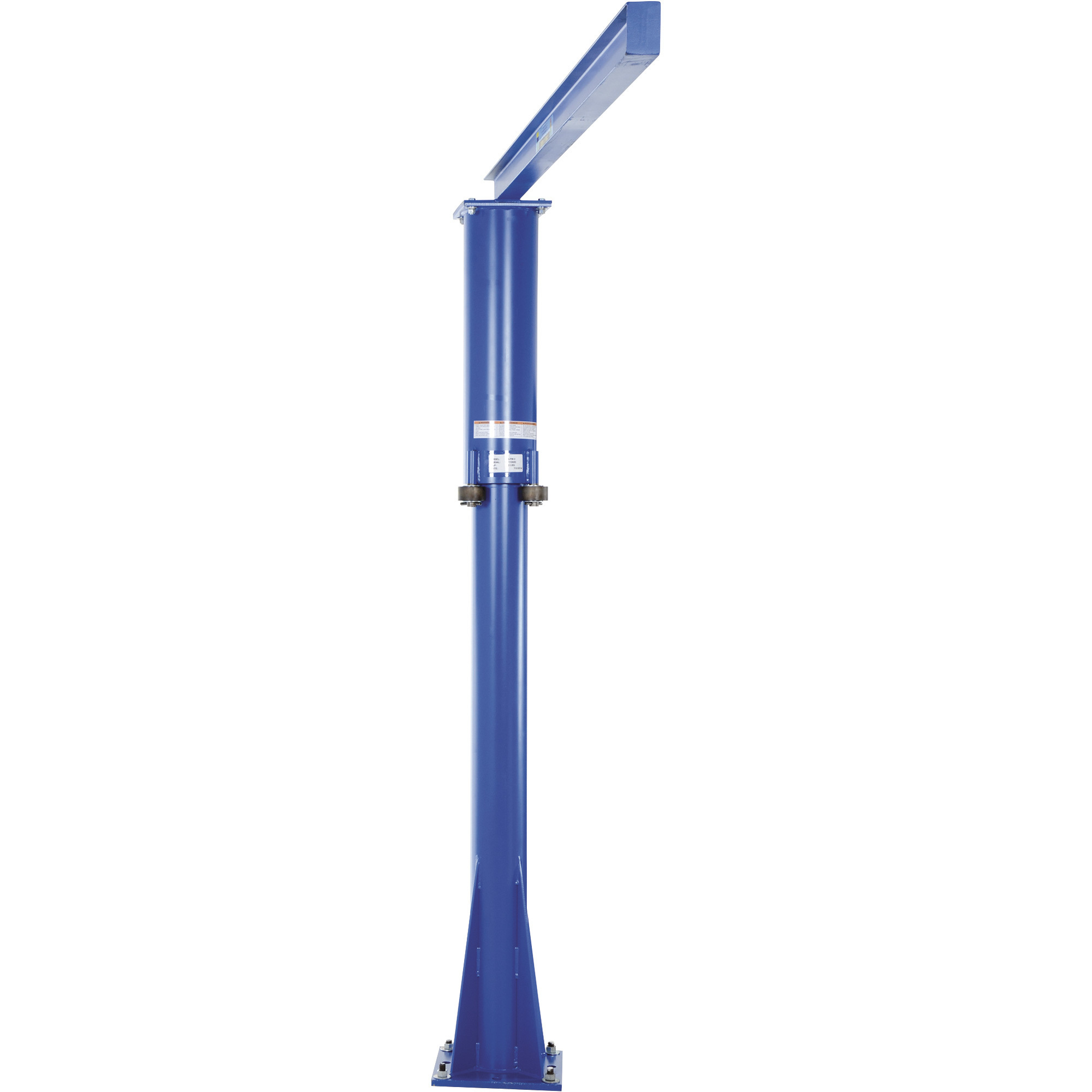

Vestil Floor Mounted Jib Crane - 300-Lb. Capacity, 360-Degree Rotation, Model# JIB-FM-3
On Sale
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$1248.88
Choose Options for complete product description, reviews and purchasing.
CAPACITY (LBS.)
- Fixed height floor mounted jib adapts well to many applications
- Full 360° rotation allows personnel to completely utilize their workstation
- Solid steel construction will assist workers in lifting awkward material
- 80 in. overall I-beam length with a usable length of 70 in.
- Requires reinforced concrete pad for installation
See full description
-
Can this be adjusted for height?
-
Helpful?
-
This model has a fixed height and can not be adjusted.
Helpful?
-
-
where do the two big flat washers go? thanks
1 answer-
The (2) 1 1/8" flat washers model 33098 will install on the two front mounting bolts under the roller bearing assembly. Please refer to the manual page 3 for installation drawing.
Helpful?
-
-
How tall is this unit?
1 answer-
The overall height of the Jib crane is 109.5 inches. The under I beam clearance is 99.5".
Helpful?
-
-
Is this a tapered flange beam (S beam) or a parallel flange beam (W beam)? Will all correct width trolleys you sell work with this crane? I'm looking at trolley Item# 57075. Thanks, Josh
1 answer-
This jib crane has a standard I-beam that will work with our trolley item #57075. The flanges are not tapered.
Helpful?
-
-
I need to know the total span for the crane and the part# for trolley. Thanks, Zia
1 answer-
The overall length of the beam is 80 inches. The usable length is 70 inches. The manual trolley item number 4868907 (model QIT-06) is recommended for the crane.
Helpful?
-
-
Is a safety guard available to protect operator hands from the thrust roller pinch points?
1 answer-
The manufacturer does not make a safety guard for this jib crane.
Helpful?
-
-
what is the foundation specs for the JIB-FM-3
Specs for 300lb and 600lb Vestil Floor Mounted Jib Crane. the only thing that showed is if I wanted it to be portable and I do not, it will be mounted permanently to the floor. Thanks
1 answer-
Please check your local codes and ordinances for regulations applicable to the crane and its location. The manufacturer states 60-pound bags of concrete mix (about 40 bags for the 18” base, or about 80 bags for the 36” base).
Helpful?
-
-
Is this Product rated for Outdoor use. Also can it be mounted on an engineered stationary steel frame that is rated to handle more load than the Jib?
1 answer-
This jib crane is suitable for indoors and outdoors in most non-classified industrial and commercial locations. This jib crane’s base must be filled with concrete and must remain on a level, compacted, and improved surface whenever a load is applied to its boom.
Helpful?
-
-
Question: can the I beam be longer 10', is the load capacity seperate from the hoist
Hi, can I get a 10' usable I beam?
Is the hoist weight included in the 600 lb capacity or allowed to added on and the load capacity is 600 lb plus the hoist?1 answer-
A longer beam is not available for this jib crane. The weight capacity will include the combined weight of the trolley, hoist, and payload.
Helpful?
-
-
Can it be bolted to a 5 in concrete floor that has fiber reinforcement
1 answer-
This product cannot be bolted to a 5" concrete floor that has fiber reinforcement.
Helpful?
-
