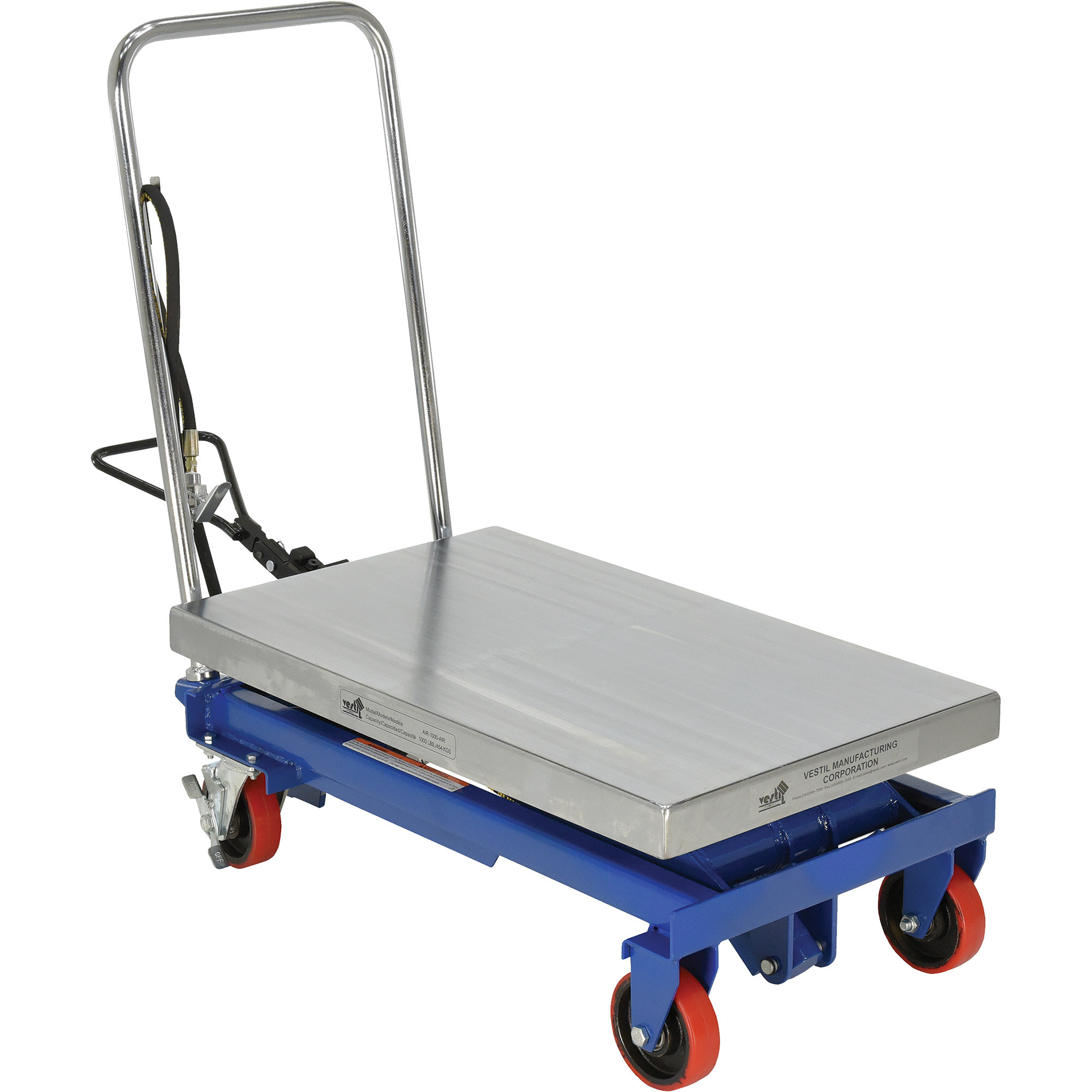

Vestil Air Hydraulic Scissor Cart - 1,000-Lb. Capacity, 32.5in.L x 19.75in.W, Stainless Steel, Model# AIR-1000

Item# 856756
Vestil Air Hydraulic Scissor Cart - 1,000-Lb. Capacity, 32.5in.L x 19.75in.W, Stainless Steel, Model# AIR-1000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Air Hydraulic Scissor Cart - 1,000-Lb. Capacity, 32.5in.L x 19.75in.W, Stainless Steel, Model# AIR-1000

Click or Tap image to Zoom

$1199.99

Choose Options for complete product description, reviews and purchasing.

PLATFORM SIZE W X L (IN.)

SERVICE RANGE (IN.)

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 5in. x 1 1/2in. casters
  • Platform, frame, handle, caster rigs, and hardware are all stainless steel
  • Pump assembly, hydraulic cylinder, and scissor legs are zinc-plated
  • Wheels are poly-on-poly and casters are poly-on-steel
  • Rugged steel construction frame with durable powder-coated finish

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Air hydraulic cart features 2-speed foot pump and handheld reciprocating air/oil power to raise the platform. Utilize the foot pump for minor height adjustments and the factory air/oil power for effortless lifting.

What's Included

    (1) Air hydraulic scissor cart

Downloads

Product Manual
Additional Product Info Additional Product Info2
Play Item Video

Key Specs

AttributeSpecification

item#

856756

Brand

Vestil

Manufacturer's Warranty

1 year limited warranty

Ship Weight

225.0 LB

Capacity

1,000 lb

Lowered Height

15.75 in
AttributeSpecification

Raised Height

35.5 in

Platform Length

32 in

Platform Width

19.75 in

Material

Carbon Steel

Product Weight

225.0000 lb

Dimensions L x W x H (in.)

48.0 x 40.0 x 43.0 in

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Is there a safety bellows to keep things out of the way on the scissors action of the cart?

    1 answer
    Originally posted on "Vestil Air Hydraulic Scissor Cart - 2000-Lb. Capacity, 15in. to 39.5in. Height Range, Poly-on-Poly Wheels, Model# AIR-2000"

    1. This cart is not equipped with any safety bellows.

      Helpful?

  2. Does the handle pivot towards floor if in the way ? What is clearance under unit , so when engine crane is used can it go under it if needed?

    1 answer
    Originally posted on "Vestil Air Hydraulic Scissor Cart - 1500-Lb. Capacity, 47 1/4in.L x 24in.W, Stainless Steel, Model# AIR-1500-D"

    1. The handle does not pivot out of the way, it is bolted on. The clearance under the cart is 8".

      Helpful?

  3. where is this made?

    1 answer
    Originally posted on "Vestil Air Hydraulic Scissor Cart - 1500-Lb. Capacity, 47 1/4in.L x 24in.W, Stainless Steel, Model# AIR-1500-D"

    1. This Scissor Cart is manufactured in China.

      Helpful?

  4. Lift Speed

    how fast does the lift raise and lower with say 400 lbs on it?
    inches per minute ?

    1 answer
    Originally posted on "Vestil Air Hydraulic Scissor Cart - 1,000-Lb. Capacity, 63in.L x 31.5in.W, Stainless Steel, Model# AIR-1000-LD"

    1. This Vestil scissor cart has an air raise time of 20 seconds without a load and 31 seconds with a load. This will lower in 8 seconds without a load and 5 seconds with a load. With a half load it takes 62 pumps to raise this cart.

      Helpful?

  5. Whitout wheel, how height is the Vestil Scissor Cart at the low level?

    1 answer

    1. This scissor cart is not designed to be used with the casters removed. The lowest usable height is 15-3/4".

      Helpful?

  6. What is the caster wheel width spacing, center to center?

    1 answer
    Originally posted on "Vestil Air Hydraulic Scissor Cart - 2000-Lb. Capacity, 15in. to 39.5in. Height Range, Poly-on-Poly Wheels, Model# AIR-2000"

    1. The casters on this scissor cart are 5" diameter and 2" wide.

      Helpful?

  7. How long does it take to reach max height with air compressor?

    1 answer

    1. The Vestil Scissor Cart will travel from fully lowered position to fully raised position in 15-20 seconds under air power.

      Helpful?

  8. What size is the air fitting?

    1 answer
    Originally posted on "Vestil Air Hydraulic Scissor Cart - 2000-Lb. Capacity, 15in. to 39.5in. Height Range, Poly-on-Poly Wheels, Model# AIR-2000"

    1. The air fitting size would be 1/4".

      Helpful?

  9. Hom much time to reach full height with compressed air ? Thx.

    1 answer
    Originally posted on "Vestil Air Hydraulic Scissor Cart - 2000-Lb. Capacity, 15in. to 39.5in. Height Range, Poly-on-Poly Wheels, Model# AIR-2000"

    1. The Vestil Scissor cart will raise to full height in 51 seconds unloaded, 70 seconds when loaded. Lowering time would be 38 seconds unloaded, 13 seconds loaded.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
