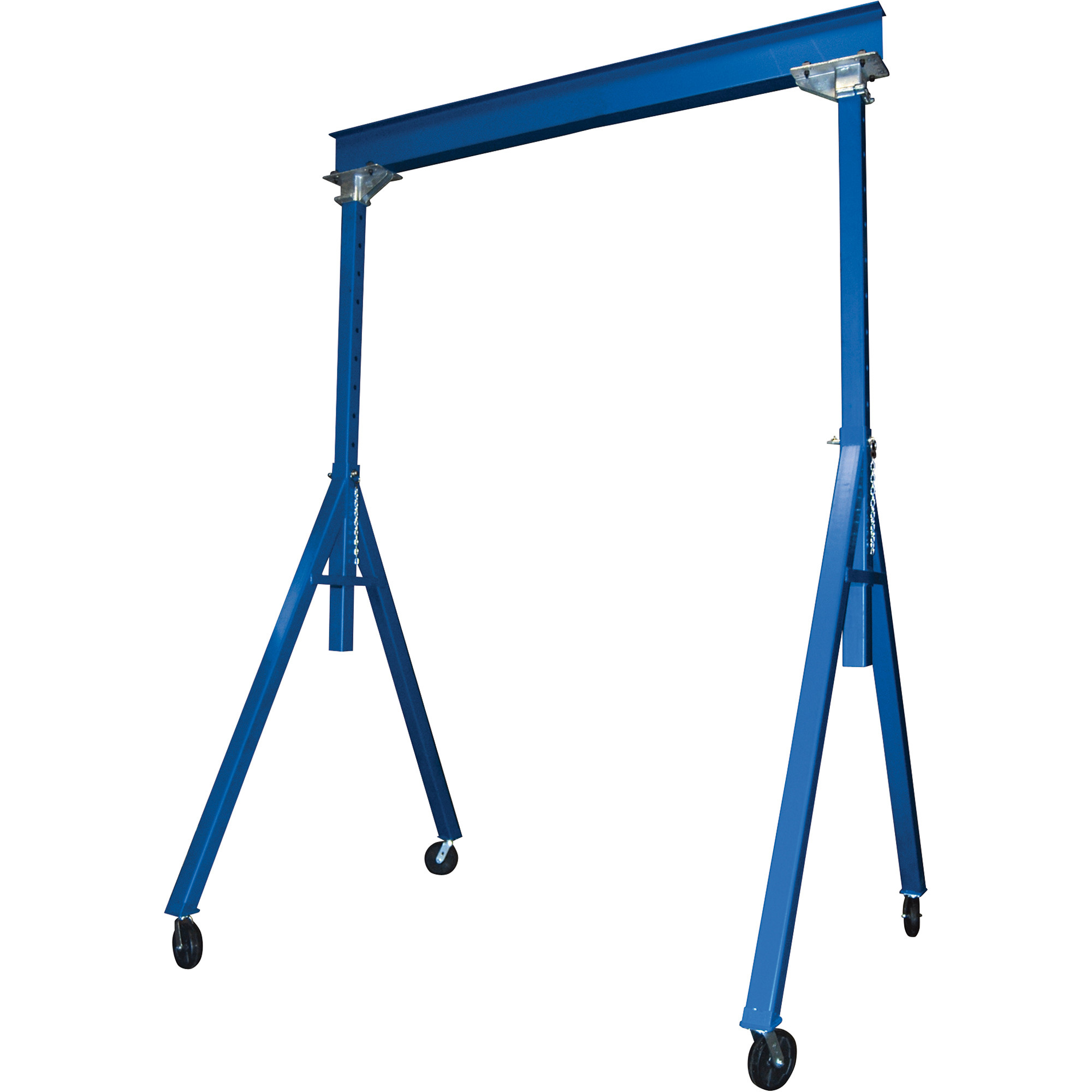

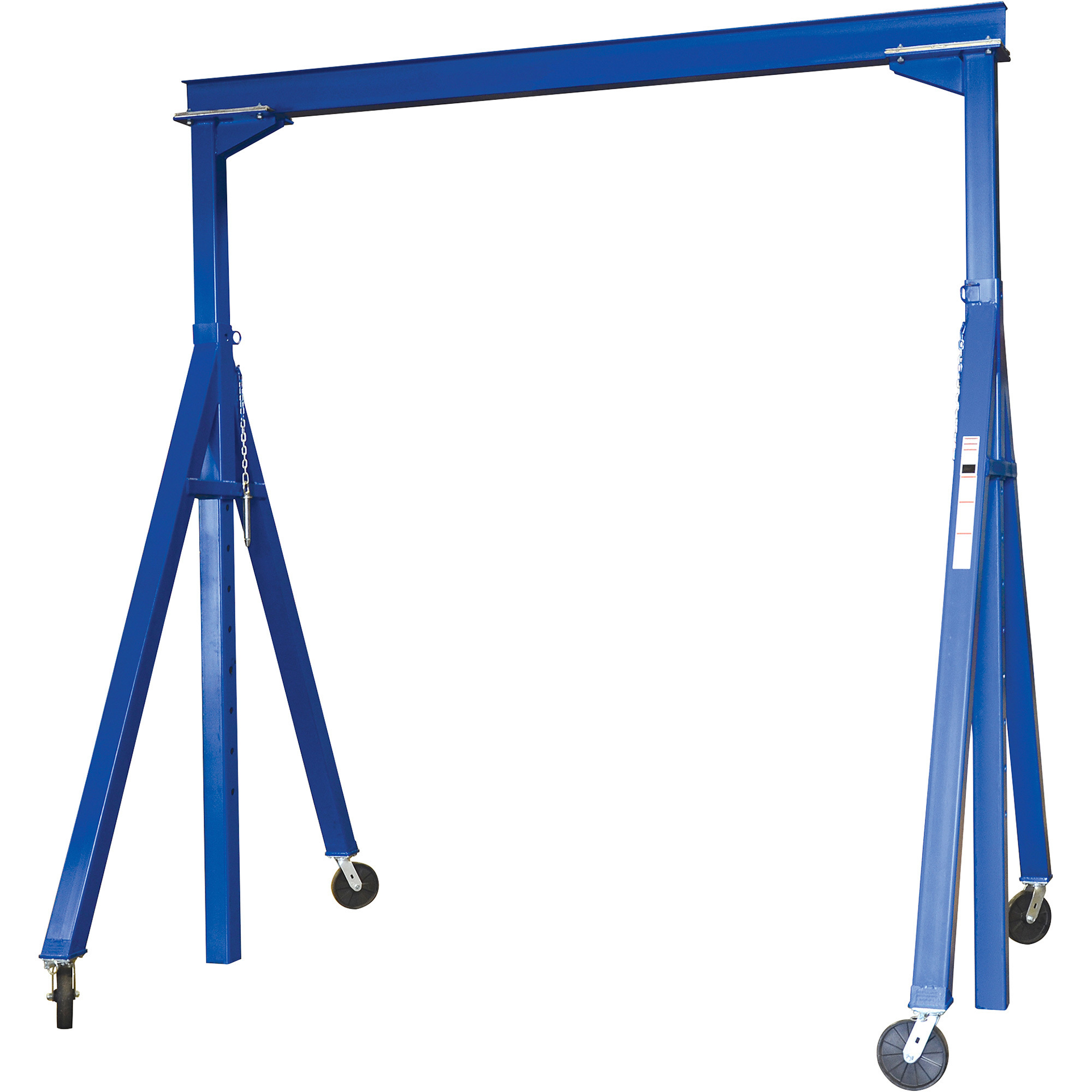

Vestil Steel Adjustable Height Gantry Crane - 4000-Lb. Capacity, 4-Position Locking Swivel Casters, Model# AHS-4-15-12

Item# 103148
Top SellerOn Sale
Vestil Steel Adjustable Height Gantry Crane - 4000-Lb. Capacity, 4-Position Locking Swivel Casters, Model# AHS-4-15-12

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Steel Adjustable Height Gantry Crane - 4000-Lb. Capacity, 4-Position Locking Swivel Casters, Model# AHS-4-15-12

Click or Tap image to Zoom

$3179.99

Choose Options for complete product description, reviews and purchasing.

IBEAM LENGTH/HEIGHT

UNDER IBEAM USABLE HEIGHT

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Industrial steel gantry cranes are designed for transporting and positioning materials
  • Solid steel construction provides years of service

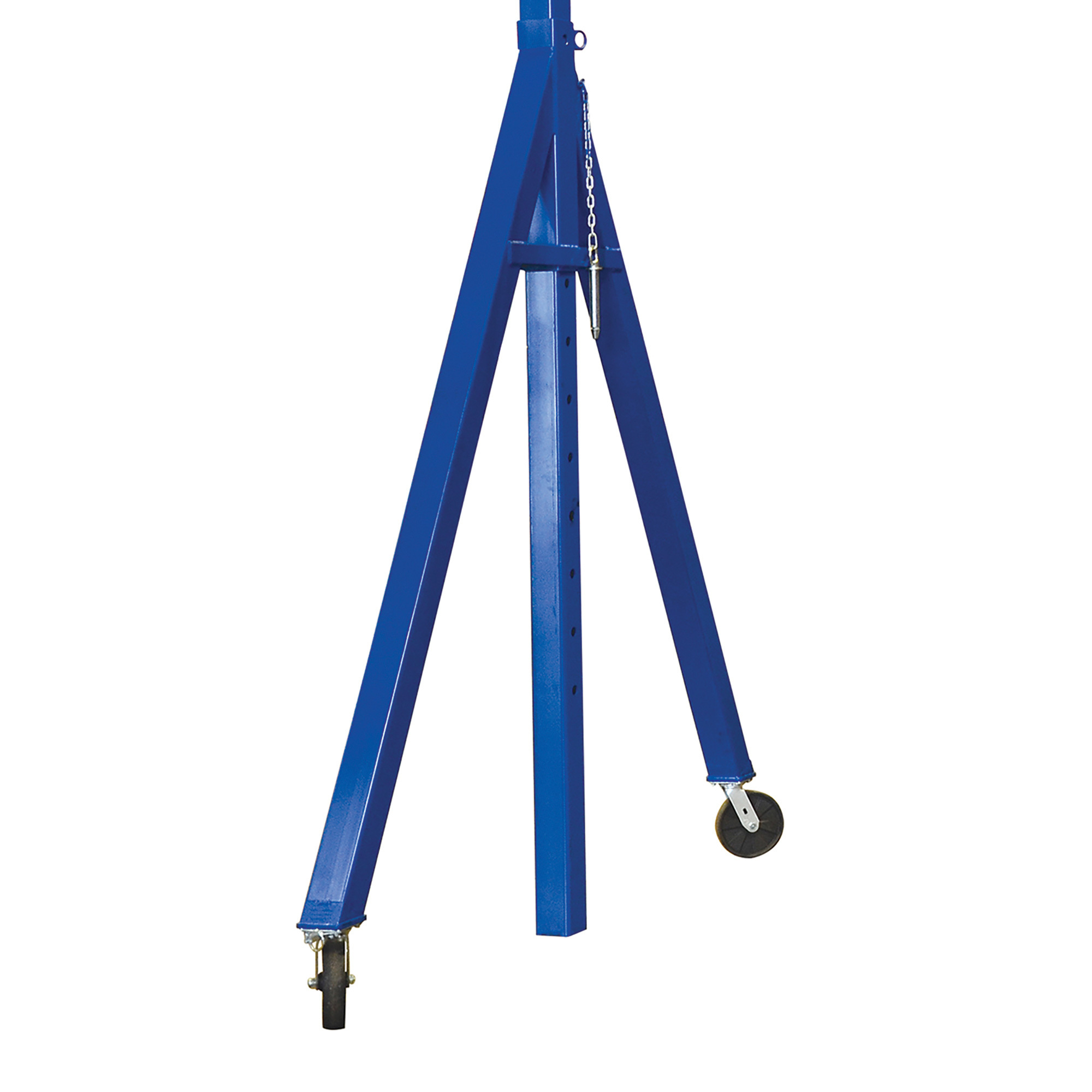

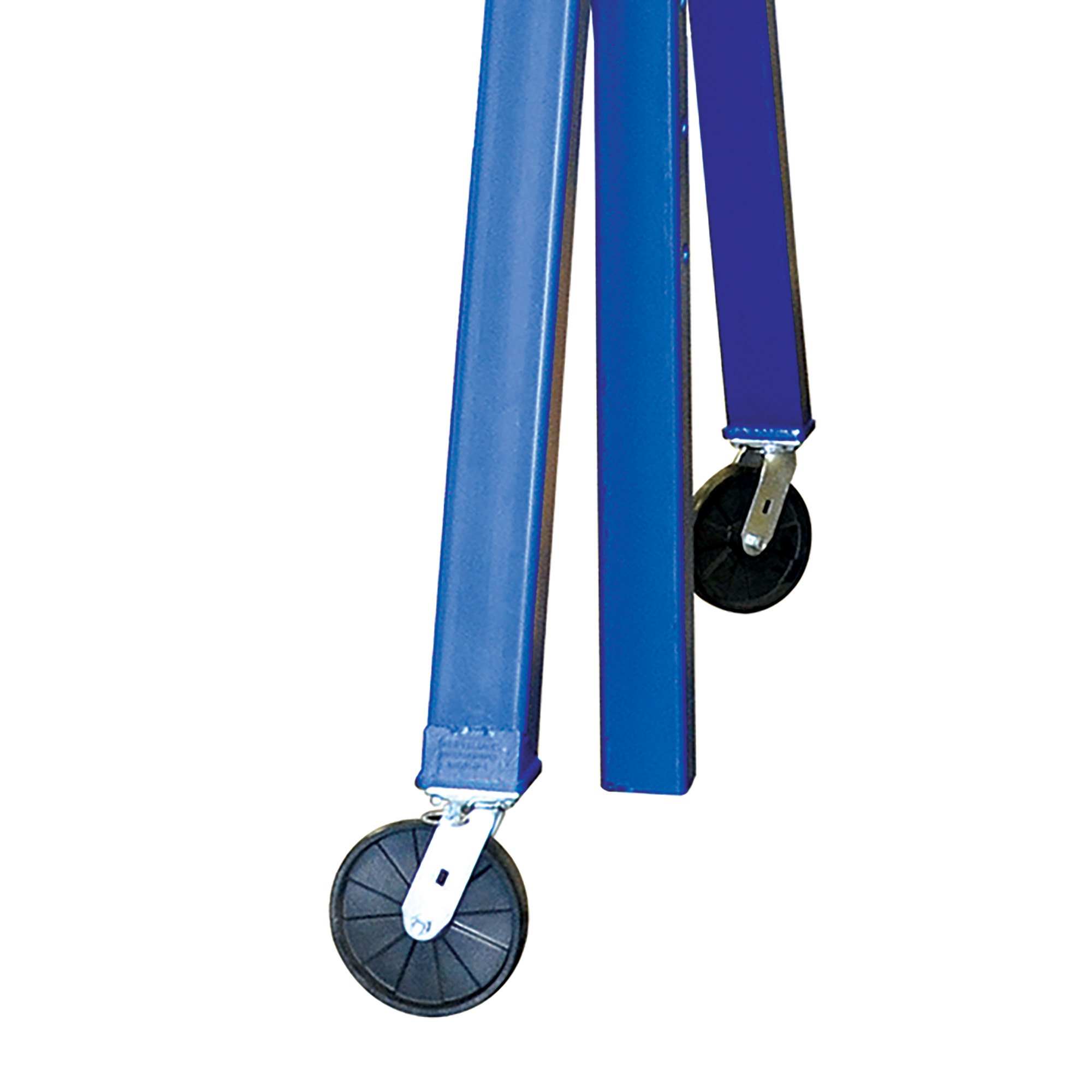

  • Large 8in. dia. 4-position locking swivel phenolic casters facilitate easy mobility from one area to another when unloaded
  • Optional total-locking locks the rig in any position and prevent the wheel from rotating
  • More economical and flexible than permanent cranes

See full description

Complete Your Solution

  • Vestil Steel Adjustable Height Gantry Crane - 4000-Lb. Capacity, 4-Position Locking Swivel Casters, Model# AHS-4-15-12
  • Vestil Geared Manual Trolley - 4,000-Lb. Capacity, Adjustable Width, Model# E-MT-4-C
  • JET 2SS Series Electric Chain Hoist, 2-Ton Capacity, 15ft. Lift, 3-Phase, Model# 2SS-3C-15
Price for all three:

$8014.95

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Steel Adjustable Height Gantry Crane with 4-Position Locking Swivel Phenolic Casters is designed for transporting and positioning materials along the beam's length. The solid steel construction will provide years of service. Unit comes standard with 4-position locking swivel casters with roller bearings. Lock the rigging in 1 of 4 positions: forward, back, left or right. Optional total-locking locks the rigging in any position and prevent the wheel from rotating. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to setup. (Not to be moved while loaded). Trolley and hoist not included.

Note: Inspect frequently to ensure safe operation; final testing and inspection is the user's responsibility after final assembly has been completed.

What's Included

    (2) Uprights (1) I-Beam (5) 4 casters and 1 hardware kit

Downloads

Product Manual
Additional Product Info Additional Product Info2
Play Item Video

Key Specs

AttributeSpecification

item#

103148

Brand

Vestil

Manufacturer's Warranty

1 year limited warranty

Ship Weight

963.0 LB

Material

Steel

Load Capacity

4,000 lb
AttributeSpecification

I-Beam Length

180 in

I-Beam to Ground

152 in

Flange Width

4 in

Product Weight

863.0000 lb

Dimensions L x W x H (in.)

179.75 x 76.125 x 152.0 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. What is the Bean Length ,width and height

    Originally posted on "Vestil Steel Adjustable Height Gantry Crane - 15ft. x 6ft., 4,000-Lb. Capacity, Locking Swivel Phenolic Casters, Model# AHS-4-15-16"

    1. The I-Beam is15' L X 8" H X 4" W.

      Helpful?

    2. The I-Beam has dimensions of 15 feet length x 8 inch height x 4 inches wide

      Helpful?

  2. What is the size of the horizontal lifing beam? I need to see if my trolley will work with this gantry crane

    1. The beam is 15 feet long, 8 inches tall, and 4 inches wide.

      Helpful?

    2. The Overall dimensions for the beam are: 15 feet long, 8 inches tall, and 4 inches wide

      Helpful?

  3. How high will it go

    1 answer
    Originally posted on "Vestil Steel Adjustable Height Gantry Crane - 15ft. x 7ft., 4,000-Lb. Capacity, Locking Swivel Phenolic Casters, Model# AHS-4-15-7"

    1. The beam-to-floor height ranges from 60 inches (5 feet) to 84 inches (7 feet) in 2-inch increments, providing 13 adjustable height positions.

      Helpful?

  4. What trolley is good for the setup ?

    1 answer

    1. I will list two trolley options below that would work good on this gantry crane.

      Helpful?

  5. I need to move an old truck body, off a frame and move it across the garage, will this do it?

    1 answer

    1. This gantry crane would suit your purpose as long as you purchase the optional v-groove track and v-groove wheels from the manufacturer directly. The accessories would enable you to move the gantry crane while it is under load.

      Helpful?

  6. Is this crane OSHA approved? Is it ANSI approved?

    1 answer

    1. This crane is both OSHA and ANSI approved.

      Helpful?

  7. what is the maximum under H-beam height? AHs-4-15-12

    1 answer

    1. The I beam height is adjustable from 7'6" to 12'.

      Helpful?

  8. What is the overall hight of this product when set at the lowest and the Highest settings

    I have 8 foot ceiling in my garage,

    1 answer
    Originally posted on "Vestil Steel Adjustable Height Gantry Crane - 10ft. x 12ft., 4,000-Lb. Capacity, Glass Filled Nylon Casters, Blue, Model# AHS-4-10-12"

    1. The under I beam measurement at the lowest is 7.6 feet and the highest is at 12 feet. The top beam (horizontal) is 8 inches high.

      Helpful?
