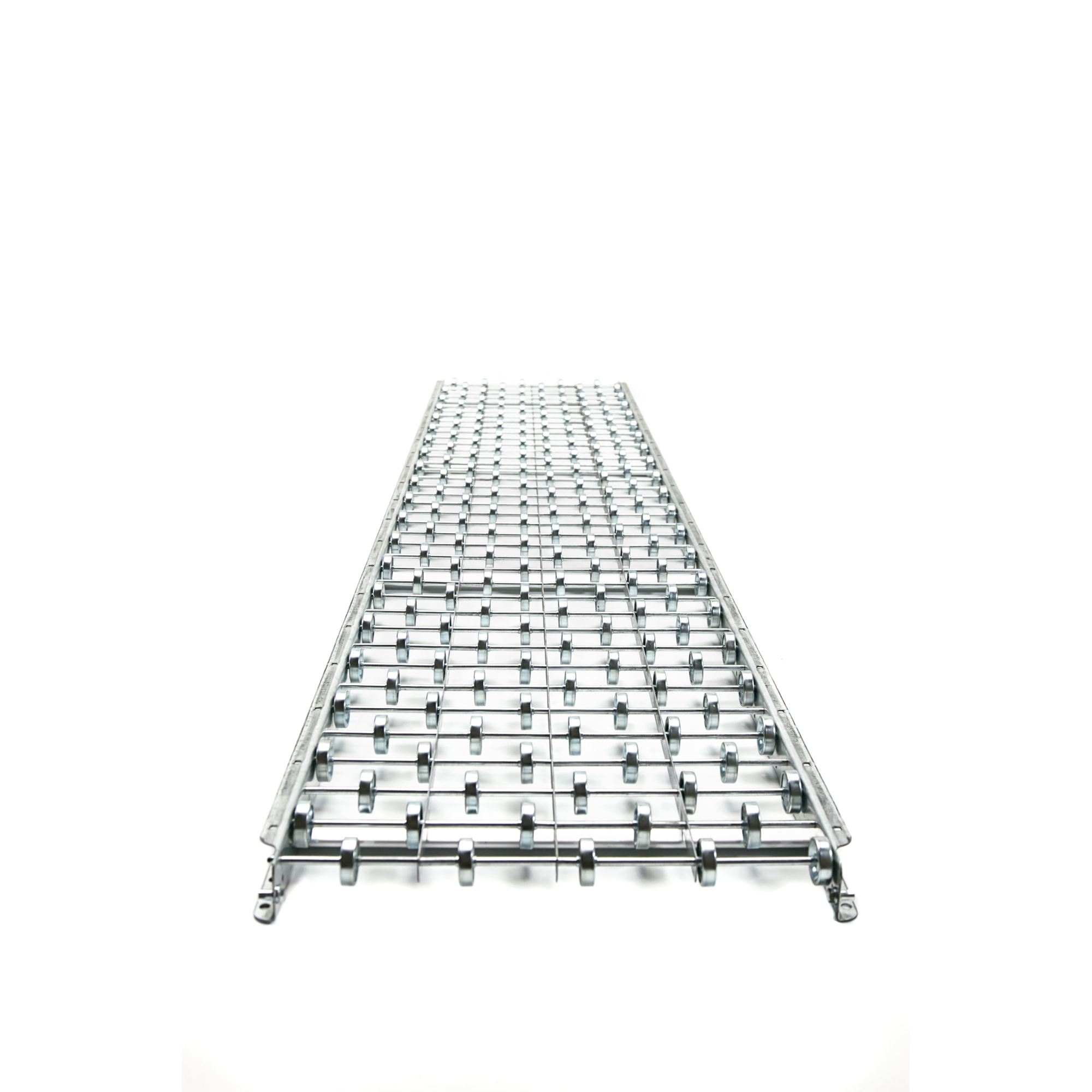

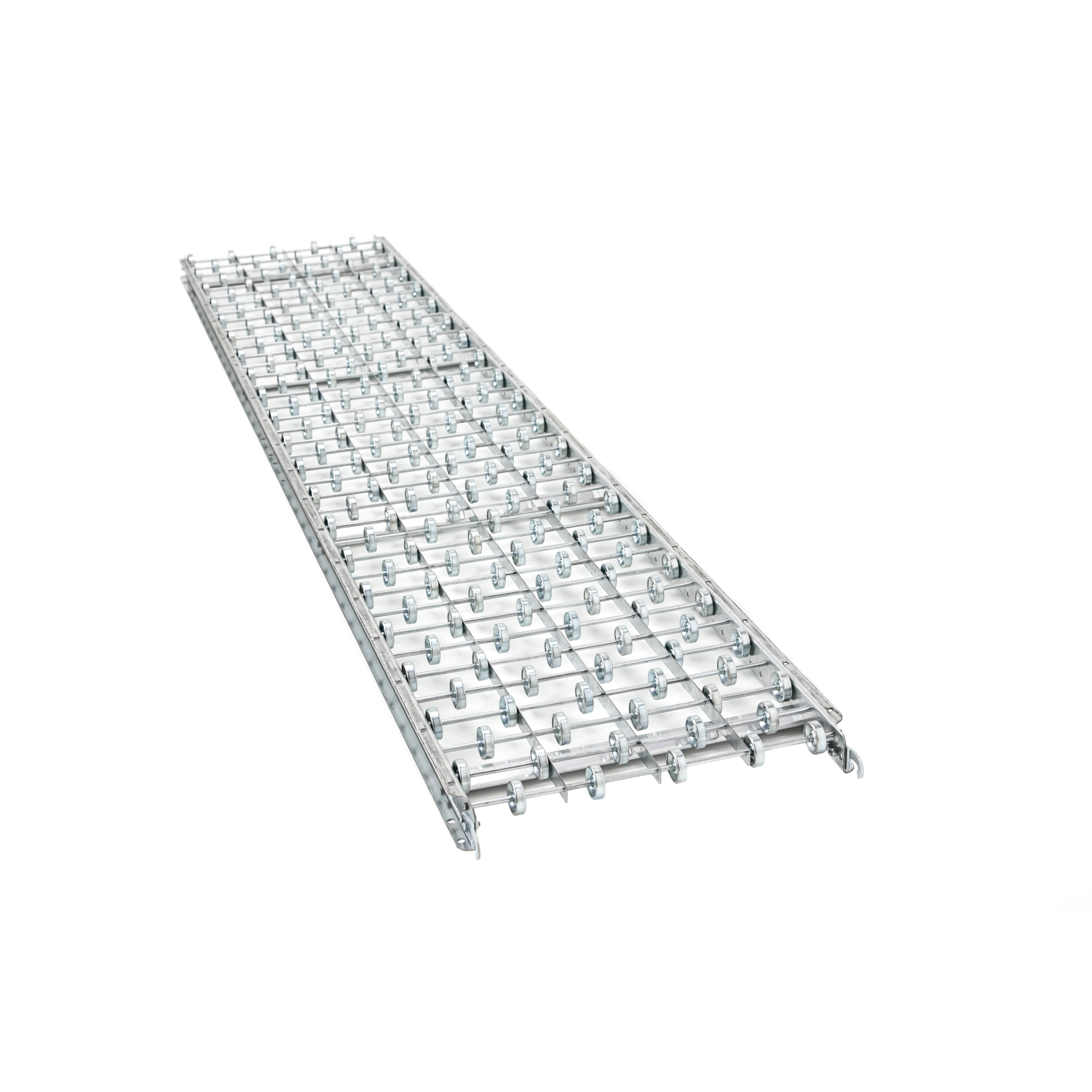

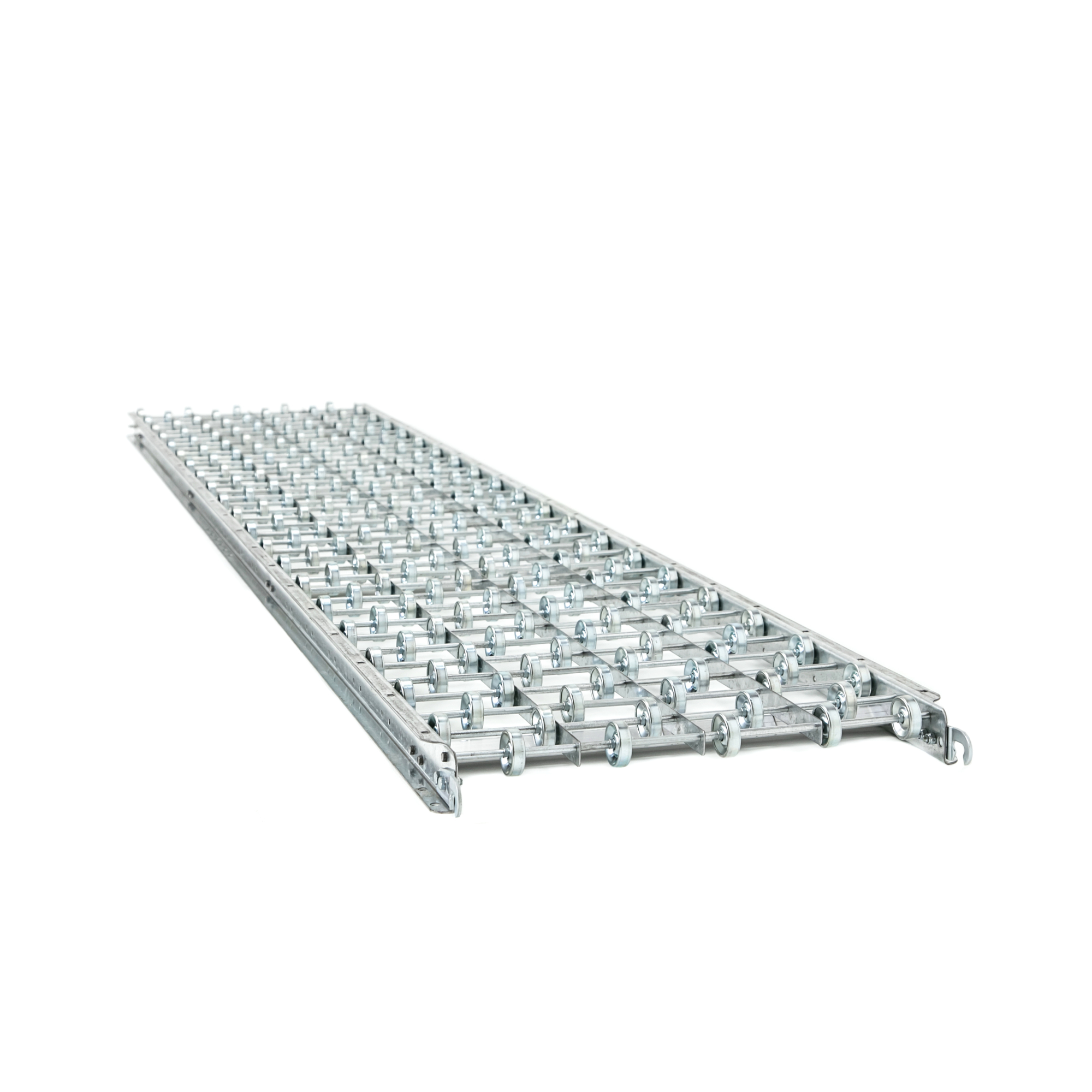

Unex, Skatewheel Conveyor, Capacity 600 lb, Conveyor Length 120 in, Model# 24SWGS20X10

Item# 4478642
Unex, Skatewheel Conveyor, Capacity 600 lb, Conveyor Length 120 in, Model# 24SWGS20X10

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Unex, Skatewheel Conveyor, Capacity 600 lb, Conveyor Length 120 in, Model# 24SWGS20X10

Click or Tap image to Zoom

$389.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 50 lb wheel capacity (steel) or 25 lb wheel capacity (aluminum)
  • Up to 210 lbs per foot load capacity (steel) or 120 lbs per foot (aluminum)
  • 1/4" diameter carbon steel axles, threaded with locknut, spaced on 3" centers
  • C-Channel 2.5" high by 1" leg (7/8" for carton flow) by 12 ga. galvanized steel channel frame

See full description

Complete Your Solution

  • Unex, Skatewheel Conveyor, Capacity 600 lb, Conveyor Length 120 in, Model# 24SWGS20X10
  • Unex, 1.9in. Aluminum Skatewheel, Model# 0B02
Price for all two:

$391.58

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Unex Skatewheel Gravity Conveyor is an efficient and versatile solution designed for conveying lightweight packages in environments that require portable or temporary conveyor lines, such as warehousing or shipping areas. With a robust capacity of 600 lbs., this conveyor ensures reliable performance and durability for various material handling tasks. Measuring 120 inches in length, it provides ample space for smooth and continuous movement of packages, enhancing workflow efficiency. The skatewheel design allows for easy maneuverability and flexibility, making it an ideal choice for dynamic workspaces where quick adjustments and reconfigurations are necessary. Whether used for short-term projects or as a permanent fixture, the Unex Skatewheel Gravity Conveyor delivers consistent, high-quality performance, ensuring that your operations run smoothly and efficiently.

What's Included

    (1) Conveyor Straight

Features + Benefits

  • 50 lb wheel capacity (steel) or 25 lb wheel capacity (aluminum)
  • Up to 210 lbs per foot load capacity (steel) or 120 lbs per foot (aluminum)
  • 1/4" diameter carbon steel axles, threaded with locknut, spaced on 3" centers
  • C-Channel 2.5" high by 1" leg (7/8" for carton flow) by 12 ga. galvanized steel channel frame

Key Specs

AttributeSpecification

item#

4478642

Brand

Unex

Manufacturer's Warranty

5 year limited warranty

Ship Weight

150.0 LB

Conveyor Length

120 in

Width Between Frame

22 in

Product Type

Conveyor

Min. Height

7.75 in

Max. Height

70.75 in
AttributeSpecification

Folding

No

Material

Galvanized Steel

Width

24 in

Roller (qty.)

200

Roller Diameter

2 in

Motorized

No

Capacity

600 lb

Product Weight

95.0000 lb

Dimensions L x W x H (in.)

120.0 x 24.0 x 2.5 in
