The legs are not included with the conveyor. The adjustable tripod support item number 4479071 (model T244218) is sold separately.

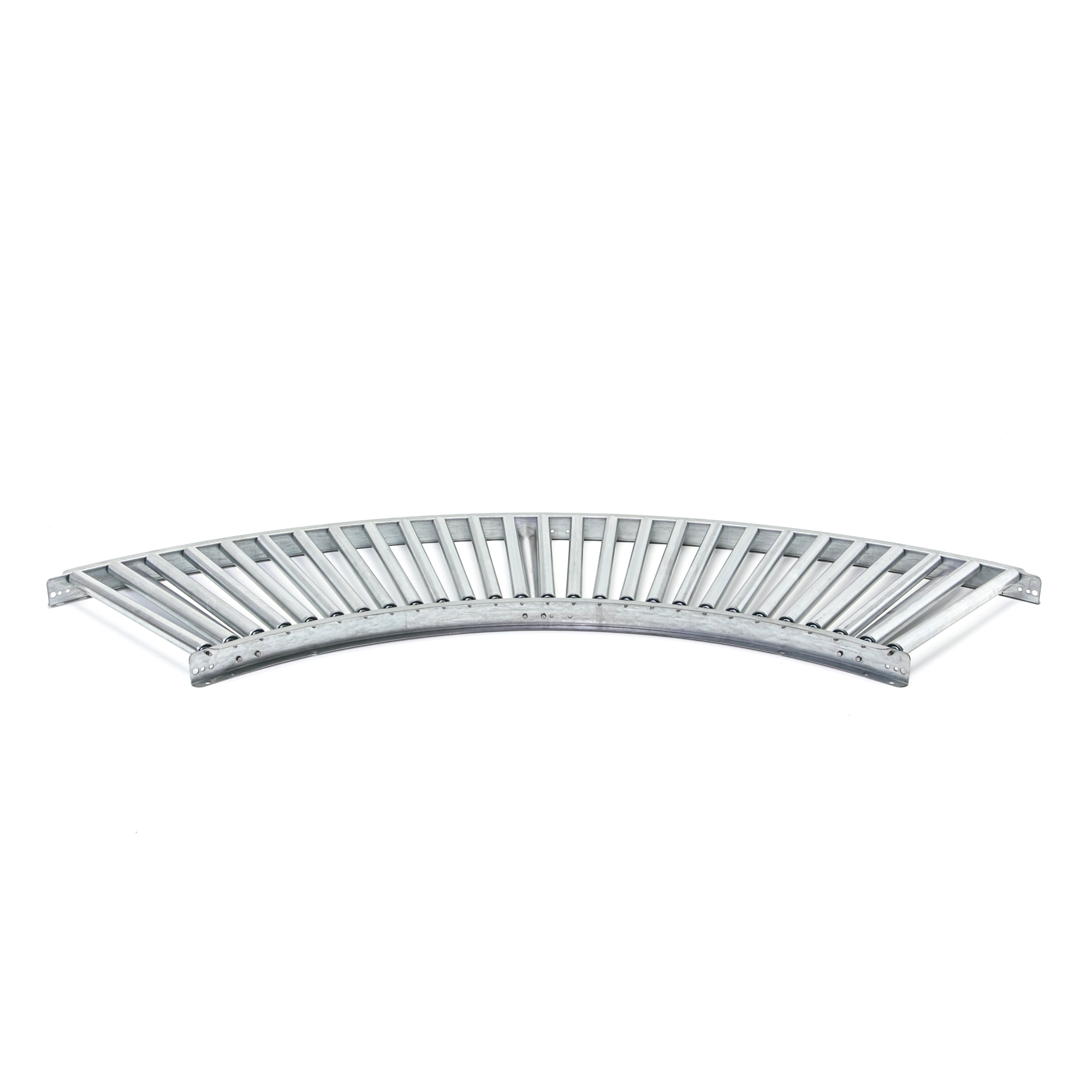

Unex, Gravity Conveyor Curve, Capacity 2,000 lb, Model# 1836JRSGS2.12590
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$324.99
- 1-3/8" dia. Gravity Roller Curves are compatible with straight sections, allowing flexibility to conveyor lines. Optional guard rail may be added for product protection. Our gravity roller conveyors can handle a wide variety of loads. In addition, the full-width rollers can carry items with irregular surfaces, such as drums and some wire baskets. 1-3/8" diameter roller (JRS series) are ideal for conveying product that weighs < 100 lbs, lightweight products and in operations that require portable or temporary conveyor lines, such as warehousing or shipping areas.
See full description
See All Pallet Flow Racking + Portable Conveyors
See All Unex Pallet Flow Racking + Portable Conveyors
Currently Viewing This Product
Specifications
Specifications
Unex, Gravity Conveyor Curve, Capacity 2,000 lb, Model# 1836JRSGS2.12590
Unex, 18in.W Gravity Conveyor 10ft. long 4.5in. Roller Centers 1.38in. Dia, Capacity 500 lb, Conveyor Length 120 in, Model# 18JRSGS4.5X10

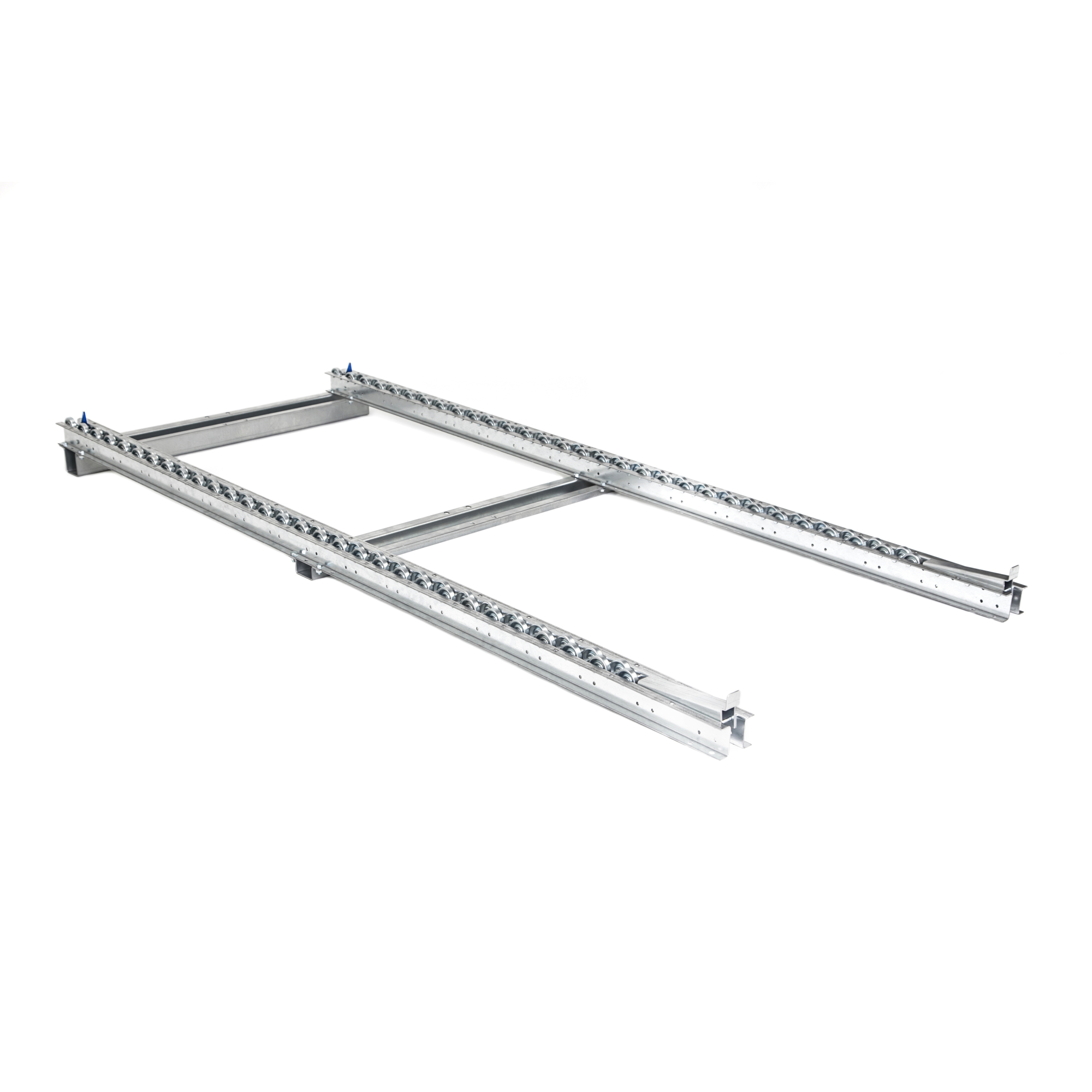

Unex, Pallet Track Floor Conveyor, Capacity 3,600 lb, Model# PTSW31538X96
Unex, Adjustable Tripod Support, Model# T244224
Width Between Frame
Same
16 in
16 in
-
-
Product Type
Same
Conveyor
Conveyor
Pallet Track
Stand
Min. Height
Same
8.75 in
7.75 in
-
24 in
Max. Height
Same
71.75 in
70.75 in
-
42 in
Folding
Same
No
No
No
No
Material
Same
Galvanized Steel
Galvanized Steel
Galvanized Steel
Galvanized Steel
Width
Same
18 in
18 in
-
24 in
Roller (qty.)
Same
27
27
-
-
Roller Diameter
Same
1.38 in
1.38 in
2 in
-
Motorized
Same
No
No
No
No
Capacity
Same
2,000 lb
500 lb
3,600 lb
-
Product Weight
Same
36.0000 lb
68.0000 lb
143.0000 lb
12.0000 lb
Dimensions L x W x H (in.)
Same
60.0 x 18.0 x 2.5 in
120.0 x 18.0 x 2.5 in
96.0 x 48.0 x 2.5 in
18.0 x 24.0 x 42.0 in
Conveyor Length
Same
-
120 in
-
-
Adjustable Height
Same
-
-
-
Yes
Fits Conveyor Width
Same
-
-
-
24 in
