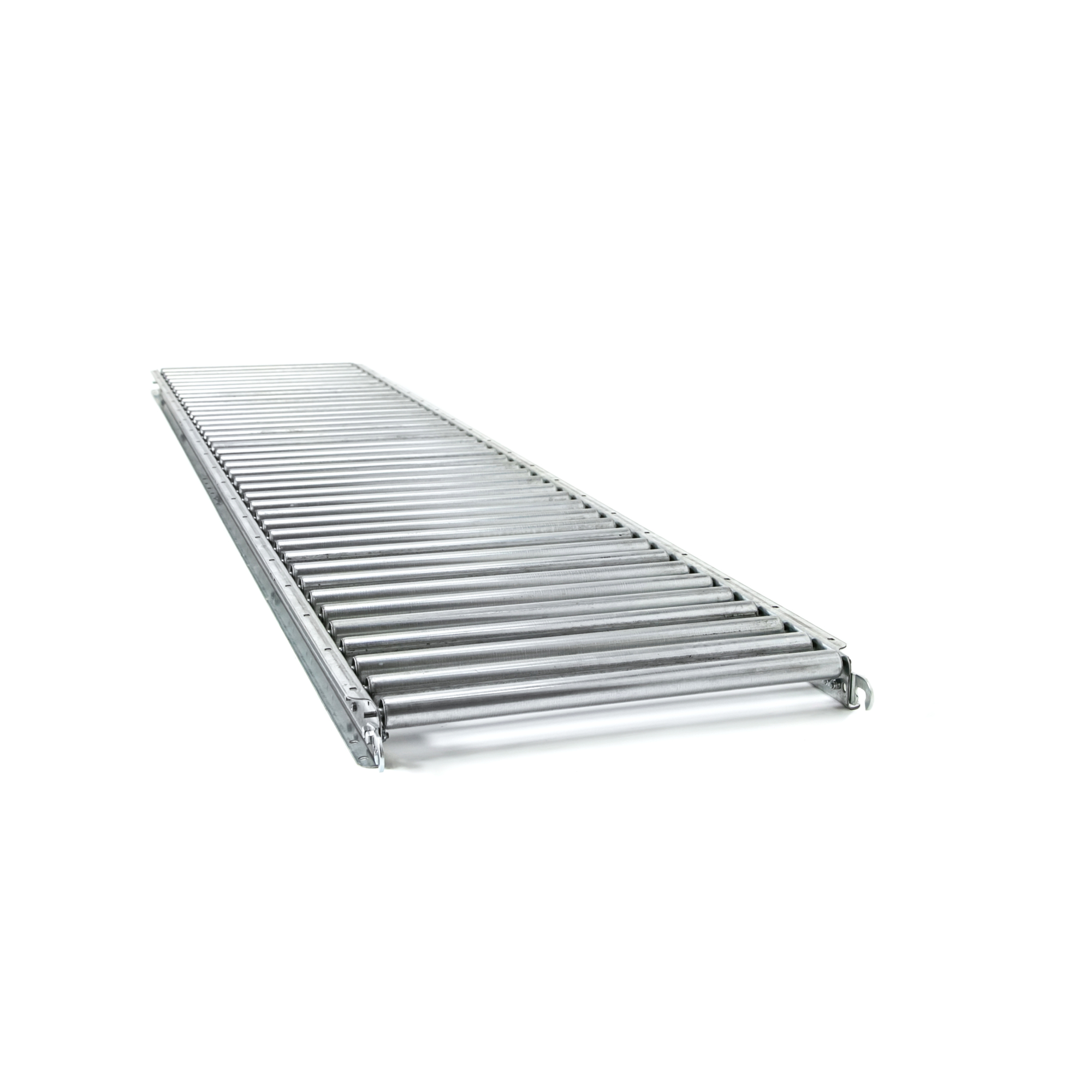

Unex, 24in.W Gravity Conveyor 10ft. long 3in. Roller Centers 1.38in. Dia, Capacity 500 lb, Conveyor Length 120 in, Model# 24JRSGS30X10

Item# 4478554
Unex, 24in.W Gravity Conveyor 10ft. long 3in. Roller Centers 1.38in. Dia, Capacity 500 lb, Conveyor Length 120 in, Model# 24JRSGS30X10

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Unex, 24in.W Gravity Conveyor 10ft. long 3in. Roller Centers 1.38in. Dia, Capacity 500 lb, Conveyor Length 120 in, Model# 24JRSGS30X10

Click or Tap image to Zoom

$419.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 1-3/8" diameter Gravity Roller Conveyor is ideally suited to convey light weight packages and where operations require portable or temporary conveyor lines such as warehousing or shipping areas. Our gravity roller conveyors can handle a wide variety of loads. In addition, the full-width rollers can carry items with irregular surfaces, such as drums and some wire baskets. 1-3/8" diameter roller (JRS series) are ideal for conveying product that weighs < 100 lbs, lightweight products and in operations that require portable or temporary conveyor lines, such as warehousing or shipping areas

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Unex Gravity Conveyor is a versatile and efficient solution designed to handle lightweight packages with ease, making it ideal for use in warehousing, shipping areas, and other operations that require portable or temporary conveyor lines. Measuring 24 inches wide and 10 feet long, this conveyor features 1.38-inch diameter rollers spaced at 3-inch centers, ensuring smooth and reliable movement of items. With a robust capacity of 500 lbs., it is capable of supporting substantial loads while maintaining operational efficiency. The durable construction and precise roller spacing of the Unex Gravity Conveyor provide consistent performance, making it a valuable addition to any workflow that demands flexibility and reliability in material handling.

What's Included

    (1) Conveyor Straight

Features + Benefits

  • 1-3/8" diameter Gravity Roller Conveyor is ideally suited to convey light weight packages and where operations require portable or temporary conveyor lines such as warehousing or shipping areas. Our gravity roller conveyors can handle a wide variety of loads. In addition, the full-width rollers can carry items with irregular surfaces, such as drums and some wire baskets. 1-3/8" diameter roller (JRS series) are ideal for conveying product that weighs < 100 lbs, lightweight products and in operations that require portable or temporary conveyor lines, such as warehousing or shipping areas

Key Specs

AttributeSpecification

item#

4478554

Brand

Unex

Manufacturer's Warranty

5 year limited warranty

Ship Weight

155.0 LB

Conveyor Length

120 in

Width Between Frame

22 in

Product Type

Conveyor

Min. Height

7.75 in

Max. Height

70.75 in
AttributeSpecification

Folding

No

Material

Galvanized Steel

Width

24 in

Roller (qty.)

40

Roller Diameter

1.38 in

Motorized

No

Capacity

500 lb

Product Weight

104.0000 lb

Dimensions L x W x H (in.)

120.0 x 24.0 x 2.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
