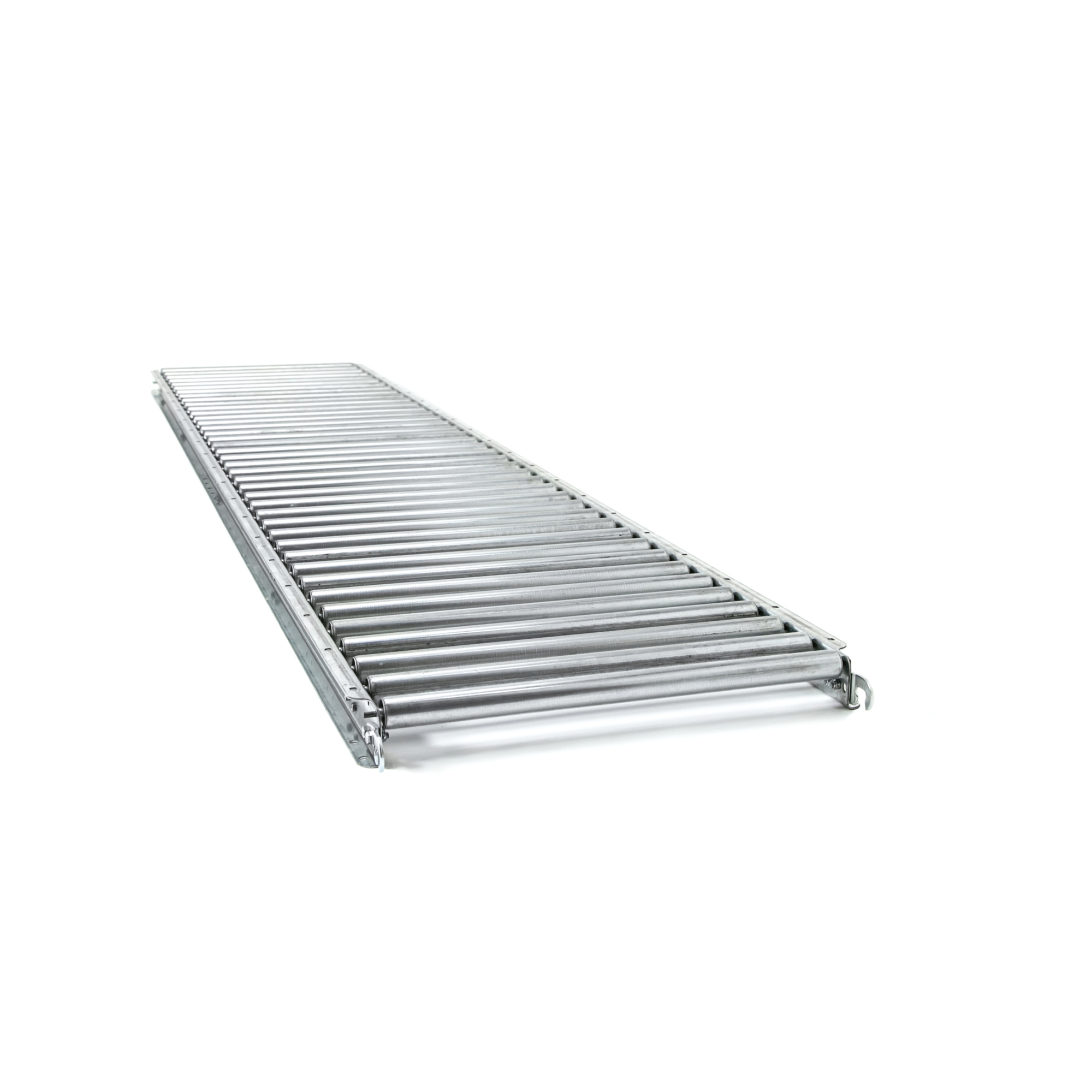

Unex, 18in.W Gravity Conveyor 5ft. long 6in. Roller Centers 1.38in. Dia, Capacity 2,000 lb, Conveyor Length 60 in, Model# 18JRSGS60X5

Item# 4478407
Unex, 18in.W Gravity Conveyor 5ft. long 6in. Roller Centers 1.38in. Dia, Capacity 2,000 lb, Conveyor Length 60 in, Model# 18JRSGS60X5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Unex, 18in.W Gravity Conveyor 5ft. long 6in. Roller Centers 1.38in. Dia, Capacity 2,000 lb, Conveyor Length 60 in, Model# 18JRSGS60X5

Click or Tap image to Zoom

$144.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 1-3/8" diameter Gravity Roller Conveyor is ideally suited to convey light weight packages and where operations require portable or temporary conveyor lines such as warehousing or shipping areas. Our gravity roller conveyors can handle a wide variety of loads. In addition, the full-width rollers can carry items with irregular surfaces, such as drums and some wire baskets. 1-3/8" diameter roller (JRS series) are ideal for conveying product that weighs < 100 lbs, lightweight products and in operations that require portable or temporary conveyor lines, such as warehousing or shipping areas

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Unex Gravity Conveyor is a robust and efficient solution designed for conveying lightweight packages in operations that require portable or temporary conveyor lines, such as warehousing or shipping areas. Measuring 18 inches wide and 5 feet long, this conveyor features 1.38-inch diameter rollers spaced 6 inches apart, ensuring smooth and reliable movement of goods. With a capacity of 2,000 lbs., it is built to handle substantial loads while maintaining stability and performance. The conveyor length is 60 inches, making it a versatile addition to any material handling setup. Engineered for durability and ease of use, the Unex Gravity Conveyor provides an optimal balance of strength and flexibility, making it an essential tool for improving workflow efficiency and productivity in various industrial environments.

What's Included

    (1) Conveyor Straight

Features + Benefits

  • 1-3/8" diameter Gravity Roller Conveyor is ideally suited to convey light weight packages and where operations require portable or temporary conveyor lines such as warehousing or shipping areas. Our gravity roller conveyors can handle a wide variety of loads. In addition, the full-width rollers can carry items with irregular surfaces, such as drums and some wire baskets. 1-3/8" diameter roller (JRS series) are ideal for conveying product that weighs < 100 lbs, lightweight products and in operations that require portable or temporary conveyor lines, such as warehousing or shipping areas

Key Specs

AttributeSpecification

item#

4478407

Brand

Unex

Manufacturer's Warranty

5 year limited warranty

Ship Weight

85.0 LB

Conveyor Length

60 in

Width Between Frame

16 in

Product Type

Conveyor

Min. Height

7.75 in

Max. Height

70.75 in
AttributeSpecification

Folding

No

Material

Galvanized Steel

Width

18 in

Roller (qty.)

10

Roller Diameter

1.38 in

Motorized

No

Capacity

2,000 lb

Product Weight

34.0000 lb

Dimensions L x W x H (in.)

60.0 x 18.0 x 2.5 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Are the rollers, aluminum or steel?

    1 answer

    1. The rollers are made of galvanized steel.

      Helpful?

  2. I need 2 sections of 5 foot rollers to put a chest type freezer from ground level to a 3 foot raise into the back of a ford 250 transist van. Can these roller section be joined together for a 10 foot section

    1 answer

    1. The conveyer sections are able to connect together to increase the length. The conveyer can be connected to the additional sections by either using a stand, hook and rod system or by the coupler model number 2H121.

      Helpful?

  3. Do they come assembled

    1 answer

    1. This unit is shipped fully assembled.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
