The conveyor can be placed directly on the ground for use. However, the recommended setup is to utilize adjustable floor supports, Model CS233818 (Item #4479012), which offer a height adjustment range from 23 inches to 38 inches.

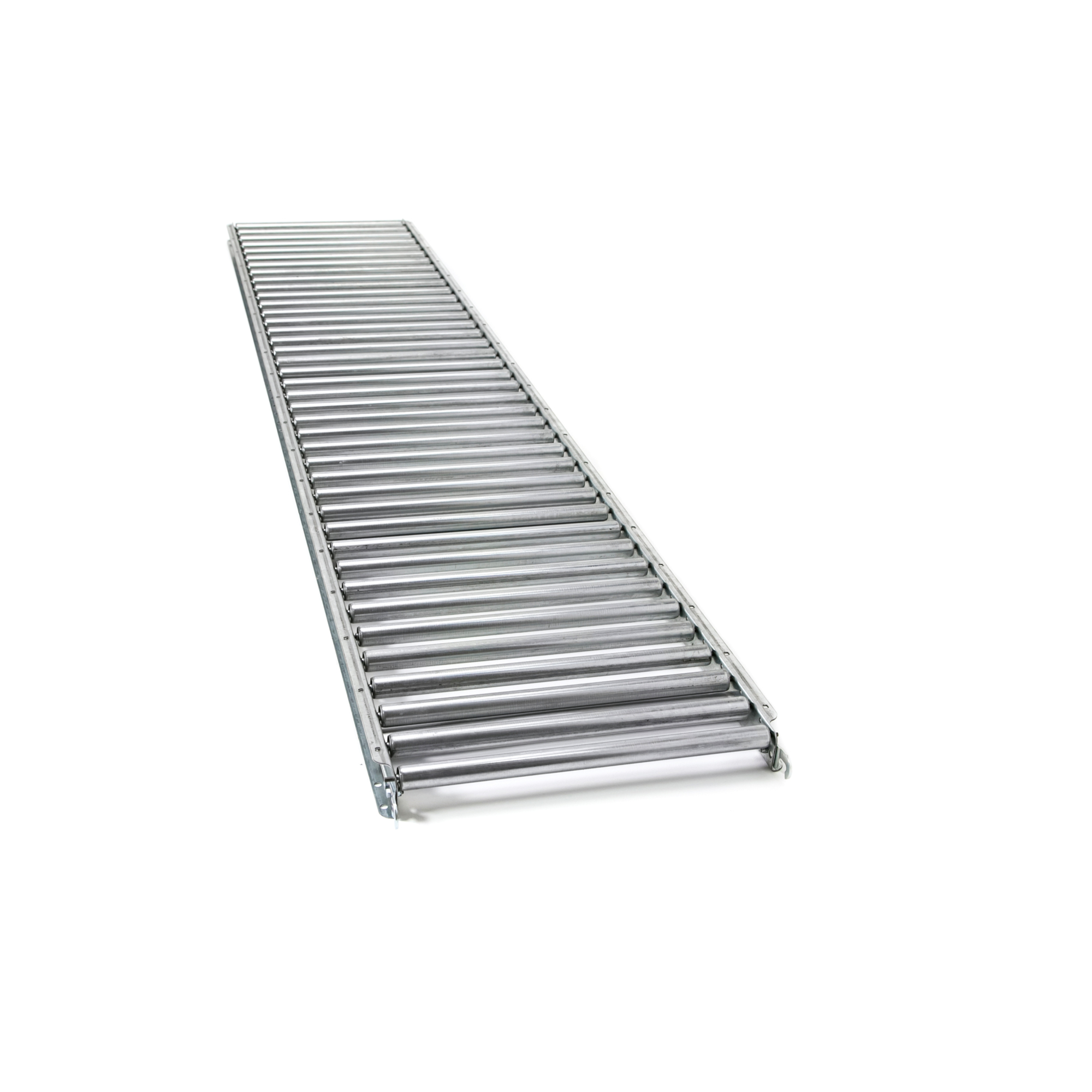

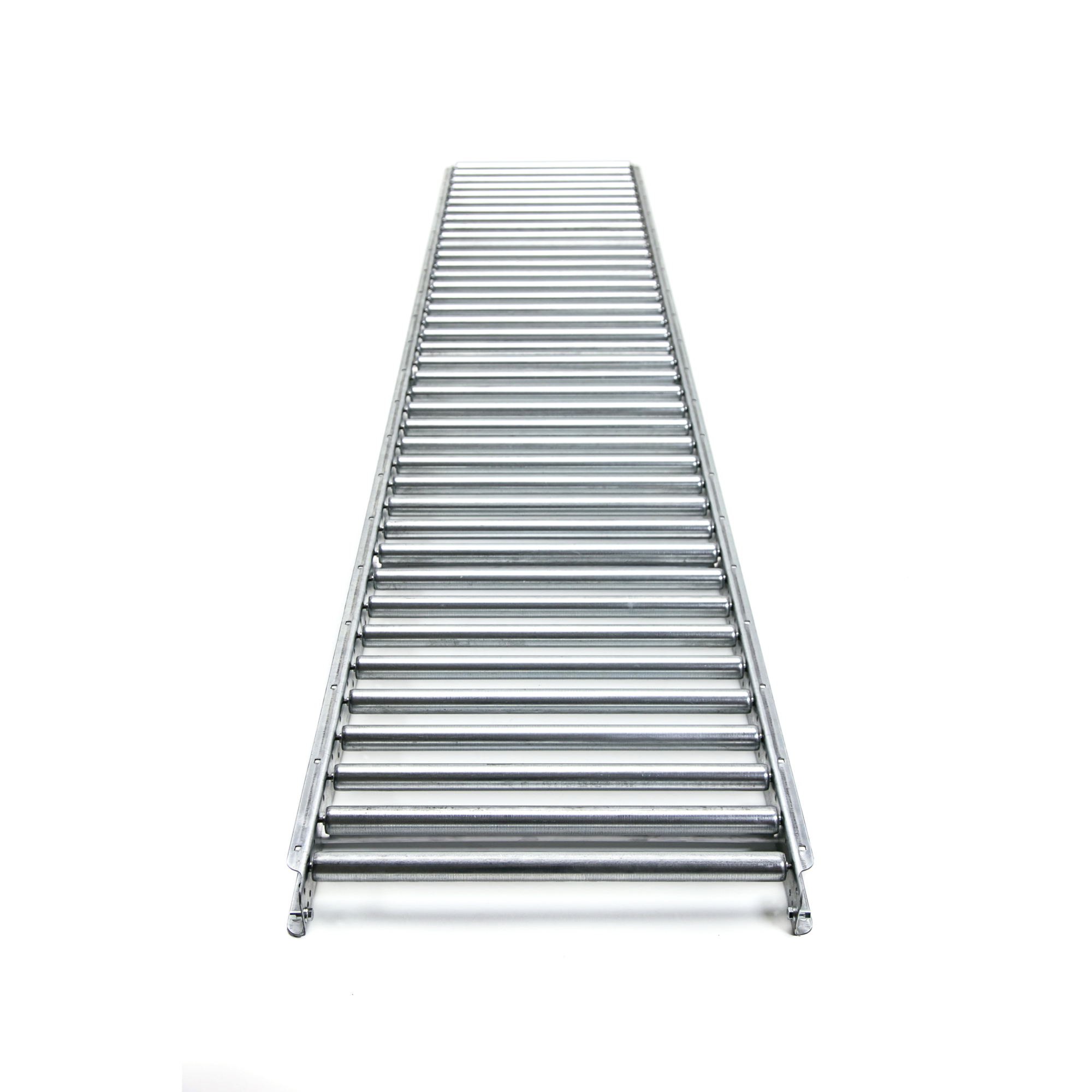

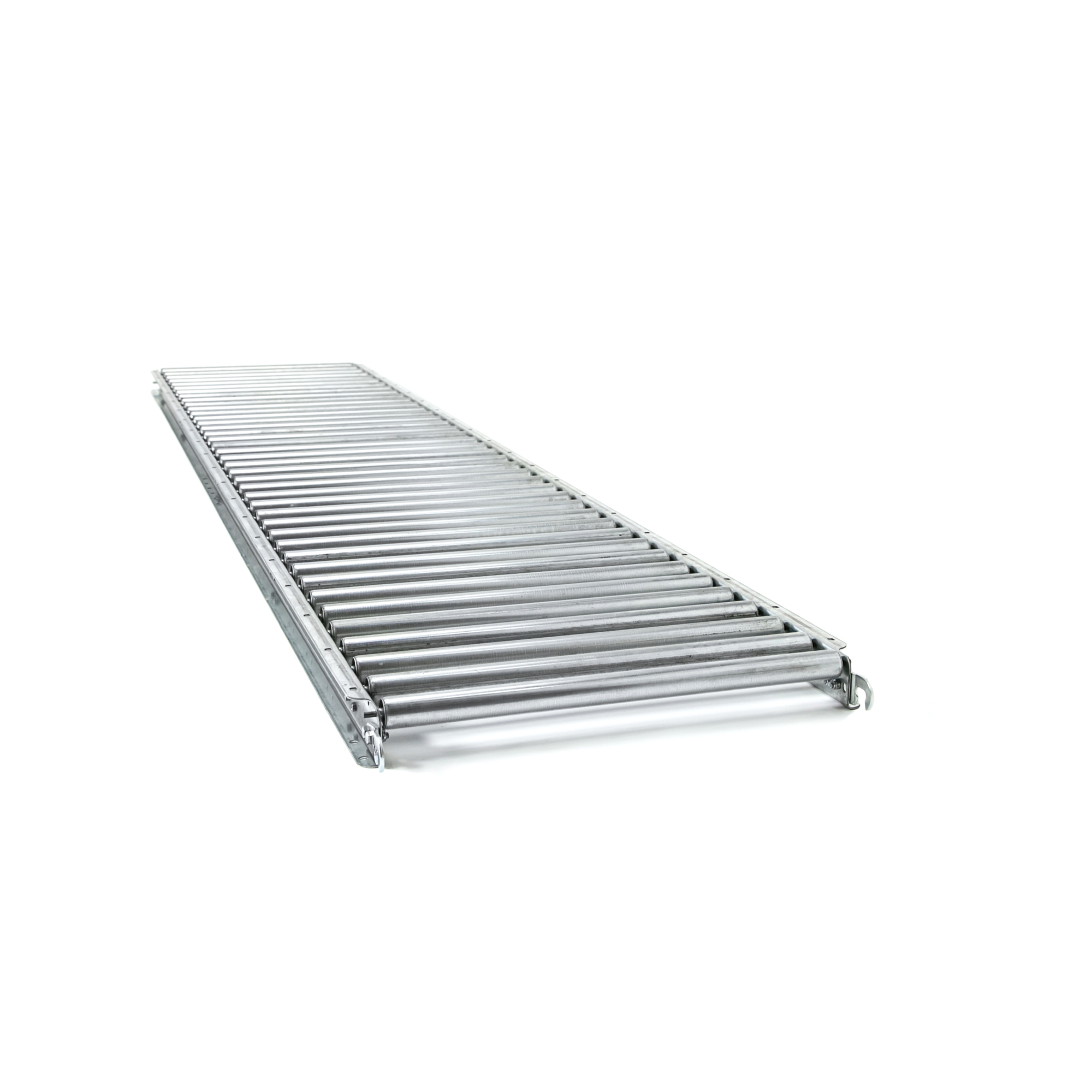

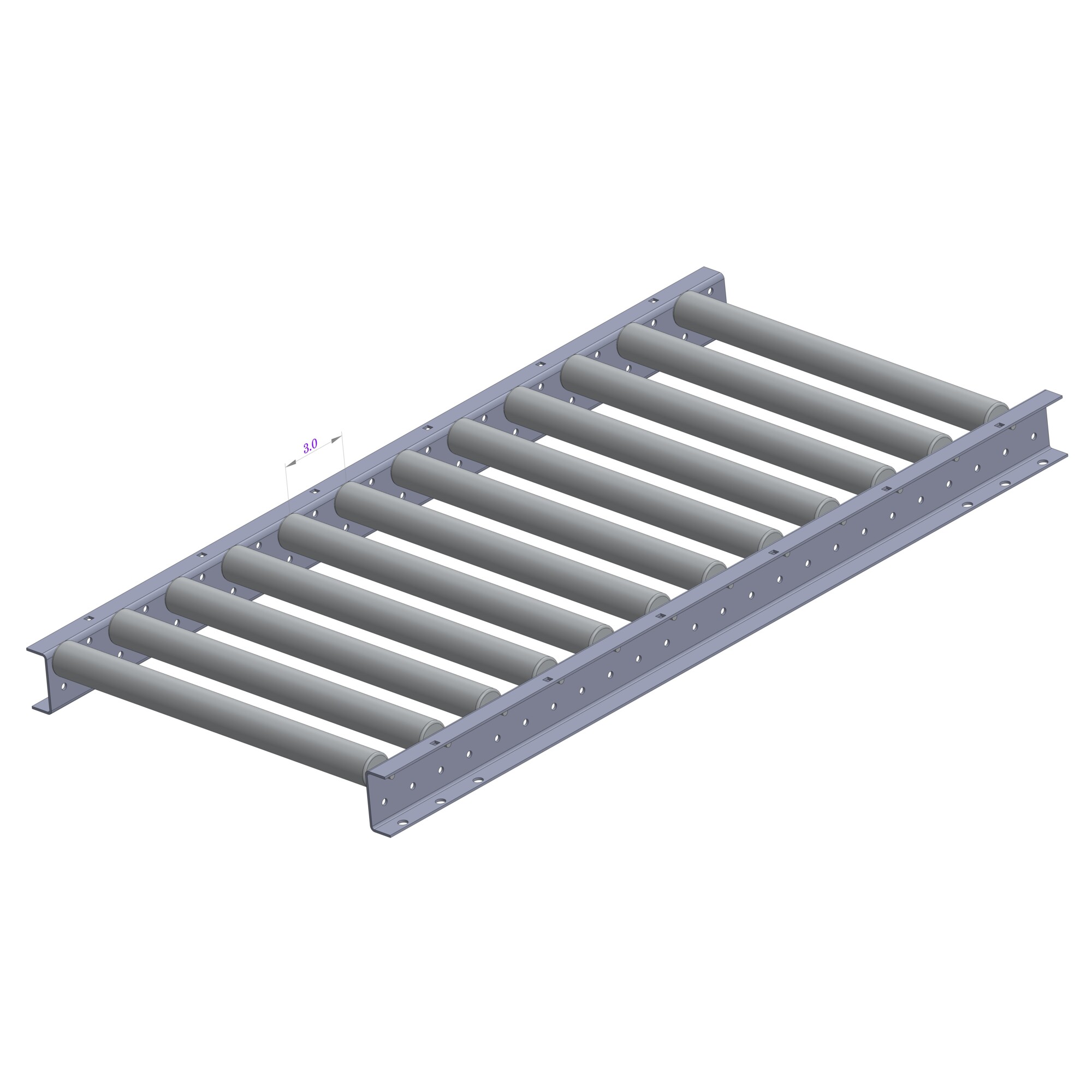

Unex, 18in.W Gravity Conveyor 5ft. long 3in. Roller Centers 1.38in. Dia, Capacity 2,000 lb, Conveyor Length 60 in, Model# 18JRSGS30X5
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$209.99
- 1-3/8" diameter Gravity Roller Conveyor is ideally suited to convey light weight packages and where operations require portable or temporary conveyor lines such as warehousing or shipping areas. Our gravity roller conveyors can handle a wide variety of loads. In addition, the full-width rollers can carry items with irregular surfaces, such as drums and some wire baskets. 1-3/8" diameter roller (JRS series) are ideal for conveying product that weighs < 100 lbs, lightweight products and in operations that require portable or temporary conveyor lines, such as warehousing or shipping areas
See full description
What's Included
- (1) Conveyor Straight
Features + Benefits
- 1-3/8" diameter Gravity Roller Conveyor is ideally suited to convey light weight packages and where operations require portable or temporary conveyor lines such as warehousing or shipping areas. Our gravity roller conveyors can handle a wide variety of loads. In addition, the full-width rollers can carry items with irregular surfaces, such as drums and some wire baskets. 1-3/8" diameter roller (JRS series) are ideal for conveying product that weighs < 100 lbs, lightweight products and in operations that require portable or temporary conveyor lines, such as warehousing or shipping areas
See All Pallet Flow Racking + Portable Conveyors
See All Unex Pallet Flow Racking + Portable Conveyors
Currently Viewing This Product
Specifications
Specifications
Unex, 18in.W Gravity Conveyor 5ft. long 3in. Roller Centers 1.38in. Dia, Capacity 2,000 lb, Conveyor Length 60 in, Model# 18JRSGS30X5
Unex, 18in.W Steel Conveyor Roller, Model# 2B048
Unex, 18in.W Gravity Conveyor 10ft. long 6in. Roller Centers 1.38in. Dia, Capacity 500 lb, Conveyor Length 120 in, Model# 18JRSGS60X10
Unex, 18in.W Gravity Conveyor 10ft. long 6in. Roller Centers 1.9in. Dia, Capacity 1,000 lb, Conveyor Length 120 in, Model# 18MRSG60X10
Conveyor Length
Same
60 in
-
120 in
120 in
Width Between Frame
Same
16 in
-
16 in
15 in
Product Type
Same
Conveyor
Roller
Conveyor
Conveyor
Min. Height
Same
7.75 in
-
7.75 in
8.75 in
Max. Height
Same
70.75 in
-
70.75 in
71.75 in
Folding
Same
No
No
No
No
Material
Same
Galvanized Steel
Galvanized Steel
Galvanized Steel
Galvanized Steel
Width
Same
18 in
14.563 in
18 in
18 in
Roller (qty.)
Same
20
1
20
20
Roller Diameter
Same
1.38 in
1.9 in
1.38 in
1.9 in
Motorized
Same
No
No
No
No
Capacity
Same
2,000 lb
-
500 lb
1,000 lb
Product Weight
Same
43.0000 lb
2.6700 lb
65.0000 lb
102.0000 lb
Dimensions L x W x H (in.)
Same
60.0 x 18.0 x 2.5 in
15.0 x 15.0 x 2.0 in
120.0 x 18.0 x 2.5 in
120.0 x 18.0 x 3.5 in
Fits Conveyor Width
Same
-
18 in
-
-
